Key Features

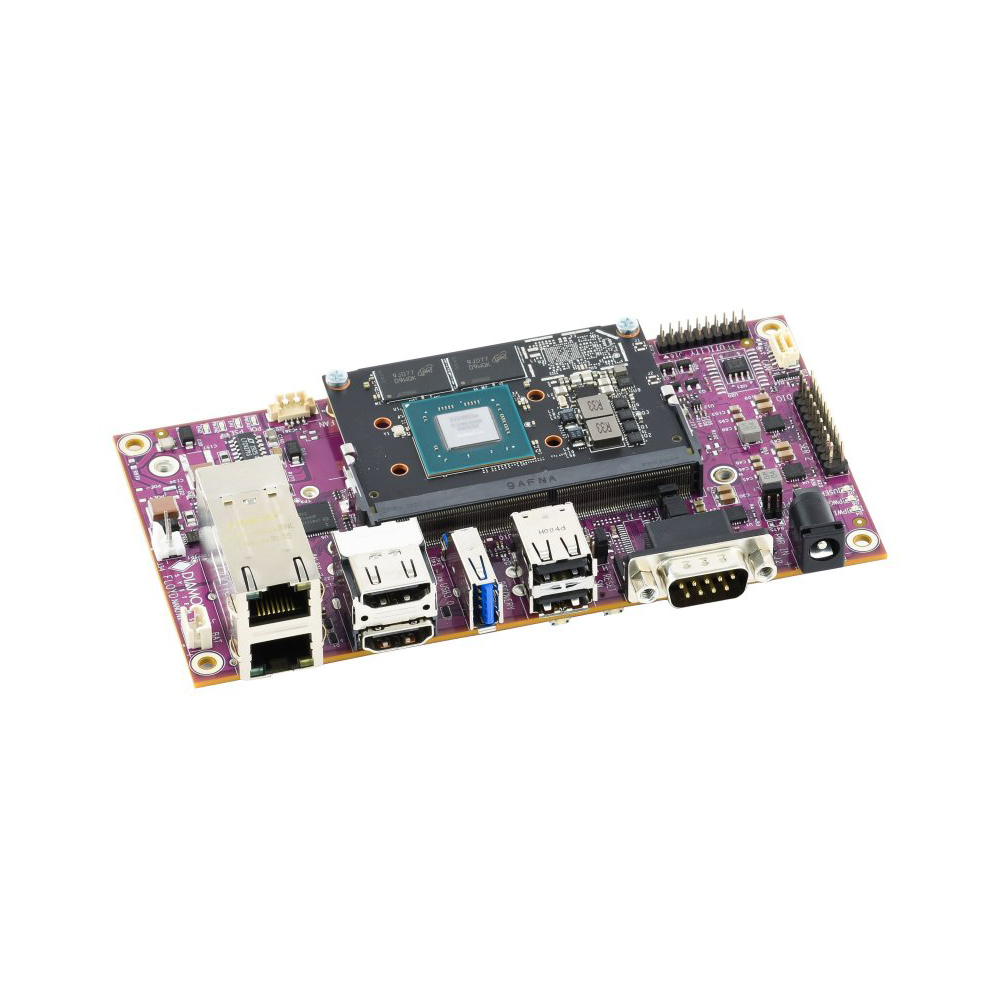

Jetbox-FloydSC JB-FLDSC-TNX-02 wide temperature PC from Diamond Systems provides a complete deployable solution for AI at the edge utilizing the Nvidia Jetson TX2 NX compact GPU modules. Diamond Systems' JetBox-Floyd SC JB-FLDSC-TNX-02 includes the Floyd SC carrier board and the selected Jetson module with Linux OS loaded, integrated into a compact steel + aluminum enclosure ready for use. The integrated heat sink cover provides cooling – no fan is required. An internal M.2 socket supports up to 2TB of additional storage beyond the flash included on the Jetson module. Shelf and DIN rail mounting are supported. A 12V AC adapter is included with the system.

Specification

Overview
Brand & Model	Diamond Systems JETBOX FLOYD-SC : JB-FLDSC-TNX-02
	NVIDIA Jetson TX2 Wide Temperature PC
Features	Compact Embedded Fanless GPU Industrial
Performance
System-on-Module	TX2 NX [4GB 128-bit LPDDR4x Memory] [256 Core GPU, 1.33 TFLOPs]
Operating System	Linux
Jetpack Version	JetPack 4.6
Graphics
AI Accelerator	NVIDIA Jetson SOM
Number of GPUs	Single GPU Support
GPU Architecture	NVIDIA Pascal
Display Outputs	1x HDMI
I/O
Ethernet	1x Ethernet Ports
	1 x GbE LAN [RJ45]
USB	3x USB Ports
	1 x USB 3.0 [Type A] 2 x USB 2.0 [Type A]
Serial	2x Serial Ports
	1 x RS232 [DB9] 1 x RS232/485 [DB9]
CANbus	1x CANbus Ports
	1 x CANbus [Board]
GPIO	GPIO [8-lines]
Expansion
M.2	1x M.2 Expansion Slots
	1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
Storage
Storage	16GB eMMC 1x M.2 SSD
NVMe	NVMe SSD Support
Power
Power Input	7-24V DC [Barrel Connector]
Environmental Conditions
Thermal Dissipation	Fanless Passively Cooled Chassis
Operating Temperature	-25°C to 80°C [-13°F to 176°F]
Certification	CE FCC
Mechanical Properties
Dimensions	124mm x 56mm x 99mm (4.88" x 2.2" x 3.9")
Mounting Options	DIN Mount
