Intel Elkhart Lake SBCs

Intel Elkhart Lake Single Board Computers (SBCs) epitomize a new era in embedded computing, boasting powerful features and exceptional performance. These SBCs leverage Intel’s Elkhart Lake processor architecture, delivering remarkable processing capabilities and optimal power efficiency. With a notable 1.7x improvement in single-thread performance and 1.5x improvement in multi-thread performance over previous generations, our Elkhart Lake single board computers built with Atom X6000E, Pentium, and Celeron CPUs, effortlessly handle demanding tasks.

Boasting compact small form factors, low power consumption, and an array of robust features such as high speed connectivity or wide operating temperature components, our Elkhart Lake SBC solutions find their rightful place in a multitude of industrial applications at the edge, including automation, digital signage, and robotics.

Performance

Graphics

I/O

Expansion

Storage

Environmental Conditions

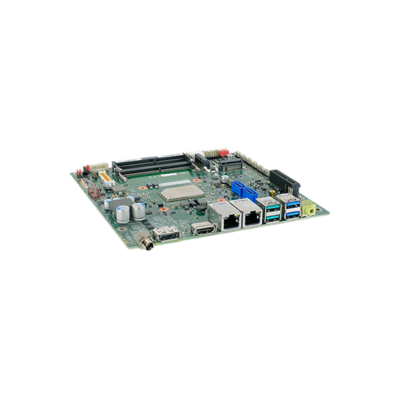

EHL173 Industrial Grade Mini ITX Elkhart Lake Motherboard with VGA and HDMI

DFI

Industrial Grade Mini ITX Elkhart Lake Motherboard with VGA and HDMI

EHL173

Industrial Grade Mini ITX Elkhart Lake Motherboard with VGA and HDMI

Available in 4 variations

View Product Add to Quote Datasheet

EHL173

Available in 4 variations

  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280/3042], 1x M.2 E-Key [PCIe/USB] [3042/3052]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x M.2 SSD, 2x SATA Ports
  • Power: 9-36V DC [Barrel Connector]
  • Temp: -5°C to 65°C [23°F to 149°F]
  • Certification: CE, FCC, UKCA
EHL171 12V DC Industrial Mini-ITX Embedded Motherboard with Celeron Elkhart Lake J6413 CPU

DFI

12V DC Industrial Mini-ITX Embedded Motherboard with Celeron Elkhart Lake J6413 CPU

EHL171

12V DC Industrial Mini-ITX Embedded Motherboard with Celeron Elkhart Lake J6413 CPU

Available in 2 variations

View Product Add to Quote Datasheet

EHL171

Available in 2 variations

  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280/3042], 1x M.2 E-Key [PCIe/USB] [3042/3052]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x M.2 SSD, 2x SATA Ports
  • Power: 12V DC [Barrel Connector]
  • Temp: -5°C to 65°C [23°F to 149°F]
  • Certification: CE, FCC, UKCA

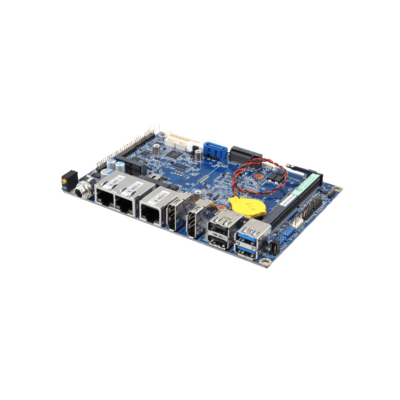

ECM-EHL3 3.5 Inch Intel Atom X6425RE Rugged Elkhart Lake SBC

Avalue

3.5 Inch Intel Atom X6425RE Rugged Elkhart Lake SBC

ECM-EHL3

3.5 Inch Intel Atom X6425RE Rugged Elkhart Lake SBC

Available in 4 variations

View Product Add to Quote Datasheet

ECM-EHL3

Available in 4 variations

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x LVDS, 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2242/2260]
  • Storage: 1x SATA Port, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC

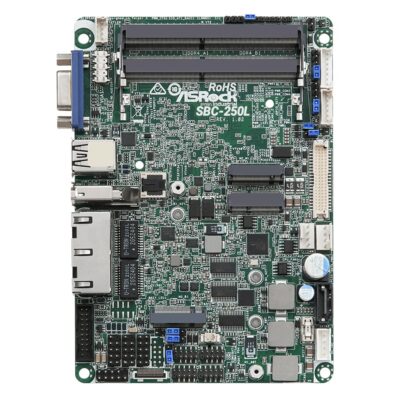

SBC-250 Intel Elkhart Lake Celeron N6210 3.5 Inch Industrial Single Board Computer

ASRock Industrial

Intel Elkhart Lake Celeron N6210 3.5 Inch Industrial Single Board Computer

SBC-250

Intel Elkhart Lake Celeron N6210 3.5 Inch Industrial Single Board Computer

Available in 4 variations

View Product Add to Quote Datasheet

SBC-250

Available in 4 variations

  • CPU: Celeron N Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x eDP, 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Board], 1 x USB 2.0 [Type A], 1 x USB 3.2 Gen 1 [Board], 1 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2280/3042/3060]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: 0°C to 70°C [32°F to 158°F]
  • Certification: CE, FCC

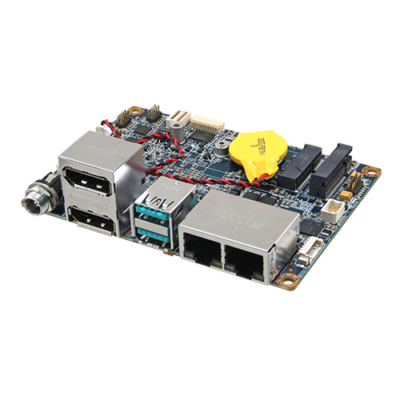

EPX-EHLP Pico ITX Industrial Motherboard with Elkhart Lake Atom X6413E CPU

Avalue

Pico ITX Industrial Motherboard with Elkhart Lake Atom X6413E CPU

EPX-EHLP

Pico ITX Industrial Motherboard with Elkhart Lake Atom X6413E CPU

Available in 3 variations

View Product Add to Quote Datasheet

EPX-EHLP

Available in 3 variations

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x LVDS, 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232 [Board], 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042]
  • Storage: 1x M.2 SSD
  • Power: 12V DC [Barrel Connector]
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • Certification: CE, FCC

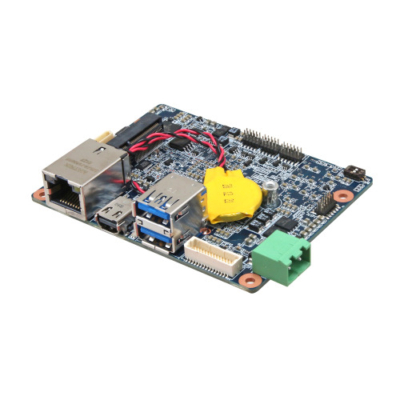

EZX-EHLP Industrial Femto-ITX Motherboard with Elkhart Lake Atom X6413E CPU

Avalue

Industrial Femto-ITX Motherboard with Elkhart Lake Atom X6413E CPU

EZX-EHLP

Industrial Femto-ITX Motherboard with Elkhart Lake Atom X6413E CPU

Available in 3 variations

View Product Add to Quote Datasheet

EZX-EHLP

Available in 3 variations

  • CPU: Atom X Series Elkhart Lake
  • Memory: 4GB Soldered On-board
  • OS: Linux, Windows 10
  • Display Outputs: 1x eDP, 1x Mini Display Port
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042]
  • Storage: 1x M.2 SSD
  • Power: 12V DC [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC

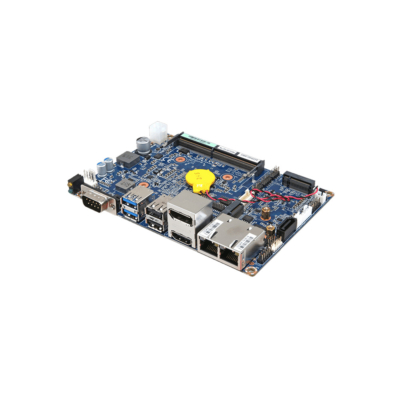

ECM-EHL Intel Atom X6425RE Elkhart Lake 3.5″ Rugged Single Board Computer

Avalue

Intel Atom X6425RE Elkhart Lake 3.5″ Rugged Single Board Computer

ECM-EHL

Intel Atom X6425RE Elkhart Lake 3.5″ Rugged Single Board Computer

Available in 4 variations

View Product Add to Quote Datasheet

ECM-EHL

Available in 4 variations

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 1 x RS232/422/485 [DB9], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC

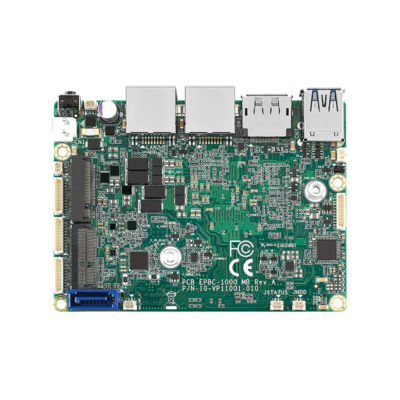

EPBC-1000 Dual Core x86 PICO-ITX SBC with Elkhart Lake Atom CPU

Vecow

Dual Core x86 PICO-ITX SBC with Elkhart Lake Atom CPU

EPBC-1000

Dual Core x86 PICO-ITX SBC with Elkhart Lake Atom CPU
View Product Add to Quote Datasheet

EPBC-1000

Dual Core x86 PICO-ITX SBC with Elkhart Lake Atom CPU

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 1 x RS232 [Board], 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2280], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
  • Storage: 1x SATA Port
  • Power: 12V DC [Terminal Block]
  • Temp: -40°C to 70°C [-40°F to 158°F]
  • Certification: CE, FCC

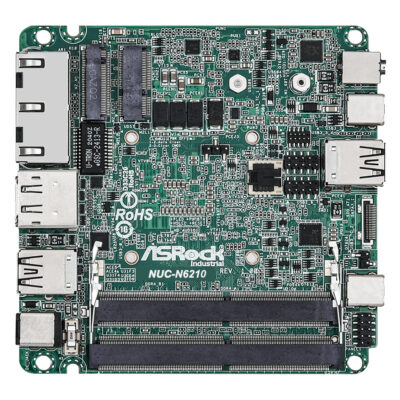

NUC-N6210 Elkhart Lake N6210 Celeron NUC Motherboard

ASRock Industrial

Elkhart Lake N6210 Celeron NUC Motherboard

NUC-N6210

Elkhart Lake N6210 Celeron NUC Motherboard
View Product Add to Quote Datasheet

NUC-N6210

Elkhart Lake N6210 Celeron NUC Motherboard

  • CPU: Celeron N Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10, Windows 11
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A], 2 x USB 3.2 Gen 2 [Type C]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-19V DC [Barrel Connector], AC Power Supply Included
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC
NUC-J6426 Elkhart Lake J6426 Pentium NUC Motherboard

ASRock Industrial

Elkhart Lake J6426 Pentium NUC Motherboard

NUC-J6426

Elkhart Lake J6426 Pentium NUC Motherboard
View Product Add to Quote Datasheet

NUC-J6426

Elkhart Lake J6426 Pentium NUC Motherboard

  • CPU: Pentium J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10, Windows 11
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A], 2 x USB 3.2 Gen 2 [Type C]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-19V DC [Barrel Connector], AC Power Supply Included
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC
NUC-J6412 Elkhart Lake J6412 Celeron NUC Motherboard

ASRock Industrial

Elkhart Lake J6412 Celeron NUC Motherboard

NUC-J6412

Elkhart Lake J6412 Celeron NUC Motherboard
View Product Add to Quote Datasheet

NUC-J6412

Elkhart Lake J6412 Celeron NUC Motherboard

  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10, Windows 11
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A], 2 x USB 3.2 Gen 2 [Type C]
  • Serial: 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-19V DC [Barrel Connector], AC Power Supply Included
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC
EHL556 Extended Temperature Elkhart Lake 3.5″ Single Board Computer

DFI

Extended Temperature Elkhart Lake 3.5″ Single Board Computer

EHL556

Extended Temperature Elkhart Lake 3.5″ Single Board Computer

Available in 3 variations

View Product Add to Quote Datasheet

EHL556

Available in 3 variations

  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 1 x RS232 [Board], 1 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [SATA] [2280], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 9-36V DC [Barrel Connector]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC
Showing all 12 results

Need Help Choosing Intel Elkhart Lake SBCs?

Tell us about your application and a member of the team will get right back to you.
