US Rear Mount Monitors
Rear-Mounted Touch Displays for Consoles and Machine Panels
A rear mount monitor fixes from behind the panel, so the screen sits in the cut-out and the front of the console stays flush with no brackets on show. Available from 6.5 to 19 inches with resistive touch as standard, in 4:3 and 5:4 formats.
Options include wide temperature builds for cold cabs and hot enclosures, SAW touch or protection glass, and HDMI or DVI inputs alongside VGA, suited to OEM consoles, machine panels, vehicle dashboards and defense equipment where the display is built into the product.
Speak to a display specialist to match the size, touch and temperature range to your panel.
Browse Our Rear Mount Displays
- Mounting Options: Rear Mount
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

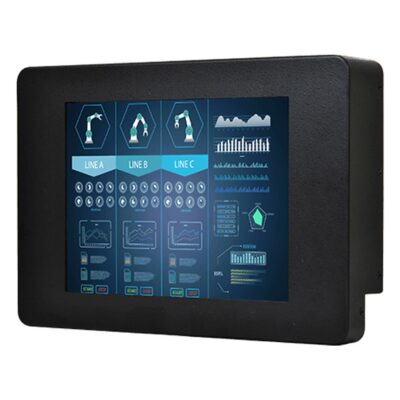

- Mounting Options: Rear Mount
- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 8.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 600
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

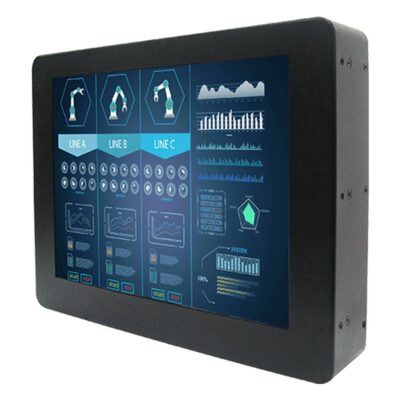

- Mounting Options: Rear Mount
- Display: 10.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 600
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 10.4"[4:3, 800 x 600, SVGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 12.1"[4:3, 800 x 600, SVGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

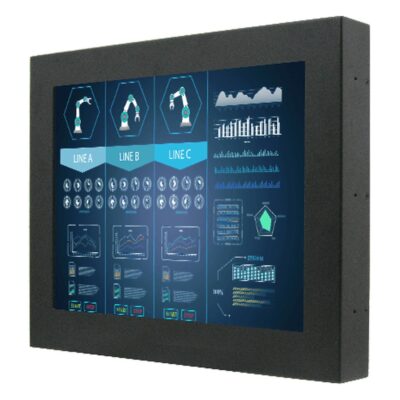

- Mounting Options: Rear Mount
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

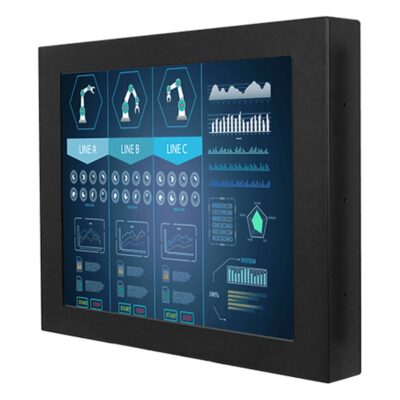

- Mounting Options: Rear Mount
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: Rear Mount
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
Beyond Rear Mount: Industrial Monitors
Rear Mount Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of built-in displays, so the ranges below are the ones we specify for consoles, machines and vehicles. Compare them by size, format and temperature range, then browse the models above or ask a display specialist which range suits your panel.

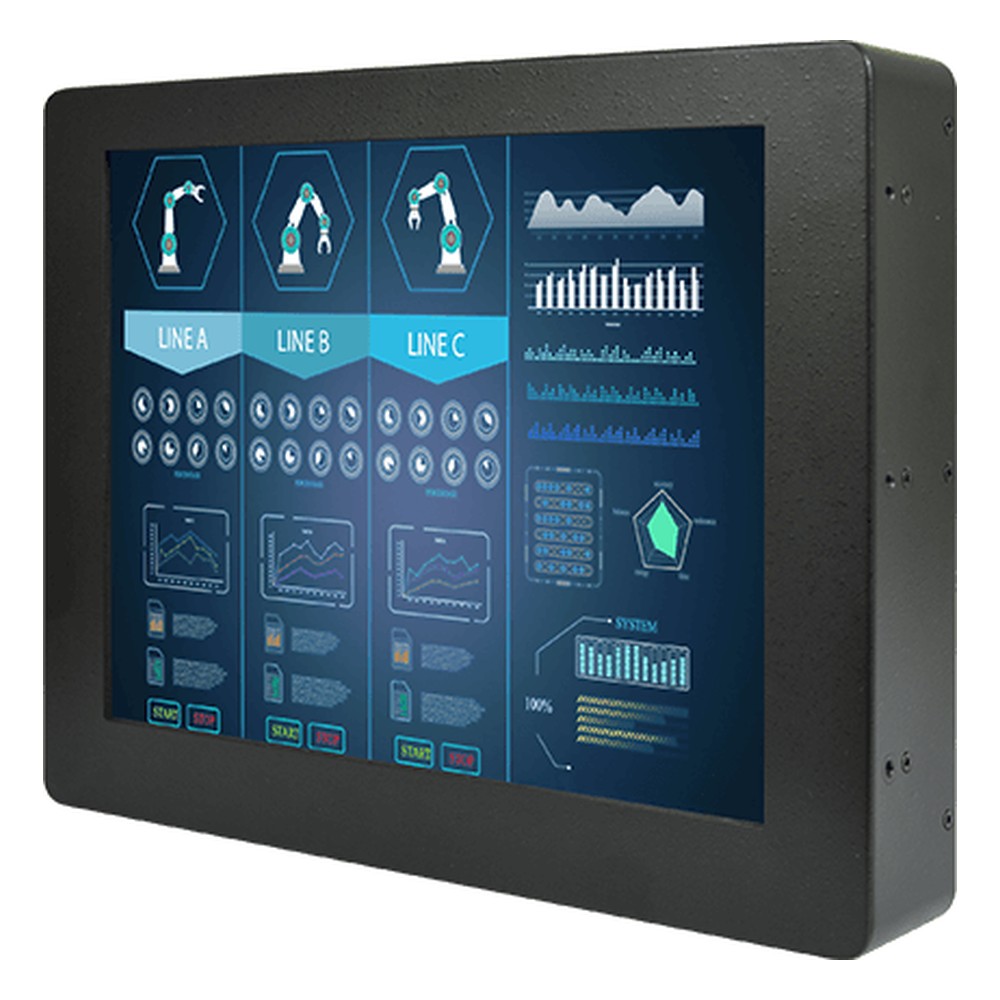

Winmate RM Rear Mount Monitors
Resistive touch screens from 6.5 to 19 inches in 4:3 and 5:4 formats, with -20 to 60 °C wide temperature builds, for fitting from behind a panel.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rear Mount Display
A rear mount display fixes from behind the panel, so the front stays flush and clean. The cut-out, touch, temperature range and inputs decide whether it suits the panel you are designing.
Cut-Out and Format
Match the cut-out and the 4:3 or 5:4 format to the panel you are designing, before the metalwork is made.
Rear Mounting
The display fixes from behind the panel, so the front stays flush, with the fixings hidden behind.
Resistive or SAW
Resistive touch for gloves and stylus, with SAW touch or plain protective glass offered as options.
Temperature Range
Wide temperature builds from −20 °C to 60 °C for vehicle cabs, outdoor enclosures and unheated panels.
Video Inputs
VGA as standard, with HDMI and DVI inputs available per model to suit the controller or host.
Screen Brightness
Check the panel brightness against the light at the panel, as cabs and outdoor enclosures need more than indoor ones.
Rear Mount Monitor Innovation & Console Design Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
