US AMD Ryzen Embedded V1000
Ryzen Embedded V1605B and V1807B Boards for Multi-Display Systems
Ryzen Embedded V1000 is AMD’s first embedded Zen generation, with up to four CPU cores and Radeon Vega graphics on one chip driving four independent 4K displays without a graphics card. The range covers 3.5-inch SBCs, a Mini-ITX board and an ultra-compact in-vehicle computer on the V1605B, V1807B, V1202B and V1404I.
Options include 12 to 25 W parts and the V1807B at up to 54 W, DP++, HDMI, LVDS and eDP outputs, two to four GbE ports, -30 to 80 °C builds and PoE+ with CAN bus on the vehicle computer, suited to digital signage, video walls, kiosks and control-room HMI.
Speak to an AMD Ryzen Embedded V1000 specialist to match the processor, the I/O and the enclosure to your application.
Browse Our Ryzen V1605B and V1807B Boards
Or choose a range below.
-
GH171-V1605B
GH171 with AMD Ryzen Embedded V1605B, quad-core 15 W and four DP++ outputs -
GH171-R1505G
GH171 with AMD Ryzen Embedded R1505G, dual-core 15 W and three DP++ outputs -
GH171-R1606G
GH171 with AMD Ryzen Embedded R1606G, dual-core 15 W and three DP++ outputs -
GH171-R2312B
GH171 with AMD Ryzen Embedded R2312, 25 W and four DP++ outputs -
GH171-R2314B
GH171 with AMD Ryzen Embedded R2314, 35 W and PCIe x16 at x8 -
GH171-R2514B
GH171 with AMD Ryzen Embedded R2514, 35 W and eight Radeon Vega compute units -
GH171-R2544B
GH171 with AMD Ryzen Embedded R2544, quad-core 54 W and four DP++ outputs -
GH171-V1202B
GH171 with AMD Ryzen Embedded V1202B, dual-core 15 W and four DP++ outputs -
GH171-V1756B
GH171 with AMD Ryzen Embedded V1756B, quad-core 45 W and four DP++ outputs -
GH171-V1807B
GH171 with AMD Ryzen Embedded V1807B, 45 W quad-core and four DP++ outputs
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.0 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, RoHS, UKCA
- CPU: AMD Ryzen V-Series
- Display Outputs: 4x Display Ports
- M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen3]
- CPU: AMD Ryzen V-Series
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 16GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 4x GbE LAN [RJ45] [PoE]
- USB: 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- CANbus: 1x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x2 Gen3] [2280]
- mPCIe: 3x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 3 x2]
- Power: 8-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- CPU: AMD Ryzen V-Series
- OS: Linux
- Display Outputs: 1x Display Port, 1x eDP, 2x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x2/SATA/USB] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- Ethernet: 2x GbE LAN [RJ45]
- CPU: AMD Ryzen V-Series
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x LVDS, 2x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- Ethernet: 4x GbE LAN [RJ45]
- CPU: AMD Ryzen V-Series
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux
- Display Outputs: 4x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board], 3x RS232 [Board]
- M.2: 1x M.2 E-Key [USB/PCIe] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
- PCIe: 1x PCIe [x8 Slot][Gen3]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -5°C to 60°C [23°F to 140°F]
- Certification: CE, FCC, UKCA
-
GH551-EC1-V1605B
GH551 with Ryzen Embedded V1605B rated -30 to 80 °C -
GH551-BC1-R1505G
GH551 with Ryzen Embedded R1505G and LVDS -
GH551-BC1-R1606G
GH551 with Ryzen Embedded R1606G and three DP++ outputs -
GH551-BC1-R2312
GH551 with Ryzen Embedded R2312 and LVDS -
GH551-BC1-R2314
GH551 with Ryzen Embedded R2314 and LVDS -
GH551-BC1-R2514
GH551 with Ryzen Embedded R2514 and quad display -
GH551-BC1-V1202B
GH551 with Ryzen Embedded V1202B and LVDS -
GH551-BC1-V1605B
GH551 with Ryzen Embedded V1605B and four DP++ outputs -
GH551-EC1-R1606G
GH551 with Ryzen Embedded R1606G rated -30 to 80 °C -
GH551-EC1-V1404I
GH551 with Ryzen Embedded V1404I rated -30 to 80 °C
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux, Windows 10
- Ethernet: 3x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Certification: CE, FCC, RoHS
- CPU: AMD Ryzen V-Series
- Display Outputs: 4x Display Ports
- Temp: -30°C to 80°C [-22°F to 176°F]
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [SATA] [3042]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -40°C to 75°C [-40°F to 167°F]
- Certification: CE, FCC
- CPU: AMD Ryzen V-Series
All AMDBack to the full rangeAMD Ryzen Embedded V1000 Ranges Configured by Things Embedded
We work with the leading manufacturers of AMD embedded boards and computers, so the ranges below are the ones we specify on this generation. Compare them by size, I/O and cooling, then browse the products above or ask a specialist which range suits your application.

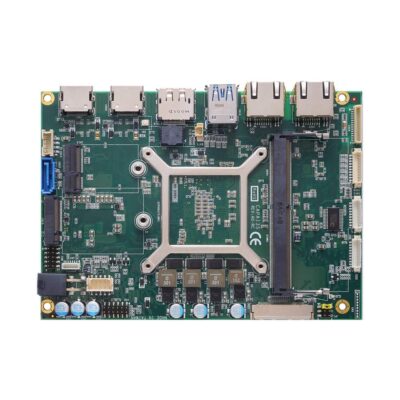

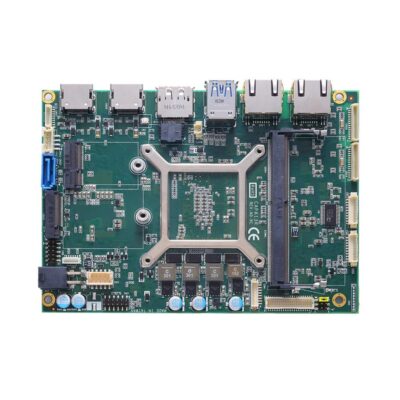

CAPA13R and CAPA13S Axiomtek 3.5-Inch SBCs
3.5-inch boards on the V1605B or V1807B with quad-view display and two to four GbE ports, with eDP on the CAPA13S.

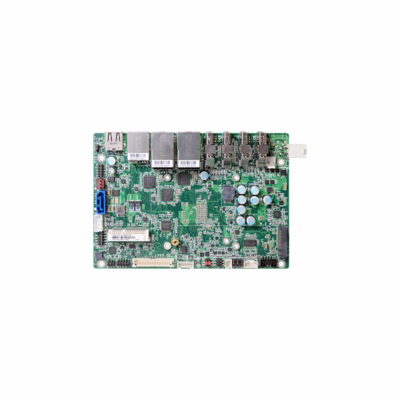

GH551 DFI 3.5-Inch SBCs
3.5-inch boards on the V1605B, V1202B or V1404I with up to four 4K DP++ outputs, triple GbE and -30 to 80 °C builds.
CT-DR101 C&T 3.5-Inch SBC
A 3.5-inch board on the V1605B with triple display, rated from -40 to 75 °C.

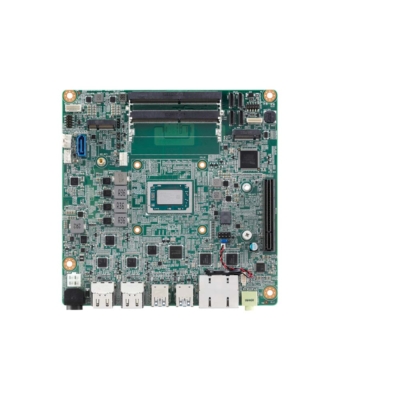

V1000 Nexcom Mini-ITX Motherboard
A Mini-ITX board on the V1605B with four HDMI 2.0 outputs and Radeon Vega 8 graphics, for video walls and signage players.

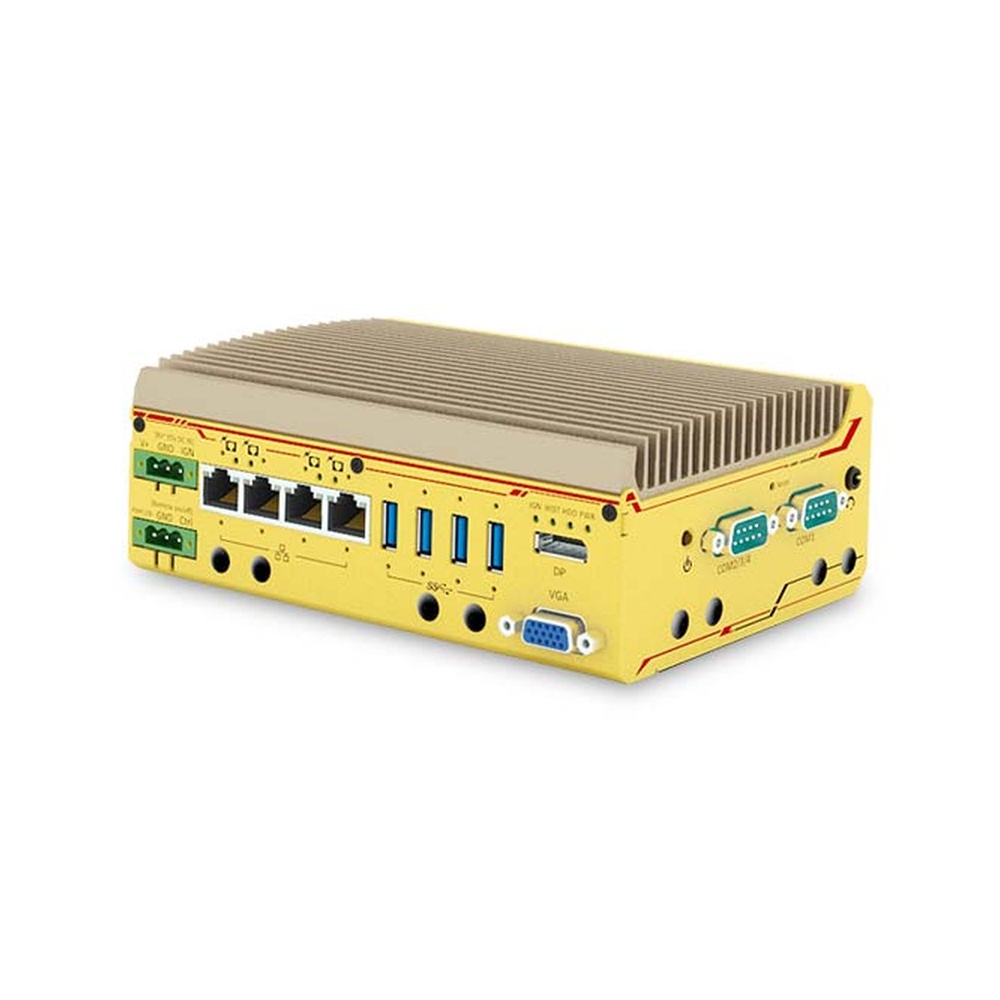

POC-551VTC Neousys In-Vehicle Computer
An ultra-compact V1605B in-vehicle computer with 4x PoE+ for cameras and an isolated CAN bus.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Ryzen V1605B Board
Our embedded board specialists specify every system on this generation against the workload, the enclosure and the years it has to stay in production. These are the choices we work through with you before recommending a range.
Processor and Power
V1202B and V1404I for lower power, V1605B at 12 to 25 W, V1807B up to 54 W for heavier graphics.
Displays
Up to four independent 4K outputs on DP++, HDMI, LVDS or eDP, with no graphics card.
Board Size
3.5-inch SBCs, a Mini-ITX board or a complete in-vehicle computer.
Temperature
Extended-temperature builds for kiosks, enclosures and vehicles.
Networking and PoE
Two to four GbE ports, with PoE+ on the in-vehicle computer.
Lifecycle
Embedded parts on AMD's long availability plan, so a board design can be repeated.
Ryzen V1000 Innovation & Multi-Display Insights
Speak to an AMD Ryzen Embedded V1000 Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
