SDVoE Capture Cards for AV-over-IP Systems
An SDVoE capture card receives uncompressed-quality AV-over-IP video straight from a 10G network, so a PC can record or process sources already distributed over SDVoE without a separate decoder. Available as single and four-channel PCIe cards with 10G copper RJ45 or SFP+ fiber ports at up to 4K60.
Options include an HDMI loop-out on the single-channel cards for a local monitor, suited to control rooms, broadcast facilities and large AV installations built on an SDVoE network.
Speak to a video capture specialist to match the channel count and network ports to your system.
Browse Our SDVoE Capture Cards
- Video Input: 1x RJ45 (10G)
- Host: M.2 [2280, M-Key]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

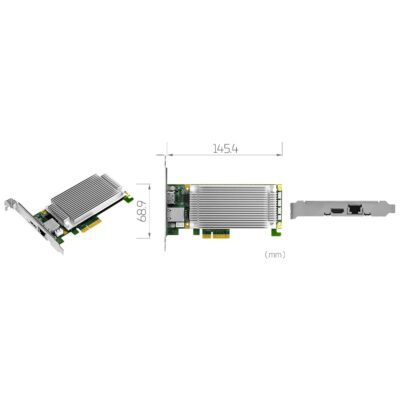

- Video Input: 1x RJ45 (10G)
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

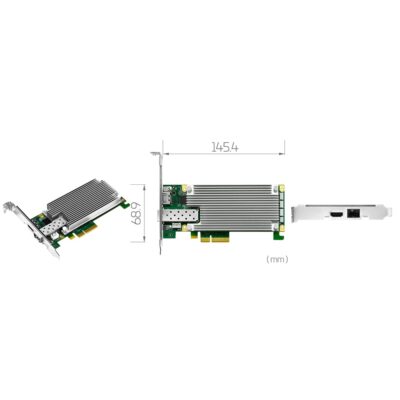

- Video Input: 1x SFP+ (10G)
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

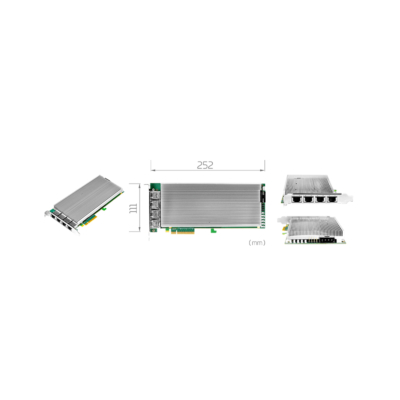

- Video Input: 4x RJ45 (10G)
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

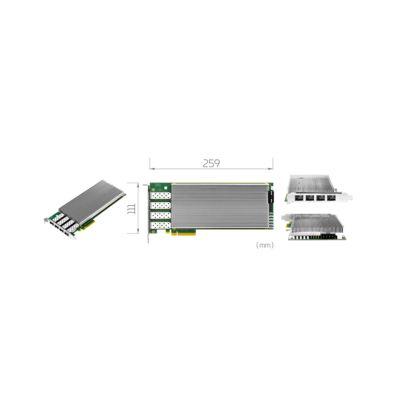

- Video Input: 4x SFP+ (10G)
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
SDVoE Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of SDVoE capture cards, so the ranges below are the ones we specify for AV-over-IP control rooms and facilities. Compare them by channel count and network ports, then browse the models above or ask a video capture specialist which range suits your network.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
Not sure which range fits? Tell us the application and we will recommend the right model.
Explore Our Capture Cards and Frame Grabbers
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
What to Specify in an SDVoE Capture Card
An SDVoE capture card takes 4K60 video straight from a 10G AV over IP network into a computer, without a separate decoder. It suits recording, analysis and AI on live AV over IP feeds.
SDVoE Network Input
The card joins an SDVoE network as a receiver, taking visually lossless video from any transmitter on the system.
4K60 Capture
Every card captures at up to 4K60, with HDR on selected models for medical and production sources.
Channel Count
Single-input cards for one stream, or four-input PCIe cards for multiview and multi-source recording.
10G Copper or Fiber
SFP+ fiber ports on most cards, with 10G copper on others. Match the port to the switch and cable run.
PCIe or M.2
PCIe cards for desktop and rack PCs, and M.2 cards for compact embedded and edge AI systems with no full-size slot.
AI on the Stream
Jetson Orin support on selected cards lets live AV over IP video feed AI models directly on an edge computer.
Speak to an AV-over-IP Specialist.
Tell us how your SDVoE network is built, how many streams you need to record and what software records them. We will recommend the right capture card and ports, then configure and test it with your system before it ships.
