US USB-C Monitors
USB-C Displays for Single-Cable Touch Stations
A USB-C monitor takes video, touch and power from the host over one USB Type-C cable, so a touch station needs a single connection instead of separate video, USB and power runs. Available from 7 to 15.6 inches with PCAP touch, in open frame, chassis and flat-bezel builds.
Options include high-brightness panels for bright rooms and front IP65 chassis builds for wipe-down areas, suited to kiosks, test benches, laptop or tablet hosts and machine panels where cabling space is tight.
Speak to a display specialist to match the size, touch and host connection to your system.
Browse Our USB-C Industrial Displays
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

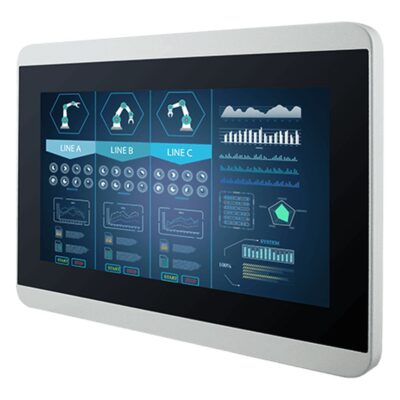

- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

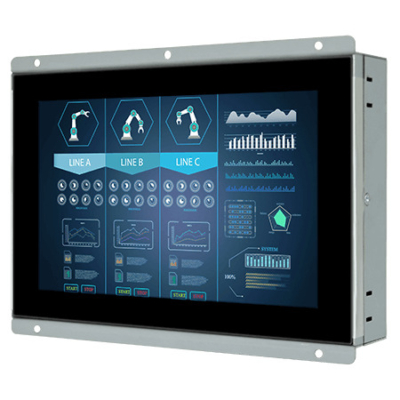

- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

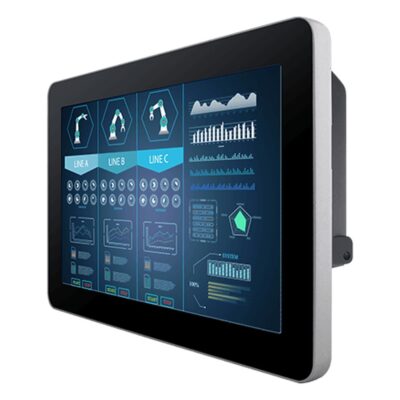

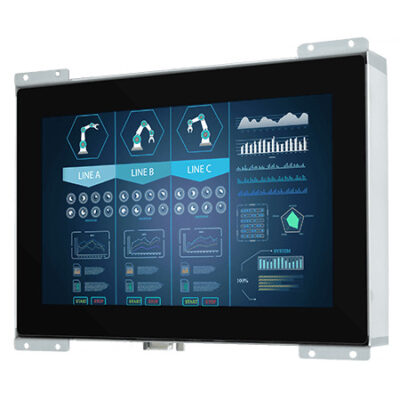

- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000, 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

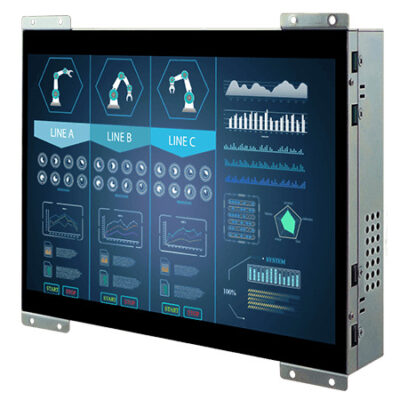

- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

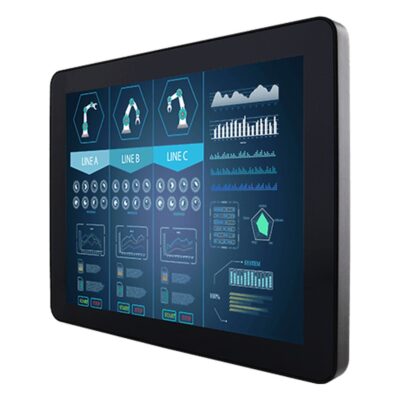

- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

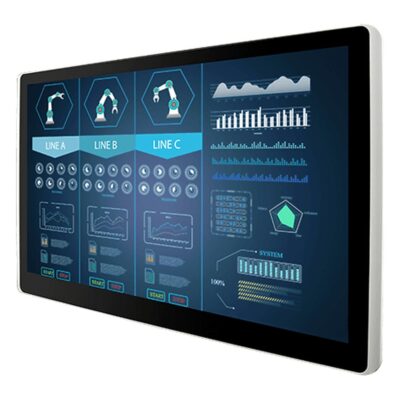

- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x USB Type C
- Power: 5V [USB-C]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
Beyond USB-C: Industrial Monitors
USB-C Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of single-cable touch displays, so the ranges below are the ones we specify for kiosks, benches and machine panels. Compare them by size, housing and brightness, then browse the models above or ask a display specialist which range suits your host.

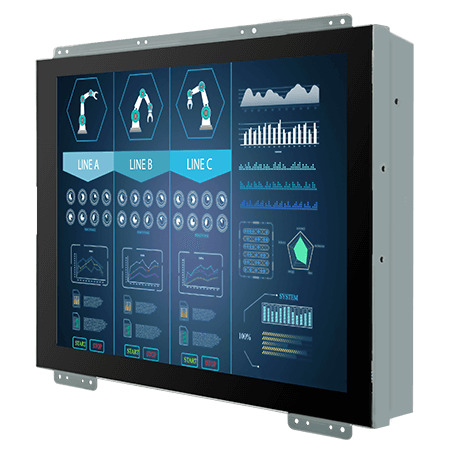

Winmate USB-C Open Frame Touch Monitors
Frameless 7 to 15 inch PCAP screens for building into kiosks and OEM enclosures.

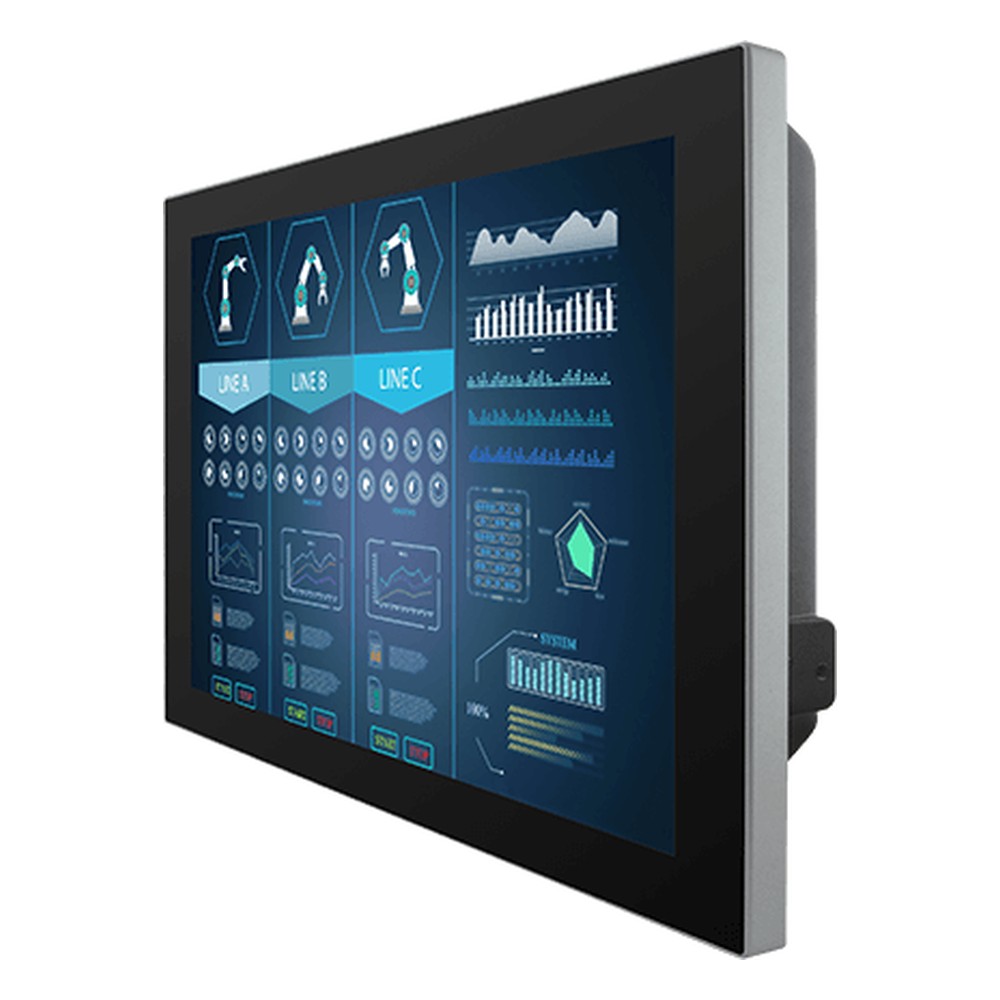

Winmate G-WIN USB-C Touch Displays
Chassis screens from 7 to 15 inches with a front IP65 face, including a 1000 nit high-brightness build.

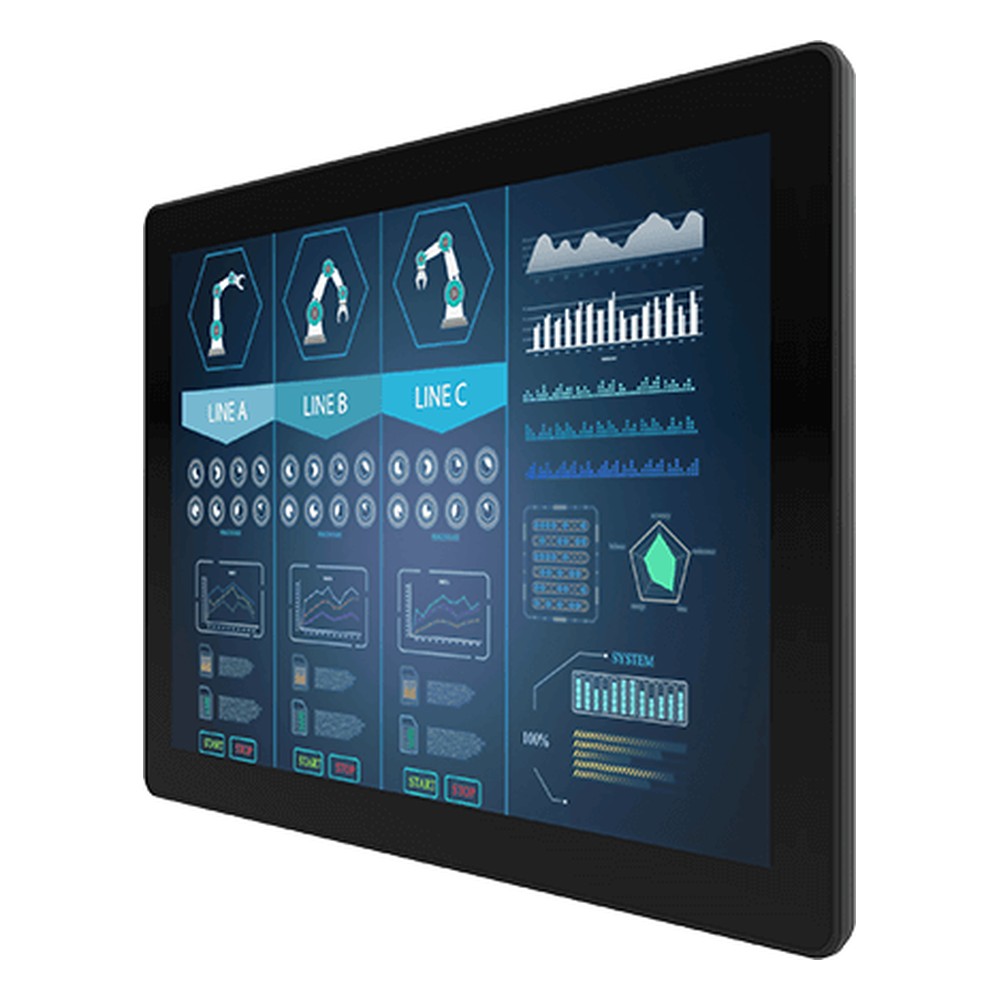

Winmate PT USB-C Touch Screens
Flat-bezel 15 and 15.6 inch PCAP monitors for desks, carts and kiosks.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a USB-C Touchscreen Display
A USB-C touchscreen display can take video, touch and power over one cable, but only if the host port supports it. Mounting, brightness and touch then decide where it fits.
One Cable
Video, touch and power over one USB Type-C connection in DisplayPort Alt Mode, with no separate power supply.
Host Port Support
Check the host's USB-C port supports DisplayPort Alt Mode and can deliver the power the screen draws.
Panel or Open Frame
Open frame builds for enclosures, chassis builds for VESA arms and desk mounting beside the host.
Screen Brightness
Standard panels for indoor use, with 1,000 nit builds for bright rooms and screens facing windows.
PCAP Touch
Multi-touch glass that works with the host's native touch drivers, so no extra software is needed.
Other Video Inputs
Check for HDMI or DisplayPort inputs as well, so the screen can still connect to hosts without USB-C video.
USB-C Monitor Innovation & Touch Station Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
