US Sunlight Readable Panel PCs
Sunlight Readable Touch Screen PCs for Outdoor and In-Cab Use
Sunlight readable panel PCs put a 1,000 nit high-brightness screen where daylight falls on the glass: open cabs, decks, yards and outdoor enclosures. Available from 10 to 19 inches with PCAP or resistive touch and sealing from a front IP65 bezel to fully sealed IP66 and IP67, they stay legible where a standard panel washes out.
Options include optical bonding and anti-glare glass, M12 connectors, wide-range DC input with ignition control, 4G and 5G modems and NVIDIA Jetson AI models for vision on the vehicle, suited to agriculture, marine, mining and mobile machinery where the HMI works outdoors all day.
Speak to a panel PC specialist to match the brightness, sealing and power input to your cab or site.
Browse Our Outdoor High-Brightness Panel PCs
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 9-24V DC Input [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Processor N Series Twin Lake
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x Optional HDMI, 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Processor N Series Twin Lake
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

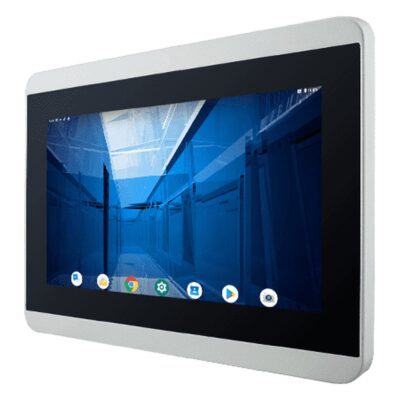

- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Display Outputs: 1x Optional Micro HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

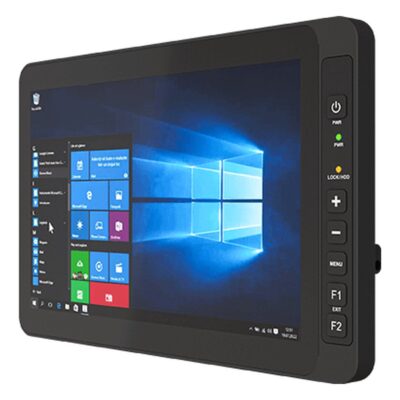

- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -25°C to 55°C [-13°F to 131°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount

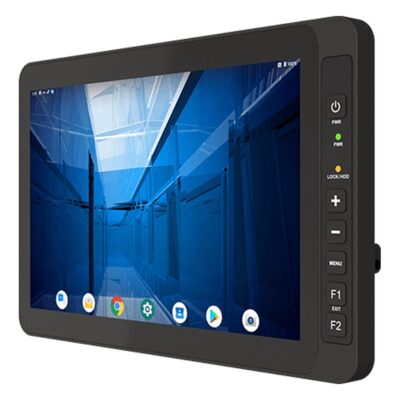

- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount
-
VP101-M8M-Q-1200
VP101-M8M-Q-1200 with i.MX 8M Quad, 4GB, 10.1" 1200-nit PCAP display and IP65 front -
VP101-M8M-D-1200
VP101-M8M-D-1200 with i.MX 8M Dual, 2GB, 10.1" 1200-nit PCAP display and E-Mark -
VP101-M8M-D-500
VP101-M8M-D-500 with i.MX 8M Dual, 2GB, 10.1" 500-nit PCAP display and 4x COM -
VP101-M8M-Q-500
VP101-M8M-Q-500 with i.MX 8M Quad, 4GB, 10.1" 500-nit PCAP display and 4x COM
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Format: Widescreen
- OS: Android 9.0, Linux, Linux Yocto 2.5
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [USB 3.1 Gen 1/SIM] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 16GB eMMC, 1x Micro SD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, E-Mark, FCC, RoHS, UKCA
- Mounting Options: VESA Mount
- Brightness: 1200
- CPU: NXP i.MX 8M Quad
- Memory: 4GB Soldered On-board
-
VPC-101RB2S-OB-G2-ON8
VPC-101RB2S-OB-G2-ON8 with Orin Nano 8GB, 4x GMSL-2 on FAKRA and 10.1" bonded touchscreen -
VPC-101RB2S-OB-G2-ONX16
VPC-101RB2S-OB-G2-ONX16 with Orin NX 16GB, 4x GMSL-2 on FAKRA and 10.1" bonded touchscreen -
VPC-101RB2S-OB-G2-ONX8
VPC-101RB2S-OB-G2-ONX8 with Orin NX 8GB, 4x GMSL-2 on FAKRA and 10.1" bonded touchscreen -
VPC-101RB2S-OB-ON8
VPC-101RB2S-OB-ON8 with Orin Nano 8GB, 10.1" optically bonded touchscreen, 2.5GbE and CAN FD -
VPC-101RB2S-OB-ONX16
VPC-101RB2S-OB-ONX16 with Orin NX 16GB, 10.1" optically bonded touchscreen, 2.5GbE and CAN FD -
VPC-101RB2S-OB-ONX8
VPC-101RB2S-OB-ONX8 with Orin NX 8GB, 10.1" optically bonded touchscreen, 2.5GbE and CAN FD -
VPC-101RB2S-OB-P-ON8
VPC-101RB2S-OB-P-ON8 with Orin Nano 8GB, 4x GbE PoE+ on M12 and 10.1" bonded touchscreen -
VPC-101RB2S-OB-P-ONX16
VPC-101RB2S-OB-P-ONX16 with Orin NX 16GB, 4x GbE PoE+ on M12 and 10.1" bonded touchscreen -
VPC-101RB2S-OB-P-ONX8
VPC-101RB2S-OB-P-ONX8 with Orin NX 8GB, 4x GbE PoE+ on M12 and 10.1" bonded touchscreen
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Projective Capacitive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- OS: Linux
- USB: 2x USB 2.0 [M8], 1x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [M8], 1x RS232/422/485 [M8]
- CANbus: 1x CAN FD [M8]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB] [2230], 1x M.2 M-Key [PCIe] [2242]
- Storage: 1x M.2 SSD
- Power: 9-60V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- IP Rating: IP66
- Certification: CE, E-Mark, FCC, UKCA
- Mounting Options: VESA Mount
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB Soldered On-board
- Ethernet: 1x 2.5 GbE LAN [M12], 1x GbE LAN [M12]
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: NXP i.MX 8X
- Memory: 4GB Soldered On-board
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SIM] [3042/3052], 1x M.2 B-Key [2242], 1x M.2 E-Key [2230]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 9-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -30°C to 70°C [-22°F to 158°F]
- IP Rating: Front IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount
Beyond Sunlight Readable: Panel PCs
Sunlight Readable Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of high-brightness HMIs, so the ranges below are the ones we specify for open cabs, decks, yards and rail. Compare them by brightness, sealing and power input, then browse the models above or ask a panel PC specialist which range suits your cab or site.

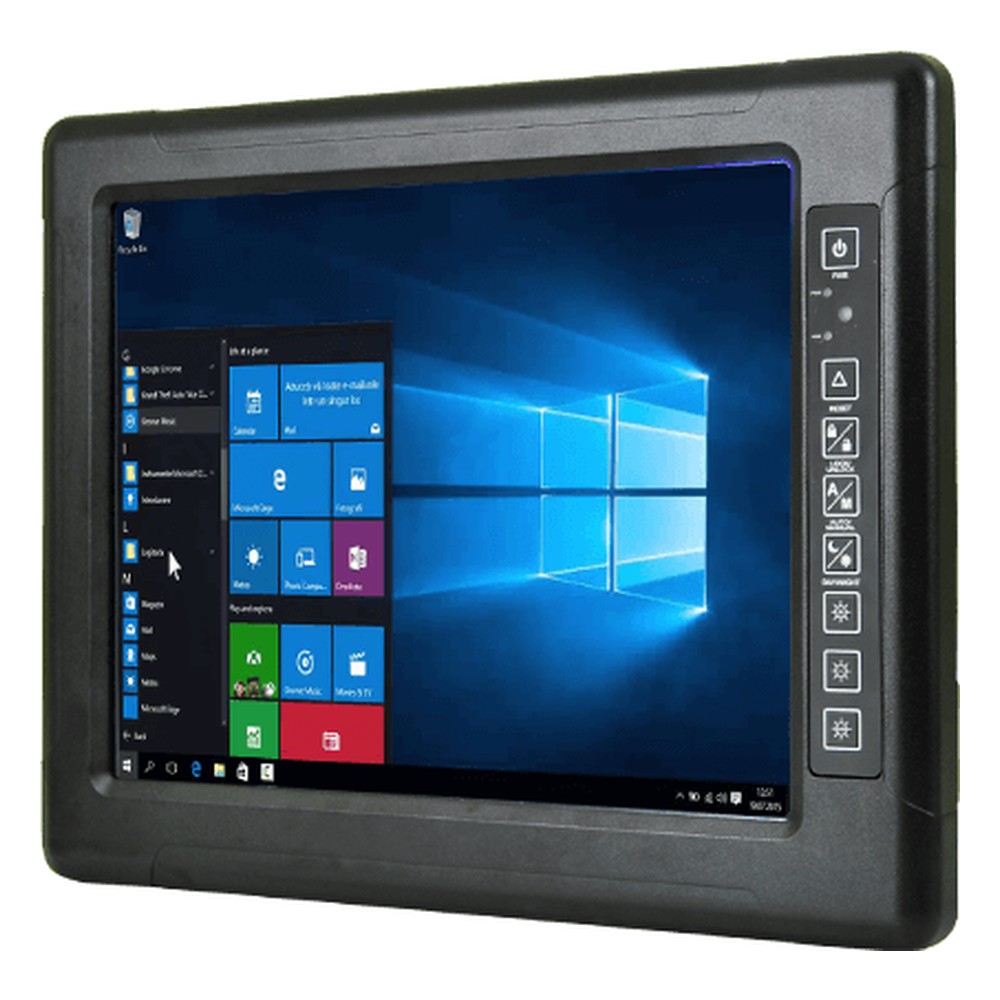

Winmate G-WIN Full IP67 Rugged HMIs
Fully sealed IP67 computers from 10.1 to 21.5 inches with high-bright screens, on Intel Celeron, Core i5 or MediaTek Genio 510, tested to MIL-STD-810G with M12 connectors.

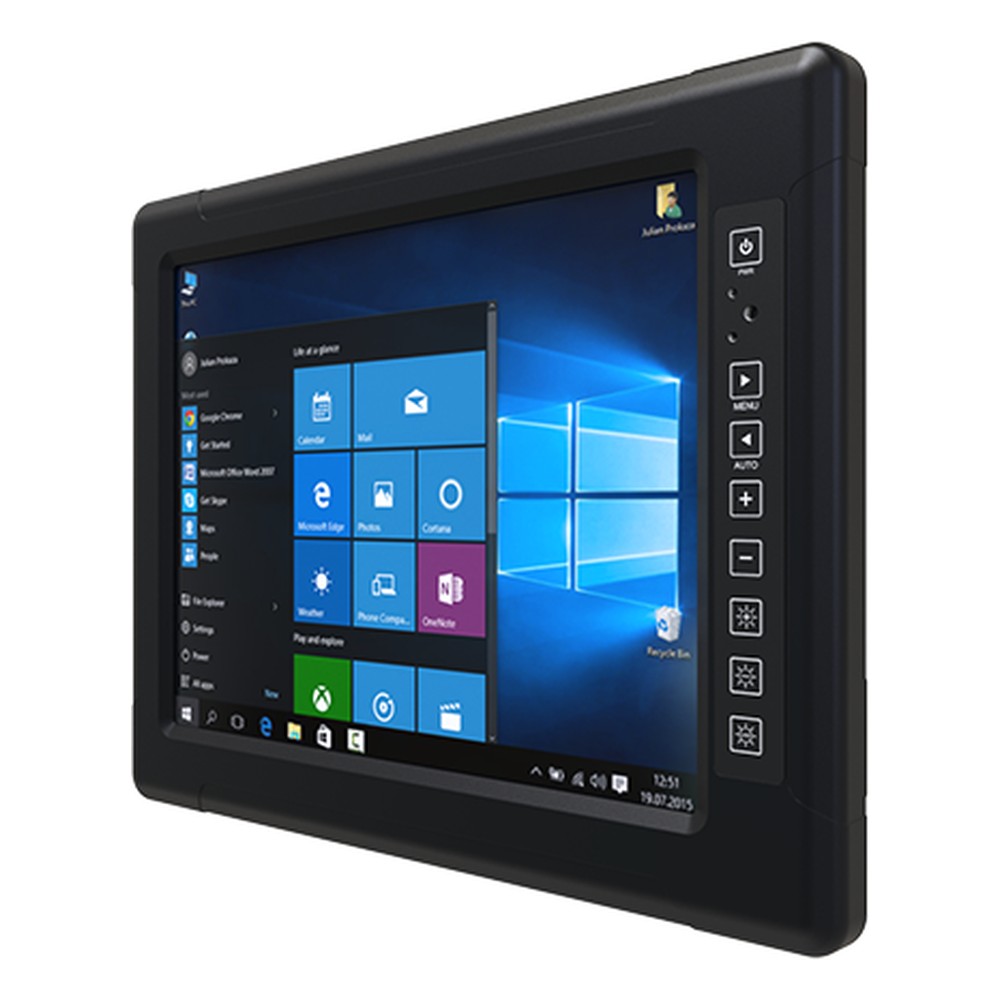

Winmate Vehicle Mount Rugged Computers
In-cab touch computers from 8.4 to 15 inches on Intel Celeron or Core i5, with sunlight-readable high-bright options and wide-range DC input, for forklifts, cabs and mobile machinery.

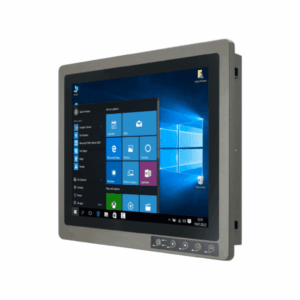

Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
Winmate G-WIN Sunlight Readable Chassis Panel PCs
G-WIN panel PCs from 7 to 15 inches with high-bright screen options and a front IP65 face, on Intel Celeron N6211, N150, Core i5 or MediaTek Genio 510.
Winmate 1,000 Nit PCAP Panel Mount HMI
A 12.3 inch panel-mount HMI with a 1,000 nit screen and PCAP touch on Intel Celeron N6211, readable in direct sun at outdoor cabinets.

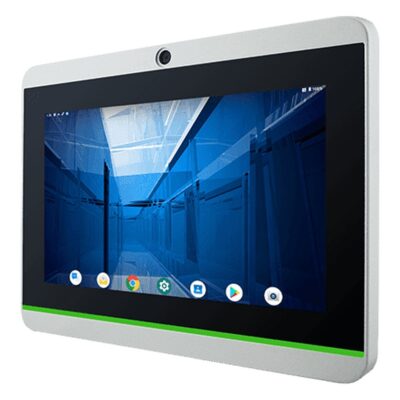

Winmate 1,000 Nit PoE PCAP Chassis Panel PCs
Compact 7 inch PCAP panel PCs with a 1,000 nit screen and PoE power, on Intel Celeron N6211 or MediaTek Genio 510 tested to MIL-STD-810H.

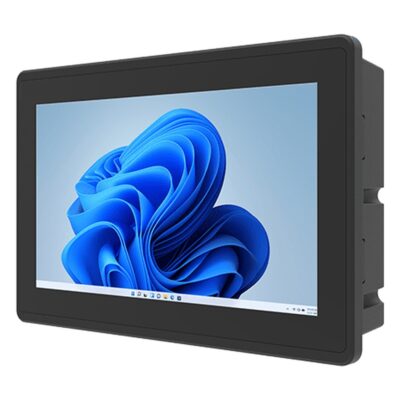

Winmate 1,000 Nit PCAP Touch HMIs
Compact 7 inch PCAP HMIs with a 1,000 nit screen on Intel Elkhart Lake Celeron N6211 or the quad-core N150, for outdoor kiosks and machines.
Winmate G-WIN Full IP65 Rugged Panel PCs
Fully sealed IP65 panel PCs from 7 to 15 inches with high-bright options, on Intel Celeron N6211, N150 or MediaTek Genio 510, tested to MIL-STD-810G or 810H.
VPC Sintrones Sunlight Readable Panel PCs
10.1 inch IP66 panel PCs with a 1000-nit optically bonded touchscreen, on NVIDIA Jetson Orin Nano or Orin NX with GMSL-2 cameras, or NXP i.MX 8QuadXPlus.

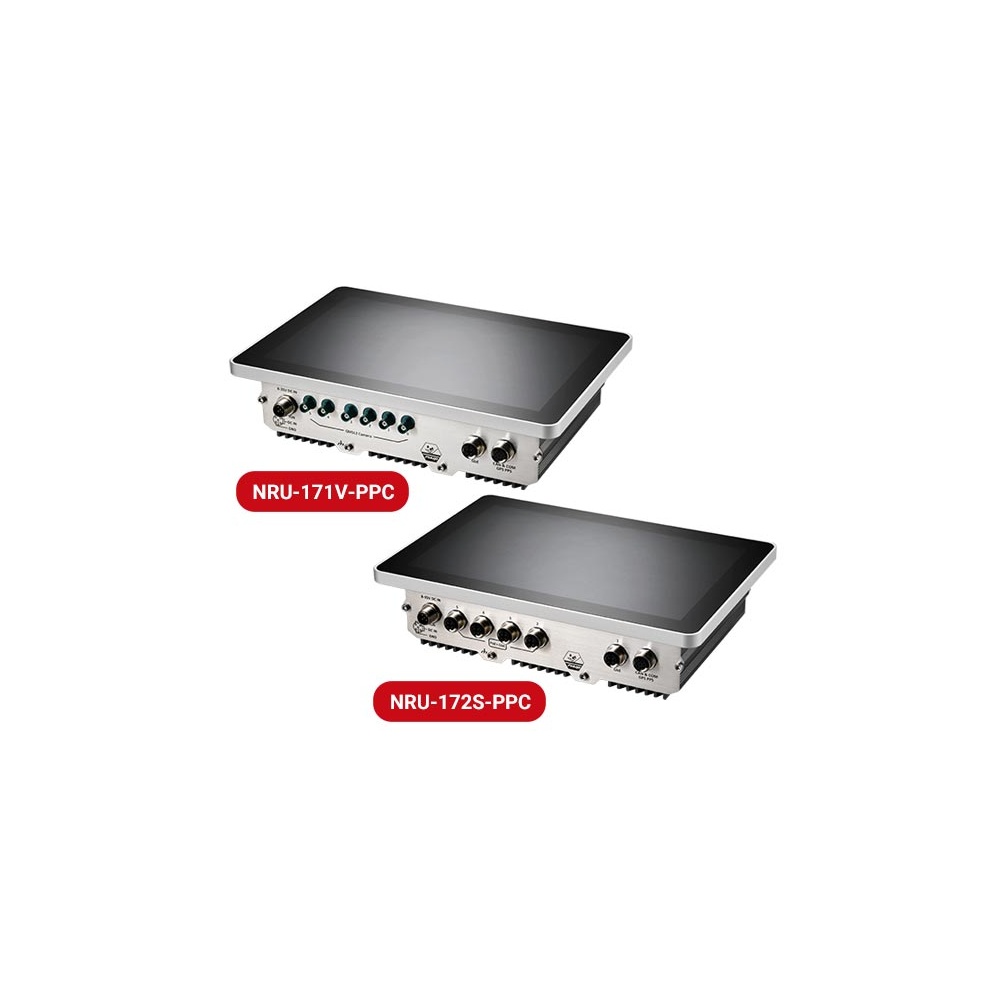

NRU Neousys NVIDIA Jetson AI Panel PCs
10.1 inch IP66 AI computers on NVIDIA Jetson Orin NX and Orin Nano, with a 1,000 nit screen, M12 connectors and PoE+ camera ports, for vision and AI at the machine or on the vehicle.

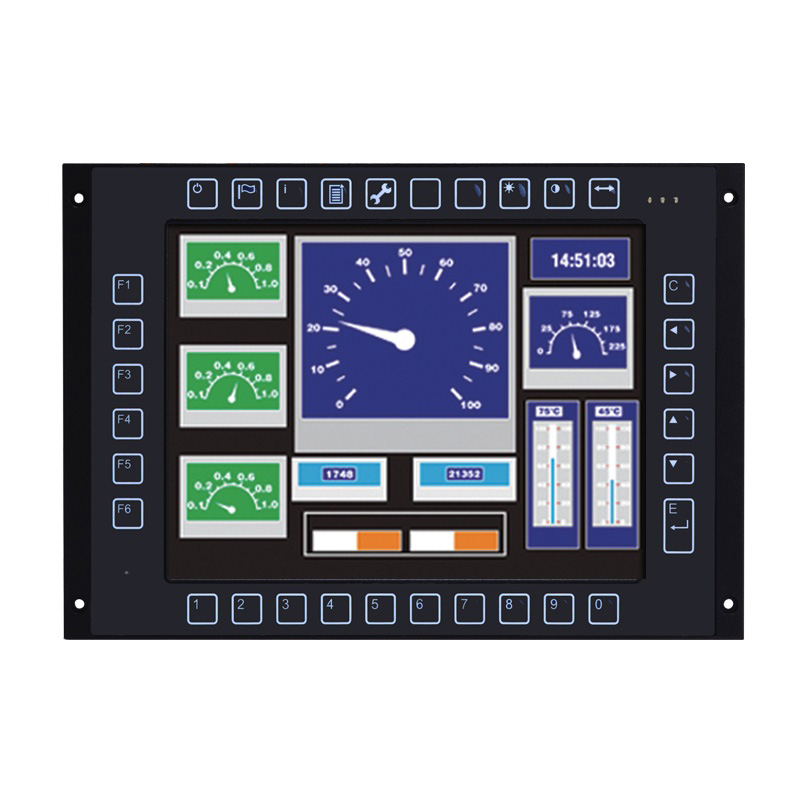

GOT700 Axiomtek EN 50155 Railway and Vehicle Computers
Fanless 10.4 to 15 inch cab computers on Intel Atom with resistive touch, a front IP65 bezel and M12 connectors, certified to EN 50155 for driver desks and crew terminals, plus a vehicle-mount variant.
VP101-M8M DFI 10.1" In-Vehicle Panel PCs
10.1 inch in-vehicle panel PCs with a 1200-nit display on NXP i.MX 8M Dual or Quad, with a front IP65 face and E-Mark.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Sunlight Readable HMI
Daylight on the glass washes out a standard screen, so brightness is only part of the answer. Bonding, sealing and power input decide whether a sunlight readable HMI stays legible and running in a cab, yard or deck.
1,000 Nits
High-brightness 1,000 nit panels stay readable in direct sun, where standard screens wash out and operators lose the image.
Optical Bonding
Bonded touch glass cuts internal reflections and condensation, improving contrast outdoors.
Vehicle Power
Wide-range DC input and ignition control on vehicle models, for cabs, mobile machinery and battery supplies.
Sealed Enclosures
IP66 and IP67 builds for decks, yards and open cabs, where rain and spray reach the whole enclosure.
Anti-Glare Glass
Anti-glare or anti-reflective options on the front glass cut reflections from the sky and surrounding lights.
Wide Temperature
Wide-temperature models for cold yards and hot cabs, where direct sun also adds heat to the enclosure.
Sunlight Readable Panel PC Innovation & Outdoor HMI Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
