Winmate W10IE3A-67H2-P(HB) 10.1″ Full IP67 Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

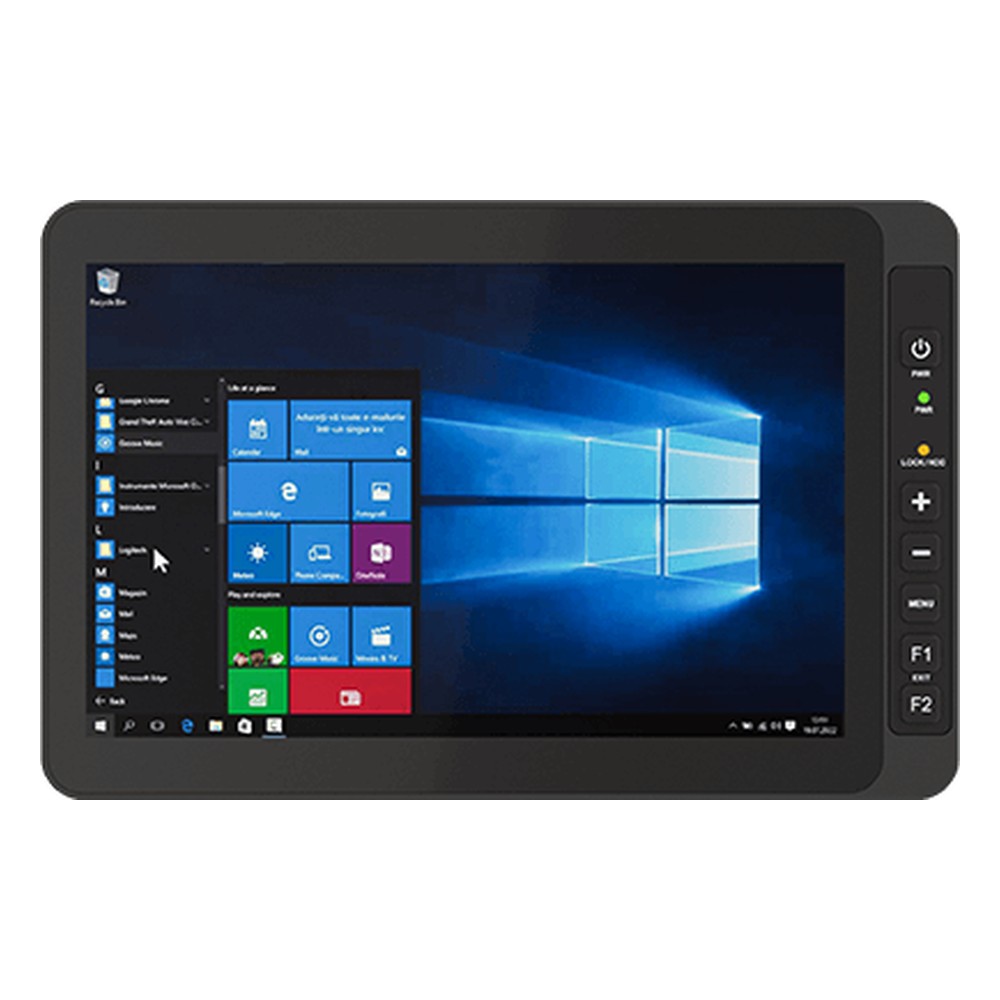

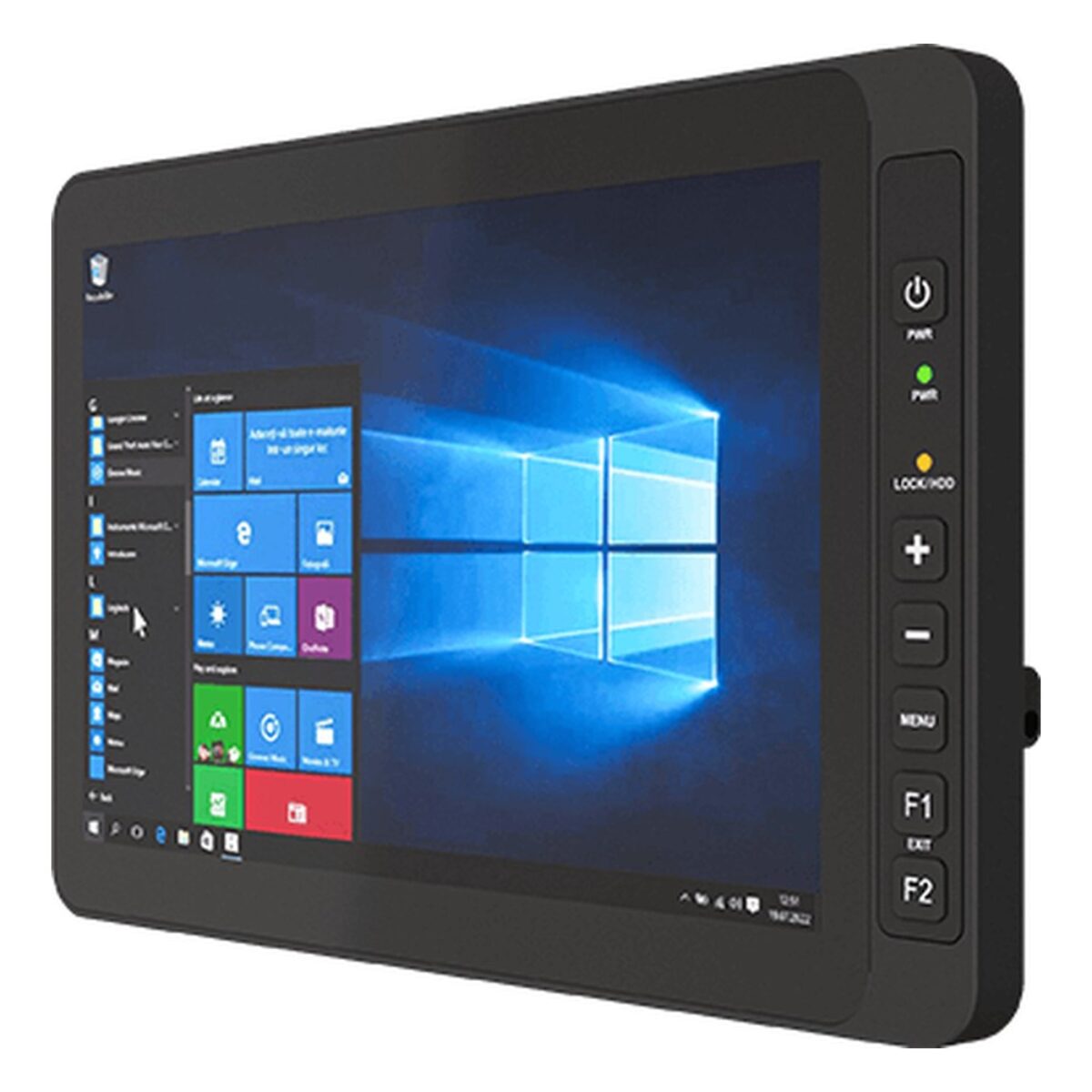

Widescreen touch terminals on vehicles, outdoor kiosks and machines that are cleaned with water need sealing all round and a screen that holds up in daylight. The W10IE3A-67H2-P(HB) is Winmate’s 10.1″ G-WIN IP67 panel PC for that: a 10.1 inch fanless computer sealed to full IP67, with a plastic front bezel on an anti-corrosion aluminum die-cast back cover.

Compute comes from an Intel Celeron N6211, a dual-core Elkhart Lake processor at up to 2.6 GHz with a 6.5 W TDP, enough for HMI, inspection forms and dashboard software. Memory is 4 GB as standard with 8 GB or 16 GB options, storage is a 128 GB SSD with options up to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed, with Wi-Fi and Bluetooth as options.

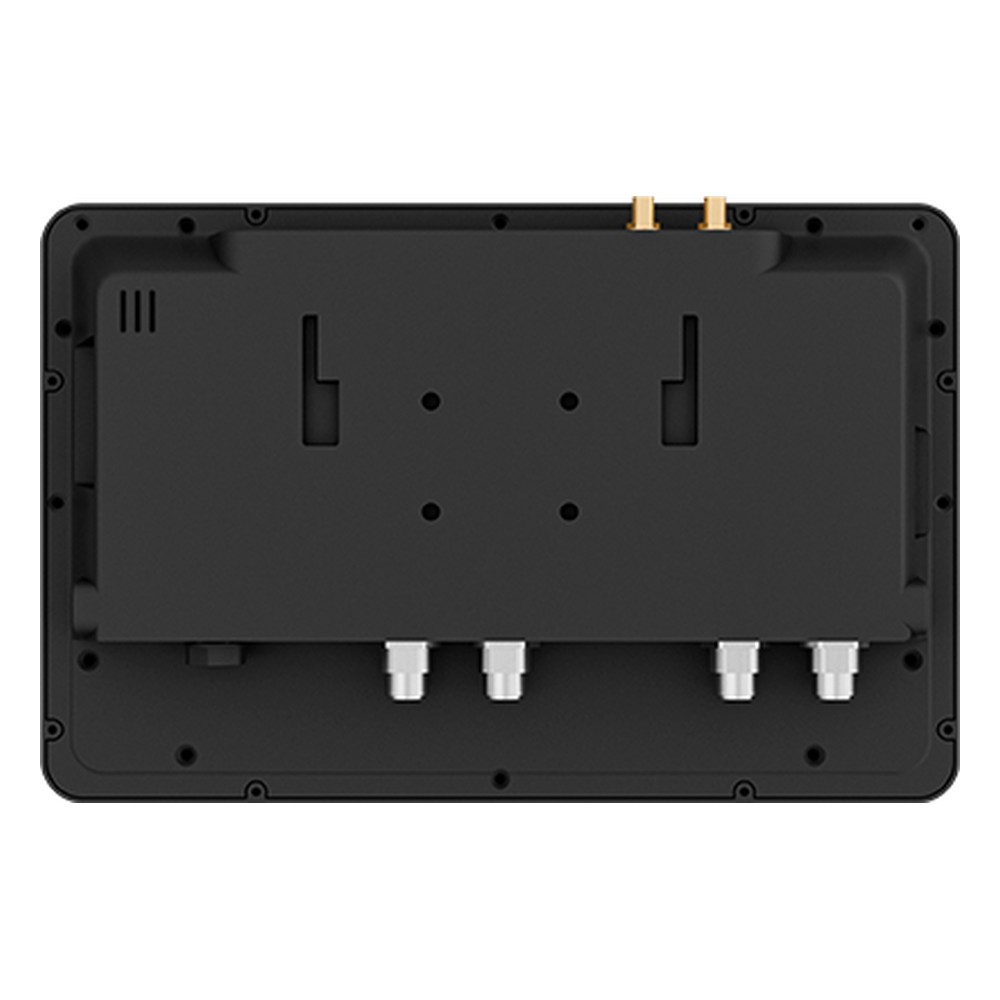

The 1280 x 800 WXGA screen runs at 1000 nits with 800:1 contrast and 170 degree viewing angles, and its PCAP touch is optically bonded to the panel, with true-flat bonded protection glass as an alternative. Two USB 2.0 ports share one M12 connector, RS-232 has its own M12 connector, and Gigabit LAN uses a waterproof RJ45. The W10MG3A-67H2-P(HB) is the same IP67 design with an Arm-based MediaTek Genio 510, and the W07IE3A-67O1-P is the 7 inch version with the same Celeron N6211.

Power is 9 to 36 V DC on an M12 connector, and a 120 W AC adapter is optional. The W10IE3A-67H2-P(HB) operates from -10 °C to 55 °C, or -25 °C to 55 °C with an intelligent heater, stores from -30 °C to 70 °C and is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration. It mounts on VESA and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
