Intel SDM-L Smart Display Modules for Large-Format Screens
A smart display module is a slot-in PC card built to Intel’s SDM specification: it plugs into a display’s SDM slot through a PCIe-style edge connector, so the screen carries its own computer with no box or cabling behind it. The SDM-L size takes full Core i3 to i7 processors, dual memory slots and a rear I/O bracket.
Options include 8K output through the slot connector, HDMI 2.1 on the bracket, 2.5GbE, NVMe storage, optional Wi-Fi and vPro processors for remote management, suited to video walls, large-format signage, control rooms and retail screens where the display vendor offers an SDM slot. For panels with the 80-pin JAE slot, see our OPS computers.
Speak to a smart display module specialist to match the processor, outputs and management options to your displays.
Browse Our Intel SDM-L Modules
-
SDM-L612-1245U
SDM-L612-1245U with vPro Core i5-1245U, 8K HDMI, 2.5GbE and DDR5 -
SDM-L612-1215U
SDM-L612-1215U with Core i3-1215U, 8K HDMI output, 2.5GbE and DDR5 -
SDM-L612-1235U
SDM-L612-1235U with 10-core Core i5-1235U, Iris Xe graphics, 8K HDMI and 2.5GbE -
SDM-L612-1255U
SDM-L612-1255U with Core i7-1255U, Iris Xe graphics, 8K HDMI and 2.5GbE
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 2x DDR5 5200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
-
SDM-L613-1355U
SDM-L613-1355U with Core i7-1355U, Iris Xe graphics, 2.5GbE and DDR5 -
SDM-L613-1315U
SDM-L613-1315U with Core i3-1315U, 8K HDMI, 2.5GbE and DDR5 -
SDM-L613-1335U
SDM-L613-1335U with 10-core Core i5-1335U, HDMI 2.1, 2.5GbE and DDR5 -
SDM-L613-1345U
SDM-L613-1345U with vPro Core i5-1345U, 8K HDMI, 2.5GbE and DDR5
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
Smart Display Module Ranges Configured by Things Embedded
We work with the leading manufacturers of Intel SDM computers, so the ranges below are the ones we specify for large-format displays and video walls. Compare them by processor generation and management options, then browse the models above or ask an SDM specialist which range suits your screens.

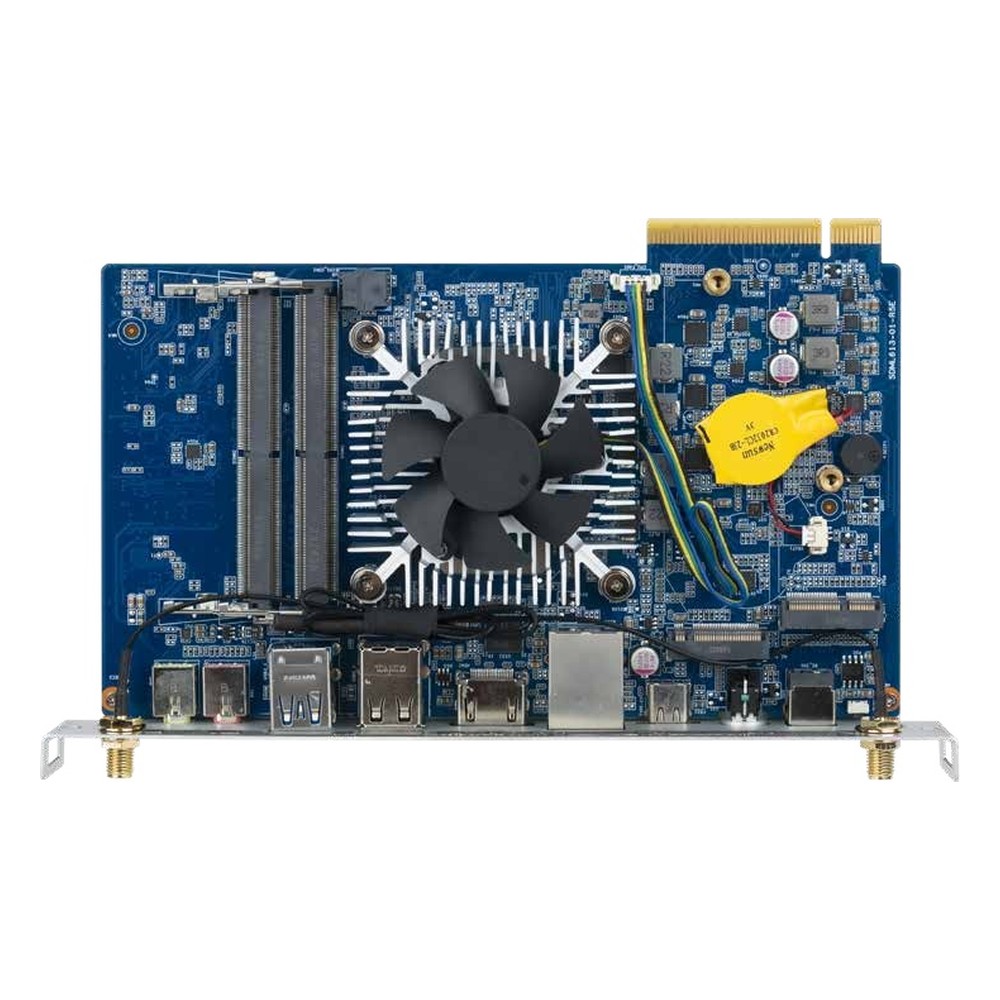

SDM-L613 Giada 13th Gen Smart Display Modules
Intel SDM-L cards with 2.5GbE, HDMI 2.1 and vPro on the i5-1345U build, for displays with an SDM-L slot.
SDM-L612 Giada 12th Gen Smart Display Modules
Alder Lake SDM-L cards with 8K output and 2.5GbE, including a vPro i5-1245U option.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an SDM-L Smart Display Module
Our digital signage specialists check every smart display module against the display it slots into, the content it runs and how it will be managed. These are the choices we work through with you before recommending a module.
SDM Slot Size
SDM-S is a small card for compact players; SDM-L takes full Core processors. Check which size your display provides.
Output Resolution
The slot carries 4K or 8K to the panel; the bracket adds HDMI 2.1 for a second screen or a video wall link.
Remote Management
vPro processors add out-of-band management, so screens across a site can be updated and recovered remotely.
Memory and Storage
Dual SO-DIMM slots and M.2 NVMe size the module for local content, apps and caching.
Network and Wireless
2.5GbE on the bracket for wired networks, with an optional Wi-Fi card for screens without a cable run.
Operating System
Windows 11 or Linux is installed and tested before it ships, ready for your content or control software.
Smart Display Module Innovation & Video Wall Insights
Speak to a Smart Display Module Specialist.
Tell us which displays the module will go into, the content or software it will run and how the screens are managed. We will recommend the right SDM module, then configure and test it with your operating system image before it ships.
