US Server Motherboards
Server Motherboards for Industrial Compute and Edge Servers
A server motherboard carries Intel Xeon Scalable processors, registered ECC memory and the PCIe lanes that data-heavy industrial systems need, in a board built for continuous operation rather than office duty. Available in ATX single-socket and EATX dual-socket formats.
Options include dual CPU configurations, 10GbE networking, remote management over IPMI and wide PCIe expansion for GPUs, frame grabbers and NVMe storage, suited to machine vision servers, medical imaging, defense and edge data processing.
Speak to a server board specialist to match the socket, memory and expansion to your system.
Browse Our Industrial Server Motherboards
- CPU: Intel 2nd Gen Xeon Scalable Cascade Lake, Intel Xeon Scalable Skylake-SP
- Memory: 12x DDR4 2933MHz LONG-DIMM Slots, 768GB
- OS: Linux
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 1x RS232 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
- PCIe: 1x PCIe [x8 Slot][Gen3], 5x PCIe [x16 Slot] [Gen3]
- Storage: 1x M.2 SSD, 8x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC, RoHS, UKCA
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- CPU: Intel 2nd Gen Xeon Scalable Cascade Lake, Intel Xeon Scalable Skylake-SP
- Memory: 12x DDR4 2933MHz LONG-DIMM Slots, 768GB
- OS: Linux
- USB: 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 1x RS232 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
- PCI: 1x PCI
- PCIe: 1x PCIe [x8 Slot][Gen3], 4x PCIe [x16 Slot] [Gen3]
- Storage: 1x M.2 SSD, 8x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC, RoHS, UKCA
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- CPU: Intel 2nd Gen Xeon Scalable Cascade Lake, Intel Xeon Scalable Skylake-SP
- Memory: 6x DDR4 2933MHz LONG-DIMM Slots, 384GB
- OS: Linux
- USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x2/USB] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- PCIe: 3x PCIe [x16 Slot] [Gen3], 3x PCIe [x8 Slot] [Gen3]
- Storage: 1x M.2 SSD, 6x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: -5°C to 65°C [23°F to 149°F]
- Ethernet: 2x GbE LAN [RJ45]
- CPU: Intel 2nd Gen Xeon Scalable Cascade Lake, Intel Xeon Scalable Skylake-SP
- Memory: 6x DDR4 2933MHz LONG-DIMM Slots, 384GB
- OS: Linux
- USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 2x RS232 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
- PCI: 1x PCI
- PCIe: 2x PCIe [x16 Slot] [Gen3], 2x PCIe [x8 Slot] [Gen3]
- Storage: 1x M.2 SSD, 6x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Display Outputs: 1x VGA
- Ethernet: 3x GbE LAN [RJ45]
- CPU: Intel 3rd Gen Xeon Scalable Ice Lake-SP
- Memory: 8x DDR4 3200MHz LONG-DIMM Slots, 512GB
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x VGA
- Ethernet: 2x 10 GbE LAN [RJ45], 3x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Board], 3x USB 2.0 [Board], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 1x RS232 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2280]
- PCIe: 3x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4], 3x PCIe [x8 Slot] [Gen4]
- Storage: 1x M.2 SSD, 6x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: 0°C to 55°C [32°F to 131°F]
- Certification: CE, FCC, RoHS, UKCA
Server Motherboard Ranges Configured by Things Embedded
We work with the leading manufacturers of industrial server boards, so the ranges below are the ones we specify for vision servers, imaging systems and edge compute racks. Compare them by socket, memory and expansion, then browse the models above or ask a server board specialist which range suits your system.

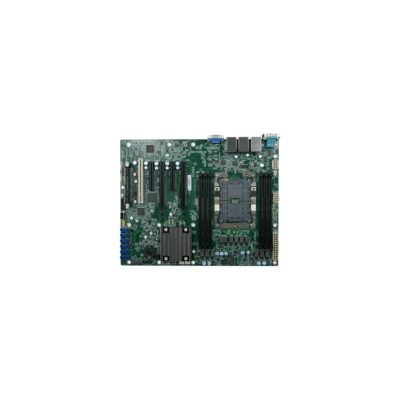

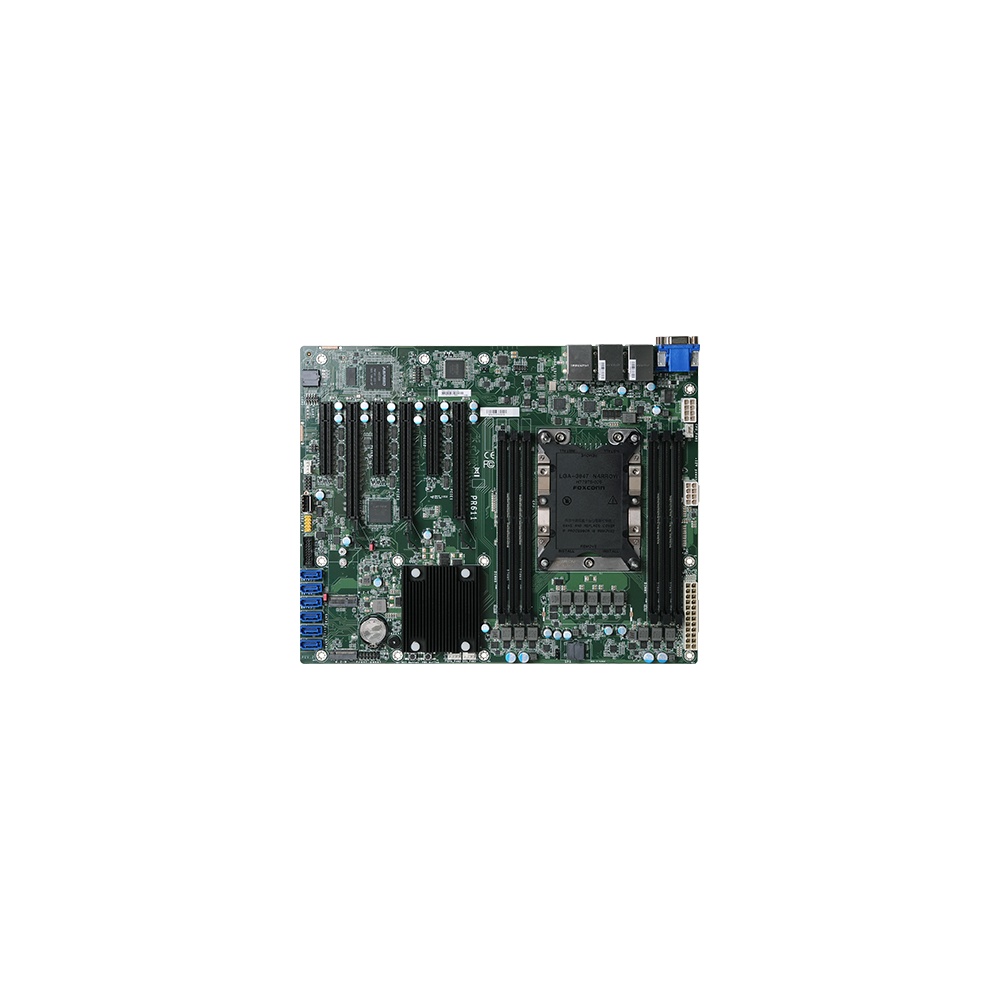

PR610 and PR611 DFI Xeon Scalable ATX Server Boards
1st and 2nd Gen Intel Xeon Scalable on an LGA 3647 ATX board with the C621 chipset, six DDR4 RDIMM slots and optional IPMI.

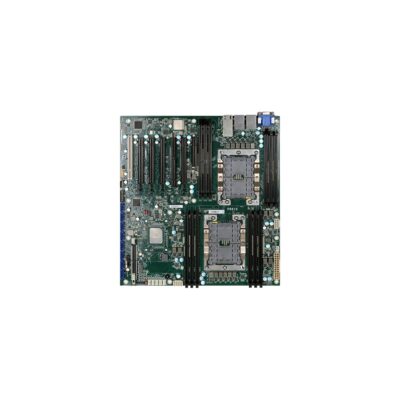

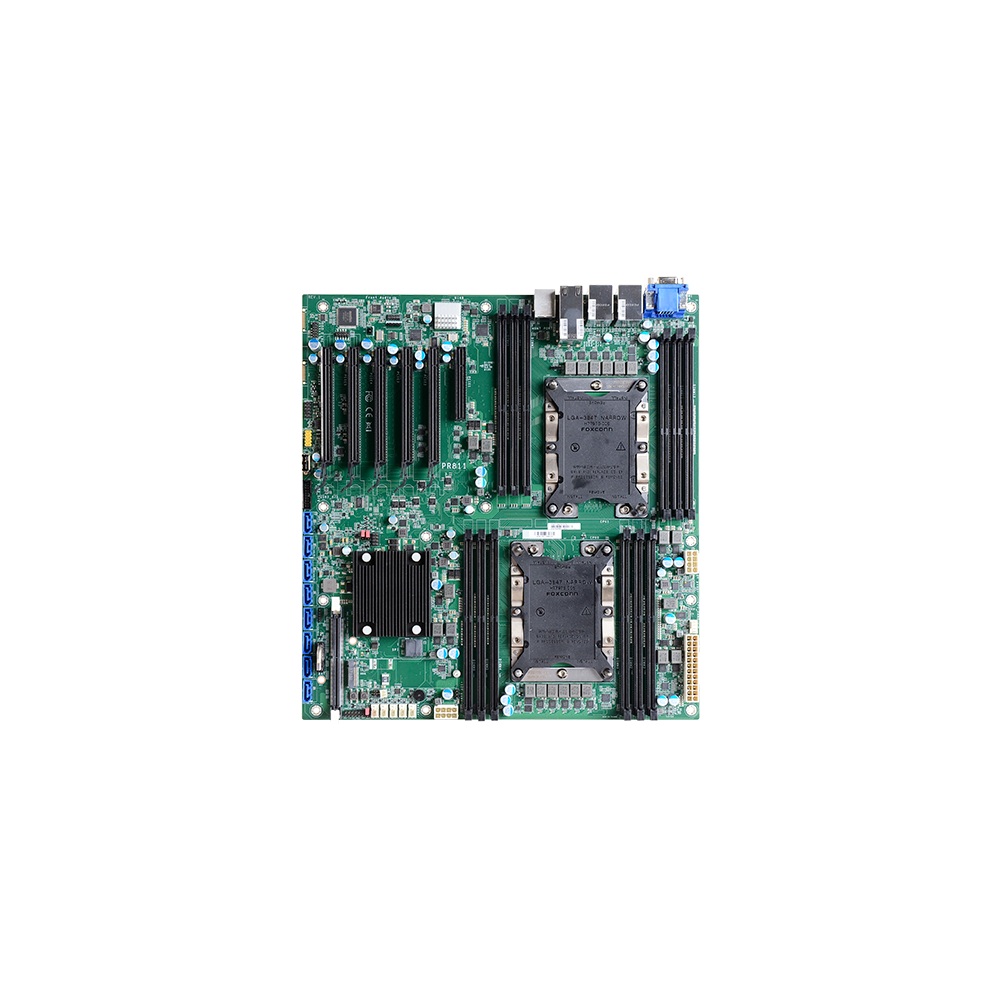

PR810 and PR811 DFI Dual-Socket EATX Server Boards
Two Intel Xeon Scalable processors on an EATX board with the C622 chipset, dual 10GbE and optional IPMI remote management.

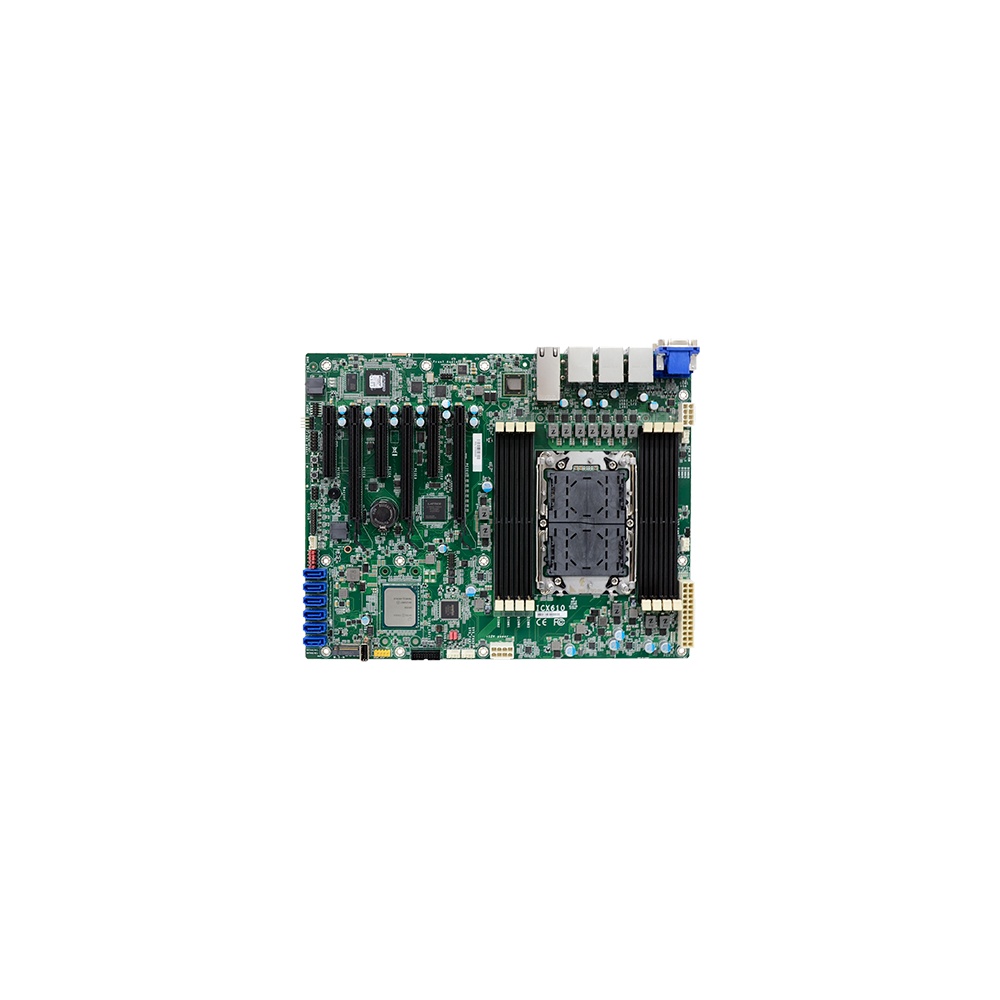

ICX610 DFI 3rd Gen Xeon Scalable ATX Server Board
Intel Xeon Scalable Ice Lake-SP on an LGA 4189 ATX board with the C621A chipset, PCIe Gen4 and eight-channel DDR4.
Not sure which range fits? Tell us the application and we will recommend the right model.
Server Board Innovation & Edge Compute Insights
Speak to a Server Motherboard Specialist.
Tell us the processors, memory and expansion cards your system needs and how long it must stay in production. We will recommend the right server board, then configure and test it with memory, storage and cooling before it ships.
