US Jetson AGX Orin Carrier Boards
Rugged Jetson AGX Orin Carrier Boards for Custom Platforms
A Jetson AGX Orin carrier board is the baseboard that turns the AGX Orin module, up to 275 TOPS, into the heart of your own robot, vehicle system or machine, breaking out its Ethernet, camera, serial and expansion interfaces. The range covers rugged and industrial AGX Orin carrier boards for the 32GB and 64GB modules.
Options include compact boards designed for fanless enclosures, ratings from -25 °C to 85 °C, and M.2 slots for NVMe storage and cellular, suited to autonomous machines, multi-camera vision and defense platforms built around an NVIDIA AGX Orin. For a finished system, see our Jetson AGX Orin computers.
Speak to an AGX Orin carrier board specialist to match the board and the interfaces to your platform.
Browse Our Jetson AGX Orin Carrier Boards

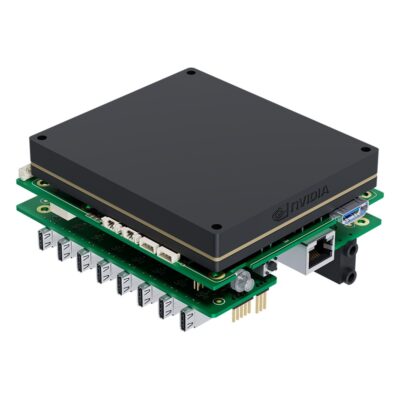

- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- Memory: 32GB Soldered On-board, 64GB Soldered On-board
- OS: Linux Ubuntu 24.04, Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 8x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type C]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 64GB eMMC
- Power: 19-24V DC Input
- Temp: 0°C to 60°C [32°F to 140°F]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- Memory: 32GB Soldered On-board, 64GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 2 [Type C]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 64GB eMMC
- Power: 19-24V DC Input
- Temp: 0°C to 60°C [32°F to 140°F]
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 3x USB 3.2 [Board], 1x USB 2.0 [Board]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- Analog In: 6x 12-bit A/D
- Analog Out: 2x 12-bit D/A
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4]
- Power: 7-20V DC [Latching]
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Memory: 64GB Soldered On-board
- Temp: -40°C to 85°C [-40°F to 185°F]
-
RAIBOARD-AGX-32GB
RAIBOARD-AGX with Jetson AGX Orin 32GB module, 200 TOPS, 10GbE and IP67 connectors -
RAIBOARD-AGX-64GB
RAIBOARD-AGX with Jetson AGX Orin 64GB module, 275 TOPS, 10GbE and IP67 connectors -
RAIBOARD-AGX-IND
RAIBOARD-AGX with Jetson AGX Orin Industrial module, 248 TOPS, 10GbE and IP67 connectors
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 1x USB 3.0 [Type C], 3x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 B-Key [USB 3.0/SIM] [3042], 2x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD
- Power: 12-30V DC [6-Pin]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
- Temp: -25°C to 85°C [-13°F to 185°F]

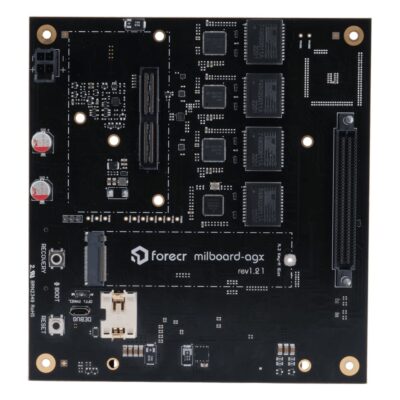

- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 4x GbE LAN [Board]
- USB: 2x USB 3.2 [Board], 2x USB 2.0 [Board]
- Serial: 8x TTL [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x SD Card
- Power: 12-30V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
-

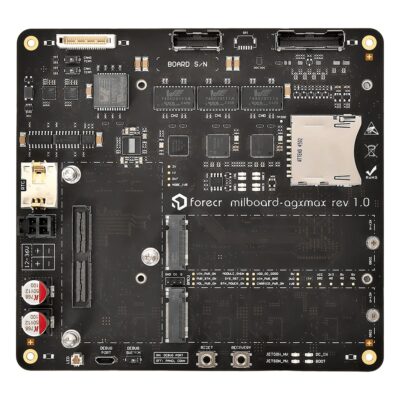

MILBOARD-AGXMAX-32GB
MILBOARD-AGXMAX with Jetson AGX Orin 32GB module, 200 TOPS, 10GbE and isolated I/O -
MILBOARD-AGXMAX-64GB
MILBOARD-AGXMAX with Jetson AGX Orin 64GB module, 275 TOPS, 10GbE and isolated I/O -
MILBOARD-AGXMAX-IND
MILBOARD-AGXMAX with Jetson AGX Orin Industrial module, 248 TOPS, 10GbE and isolated I/O
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 3x GbE LAN [Board]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Board]
- Serial: 4x Isolated RS232/422 [Board]
- CANbus: 2x Isolated CAN FD [Board]
- M.2: 2x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x SD Card, 2x M.2 SSD, 64GB eMMC
- Power: 12-36V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB

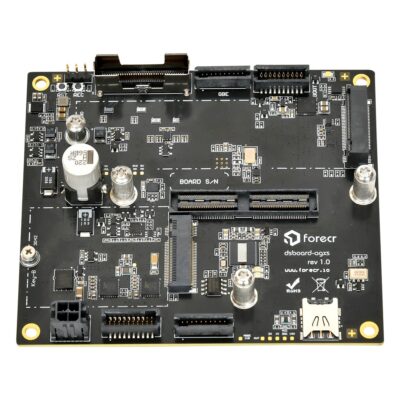

- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x Display Port
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 3x USB 3.2 Gen 2 [Board]
- Serial: 2x RS232/422/485 [Board]
- CANbus: 2x CAN FD [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 2.0/SIM] [3042], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 12-36V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB

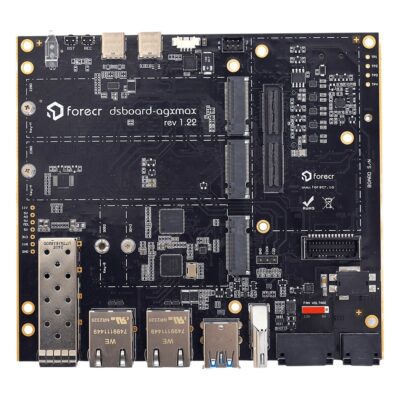

- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [SDIO/UART], 2x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB

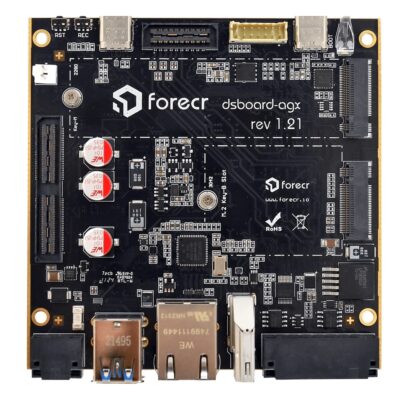

- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 2x RS232 [RJ11], 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ11]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 7-20V DC
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
Explore AGX Orin Computers and Other Jetson Boards
Rather start from a finished system, or need a different module? Compare AGX Orin carrier boards with our AGX Orin computers and the rest of the Jetson board range.
Jetson AGX Orin Carrier Boards Ranges Configured by Things Embedded
We work with the leading manufacturers of Jetson AGX Orin carrier boards, so the ranges below are every board family we carry for this module. Compare them by size and interfaces, then browse the boards above or ask a specialist which one suits your platform.

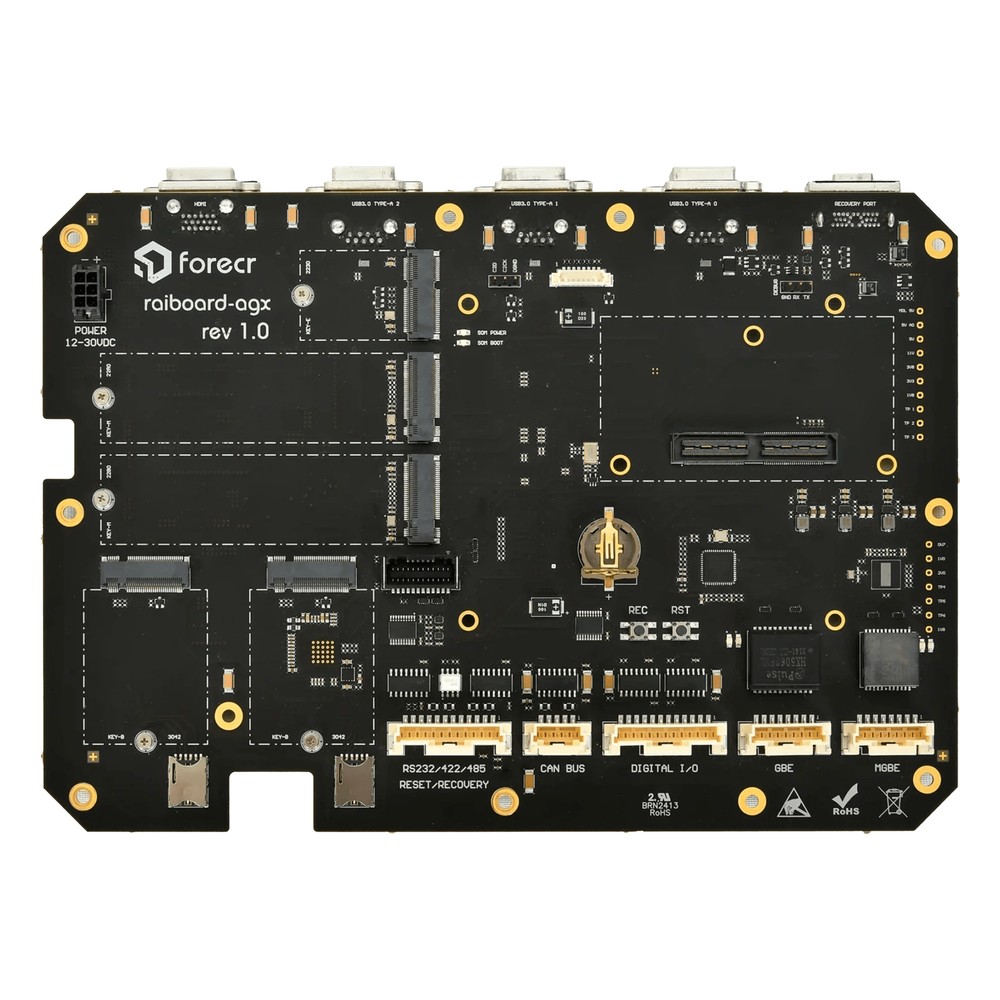

RAIBOARD Railway Jetson Carrier Boards
The railway carrier boards from inside the RAIBOX computers, for integrators building their own rolling-stock or trackside enclosure around NVIDIA Jetson AGX Orin, Orin NX or Orin Nano. Field I/O sits on locking Molex Dura-Clik connectors at the board edge, with sealed HDMI and USB ports, and RAIBOARD-ORNX adds isolated serial, CAN and digital I/O.
MILBOARD Militarised Jetson Carrier Boards
A MIL-STD-designed carrier board for integrators building their own sealed enclosure around NVIDIA Jetson AGX Thor or AGX Orin. MILBOARD-THR is the board-level half of the MILBOX-THR, and MILBOARD-AGXMAX and MILBOARD-AGX carry AGX Orin.
DSBOARD Industrial Jetson Carrier Boards
Bare carrier boards for integrating NVIDIA Jetson into your own enclosure or product, from Orin Nano and Orin NX through AGX Orin to the AGX Thor T4000 and T5000. Wide-temperature industrial designs with the camera, Ethernet and storage interfaces exposed for your build.
NVIDIA Jetson and IGX Edge AI Boards and Computers
Edge AI hardware built around video input: Jetson Thor and AGX Orin carrier boards and computers, an AI NVR with eight PoE ports, the NEAR T7X on NVIDIA IGX Thor, the AIR6N0-C-MB NX carrier for Orin NX and Orin Nano, compact Pandora systems including Pandora Health builds with HDMI and SDI capture, VPP6N0 computers, and Holoscan sensor bridges that feed live video into NVIDIA Holoscan.
NVIDIA Jetson Carrier Boards and Development Kits

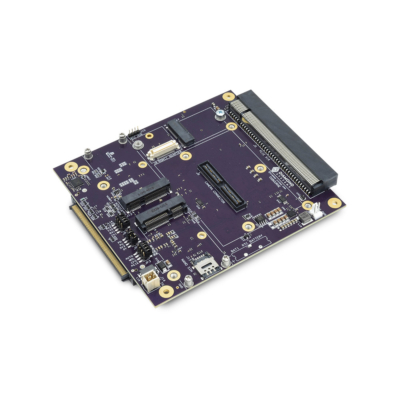

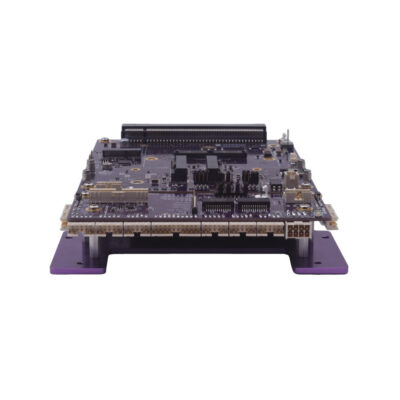

Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an AGX Orin Baseboard
Our embedded engineers specify every carrier board against the module, the interfaces and the enclosure it goes into. These are the choices we work through with you before recommending a board.
Module Fit
Boards for the AGX Orin 32GB and 64GB modules; ask us whether a board also supports the AGX Orin Industrial module.
Interfaces and Expansion
Gigabit and multi-gigabit Ethernet, serial and CAN for control networks, and M.2 or mini PCIe slots for NVMe storage, Wi-Fi, 4G and 5G.
Camera Inputs
Camera connectors on the board itself, or an M.2 or mini PCIe frame grabber for GMSL, SDI and HDMI video where the board has none.
Temperature Range
Industrial ratings of -25 °C to 85 °C, with boards designed for passively cooled enclosures.
Off-the-Shelf or Custom
Start from an off-the-shelf board, or we adapt one or design a custom carrier around your interfaces, connectors and enclosure.
Board Support Package
The carrier manufacturer's board support package matched to the JetPack release you need, flashed and tested with the module fitted.
Jetson AGX Orin Carrier Board Innovation & Custom Design Insights
Speak to a Jetson AGX Orin Carrier Board Specialist.
Tell us the module, the interfaces you need and where the board will be installed. We will recommend the right AGX Orin carrier board, or adapt one, then fit the module, image and test it before it ships.
