Diamond Systems OSBOURNE : OSB-BB01 NVIDIA Jetson AGX Orin Rugged Carrier Board with 10GbE, Supplied Without Module

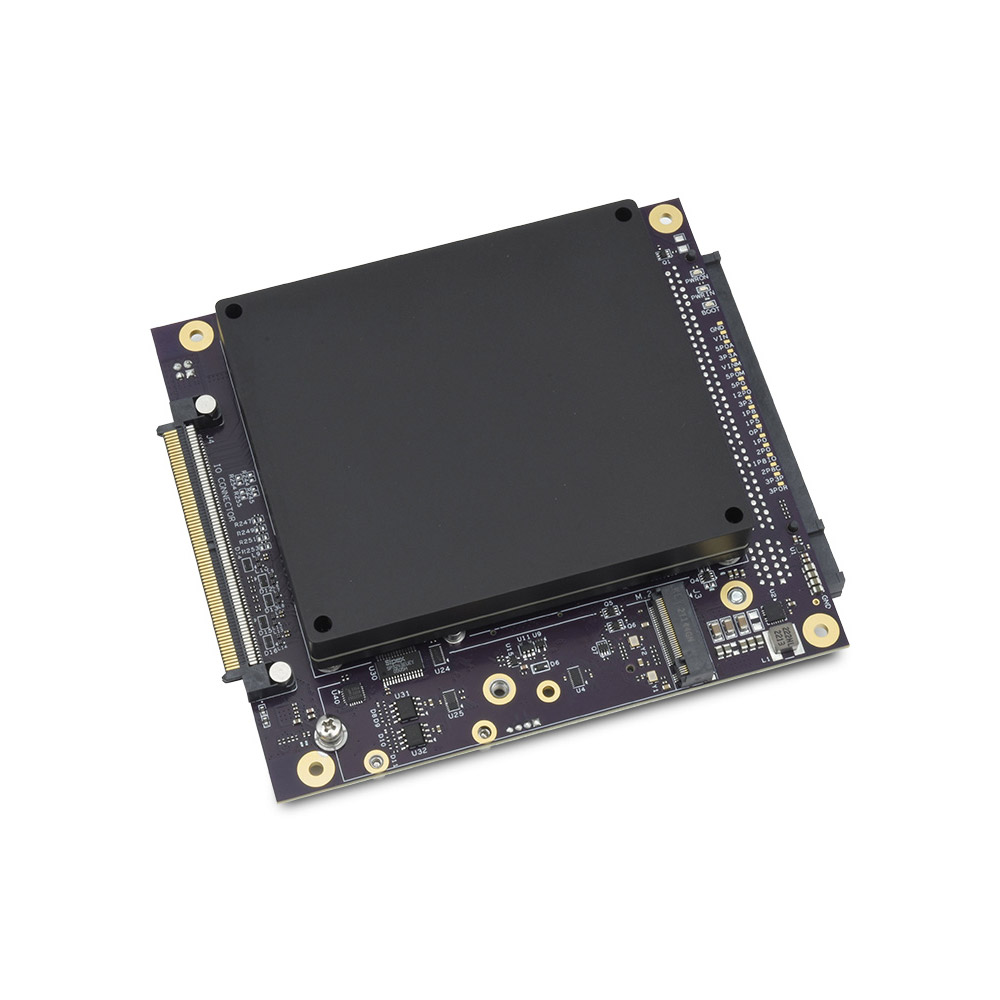

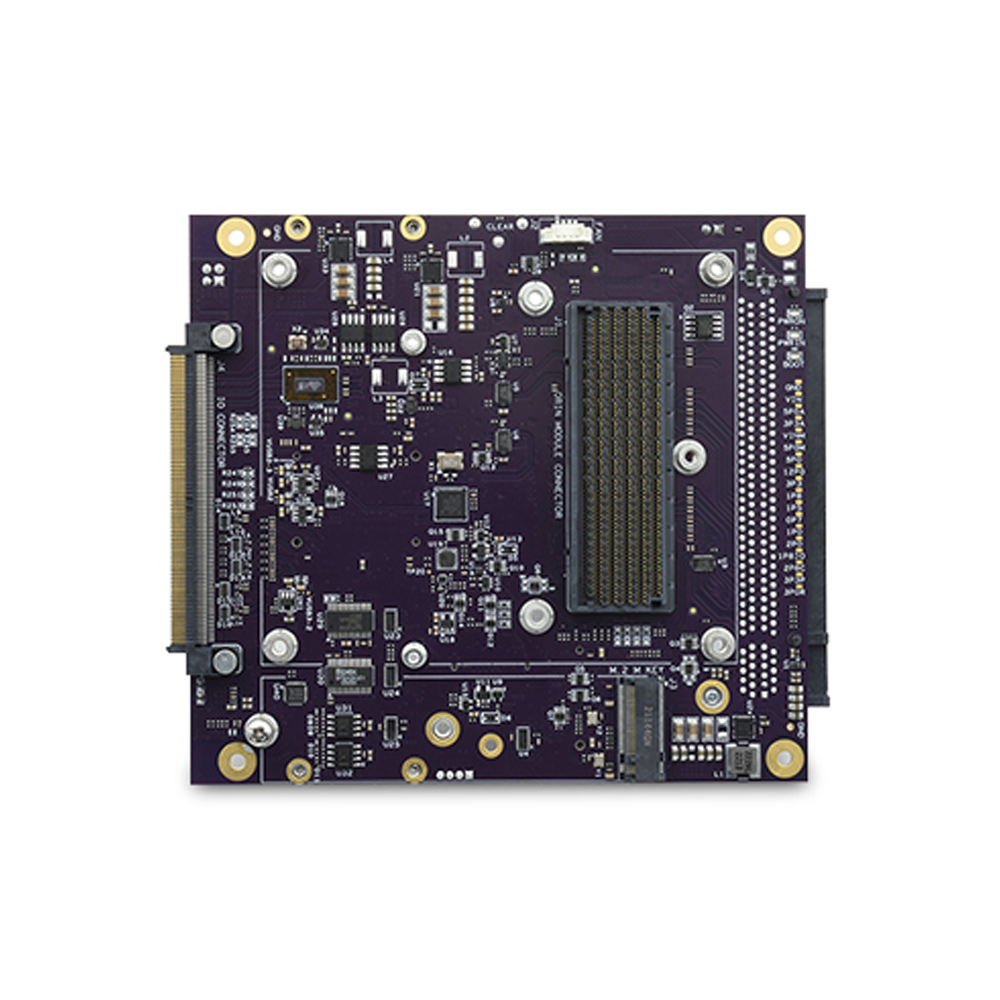

AGX Orin designs differ most at the connector panel: a lab rig wants commercial connectors, while an airborne or military system usually needs circular connectors. The OSB-BB01 is the Diamond Systems Osbourne rugged carrier board for the NVIDIA Jetson AGX Orin, supplied without a module, with every interface routed to a single high-density connector along one edge. Diamond designs it for applications from commercial and industrial to airborne and rugged military use.

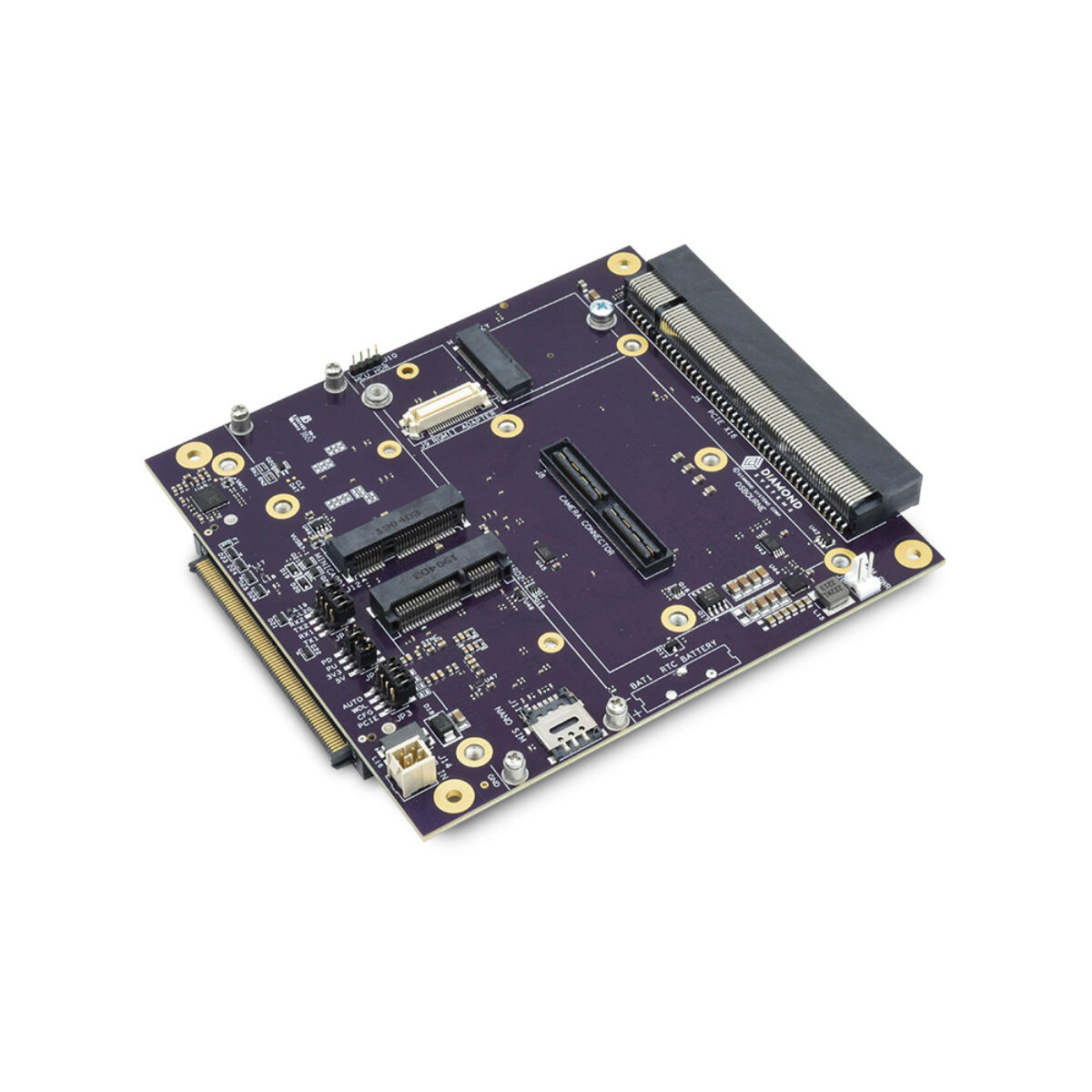

The OSB-BB01 takes the AGX Orin 32GB and 64GB modules, at 200 and 275 TOPS, from 15 W up to 60 W; the 64GB module has a 2048-core Ampere GPU and a 12-core Arm Cortex-A78AE CPU. A 120-pin camera adapter socket, matching the NVIDIA developer kit connector, takes four 4-lane or eight 2-lane CSI-2 cameras, and adapter boards extend it to GMSL and other camera types. A PCIe x16 connector wired for x8 accepts a standard add-in card, and it shares lanes with one minicard socket through a jumper.

The OSB-BB01 has one 1G/2.5G/5G/10G multi-gigabit Ethernet port and a 10/100/1000 port through Diamond’s ACC-ETHRGM1 RGMII adapter, three USB 3.2 and four USB 2.0 ports, HDMI 2.0a/b and audio. Serial runs to two software-configurable RS-232/422/485 ports, one with a TTL option, and two fixed RS-232 ports, with two CAN 2.0 ports and eight digital I/O lines. Storage and expansion cover an M.2 M-key 2280 or 2242 NVMe socket on four PCIe Gen 3 lanes, an M.2 E-key 2230 socket for Wi-Fi, two full-size minicard sockets with PCIe and USB, and microSD.

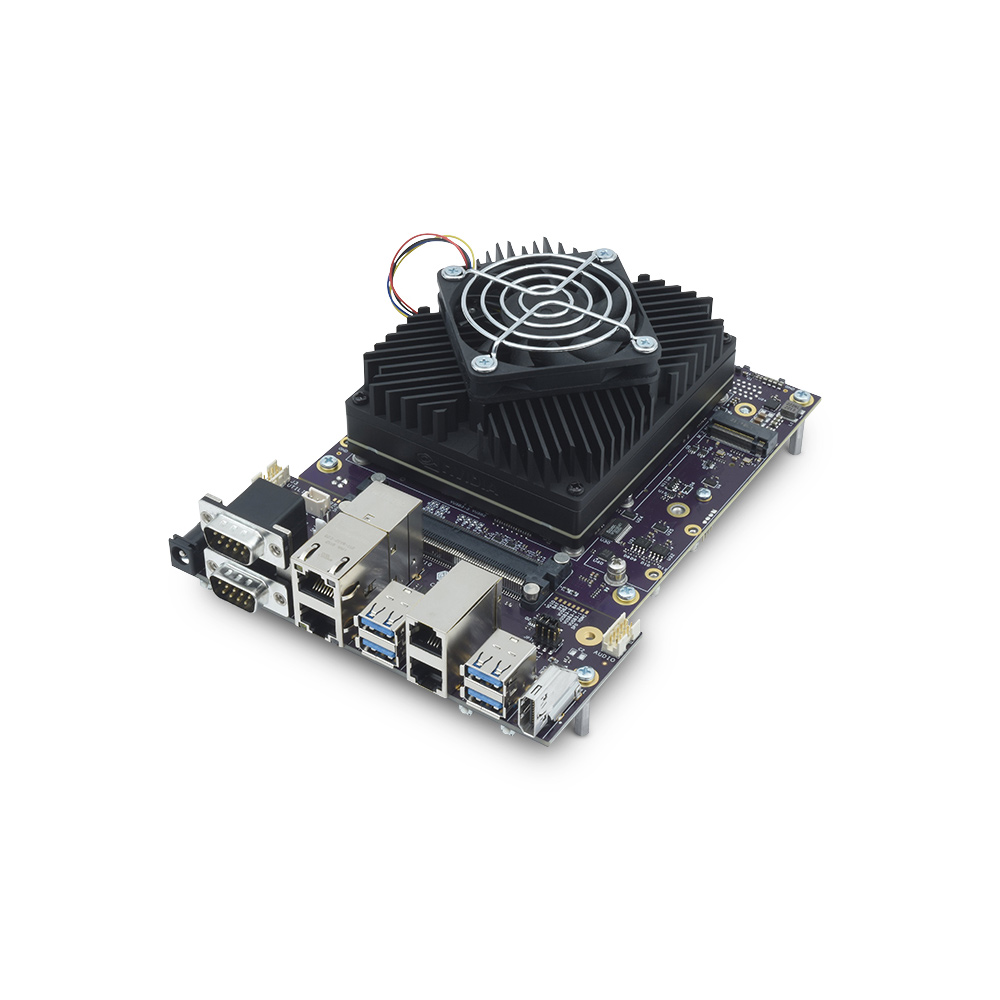

The OSB-BB01 takes 7-20 V DC and is rated from -25 to +80 °C, the same range as the AGX Orin module. Diamond offers OSB-PNL01 and OSB-PNL02 commercial I/O adapters for panel mounting, and shows an example connector board with MIL-DTL-38999 connectors for a rugged system. The OSB-BB01 has no on-board Ethernet magnetics or panel connectors of its own, so a panel or breakout board completes a working system. Diamond builds this carrier into the fanless JETBOX-OSBOURNE edge AI computers and the sealed IP67 Geode-OSB. Diamond provides a Linux image based on NVIDIA L4T as a free download.
