US Jetson Orin Carrier Boards
Industrial Jetson Orin Carrier Boards for Nano, NX and AGX
A Jetson Orin carrier board is the baseboard that turns an Orin Nano, Orin NX or AGX Orin module into a working edge AI computer, with the Ethernet, camera, serial, CAN and expansion interfaces your system needs. The range covers compact industrial boards, rugged and dual LAN versions and Mini-ITX carriers for all three Orin series.
Options include boards that take either the Orin Nano or the Orin NX on the same 260-pin connector, ratings from -25 °C to 85 °C, PoE and GMSL camera inputs on selected boards, and M.2 slots for NVMe, Wi-Fi and 5G, suited to robots, drones, vision systems and machines built inside your own enclosure.
Speak to a Jetson Orin carrier board specialist to match the board, the module and the interfaces to your platform.
Browse Our NVIDIA Orin Carrier Boards
-
DSBOARD-ORNXS-AA
DSBOARD-ORNXS with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNXS-AB16
DSBOARD-ORNXS with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNXS-AB8
DSBOARD-ORNXS with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNXS-AC4
DSBOARD-ORNXS with Jetson Orin Nano 4GB module, 20 TOPS -
DSBOARD-ORNXS-AC8
DSBOARD-ORNXS with Jetson Orin Nano 8GB module, 40 TOPS
- OS: Linux
- Display Outputs: 1x Mini Display Port
- Ethernet: 2x GbE LAN [Board]
- USB: 2x USB 2.0 [Board]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2230]
- Storage: 1x M.2 SSD
- Power: 9-28V DC [2-Pin]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
-
JAX-BB01
JACKSON for Orin NX and Orin Nano, 2x GbE, 2x 4-lane CSI, without module -
JAX-ASY-ONA8
JACKSON with Jetson Orin Nano 8GB module, 40 TOPS, 128GB NVMe -
JAX-ASY-ONX16
JACKSON with Jetson Orin NX 16GB module, 100 TOPS, 128GB NVMe -
JAX-ASY-ONX8
JACKSON with Jetson Orin NX 8GB module, 70 TOPS, 128GB NVMe
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 2 [Board]
- Serial: 1x RS232 [Board], 1x RS232/485 [RJ11]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD
- Power: 7-20V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- AI Performance: 20–100 TOPS
- SOM: NVIDIA Jetson Orin Nano 4GB, NVIDIA Jetson Orin Nano 8GB, NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
-

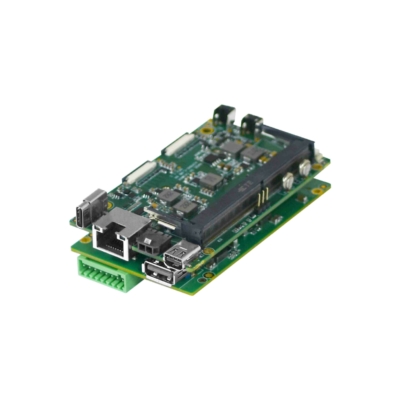

AIR6N0-C-MB NX IO
AIR6N0-C-MB NX with I/O expansion board, RS232, RS485, M.2 2280 and microSD -
AIR6N0-C-MB NX
AIR6N0-C-MB NX with no expansion board, 8-lane MIPI CSI-2 -
AIR6N0-C-MB NX 12G-SDI
AIR6N0-C-MB NX with 12G-SDI capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX 12G-SDI QL
AIR6N0-C-MB NX with four-input SDI board, 12G-SDI or quad-link 3G-SDI -
AIR6N0-C-MB NX 4xGMSL2
AIR6N0-C-MB NX with 4x GMSL2 camera input board and CAN on DB9 -
AIR6N0-C-MB NX 4xUSB3.2
AIR6N0-C-MB NX with 4x USB 3.2 Gen1 Type-A expansion board -
AIR6N0-C-MB NX HDMI2.0
AIR6N0-C-MB NX with HDMI 2.0 capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX HDMI2.1
AIR6N0-C-MB NX with HDMI 2.1 capture board, 4K60 4:4:4 input and loop-out
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Ethernet: 1x GbE LAN [RJ45], Optional PoE Modules
- Power: 24V DC
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
- Display Outputs: 1x Mini Display Port
- USB: 1x USB 2.0 [Board], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x2] [2230]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 2x RS232 [RJ11], 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ11]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 7-20V DC
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 22.04
- Display Outputs: 1x Mini HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type C], 3x USB 2.0 [Board]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x2 Gen4] [2230]
- Power: 12-36V DC [2-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 22.04
- Display Outputs: 1x Mini HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board]
- CANbus: 1x CANbus [Board], 2x CANbus [Board]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x2 Gen4] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Power: 12-36V DC [2-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- Memory: 32GB Soldered On-board, 64GB Soldered On-board
- OS: Linux Ubuntu 24.04, Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 8x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type C]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 64GB eMMC
- Power: 19-24V DC Input
- Temp: 0°C to 60°C [32°F to 140°F]
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- Memory: 32GB Soldered On-board, 64GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 2 [Type C]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 64GB eMMC
- Power: 19-24V DC Input
- Temp: 0°C to 60°C [32°F to 140°F]
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [Board]
- USB: 3x USB 3.2 [Board], 1x USB 2.0 [Board]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4]
- Power: 7-20V DC [Latching]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB Soldered On-board
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 3x USB 3.2 [Board], 1x USB 2.0 [Board]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- Analog In: 6x 12-bit A/D
- Analog Out: 2x 12-bit D/A
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4]
- Power: 7-20V DC [Latching]
- AI Performance: 248 TOPS
- SOM: NVIDIA Jetson AGX Orin Industrial 64GB
- Memory: 64GB Soldered On-board
- Temp: -40°C to 85°C [-40°F to 185°F]
-
RAIBOARD-ORNX-NX16
RAIBOARD-ORNX with Jetson Orin NX 16GB module, 100 TOPS, 10-75V DC input -
RAIBOARD-ORNX-NANO4
RAIBOARD-ORNX with Jetson Orin Nano 4GB module, 20 TOPS, 10-75V DC input -
RAIBOARD-ORNX-NANO8
RAIBOARD-ORNX with Jetson Orin Nano 8GB module, 40 TOPS, 10-75V DC input -
RAIBOARD-ORNX-NX8
RAIBOARD-ORNX with Jetson Orin NX 8GB module, 70 TOPS, 10-75V DC input
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [Board]
- USB: 1x USB 3.0 [Type A], 1x USB 3.0 [Type C]
- Serial: 2x Isolated RS232/422/485 [Board]
- CANbus: 2x Isolated CANbus [Board]
- M.2: 1x M.2 B-Key [USB 3.0/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD
- Power: 10-75V DC [4-Pin]
- Temp: -25°C to 85°C [-13°F to 185°F]
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
-
RAIBOARD-AGX-32GB
RAIBOARD-AGX with Jetson AGX Orin 32GB module, 200 TOPS, 10GbE and IP67 connectors -
RAIBOARD-AGX-64GB
RAIBOARD-AGX with Jetson AGX Orin 64GB module, 275 TOPS, 10GbE and IP67 connectors -
RAIBOARD-AGX-IND
RAIBOARD-AGX with Jetson AGX Orin Industrial module, 248 TOPS, 10GbE and IP67 connectors
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 1x USB 3.0 [Type C], 3x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 B-Key [USB 3.0/SIM] [3042], 2x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD
- Power: 12-30V DC [6-Pin]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
- Temp: -25°C to 85°C [-13°F to 185°F]
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 4x GbE LAN [Board]
- USB: 2x USB 3.2 [Board], 2x USB 2.0 [Board]
- Serial: 8x TTL [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x SD Card
- Power: 12-30V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
-
MILBOARD-AGXMAX-32GB
MILBOARD-AGXMAX with Jetson AGX Orin 32GB module, 200 TOPS, 10GbE and isolated I/O -
MILBOARD-AGXMAX-64GB
MILBOARD-AGXMAX with Jetson AGX Orin 64GB module, 275 TOPS, 10GbE and isolated I/O -
MILBOARD-AGXMAX-IND
MILBOARD-AGXMAX with Jetson AGX Orin Industrial module, 248 TOPS, 10GbE and isolated I/O
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [Board], 3x GbE LAN [Board]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Board]
- Serial: 4x Isolated RS232/422 [Board]
- CANbus: 2x Isolated CAN FD [Board]
- M.2: 2x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x SD Card, 2x M.2 SSD, 64GB eMMC
- Power: 12-36V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
- OS: Linux, Linux Ubuntu 20.04, Linux Ubuntu 22.04
- Display Outputs: 1x Display Port
- Ethernet: 1x 10 GbE LAN [Board], 1x GbE LAN [Board]
- USB: 3x USB 3.2 Gen 2 [Board]
- Serial: 2x RS232/422/485 [Board]
- CANbus: 2x CAN FD [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 2.0/SIM] [3042], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 12-36V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: RoHS
- AI Performance: 200 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB
Beyond Orin Carriers: Jetson Computers and Boards
Jetson OrinNVIDIA Orin computers from Orin Nano to AGX Orin.
Jetson Thor Carrier BoardsMil-grade and industrial carrier boards for the AGX Thor module.
NVIDIA Jetson Carrier BoardsCarrier boards across every Jetson generation.
Rugged Jetson ComputersSealed and MIL-STD tested Jetson computers for harsh sites.Custom Jetson Orin Carrier Board Design and Manufacture
Where a standard Orin carrier does not have the right interfaces, a custom board can be designed for the Orin Nano, Orin NX or AGX Orin module.
Options include USB 3, PCIe, 10GbE, SATA, HDMI, DisplayPort, CAN and RS-485, with power and thermal design matched to the enclosure and component choices that keep the board available for years.
We handle each stage from design and prototyping to production, with low non-recurring engineering costs and experience in rail and defense designs.
Jetson Orin Carrier Board Ranges Configured by Things Embedded
We work with the leading manufacturers of Jetson Orin carrier boards, so the ranges below are every Orin board family we carry. Compare them by module, size and interfaces, then browse the boards above or ask a specialist which one suits your platform.
RAIBOARD Railway Jetson Carrier Boards
The railway carrier boards from inside the RAIBOX computers, for integrators building their own rolling-stock or trackside enclosure around NVIDIA Jetson AGX Orin, Orin NX or Orin Nano. Field I/O sits on locking Molex Dura-Clik connectors at the board edge, with sealed HDMI and USB ports, and RAIBOARD-ORNX adds isolated serial, CAN and digital I/O.
MILBOARD Militarised Jetson Carrier Boards
A MIL-STD-designed carrier board for integrators building their own sealed enclosure around NVIDIA Jetson AGX Thor or AGX Orin. MILBOARD-THR is the board-level half of the MILBOX-THR, and MILBOARD-AGXMAX and MILBOARD-AGX carry AGX Orin.
DSBOARD Industrial Jetson Carrier Boards
Bare carrier boards for integrating NVIDIA Jetson into your own enclosure or product, from Orin Nano and Orin NX through AGX Orin to the AGX Thor T4000 and T5000. Wide-temperature industrial designs with the camera, Ethernet and storage interfaces exposed for your build.
NVIDIA Jetson and IGX Edge AI Boards and Computers
Edge AI hardware built around video input: Jetson Thor and AGX Orin carrier boards and computers, an AI NVR with eight PoE ports, the NEAR T7X on NVIDIA IGX Thor, the AIR6N0-C-MB NX carrier for Orin NX and Orin Nano, compact Pandora systems including Pandora Health builds with HDMI and SDI capture, VPP6N0 computers, and Holoscan sensor bridges that feed live video into NVIDIA Holoscan.
NVIDIA Jetson Carrier Boards and Development Kits
Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
NRU NVIDIA Jetson Edge AI Computers
Rugged fanless computers built around NVIDIA Jetson Orin NX, Orin Nano and AGX Orin, with the camera interface chosen for the job: PoE+ on the NRU-150-FT, GMSL2 on the NRU-160-FT, and an AGX Orin AI NVR in the NRU-220S. The NRU-160-AWP adds IP66 sealing, the NRU-51V is a four-camera GMSL2 hub with 10GbE and the NRU-52S powers four 90 W PoE++ cameras.
FLYC Companion Computers for Drones and UAVs
A low-SWaP Jetson Orin NX computer sized for airframe payload bays, with the camera, sensor and flight-controller interfaces a UAV needs for inspection, mapping and onboard inference.
AIE NVIDIA Jetson Edge AI Computers and Developer Kits
Compact fanless Jetson computers on Orin Nano and Orin NX for vision and inference at the edge, with the AIE110 developer kits sharing the same modules so a prototype moves straight to the AIE100 or AIE810 deployment box.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an Orin Carrier Board
Our embedded engineers specify every carrier board against the module, the interfaces and the enclosure it goes into. These are the choices we work through with you before recommending a board.
Module Fit
Orin Nano and Orin NX boards share a 260-pin connector, so many take either module; AGX Orin boards take the 32GB, 64GB or Industrial module.
Interfaces and Expansion
Gigabit and multi-gigabit Ethernet, serial and CAN for control networks, and M.2 or mini PCIe slots for NVMe storage, Wi-Fi, 4G and 5G.
Camera Inputs
Camera connectors on the board itself, or an M.2 or mini PCIe frame grabber for GMSL, SDI and HDMI video where the board has none.
Temperature Range
Industrial ratings of -25 °C to 85 °C across most of the range.
Off-the-Shelf or Custom
Start from an off-the-shelf board, or we adapt one or design a custom carrier around your interfaces, connectors and enclosure.
Board Support Package
The carrier manufacturer's board support package matched to the JetPack release you need, flashed and tested with the module fitted.
Orin Carrier Board Innovation & Custom Design Insights
Speak to a Jetson Orin Carrier Board Specialist.
Tell us the module, the interfaces you need and where the board will be installed. We will recommend the right Orin carrier board, or adapt one, then fit the module, image and test it before it ships.
