US Rugged Ethernet Switches
Rugged Network Switches for Vehicles and Defense
A rugged Ethernet switch is a complete managed switch in a sealed enclosure, built to sit on a vehicle, vessel or aircraft where dust, water, shock and noisy power would stop a commercial switch. Our military Ethernet switches carry gigabit ports on circular MIL-DTL-38999 connectors, with Layer 2+ or Layer 3 management and a local serial port for set-up.
Options include IEEE-1588 PTP builds, MIL-STD-461 power filtering or MIL-grade power supplies for MIL-STD-704 and MIL-STD-1275 supplies, IP65 and IP67 sealed designs and -40 to 85 °C operation, suited to ground vehicles, mission systems and unmanned platforms where the network must survive the environment.
Speak to a rugged networking specialist to match the ports, connectors and power standard to your platform.
Browse Our Military Ethernet Switches
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Ethernet Connectors: M12
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Ethernet Connectors: M12
- Fiber: 2x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Ethernet Connectors: M12
- Power: 24-55V DC [M12]
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [M12]
- Ethernet Connectors: M12
- Power: 24V-110V DC [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, RoHS
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Unmanaged
- Ethernet: 8x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Power: 24-55V DC [M12]
- IP Rating: IP67
- Certification: CE, FCC, RoHS, UL 61010-1
- Mounting Options: Wall Mount
- Temp: -40°C to 70°C [-40°F to 158°F]
- Switch Type: Unmanaged
- Ethernet: 1x 10/100/1000 BASE-TX [M12], 4x 10/100/1000 BASE-TX [PoE+] [M12]
- Ethernet Connectors: M12
- PoE Standard: PoE+ 30W [802.3at]
- Power: 48-56V DC [M12]
- Temp: -40°C to 75°C [-40°F to 167°F]
- IP Rating: IP67
- Certification: EN62368-1, CE, EN50121-3-2, EN50121-4, EN50155, FCC, LVD, NDAA, TAA, UL 62368-1
- Mounting Options: DIN Mount, Wall Mount
- Switch Type: Unmanaged
- Ethernet: 8x 10/100 BASE-TX [M12]
- Ethernet Connectors: M12
- Power: 12-48V DC Input [M12]
- IP Rating: IP67
- Certification: CE, EN50121-3-2, EN50121-4, FCC, NDAA, RoHS, TAA, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -10°C to 65°C [14°F to 149°F]
- Switch Type: Unmanaged
- Ethernet: 5x 10/100 BASE-TX [M12]
- Ethernet Connectors: M12
- Power: 12-48V DC Input [M12]
- IP Rating: IP67
- Certification: CE, FCC, RoHS, UL 61010-1
- Mounting Options: DIN Mount, Wall Mount
- Temp: -40°C to 75°C [-40°F to 167°F]
-
SabreNet-12000-200
SabreNet-12000 with isolated MIL-grade power supply and high-profile case -
SabreNet-12000-100
SabreNet-12000 with MIL-STD-461 filter, 7 to 34 V DC input and low-profile case -
SabreNet-12000-120
SabreNet-12000 with IEEE-1588 PTP, MIL-STD-461 filter and low-profile case -
SabreNet-12000-220
SabreNet-12000 with isolated MIL-grade power supply, IEEE-1588 PTP and high-profile case
- Serial: 1x RS232 [MIL-STD]
- Switch Type: Managed
- Ethernet: 12x 10/100/1000 BASE-TX [MIL-STD]
- Ethernet Connectors: MIL-STD
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP67
- Power: 9-60V DC Input [MIL-STD]
- Certification: MIL-STD-1275, MIL-STD-704, MIL-STD-461
- Serial: 1x RS232 [MIL-STD]
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [MIL-STD]
- Ethernet Connectors: MIL-STD
- Power: 5-32V DC [MIL-STD]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP65
- Certification: MIL-STD-461, RoHS
Rugged Ethernet Switch Ranges Supplied by Things Embedded
We work with a leading manufacturer of rugged Ethernet switches, so the ranges below are the ones we specify for military and vehicle networks. Compare them by ports, sealing and power standard, then browse the models above or ask a rugged networking specialist which range suits your platform.

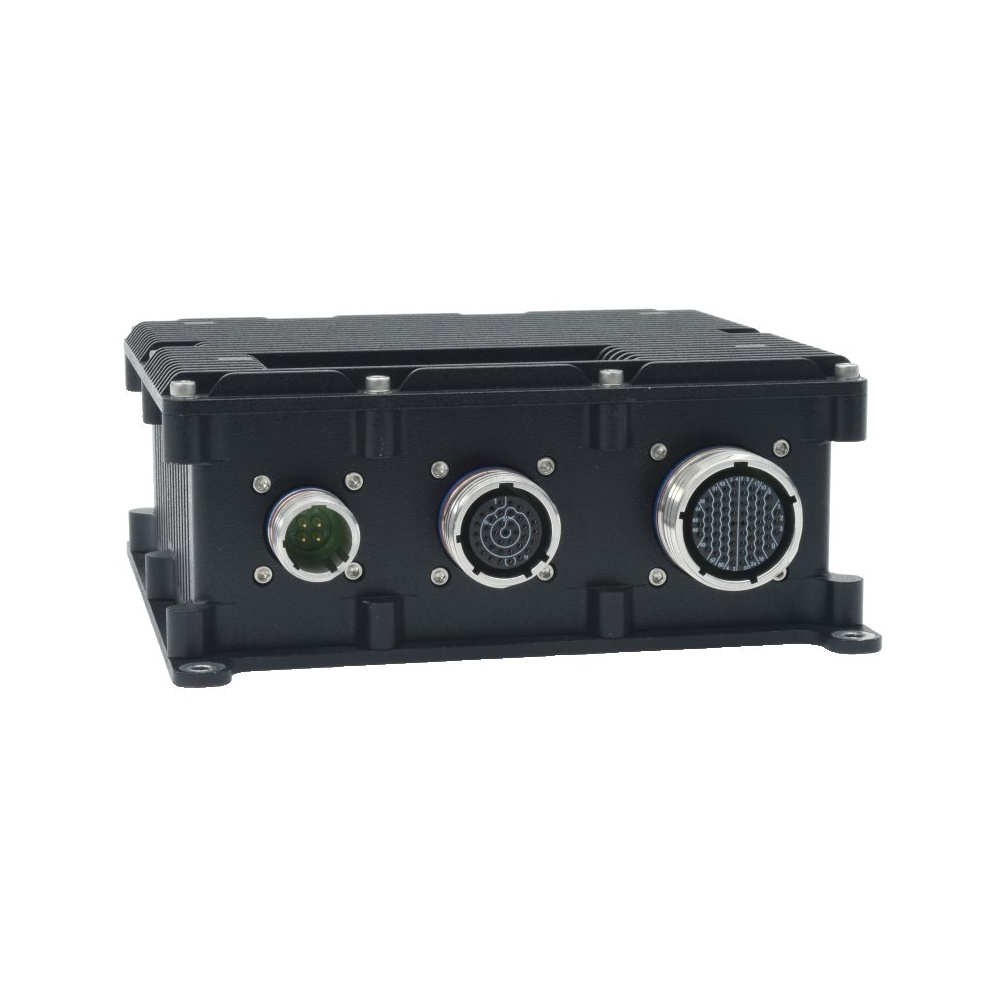

SabreNet-12000 Diamond Systems Rugged Switches
Sealed 12-port gigabit Layer 3 switches on two MIL-DTL-38999 connectors, with a MIL-STD-461 filter or MIL-grade power supply and IEEE-1588 builds.

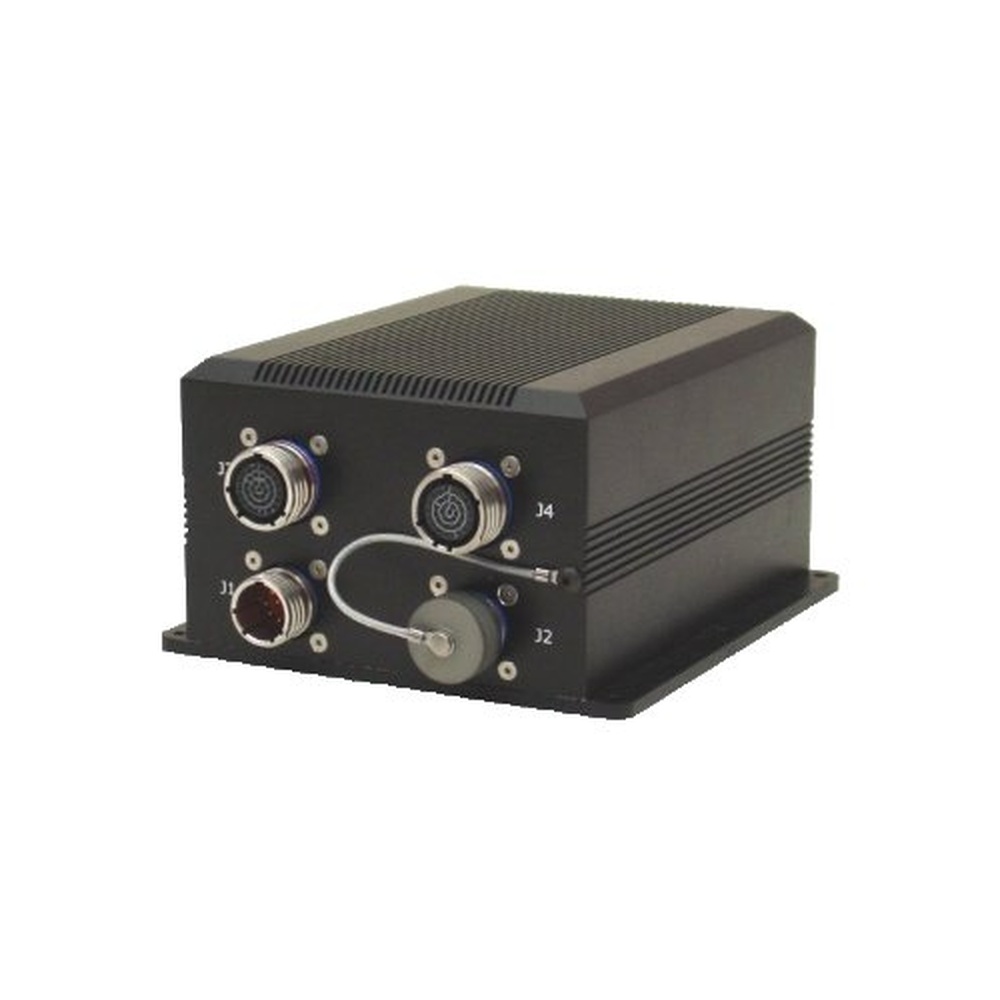

Raptor-Epsilon Diamond Systems Rugged Switch
Sealed eight-port gigabit Layer 2+ switch in an aluminum enclosure with MIL-DTL-38999 connectors and wide 5 to 32 V DC input.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Military Ethernet Switch
Our rugged networking specialists work through these choices with you before recommending a switch for your platform.
Ports and Connectors
Count the gigabit links and plan the MIL-DTL-38999 connector layout and cable harness.
Layer 2+ or Layer 3
Layer 2+ for VLANs and redundancy; Layer 3 routing where subnets must talk to each other.
Power Standard
MIL-STD-461 filtering, or a MIL-grade supply for MIL-STD-704 aircraft and MIL-STD-1275 vehicle power.
Sealing
IP65 or IP67 sealed enclosures for dust, rain and wash-down.
IEEE-1588 Timing
PTP builds keep sensors and mission computers on one clock.
Temperature and Shock
-40 to 85 °C operation and shock and vibration testing for vehicle use.
Explore Our Network Switches by Type
Compare every networking category, from board-level switch modules to sealed rugged switches and DIN-rail PoE switches, and go straight to the switches that fit your system.
Rugged Ethernet Switch Innovation & Defense Networking Insights
Speak to a Rugged Networking Specialist.
Tell us the devices the switch must connect, the vehicle, enclosure or cabinet it goes into and the power and temperature it has to handle. We will recommend the right switch, supply it with the manufacturer's documentation and support you as you bring it into your system.
