US IP69K Panel PCs
IP69K Stainless Steel Panel PCs for Hot High-Pressure Washdown
IP69K panel PCs withstand close-range, high-pressure, high-temperature water jets, the rating food, beverage and pharmaceutical plants specify for hot washdown. Available from 10.1 to 23.8 inches with PCAP or resistive touch, most in stainless steel and many also rated IP66, they are sealed on all six sides and mount in the open on arms, yokes and pedestals.
Options include 316 grade stainless steel, M12 connectors, wide-range DC input and Intel Core processors, suited to meat, dairy and bakery lines, beverage filling and pharmaceutical suites where the whole line is hosed at the end of every shift. For every sealing level, see Waterproof Panel PCs.
Speak to a panel PC specialist to match the size, touch technology and mounting to your washdown line.
Browse Our IP69K Washdown Touch Screen PCs
- IP Rating: IP69K
- Touch: Projective Capacitive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x 2.5" HDD/SSD
- Power: 12-24V DC [M12]
- Temp: -20°C to 50°C [-4°F to 122°F]
- Certification: CE, FCC, UKCA
- IP Rating: IP69K
- Display: 10.1"[8:5, 1280 x 800, WXGA]
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 3.2 Gen 1 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [M12]
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 10.1"[8:5, 1280 x 800, WXGA]
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Ethernet: 2x 2.5 GBe LAN [M12]
- USB: 1x USB 3.2 Gen 2 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch

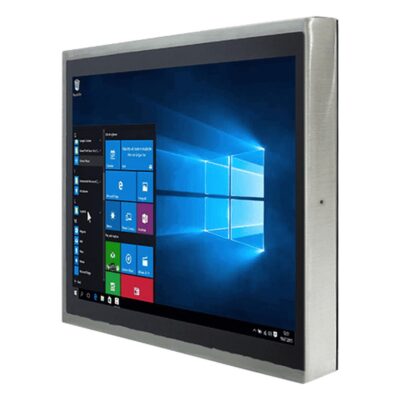

- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 3.2 Gen 1 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [M12]
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Ethernet: 2x 2.5 GBe LAN [M12]
- USB: 1x USB 3.2 Gen 2 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 15[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Projective Capacitive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Bay Trail
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232/422/485 [M12], 9x RS232 [M12]
- mPCIe: 1x Half-Size mPCIe [PCIe, USB], 1x mPCIe [SATA/USB]
- Storage: 1x 2.5" HDD/SSD
- Power: 9-36V DC Input, M12
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Ethernet: 2x GbE LAN [M12]
- USB: 1x USB 3.2 Gen 1 [IP67], 1x USB 3.2 Gen 1 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [M12]
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Ethernet: 2x 2.5 GBe LAN [M12]
- USB: 1x USB 3.2 Gen 2 [IP67], 1x USB 3.2 Gen 2 [M12], 2x USB 2.0 [M12]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- RAID: RAID 0, RAID 1
- Power: 9-36V DC Input, M12
- Temp: -10°C to 60°C [14°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount, Yoke Mount
- Touch: 5-Wire Resistive Touch

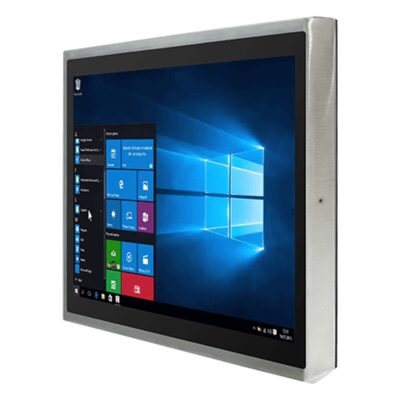

- IP Rating: IP69K
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC

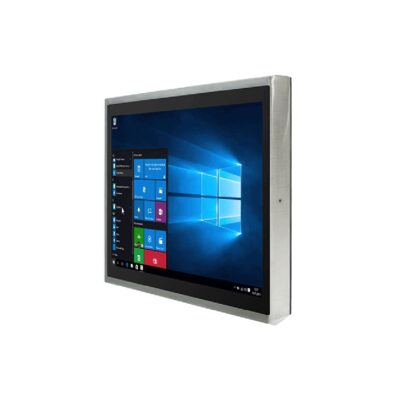

- IP Rating: IP69K
- Display: 17[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- M.2: 1x M.2 B/M-Key [PCIe x4/USB/SATA] [2242/3042]
- Storage: 1x M.2 SSD
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
IP69K Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of IP69K stainless steel HMIs, so the ranges below are the ones we specify for meat, dairy, bakery and pharmaceutical washdown. Compare them by grade, processor and format, then browse the models above or ask a panel PC specialist which range suits your washdown line.

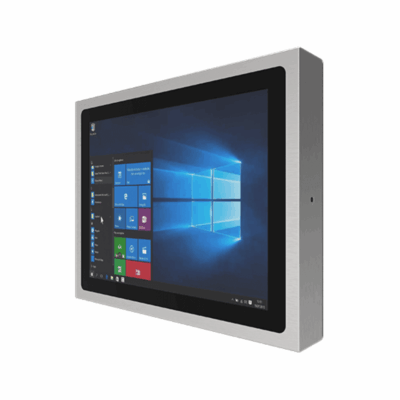

IE3S Winmate Stainless Steel Washdown PCs
Hygienic touch terminals from 10.1 to 23.8 inches in stainless steel on Intel Celeron N6210, in IP65 and full IP69K builds with M12 connectors, and push-button variants beside the screen.

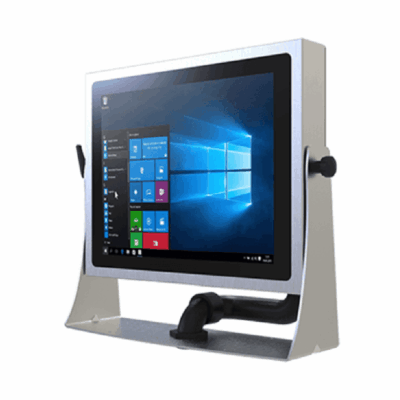

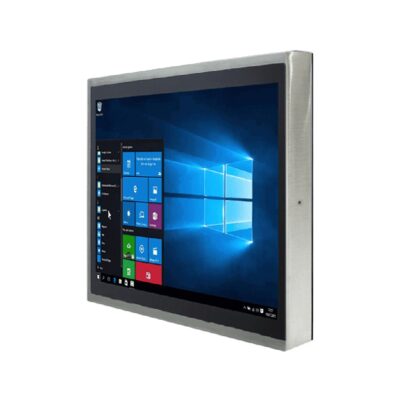

IT3S Winmate IP69K AISI 316 Stainless Panel PCs
Full IP69K AISI 316 stainless HMIs on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with PCAP rain-mode touch for the wettest positions on the line.
PPC-Z Arestech IP66/IP69K Stainless Steel Panel PCs
Fanless stainless steel all-in-one units from 10.1 to 23.8 inches, sealed to IP66 and IP69K with M12 connectors, on Intel Pentium to Core i5, with 316-grade builds and an RFID reader option for operator login at the line.
GOT800 Axiomtek IP69K Full-Flat Stainless HMIs
Full-flat 304 stainless steel operator panels from 15.6 to 21.5 inches, sealed to IP69K, on Intel Core Tiger Lake with PCAP touch, for line-side screens where a widescreen format suits recipe and batch views.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an IP69K Washdown HMI
Our panel PC specialists specify every IP69K panel PC against the temperature, pressure and chemistry of the washdown. These are the choices that decide whether an HMI survives hot high-pressure cleaning, and the ones we work through with you before recommending a range.
Hot High-Pressure Washdown
IP69K covers close-range, high-temperature, high-pressure jets, the cleaning used on meat, dairy and bakery lines.
304 or 316 Grade
316 stainless resists chlorides and aggressive sanitisers; 304 suits most food areas.
M12 Connectors
Sealed, screw-locking connectors for every port on the unit.
Wet-Hand Touch
PCAP with rain-mode touch or resistive, so wet gloves and spray do not trigger false touches.
Crevice-Free Design
Smooth, fanless enclosures with no vents or exposed fixings where bacteria can collect.
IP69K Panel PC Innovation & Hot Washdown Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
