US Intrinsically Safe Panel PCs
ATEX Panel PCs for Zone 2 and Class I Div 2 Sites
Intrinsically safe panel PCs are certified to operate where flammable gas or vapor may be present, so the HMI can sit at the process rather than behind a barrier. Available from 12 to 24 inches with PCAP or resistive touch and sealing from a front IP65 bezel to fully sealed IP66, they carry UL Class I Division 2 with ATEX Zone 2 and IECEx on selected models.
Options include chassis and panel-mount builds, stainless steel enclosures, optional 1,000 nit sunlight-readable panels and 9 to 36 V input, suited to oil and gas, petrochemical and wastewater sites where the operator station is inside the classified area.
Speak to a panel PC specialist to match the certification, size and sealing to your classified zone.
Browse Our ATEX HMIs and Class I Div 2 Panel PCs

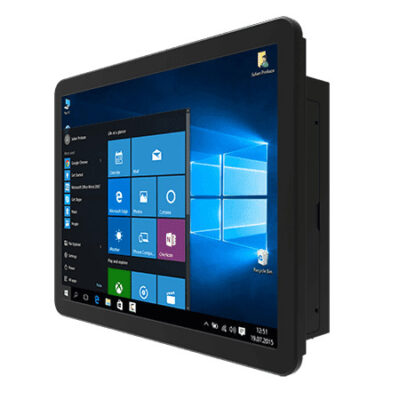

- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2

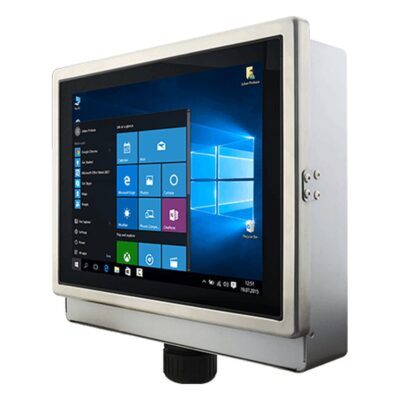

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000, 550
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom X Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232/422/485 [M12]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP65
- Certification: ATEX Zone 2, CE, FCC, IC (ICES-003), IECEx, UL Class 1 Division 2
- Mounting Options: VESA Mount

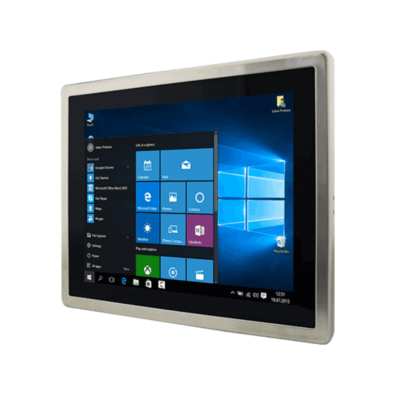

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 1000, 550
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom N Series Cedarview
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 4GB
- OS: Linux Ubuntu 16.04, Windows 7
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232/422/485 [M12]
- Storage: 1x mSATA
- Power: 9-36V DC Input [M12]
- Temp: -20°C to 50°C [-4°F to 122°F]
- IP Rating: IP65
- Certification: ATEX Zone 2, CAN/CSA C22.2, CE, FCC, UL Class 1 Division 2, UL60950-1

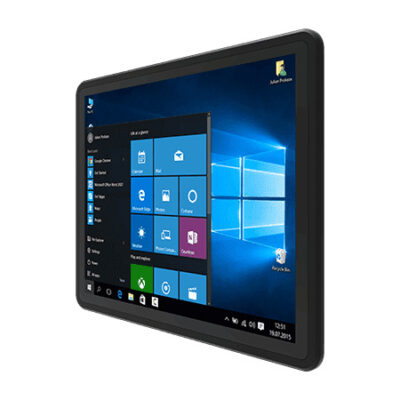

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2

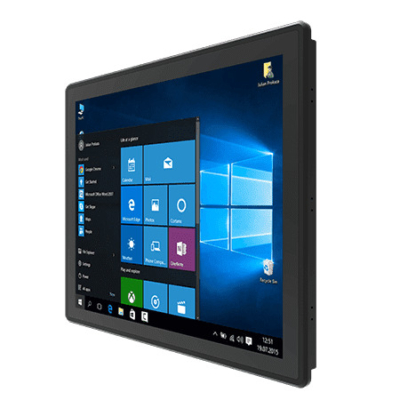

- Display: 17"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2

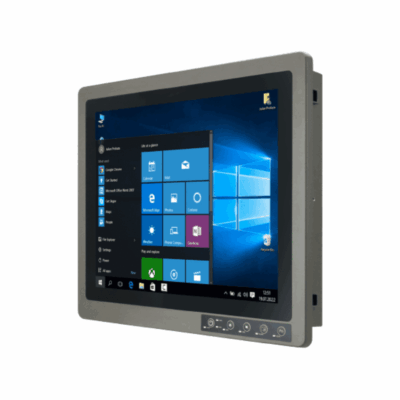

- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [Terminal Block]
- USB: 1x USB 2.0 [Terminal Block], 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP66
- Certification: ATEX Zone 2, CE, FCC, IECEx, UL 62368-1, UL Class 1 Division 2

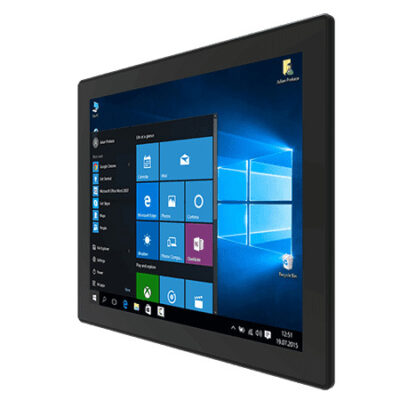

- Display: 19"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2

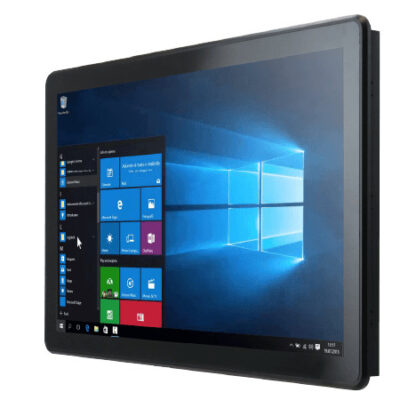

- Display: 21.5"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2

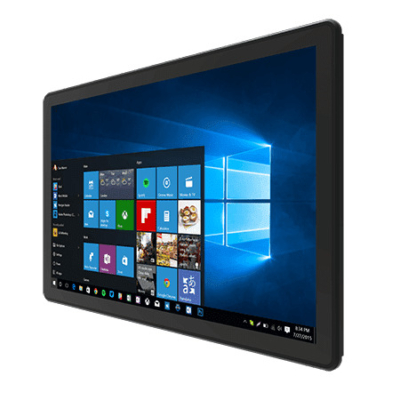

- Display: 23.8"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2
Intrinsically Safe Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of certified HMIs for hazardous areas, so the ranges below are the ones we specify for oil, gas, chemical and wastewater sites. Compare them by certification, sealing and size, then browse the models above or ask a panel PC specialist which range suits your zone.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Hazardous Area HMI
Our panel PC specialists specify every intrinsically safe panel PC against the zone classification, the sealing and the site conditions. These are the choices that decide whether an HMI can sit inside your classified zone, and the ones we work through with you before recommending a range.
Certification
UL Class I Division 2 across the range, ATEX Zone 2 and IECEx on selected models: match the marking to the zone.
Sealing
Front IP65 for panel mounting in a cabinet, full IP66 for units mounted in the open.
Stainless Options
Stainless steel enclosures for corrosive and washdown areas inside the classified zone.
Outdoor Readability
Optional 1,000 nit screens for skids, platforms and outdoor process plant.
Intrinsically Safe Panel PC Innovation & Classified Zone Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
