US Rack Mount Panel PCs
Rack Mount Touch Screen PCs for 19 Inch Racks and Consoles
Rack mount panel PCs put a touch screen computer into a standard 19 inch rack, for control consoles, test rigs and equipment cabinets where the operator works at the rack. Available as an 18.5 inch full HD unit with resistive touch, they keep the display, computer and touch input in the same enclosure as the equipment they control.
Options include fixed or hinged fronts on the rack rails; for a rack display driven by a computer elsewhere in the rack, our 19 inch rack mount monitors run from 15 to 32 inches, suited to consoles, shelters and switchrooms.
Speak to a panel PC specialist to match the rack unit, touch technology and computer to your console.
Browse Our 19 Inch Rack Mount HMIs

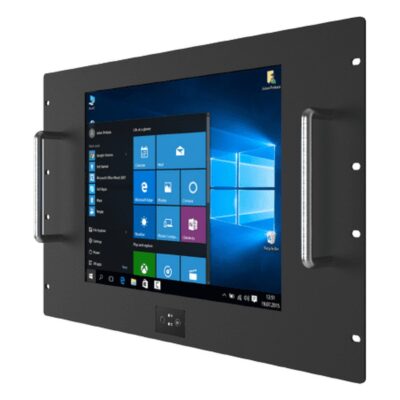

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

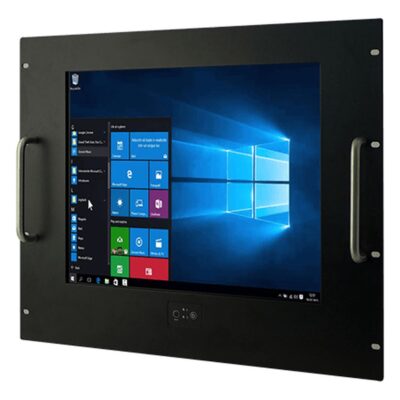

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slots, 16GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

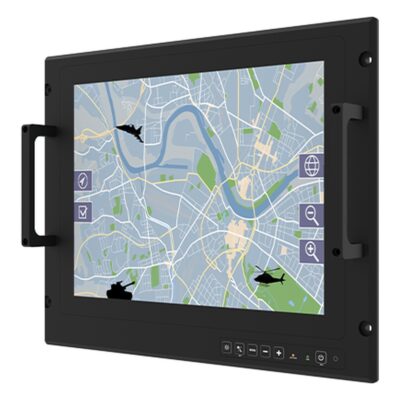

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810

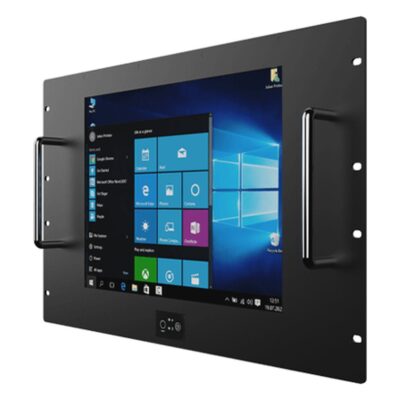

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core 12th Gen Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

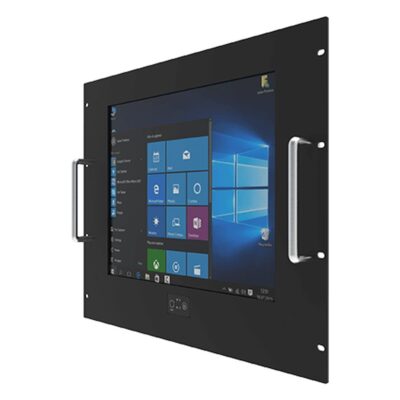

- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

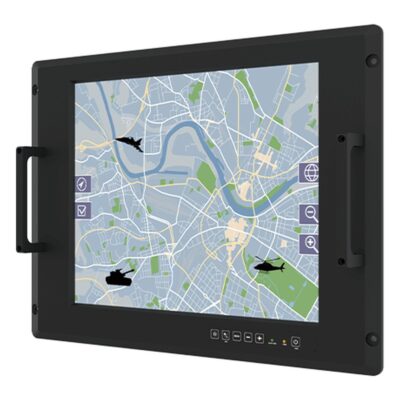

- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810

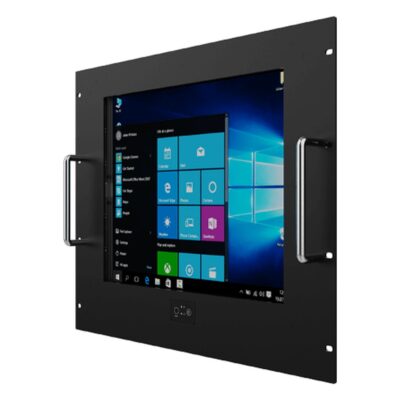

- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core 12th Gen Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 1x USB 2.0 [MIL-STD]
- Serial: 2x RS232 [MIL-STD]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 18.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810

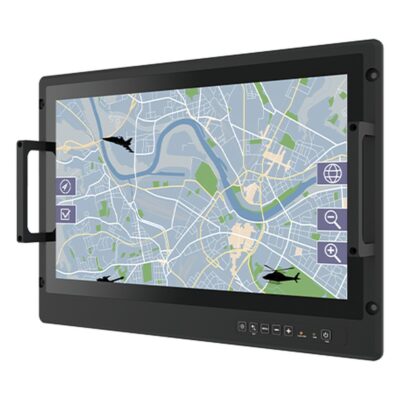

- Display: 18.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
Beyond Rack Mount: Panel PCs
All Panel PCsEvery panel PC we supply, from open frame HMIs to fully sealed IP69K stainless steel builds.
Chassis and VESA Mount Panel PCsFully enclosed panel PCs on VESA arms, yokes and pedestals, for HMIs that sit beside the machine.
Open Frame Panel PCsFanless touch computers without a housing, built into kiosks, signage and OEM machine enclosures.
Panel Mount PCsPanel PCs that cut into a cabinet door or machine guard, with the computer inside the enclosure.Rack Mount Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of rack mount touch screen computers, so the ranges below are the ones we specify for control consoles, test rigs and equipment racks. Compare them by screen size, processor and touch, then browse the models above or ask a panel PC specialist which range suits your console.

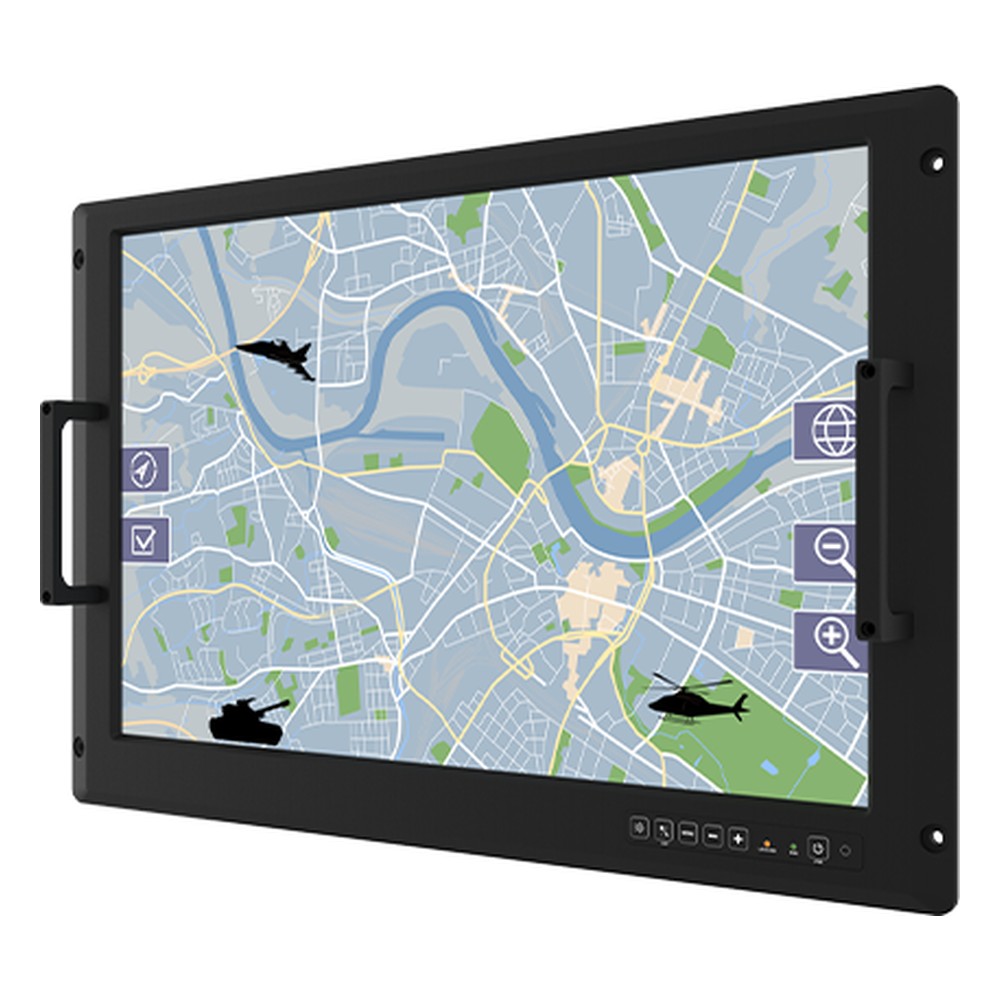

Winmate Rack Mount Touch Computers
Rack mount HMIs from 15 to 24 inches on Intel Pentium N4200, Core i5 Tiger Lake, Alder Lake or LGA1700 Core, with defense builds to MIL-STD-810H and MIL-STD-461.

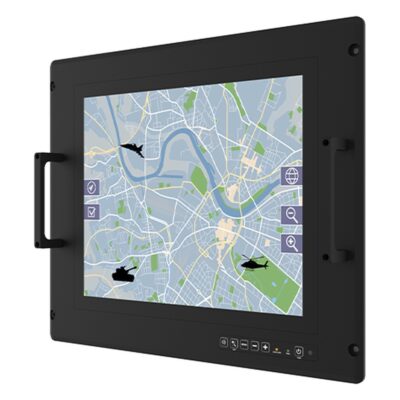

Winmate Defense Panel PCs
Defense panel PCs from 17 to 32 inches on Intel Core i5 Tiger Lake, Alder Lake or i7-1265UE, built to MIL-STD-810H and MIL-STD-461 for consoles.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rackmount HMI
A rackmount HMI puts the display, computer and touch screen into the rack beside the equipment it controls. Rack height, screen, touch and rear I/O decide how it fits the console and how easily operators can use it.
Rack Height and Screen
Match the rack height to the screen size and resolution, so the panel PC fits a standard 19 inch (19") rack without adapters.
Integrated Computer
Display, computer and touch in one rack-mount chassis, with no separate KVM or rack PC to wire in.
Touch at the Rack
Resistive touch works with gloves and a stylus when the operator stands at the console, away from a desk and mouse.
Rear I/O
Rear-facing Ethernet, serial and USB ports keep cabling inside the rack and away from the operator side of the console.
Processor Choice
Choose the processor for the software at the console, from standard HMI and SCADA clients to video and multi-window screens.
Windows or Linux
Windows and Linux support for HMI, SCADA and control software, with drivers matched to the touch screen.
