US AMD Ryzen 7000
Ryzen 7 7840HS and 7735U Industrial PCs and Boards
AMD Ryzen 7000 brings mobile Ryzen processors into fanless industrial computers and 4×4 boards, for the graphics performance per watt that signage, vision and automation software needs. The range covers fanless PCs on the Ryzen 7 7840HS, 7840U and 7440U, and 4×4 boards and compact box PCs on the Ryzen 5 7535U and Ryzen 7 7735U.
Options include Radeon 780M graphics on the Ryzen 7040 parts, DDR5 memory, tile, 30 W and 60 W fanless builds and up to three Hailo-8 AI modules, suited to digital signage, machine vision, logistics and compact automation where a small computer has to do more.
Speak to an AMD Ryzen 7000 specialist to match the processor, the I/O and the enclosure to your application.
Browse Our Ryzen 7 7840U and 7735U Computers
Or choose a range below.
- CPU: AMD Ryzen Embedded 8000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen
- GPU / AI Accelerator: Hailo-10 AI Accelerator, AMD Ryzen AI NPU, Hailo-8 AI Accelerator
- AI Performance: 16–40 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
- Ethernet: 4x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: Optional Serial Modules
- M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 3x M.2 M-Key [PCIe x4] [2280]
- Storage: 3x M.2 SSD
- Power: 12-60V DC Input [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: Desktop, DIN Mount, VESA Mount, Wall Mount
-
BEDROCK R7000 EDGE AI TILE
BEDROCK R7000 EDGE AI with 29 mm Tile enclosure, Ryzen 7 7840U and Hailo-8 -
BEDROCK R7000 EDGE AI 30W
BEDROCK R7000 EDGE AI with 30W finned enclosure, Ryzen 7040 Series and Hailo-8 -
BEDROCK R7000 EDGE AI 60W
BEDROCK R7000 EDGE AI with 60W finned enclosure, Ryzen 7 and Hailo-8
- CPU: AMD Ryzen, AMD Ryzen 7
- GPU / AI Accelerator: Hailo-8 AI Accelerator
- AI Performance: 10–26 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
- Storage: 3x M.2 SSD
- Power: 12-60V DC Input [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: Desktop, DIN Mount, Wall Mount
-

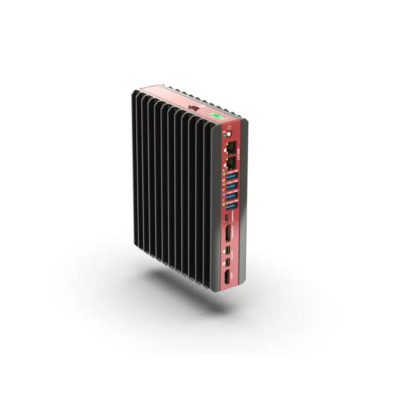

BEDROCK R7000 BASIC TILE
BEDROCK R7000 BASIC with 29 mm Tile enclosure, Ryzen 7 7840U and conduction cooling -
BEDROCK R7000 BASIC 30W
BEDROCK R7000 BASIC with 30W finned enclosure, Ryzen 7040 Series and DIN mounting -
BEDROCK R7000 BASIC 60W
BEDROCK R7000 BASIC with 60W finned enclosure, Ryzen 7 7840HS and 2x 2.5GbE
- CPU: AMD Ryzen, AMD Ryzen 7
- AI Performance: 10 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x Mini Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 A/E-Key [SATA] [2230], 1x M.2 B-Key [USB] [3042/3052], 3x M.2 M-Key [PCIe x4] [2280]
- Storage: 3x M.2 SSD
- Power: 12-60V DC Input [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC, RoHS
- Mounting Options: Desktop, DIN Mount, Wall Mount
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A], 2x USB 4 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-19V DC [Barrel Connector], Optional AC Power Supply
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
- CPU: AMD Ryzen 7
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A], 2x USB 4 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 19V DC [Barrel Connector], Optional AC Power Supply
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount, Wall Mount
- CPU: AMD Ryzen 7
All AMDBack to the full rangeAMD Ryzen 7000 Ranges Configured by Things Embedded
We work with the leading manufacturers of Ryzen industrial computers and boards, so the ranges below are the ones we specify on this generation. Compare them by size, I/O and cooling, then browse the products above or ask a specialist which range suits your application.

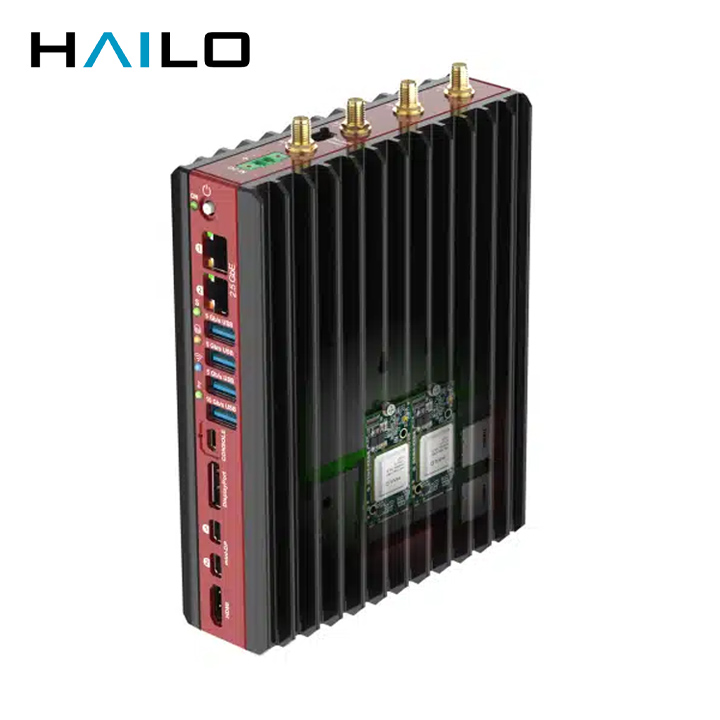

Bedrock R7000 SolidRun Fanless Industrial PCs
Fanless Ryzen 7040 computers on the 7440U, 7840U or 7840HS in tile, 30 W and 60 W builds, with an Edge AI version that takes up to three Hailo-8 modules.

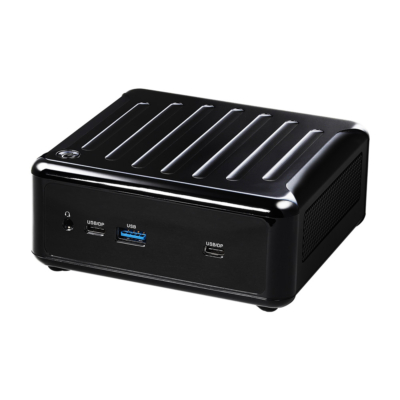

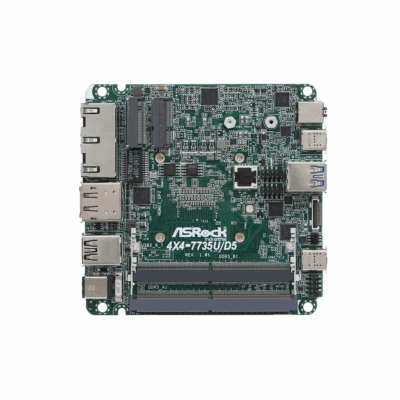

4X4 7000 ASRock Industrial Boards and Box PCs
4x4 motherboards and fanned box PCs on the Ryzen 5 7535U or Ryzen 7 7735U with DDR5, for signage players and compact automation PCs.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Ryzen 7 7840U System
Our industrial computing specialists specify every system on this generation against the workload, the enclosure and the years it has to stay in production. These are the choices we work through with you before recommending a range.
Processor and Power
Ryzen 5 7535U and Ryzen 7 7735U for compact boards, 7840U and 7840HS at 30 or 60 W.
Graphics and Displays
Radeon 780M on the Ryzen 7040 parts, with multiple 4K outputs for signage and HMI.
AI Acceleration
Up to three Hailo-8 modules on the Bedrock R7000 Edge AI build.
Cooling
Fanless tile, 30 W and 60 W chassis, or fanned 4x4 box PCs where airflow is available.
Memory and Storage
DDR5 memory and NVMe storage.
Availability
Consumer-lineage processors: we check the supply window before a long program.
Ryzen 7000 Innovation & Compact Edge Insights
Speak to an AMD Ryzen 7000 Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
