US Qualcomm SBCs
Qualcomm Single Board Computers for Edge AI and Robotics
A Qualcomm SBC is built around a Dragonwing system-on-chip that combines Arm CPU cores, graphics, video engines and a Hexagon neural processing unit, so a small fanless board can run vision models at low power.
Options include Pico-ITX and 3.5 inch boards with UFS storage, extended temperature builds and cellular expansion, suited to robots, smart cameras and gateways where AI has to run on the device.
Speak to a Qualcomm SBC specialist to match the processor, interfaces and operating system to your device.
Browse Our Qualcomm SBCs
- CPU: QCS6490
- AI Performance: 12 TOPS
- Memory: 8GB Soldered On-board
- OS: Android 13.0, Qualcomm Linux, Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- M.2: 1x M.2 B-Key [USB] [3042/3052]
- Storage: 128GB UFS, 1x Micro SD
- Certification: CE, FCC, KC, RoHS, VCCI
- Power: 9-20V DC [Terminal Block]
- Temp: -10°C to 60°C [14°F to 140°F]
- CPU: QCS5430
- AI Performance: 3.5
- Memory: 4GB Soldered On-board
- OS: Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- M.2: 1x M.2 B-Key [USB] [3042/3052]
- Storage: 1x Micro SD, 64GB UFS
- Certification: CE, FCC, KC, RoHS, VCCI
- Power: 9-20V DC [Terminal Block]
- CPU: QRB5165
- AI Performance: 15
- Memory: 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.1] [2242/3052], 1x M.2 E-Key [PCIe] [2230]
- Storage: 128GB UFS, 1x Micro SD
- Power: 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, RoHS, UKCA
- OS: Linux, Linux Yocto 4.0
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A], 3x USB 2.0 [Board]
- Serial: 1x RS232 [Board]
- CANbus: 1x CAN FD [Board]
- M.2: 1x M.2 B-Key [USB 3.1] [3052], 1x M.2 E-Key [PCIe] [2230]
- Storage: 128GB UFS, 1x Micro SD
- Power: 5V DC [2-Pin]
- Certification: CE, FCC, RoHS, UKCA
- CPU: QCS6490
- AI Performance: 12 TOPS
- Memory: 8GB Soldered On-board
- Temp: -25°C to 75°C [-13°F to 167°F]
- CPU: QCS6490
- AI Performance: 12 TOPS
- Memory: 8GB Soldered On-board
- OS: Android 13.0, Qualcomm Linux, Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x eDP, 1x HDMI, 1x USB Type C
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Type C], 2x USB 2.0 [Board], 2x USB 3.2 Gen 1 [Type A]
- Serial: 4x RS232 [Board]
- Storage: 128GB UFS
- Power: 20V DC [Barrel Connector], 20V [USB-C]
- Temp: -20°C to 70°C [-4°F to 158°F]
Qualcomm SBC Ranges Configured by Things Embedded
We work with the manufacturers of industrial Qualcomm boards, so the ranges below are the ones we specify for robots, smart cameras and edge AI gateways. Compare them by processor, size and interfaces, then browse the models above or ask an embedded board specialist which range suits your device.
QCS051 DFI Qualcomm Pico-ITX SBCs
Qualcomm Dragonwing QCS6490 and QCS5430 on a 2.5 inch board with 128 GB UFS, CAN FD and up to 12 TOPS of AI performance.
QRB551 DFI Qualcomm QRB5165 3.5" SBC
The eight-core Qualcomm QRB5165 robotics processor on a 3.5 inch board with 8 GB LPDDR5 and 128 GB UFS.

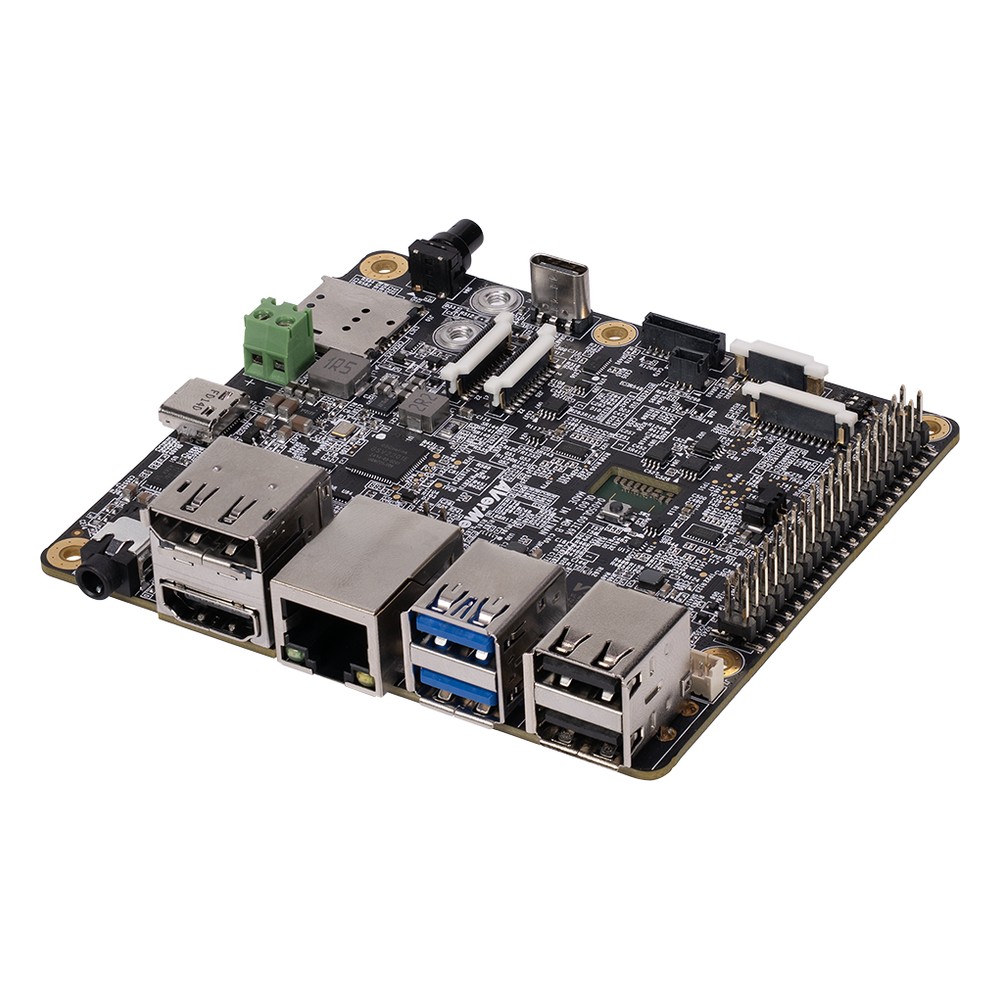

QL501 and QL601 AVerMedia Qualcomm Dragonwing SBCs
Qualcomm QCS5430 and QCS6490 boards with a Hexagon NPU and extended temperature, plus an M.2 slot for 4G or 5G on the QL501.
ACP-Q6490 Avalue Qualcomm QCS6490 Pico-ITX SBC
The Qualcomm QCS6490 on a 2.5 inch board with a 12 TOPS NPU, dual GbE and wide temperature operation.
Not sure which range fits? Tell us the application and we will recommend the right model.
Qualcomm SBC Insights for Edge AI Devices
Speak to a Qualcomm SBC Specialist.
Tell us what the board will go into, the interfaces you need and the operating system your software runs on. We will recommend the processor and format, then configure and test the board before it ships.
