US AMD Ryzen Embedded R1000
Ryzen R1505G and R1606G Boards for Thin HMI and Gateways
Ryzen Embedded R1000 is the dual-core, lower-power sibling of V1000, with Zen CPU cores and Radeon Vega graphics on one chip for thin HMI, kiosks and gateways that still need two or three displays. The range covers 3.5-inch and 1.8-inch Femto-ITX boards on the R1505G and R1606G.
Options include triple 4K DP++ output, dual micro HDMI on the smallest board, LVDS, triple GbE and extended-temperature builds from -40 °C, suited to kiosks, compact HMI, gateways and embedded instruments where power and space are tight.
Speak to an AMD Ryzen Embedded R1000 specialist to match the processor, the I/O and the enclosure to your application.
Browse Our Ryzen R1606G and R1505G Boards
Or choose a range below.
-

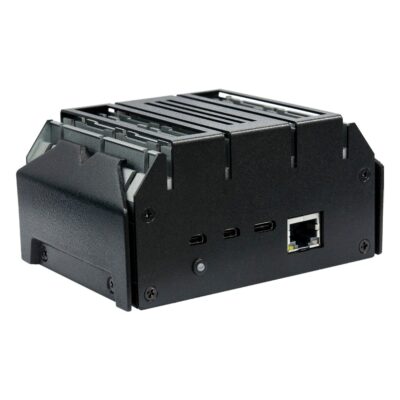

EC90A-GH-R1305G
EC90A-GH-R1305G with Ryzen R1305G, dual micro HDMI, 2x RS-232 and 64GB eMMC -
EC90A-GH-R1102G
EC90A-GH-R1102G with Ryzen R1102G at 6 W, 2x RS-232 and 64GB eMMC -
EC90A-GH-R1505G
EC90A-GH-R1505G with Ryzen R1505G, 2x RS-232 and 64GB eMMC -
EC90A-GH-R1606G-COM
EC90A-GH-R1606G-COM with Ryzen R1606G, 2x RS-232 and 32GB eMMC -
EC90A-GH-R1606G-DIO
EC90A-GH-R1606G-DIO with Ryzen R1606G, 8-bit DIO, SMBus and 32GB eMMC -
EC90A-GH-R1606G-EN-DIO
EC90A-GH-R1606G-EN-DIO with Ryzen R1606G, 8-bit DIO and 64GB eMMC -
EC90A-GH-R1606G-EN-DIO-LTE
EC90A-GH-R1606G-EN-DIO-LTE with Ryzen R1606G, 4G LTE, 8-bit DIO and 64GB eMMC
- CPU: AMD Ryzen R-Series
- Memory: 4GB Soldered On-board
- OS: Linux, Windows 10
- Display Outputs: 2x Micro HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 3.1 Gen 1 [Type-C]
- mPCIe: 1x mPCIe [PCIe/USB]
- Power: 12V DC [Barrel Connector]
- Temp: -20°C to 45°C [-4°F to 113°F]
- Certification: CE, FCC, UKCA
- Mounting Options: VESA Mount, Wall Mount
- Serial: 2x RS232 [DB26]
- Storage: 64GB eMMC
-

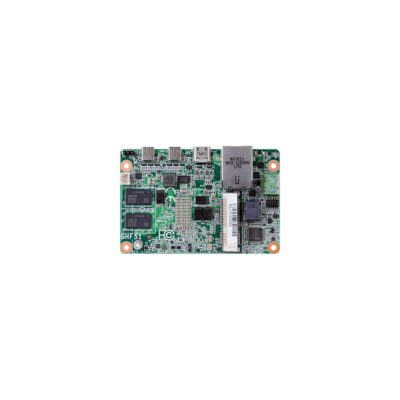

GHF51-BN-86R16
GHF51 with AMD Ryzen Embedded R1606G, 8 GB DDR4 and 64 GB eMMC -
GHF51-BN-46R11
GHF51 with AMD Ryzen Embedded R1102G at 6 W and 4 GB DDR4 -
GHF51-BN-46R13
GHF51 with AMD Ryzen Embedded R1305G at 10 W and 4 GB DDR4 -
GHF51-BN-46R15
GHF51 with AMD Ryzen Embedded R1505G, 4 GB DDR4 and 64 GB eMMC -
GHF51-BN-46R16
GHF51 with AMD Ryzen Embedded R1606G, 4 GB DDR4 and dual HDMI -
GHF51-EN-46R16
GHF51 with AMD Ryzen Embedded R1606G, 4 GB DDR4 and -20 to 70 °C
- CPU: AMD Ryzen R-Series
- OS: Linux
- Display Outputs: 2x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 3.1 Gen 2 [Type C]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 64GB eMMC
- Power: 12V DC [Terminal Block]
- Certification: CE, FCC, RoHS, UKCA
- Memory: 8GB Soldered On-board
- Temp: 0°C to 60°C [32°F to 140°F]
-
GH171-R1606G
GH171 with AMD Ryzen Embedded R1606G, dual-core 15 W and three DP++ outputs -
GH171-R1505G
GH171 with AMD Ryzen Embedded R1505G, dual-core 15 W and three DP++ outputs -
GH171-R2312B
GH171 with AMD Ryzen Embedded R2312, 25 W and four DP++ outputs -
GH171-R2314B
GH171 with AMD Ryzen Embedded R2314, 35 W and PCIe x16 at x8 -
GH171-R2514B
GH171 with AMD Ryzen Embedded R2514, 35 W and eight Radeon Vega compute units -
GH171-R2544B
GH171 with AMD Ryzen Embedded R2544, quad-core 54 W and four DP++ outputs -
GH171-V1202B
GH171 with AMD Ryzen Embedded V1202B, dual-core 15 W and four DP++ outputs -
GH171-V1605B
GH171 with AMD Ryzen Embedded V1605B, quad-core 15 W and four DP++ outputs -
GH171-V1756B
GH171 with AMD Ryzen Embedded V1756B, quad-core 45 W and four DP++ outputs -
GH171-V1807B
GH171 with AMD Ryzen Embedded V1807B, 45 W quad-core and four DP++ outputs
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.0 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, RoHS, UKCA
- CPU: AMD Ryzen R-Series
- Display Outputs: 3x Display Ports
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen3]
-
GH551-EC1-R1606G
GH551 with Ryzen Embedded R1606G rated -30 to 80 °C -
GH551-BC1-R1505G
GH551 with Ryzen Embedded R1505G and LVDS -
GH551-BC1-R1606G
GH551 with Ryzen Embedded R1606G and three DP++ outputs -
GH551-BC1-R2312
GH551 with Ryzen Embedded R2312 and LVDS -
GH551-BC1-R2314
GH551 with Ryzen Embedded R2314 and LVDS -
GH551-BC1-R2514
GH551 with Ryzen Embedded R2514 and quad display -
GH551-BC1-V1202B
GH551 with Ryzen Embedded V1202B and LVDS -
GH551-BC1-V1605B
GH551 with Ryzen Embedded V1605B and four DP++ outputs -
GH551-EC1-V1404I
GH551 with Ryzen Embedded V1404I rated -30 to 80 °C -
GH551-EC1-V1605B
GH551 with Ryzen Embedded V1605B rated -30 to 80 °C
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux, Windows 10
- Ethernet: 3x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Certification: CE, FCC, RoHS
- CPU: AMD Ryzen R-Series
- Display Outputs: 3x Display Port
- Temp: -30°C to 80°C [-22°F to 176°F]
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [SATA] [3042]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -40°C to 75°C [-40°F to 167°F]
- Certification: CE, FCC
- CPU: AMD Ryzen R-Series
- CPU: AMD Ryzen R-Series
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 2x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 3.1 Gen 1 [Type-C]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 64GB eMMC
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
All AMDBack to the full rangeAMD Ryzen Embedded R1000 Ranges Configured by Things Embedded
We work with the leading manufacturers of AMD embedded boards, so the ranges below are the ones we specify on this generation. Compare them by size, I/O and cooling, then browse the products above or ask a specialist which range suits your application.

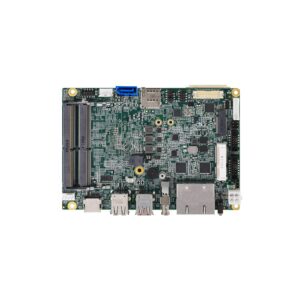

CT-DR101 C&T 3.5-Inch SBC
A 3.5-inch board on the R1606G with triple display, rated from -40 to 75 °C.
CT-NR101 C&T 1.8-Inch Femto-ITX SBC
A 1.8-inch Femto-ITX board on the R1606G with dual micro HDMI for the smallest devices.
GH551 DFI 3.5-Inch SBCs
3.5-inch boards on the R1505G or R1606G with up to triple 4K DP++, LVDS, triple GbE and -30 to 80 °C builds.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Ryzen R1606G Board
Our embedded board specialists specify every system on this generation against the workload, the enclosure and the years it has to stay in production. These are the choices we work through with you before recommending a range.
Processor and Power
Dual-core R1505G and R1606G for thin HMI and gateways at low power.
Displays
Two or three independent outputs on DP++, HDMI or LVDS.
Board Size
1.8-inch Femto-ITX or 3.5-inch, depending on the enclosure.
Temperature
Builds from -40 °C for kiosks and outdoor enclosures.
Networking
Up to triple GbE for gateways and segmented networks.
Lifecycle
Embedded parts on AMD's long availability plan.
Ryzen R1000 Innovation & Compact HMI Insights
Speak to an AMD Ryzen Embedded R1000 Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
