IP69K Stainless Steel Displays for Hot Washdown
IP69K monitors withstand close-range, high-pressure, high-temperature water jets, the rating food, beverage and pharmaceutical plants specify for hot washdown. Available from 10.1 to 23.8 inches in stainless steel with PCAP or resistive touch, they are sealed on every face and mount in the open on arms and yokes.
Options include IP66 and IP69K dual ratings, wireless display models and smooth stainless enclosures, suited to meat, dairy, bakery and pharmaceutical lines where the cleaning is the hardest part of the specification.
Speak to a display specialist to match the size, touch and grade to your line.
Browse Our IP69K Washdown Displays
- IP Rating: IP69K
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Projective Capacitive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: IP69K
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC
- IP Rating: IP69K
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Projective Capacitive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: 0°C to 60°C [32°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC
IP69K Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of IP69K displays, so the ranges below are the ones we specify for meat, dairy, bakery and pharmaceutical washdown. Compare them by size, touch and grade, then browse the models above or ask a display specialist which range suits your line.

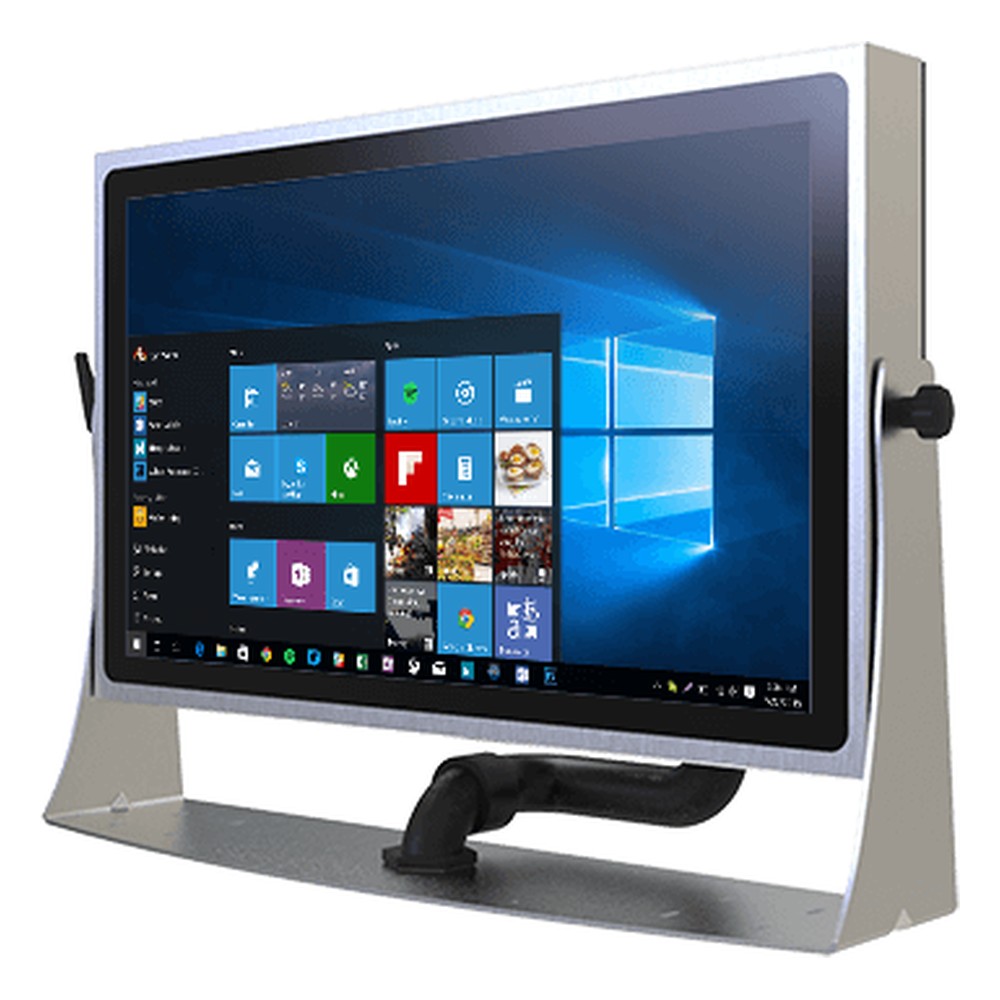

Winmate Stainless Steel Washdown Displays
Chassis-mount screens from 10.4 to 32 inches in stainless steel with PCAP touch, sealed to IP65 or IP69K, for food, beverage and pharmaceutical lines.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Hot Washdown Display
Our display specialists specify every IP69K monitor against the cleaning temperature, the pressure and the chemicals. These are the choices that decide whether the screen suits the installation, and the ones we work through with you before recommending a range.
Hot High-Pressure Washdown
IP69K covers close-range, high-temperature, high-pressure jets, the cleaning used on meat, dairy and bakery lines.
304 or 316 Grade
316 stainless resists chlorides and aggressive sanitisers; 304 suits most food areas.
Hygienic Enclosure
Smooth housings with no vents or exposed fixings where bacteria can collect.
Wet-Hand Touch
PCAP or resistive touch chosen so spray and wet gloves do not trigger false touches.
IP69K Monitor Innovation & Hygienic Line Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
