US Rockchip RK3576
RK3576 and RK3576J SBCs for Edge AI and Vision HMIs
A Rockchip RK3576 board runs eight Arm cores, four Cortex-A72 and four Cortex-A53, with Mali-G52 MC3 graphics and a 6 TOPS NPU, so vision models run on the board without a separate accelerator. The range covers SBCs and industrial motherboards built around the RK3576 and the RK3576J.
Options include the RK3576J industrial version rated from -40 to 85 °C, 8K30 or 4K120 video decode, dual Gigabit Ethernet, USB 3 and M.2 expansion, running Debian, Ubuntu, Yocto or Android, suited to edge AI gateways, vision HMIs, smart retail and robotics where the RK3588 would be more than the product needs.
Speak to an RK3576 specialist to match the board, the AI model and the temperature range to your application.
Browse Our RK3576 and RK3576J SBCs and Boards
Or choose a range below.
-

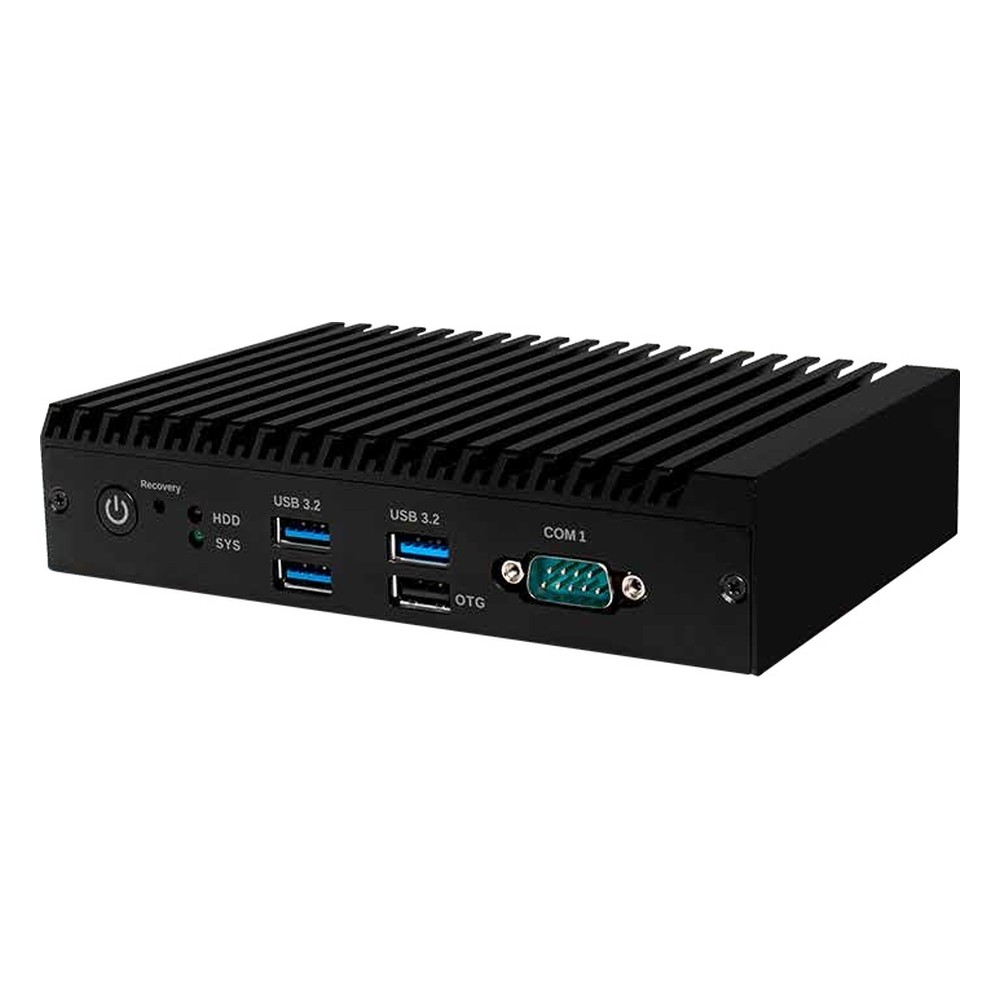

DN84-A-8G
DN84-A-8G with Rockchip RK3576, HDMI input, dual HDMI output and 8GB RAM -
DN84-4G
DN84-4G with Rockchip RK3576, 4GB RAM, 6 TOPS NPU and dual HDMI -
DN84-8G
DN84-8G with Rockchip RK3576, 8GB RAM, 6 TOPS NPU and dual HDMI -
DN84-A-4G
DN84-A-4G with Rockchip RK3576, HDMI input, dual HDMI output and 4GB RAM -
DN84-I-4G
DN84-I-4G with Rockchip RK3576, AI vision enhancement license and 4GB RAM -
DN84-I-8G
DN84-I-8G with Rockchip RK3576, AI vision enhancement license and 8GB RAM
- CPU: RK3576
- AI Performance: 6
- Display Outputs: 2x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 3x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 B-Key [3042], 1x M.2 M-Key [PCIe x1 Gen2] [2242]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC, UKCA
- Mounting Options: VESA Mount, Wall Mount
- Display Inputs: 1x HDMI Input
- Memory: 8GB Soldered On-board
- OS: Linux Debian 12, Android 14.0
- CPU: RK3576
- AI Performance: 6
- Memory: 4GB Soldered On-board
- OS: Linux Debian 12, Android 14.0
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A], 1x USB OTG [Type C], 4x USB 2.0 [Board]
- Serial: 2x RS485 [Board], 2x RS232 [Board]
- CANbus: 1x CANbus [Terminal Block]
- Storage: 1x M.2 SSD, 32GB eMMC
- Power: 12-24V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
RK3576 Ranges Configured by Things Embedded
We work with the leading manufacturers of RK3576 boards, so the ranges below are the ones we specify for edge AI gateways and vision HMIs. Compare them by I/O, expansion and temperature rating, then browse the boards above or ask a specialist which range suits your application.
Arm Android Digital Signage Players
Low-power Android and Linux players on Rockchip and Raspberry Pi CM5 for menu boards, retail screens and multi-screen signage, with onboard Wi-Fi on most models.
ACP and RSC Arm Single Board Computers
Low-power Arm boards on Rockchip, NXP i.MX and Qualcomm processors for HMIs, gateways, transport equipment and point-of-sale terminals, from 85 x 55 mm Raspberry Pi alternatives to 3.5-inch boards rated from -40 to 85 °C with CAN, serial ports and 12 to 24 V DC input.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an RK3576 Board
Our embedded specialists specify every RK3576 board against the application, the I/O and the enclosure it goes into. These are the choices we work through with you before recommending a range.
Processor and Grade
Four Cortex-A72 cores up to 2.2 GHz and four Cortex-A53 cores, or the RK3576J rated from -40 to 85 °C.
NPU and AI Models
A 6 TOPS NPU from INT4 to FP16, with models converted using the Rockchip NPU toolkit.
Expansion
M.2 and PCIe slots for NVMe storage, 4G, 5G and Wi-Fi modules, chosen by board.
Networking and I/O
Dual Gigabit Ethernet, USB 3, CAN and serial ports.
Video and Displays
Mali-G52 MC3 graphics, 8K30 or 4K120 decode and 4K60 encode for camera and display work.
Operating System and BSP
Debian, Ubuntu, Yocto or Android images with the Rockchip board support package, drivers and NPU runtime installed and tested.
RK3576 Innovation & Edge AI Insights
Speak to an RK3576 Specialist.
Tell us where the board will be installed, the AI model and the interfaces you need to connect. We will recommend the right RK3576 board, then configure, image and test it before it ships.
