US Intel Bartlett Lake
Intel Core Series 2 Edge Computers on LGA1700
Bartlett Lake is Intel Core Series 2 for the edge: Core 3, Core 5, Core 7 and Core 9 processors for the LGA1700 socket, launched for industrial and embedded systems rather than desktops. A Bartlett Lake CPU gives an LGA1700 design a newer processor without a new platform, and the range covers fanless expandable industrial computers and low-profile edge AI systems with PoE+.
Options include 65 W E and 35 W TE processors, PCIe and legacy PCI cassettes, 6x 2.5GbE with PoE+ for cameras, wide DC input and UL certified builds, suited to factory automation, machine vision, test systems and transport where a computer has to stay in production for years.
Speak to a Bartlett Lake specialist to match the processor, the expansion and the lifecycle to your application.
Browse Our Bartlett Lake-S Computers
Or choose a range below.
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x DVI, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Board], 2x USB 2.0 [Board], 8x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 2x mPCIe [SATA/USB/PCIe]
- Storage: 1x M.2 SSD, 1x mSATA, 3x 2.5" HDD/SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 12-48V DC, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: IEC 62368-1, CB, CE, EN50121-3-2, FCC, IC (ICES-003), UKCA, UL 62368-1
- Mounting Options: Wall Mount
-
VCO-6000-RPL-3-2PWR-4B
VCO-6000-RPL-3-2PWR-4B with 16-lane PCIe x16 Gen4, 600W GPU power and six SATA bays -
VCO-6000-RPL-3-2PWR
VCO-6000-RPL-3-2PWR with 16-lane PCIe x16 Gen4, 600W GPU power and two SATA bays -
VCO-6000-RPL-3-2PWR-2B
VCO-6000-RPL-3-2PWR-2B with 16-lane PCIe x16 Gen4, 600W GPU power and four SATA bays -
VCO-6000-RPL-3-2PWR-2N
VCO-6000-RPL-3-2PWR-2N with 16-lane PCIe x16 Gen4, 600W GPU power and two U.2 NVMe bays -
VCO-6000-RPL-4-2PWR
VCO-6000-RPL-4-2PWR with dual PCIe x16 Gen4 slots, 600W GPU power and two SATA bays -
VCO-6000-RPL-4-2PWR-2B
VCO-6000-RPL-4-2PWR-2B with dual PCIe x16 Gen4, 600W GPU power and four SATA bays -
VCO-6000-RPL-4-2PWR-2N
VCO-6000-RPL-4-2PWR-2N with dual PCIe x16 Gen4, 600W GPU power and two U.2 NVMe bays -
VCO-6000-RPL-4-2PWR-4B
VCO-6000-RPL-4-2PWR-4B with dual PCIe x16 Gen4, 600W GPU power and six SATA bays
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX 4000 SFF Ada, NVIDIA RTX 4500 Ada, NVIDIA RTX 5000 Ada, NVIDIA RTX A1000, NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q, NVIDIA RTX 2000 Ada, NVIDIA RTX 4000 Ada
- AI Performance: 54–3,511 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x DVI, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM/SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 48V DC [Terminal Block], 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: IEC 62368-1, CB, CE, FCC, IC (ICES-003), UKCA, UL 62368-1
- Mounting Options: Wall Mount
- PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen4], 2x PCIe [x4 Slot] [x1 Signal] [Gen2]
- Storage: 1x M.2 SSD, 1x mSATA, 6x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 1x DDR5 5600MHz SO-DIMM Slot, 48GB
- OS: Linux, Windows 11
- Display Outputs: 4x Display Ports
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [Board], 3x RS232/422/485 [DB9]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe x2/SATA] [2242/3042/3052], 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 2x 2.5" HDD/SSD, 2x M.2 SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1, RAID 5
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CAN/CSA C22.2, CE, EN50121-1, EN50121-3-2, FCC, IC (ICES-003), REACH, RoHS, UKCA, UL 61010-1, UL 61010-2-201
- Mounting Options: Wall Mount
-
RCO-6000-RPL-8NS
RCO-6000-RPL-8NS with 8x hot-swap U.2 NVMe, software RAID and dual 2.5GbE -
RCO-6000-RPL
RCO-6000-RPL with LGA1700 Intel Core, dual 2.5GbE, 8x USB 3.2 and EDGEBoost I/O brackets -
RCO-6000-RPL-2E16
RCO-6000-RPL-2E16 with PCIe x16 Gen4 and x1 node, dual 2.5GbE and fanless design -
RCO-6000-RPL-2E16-2B15M
RCO-6000-RPL-2E16-2B15M with 2x hot-swap SATA bays, PCIe x16 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2E16-2N15M
RCO-6000-RPL-2E16-2N15M with 2x hot-swap U.2 NVMe bays, PCIe x16 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2E16-2PWR
RCO-6000-RPL-2E16-2PWR with PCIe x16 Gen4 node, dedicated GPU power input and dual 2.5GbE -
RCO-6000-RPL-2E16-4B7M
RCO-6000-RPL-2E16-4B7M with 4x hot-swap SATA bays, PCIe x16 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2E8
RCO-6000-RPL-2E8 with dual eight-lane PCIe Gen4 node, dual 2.5GbE and fanless design -
RCO-6000-RPL-2E8-2B15M
RCO-6000-RPL-2E8-2B15M with 2x hot-swap SATA bays, dual PCIe x8 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2E8-2N15M
RCO-6000-RPL-2E8-2N15M with 2x hot-swap U.2 NVMe bays, dual PCIe x8 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2E8-2PWR
RCO-6000-RPL-2E8-2PWR with dual PCIe x8 Gen4 node, dedicated GPU power input and dual 2.5GbE -
RCO-6000-RPL-2E8-4B7M
RCO-6000-RPL-2E8-4B7M with 4x hot-swap SATA bays, dual PCIe x8 Gen4 slots and dual 2.5GbE -
RCO-6000-RPL-2N
RCO-6000-RPL-2N with 2-bay removable U.2 NVMe canister, PCIe x16 GPU slot and dual 2.5GbE -
RCO-6000-RPL-4N
RCO-6000-RPL-4N with 4-bay removable U.2 NVMe canister, PCIe x16 GPU slot and dual 2.5GbE -
RCO-6000-RPL-4NH
RCO-6000-RPL-4NH with 4x hot-swap U.2 NVMe, hardware RAID 0/1/5/6/10 and dual 2.5GbE -
RCO-6000-RPL-4NH-1E
RCO-6000-RPL-4NH-1E with 4-bay U.2 NVMe canister, optional hardware RAID and two PCIe Gen4 slots -
RCO-6000-RPL-4NS
RCO-6000-RPL-4NS with 4x hot-swap U.2 NVMe, software RAID and dual 2.5GbE
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x DVI, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 8x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9], 4x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Certification: IEC 62368-1, CB, CE, FCC, IC (ICES-003), UKCA, UL 62368-1
- Mounting Options: Wall Mount
- Storage: 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 8x 2.5" U.2 NVMe SSD
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Temp: -25°C to 60°C [-13°F to 140°F]
-

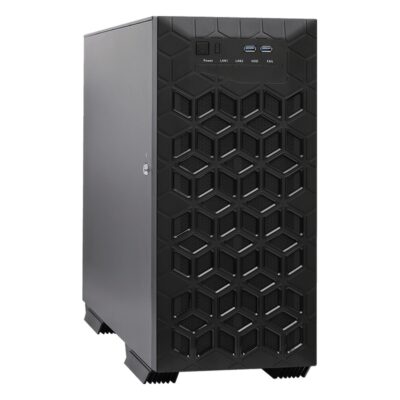

iEPF-10000S-W680
iEPF-10000S-W680 with Bartlett Lake or 14th Gen Core, ECC memory, three 2.5GbE and PoE+ -
iEPF-10000S-Q670
iEPF-10000S-Q670 with Bartlett Lake or 14th Gen Core, three 2.5GbE, PoE+ and seven PCIe slots -
iEPF-10000S-Q870
iEPF-10000S-Q870 with Core Ultra 200S, Q870 chipset, two GPU cards and six PCIe slots -
iEPF-10000S-W880
iEPF-10000S-W880 with Core Ultra 200S, W880 chipset, ECC memory and seven PCIe slots
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: Intel Arc A770, Intel Arc B580, Intel Arc Pro B50, Intel Arc Pro B60, Intel Arc Pro B65, Intel Arc Pro B70, AMD Radeon AI PRO R9700, NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 5000 Blackwell 72GB, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q
- OS: Linux, Windows 11
- Serial: 2x RS232/422/485 [DB9], 4x RS232 [Board]
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 100-240V AC, AC Power Supply Included
- Mounting Options: Desktop
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 13th Gen Raptor Lake
- AI Performance: 170–3,511 TOPS
- Memory: 4x DDR5 4400MHz LONG-DIMM Slots, 192GB
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE], 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 5x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4], 3x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 5x 3.5" or 2.5" HDD/SSD [SATA]
- CPU: Intel Core Series 2 Bartlett Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Board], 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 B-Key [PCIe x1/USB 3.2/USB 2.0/SIM] [2280/3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen3] [2242/2280/22110/25110]
- PCIe: 1x PCIe [x16 Slot] [Gen5]
- Storage: 1x CFAST, 1x M.2 SSD, 4x 2.5" HDD/SSD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC, LVD
- Mounting Options: Desktop
- CPU: Intel Core Series 2 Bartlett Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA A2, NVIDIA RTX 4000 SFF Ada, NVIDIA RTX A2000 12GB, NVIDIA RTX 2000 Ada, NVIDIA RTX 4000 Ada
- AI Performance: 36–428 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45] [PoE], 3x 2.5 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 B-Key [PCIe x1/USB 3.2/USB 2.0/SIM] [2280/3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3] [2242/2280/22110/25110], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280]
- PCIe: 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5], 2x PCIe [x4 Slot] [Gen4]
- Storage: 1x CFAST, 2x M.2 SSD, 4x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 55°C [-40°F to 131°F]
- Certification: CE, FCC, LVD
- Mounting Options: Desktop
- CPU: Intel Core Series 2 Bartlett Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Board], 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 B-Key [PCIe x1/USB 3.2/USB 2.0/SIM] [2280/3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen3] [2242/2280/22110/25110]
- Storage: 1x CFAST, 1x M.2 SSD, 4x 2.5" HDD/SSD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 50°C [-40°F to 122°F]
- Certification: CE, FCC, LVD
- Mounting Options: Desktop
- CPU: Intel Core Series 2 Bartlett Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45] [PoE], 3x 2.5 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 B-Key [PCIe x1/USB 3.2/USB 2.0/SIM] [2280/3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3] [2242/2280/22110/25110], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2260/2280]
- Storage: 1x CFAST, 2x M.2 SSD, 4x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 50°C [-40°F to 122°F]
- Certification: CE, FCC, LVD
- Mounting Options: Desktop

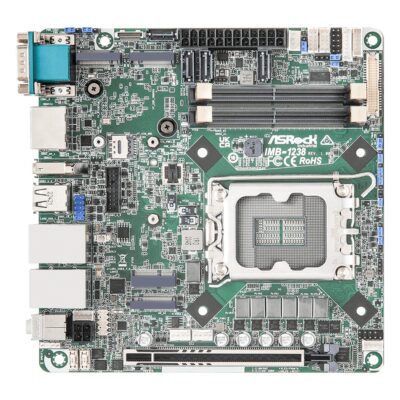

- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2260/2280]
- PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen4]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 2x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen3/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5]
- Storage: 2x M.2 SSD, 4x SATA Ports
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 12V DC [4-Pin], ATX Power Supply [4+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Board], 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4]
- Storage: 2x M.2 SSD, 2x SATA Ports
- RAID: RAID 0, RAID 1
- Power: 12-28V DC [4-Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x eDP, 1x LVDS, 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Board], 4x USB 2.0 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4]
- Storage: 2x M.2 SSD, 2x SATA Ports
- RAID: RAID 0, RAID 1
- Power: 12-28V DC [4-Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Core Series 2 Bartlett Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 5600MHz LONG-DIMM Slots, 96GB
- OS: Linux, Windows 11
- Display Outputs: 3x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 4x USB 2.0 [Type A], 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x1 Gen3] [2242/2280/25110]
- PCIe: 1x PCIe [x16 Slot] [Gen5], 1x PCIe [x4 Slot] [Gen3], 2x PCIe [x1 Slot] [Gen3]
- Storage: 1x M.2 SSD, 4x SATA Ports
- Power: ATX Power Supply [8+24 Pin]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
Beyond Bartlett Lake: Intel Processors
All IntelBack to the full rangeIntel Bartlett Lake Ranges Configured by Things Embedded
We work with the leading manufacturers of LGA1700 edge computers, so the ranges below are the ones we specify when a project needs Intel Core Series 2. Compare them by expansion, networking and power input, then browse the systems above or ask a specialist which range suits your application.
iEP-9040E, iEP-9042E and iEPF ASRock Industrial Edge AI Computers
Bartlett Lake fanless PCs with PoE and ignition control, and iEPF GPU computers on R680E, H610, Q670 or W680 taking dual RTX PRO Blackwell or RTX Ada cards.
IMB ASRock Industrial Bartlett Lake Motherboards
Mini-ITX, Micro-ATX and ATX boards for Core Series 2 and 12th to 14th Gen Core on H610, Q670 or W680, with ECC, PCIe Gen5, vPro and PoE options.
BTS610, RPS630 and ADS630 DFI ATX Industrial Motherboards
Bartlett Lake and 14th Gen Core ATX boards on W680, R680E or Q670E, with PCIe Gen5 x16 and quad LAN, dual 2.5GbE or dual 10GbE.
ADS101 DFI Thin Mini-ITX Motherboards
Bartlett Lake and 12th to 14th Gen Core Thin Mini-ITX boards on R680E, Q670E or H610E, with dual or triple LAN and 12 V DC input.
RPS330 DFI Micro-ATX Industrial Motherboards
Bartlett Lake and 14th Gen Core Micro-ATX boards on H610E or Q670E, with dual LAN or dual 2.5GbE and PCIe Gen5 x16 on the Q670E build.
RPS310 DFI Micro-ATX Industrial Motherboards
Micro-ATX boards for Bartlett Lake and 14th Gen Core, with dual 2.5GbE on the Q670E build and quad 2.5GbE on the R680E build.
RPS183 DFI Mini-ITX Industrial Motherboards
Bartlett Lake and 14th Gen Core Mini-ITX boards on H610E or Q670E, with dual LAN or dual 2.5GbE and 19 to 24 V DC input.
RPS103 DFI Thin Mini-ITX Motherboards
Thin Mini-ITX boards for Bartlett Lake and 12th to 14th Gen Core on H610E, Q670E or R680E, with dual 2.5GbE and 12 to 28 V DC input.
RPS101 DFI Thin Mini-ITX Motherboards
Bartlett Lake and 12th to 14th Gen Core processors on Thin Mini-ITX boards with H610E, Q670E or R680E chipsets, dual 2.5GbE and 12 V DC input.
RPS100 DFI Mini-ITX Industrial Motherboards
Mini-ITX boards for Bartlett Lake and 12th to 14th Gen Core on H610E, Q670E or R680E, with dual 2.5GbE and PCIe Gen5 x16 options.
ADS310 DFI Micro-ATX Industrial Motherboards
Bartlett Lake and 14th Gen Core Micro-ATX boards on Q670E or R680E, with dual 10GbE and a PCIe Gen5 x16 slot.
ADS106 DFI Mini-ITX Industrial Motherboards
Mini-ITX boards taking Bartlett Lake and 12th to 14th Gen Core, with H610E, Q670E or R680E, dual or triple LAN and 15 to 36 V input.
ADS103 DFI Thin Mini-ITX Motherboards
Thin Mini-ITX boards for Bartlett Lake and 12th to 14th Gen Core, with dual or triple LAN and a 15 to 36 V DC input.
RPS631 DFI ATX Industrial Motherboards
H610 ATX boards that take Core Series 2 Bartlett Lake as well as 12th to 14th Gen Core, Pentium and Celeron processors.
VCO-6000-RPL Premio Machine Vision PCs
Machine vision PCs for Core Series 2 and 12th to 14th Gen Core, with one or two PCIe x16 slots, 600 W GPU power and U.2 NVMe bays.
RCO-6000-RPL Premio Super-Rugged Industrial PCs
Bartlett Lake and 12th to 14th Gen Core rugged PCs with four or eight hot-swap U.2 NVMe bays and software or hardware RAID.
RCO-3000-RPL Premio Rugged Fanless PCs
Rugged fanless PCs for Core Series 2 or 14th Gen Core, with quad DisplayPort, dual 2.5GbE and -25 to 70 °C operation.
ACO-6000-RPL Premio Rugged Embedded PCs
Rugged W680E embedded PCs with ignition control, shipped on 12th or 13th Gen Core and taking Core Series 2 Bartlett Lake by project.
VCM-2000 Vecow Compact Industrial Computers
Compact Bartlett Lake and Raptor Lake computers with a 65 W fan sink, 3x 2.5GbE, 9 to 36 V DC input and -40 to 60 °C operation.
HEC-1000 Vecow Military Computers
Military computers on Core 200S (Bartlett Lake) and 12th to 14th Gen Core, with MIL-DTL-38999 I/O, MIL-STD-810G and 9 to 50 V DC input.
ECX-3200 and ECX-3200G Vecow Industrial Box PCs
Bartlett Lake and Raptor Lake box PCs with a PCIe x16 slot and 4x 2.5GbE PoE+, and ECX-3200G builds that take 16 GMSL cameras for machine vision.
ABOX-5222 and ABOX-5221-IP66 Sintrones Fanless Edge AI Computers
Fanless Core Series 2 systems with 6x 2.5GbE and PoE+, plus IP66 waterproof ABOX-5221 builds with M12 10GbE and an RTX Ada or Arc MXM GPU.
BPC-5112 Arestech Small Form Factor Embedded PC
A small form factor embedded PC that takes Core Series 2 or 14th Gen Core processors and drives three displays, for automation and gateway builds.
SB-5512 Arestech Fanless Industrial PCs
Fanless industrial PCs on Intel Core Series 2 (Bartlett Lake) processors, with triple display output and 4x M.2 slots.
Nuvo-9000 Neousys Rugged Fanless Industrial Computers
LGA1700 fanless computers that take Core Series 2 as well as 12th to 14th Gen Core, with single and dual-slot PCIe cassettes, legacy PCI, low-profile builds, 6x 2.5GbE and UL certified versions.
MIC-770 V3 Advantech Modular Fanless PCs
Fanless LGA1700 PCs for Core Series 2 (Bartlett Lake) and 12th to 14th Gen Core on R680E or H610E, with i-Module expansion, ECC memory and RAID.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Bartlett Lake CPU System
Our industrial computing specialists specify every Core Series 2 system against the workload, the expansion cards and the site it goes into. These are the choices we work through with you before recommending a range.
Processor and Power
Core 3 to Core 9, with 35 W TE parts for fanless builds and 65 W E parts where the chassis can shed the heat.
Expansion
Single and dual-slot PCIe cassettes or legacy PCI for GPUs, frame grabbers and existing I/O cards.
Networking and PoE
Up to 6x 2.5GbE, with PoE+ to power cameras and sensors from the computer.
Platform Continuity
The same LGA1700 socket and DDR5 memory as 12th to 14th Gen Core systems, so software and chassis carry over.
Certification
UL certified builds by model, and MIL-STD-810H shock and vibration testing on selected systems.
Power Input
Wide DC input with ignition detection for vehicles and cabinets without a regulated supply.
Bartlett Lake Innovation & Industrial Automation Insights
Speak to a Bartlett Lake Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
