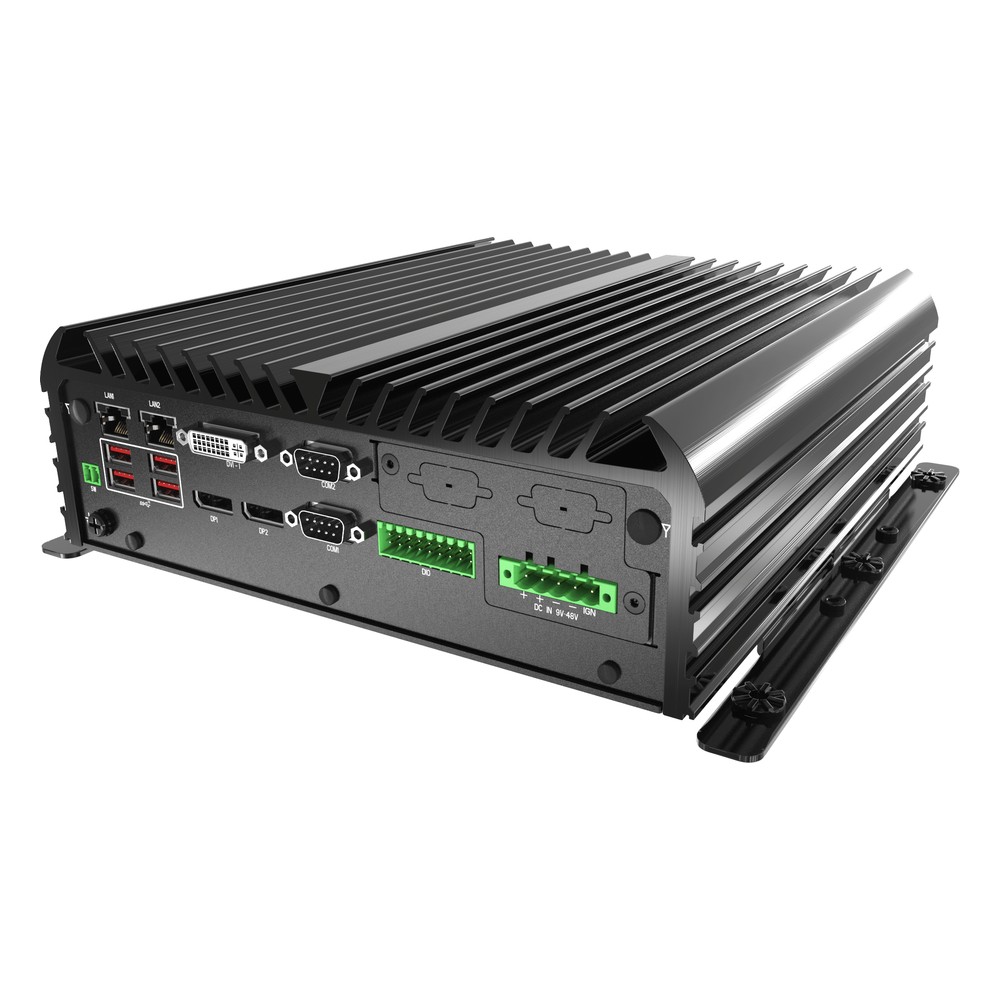

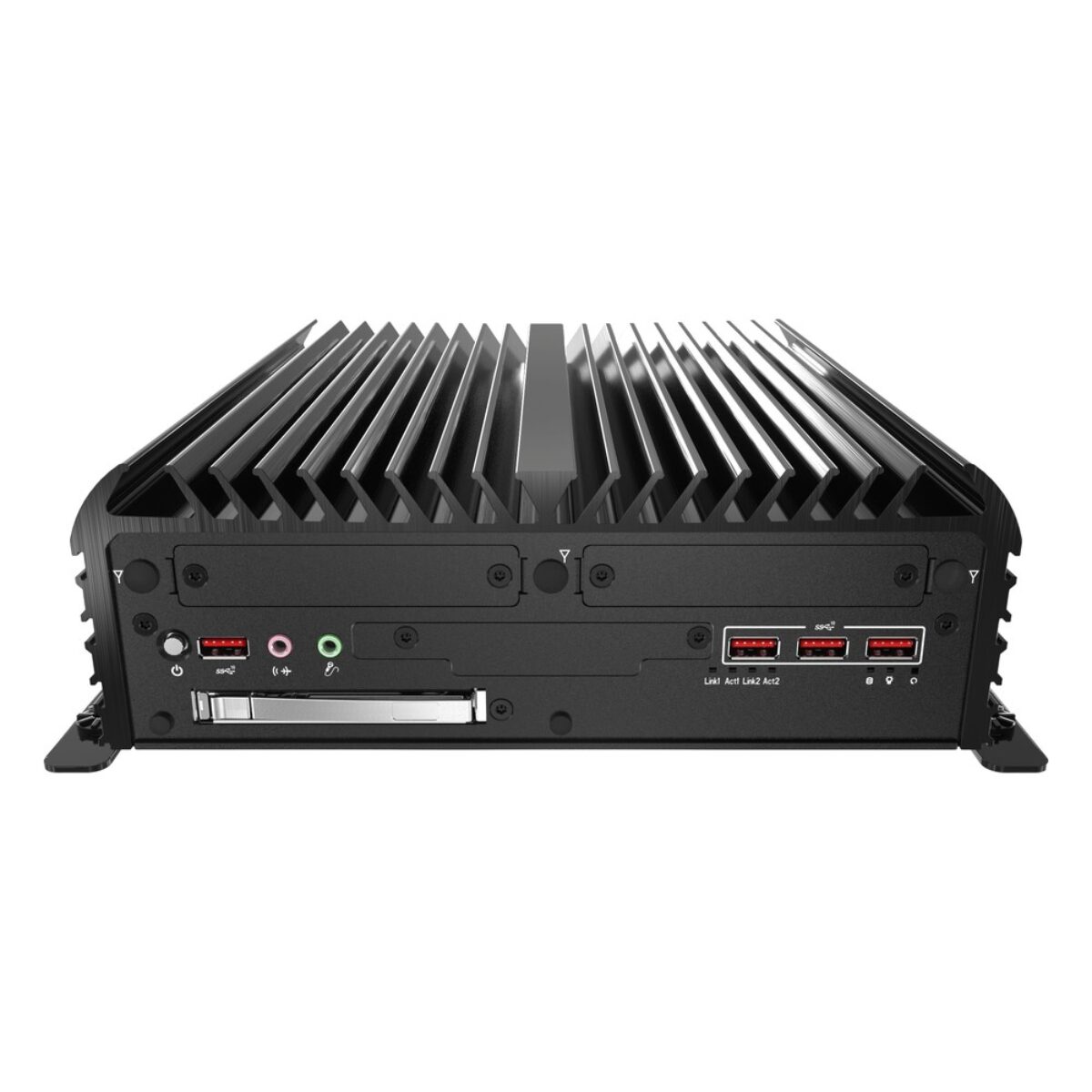

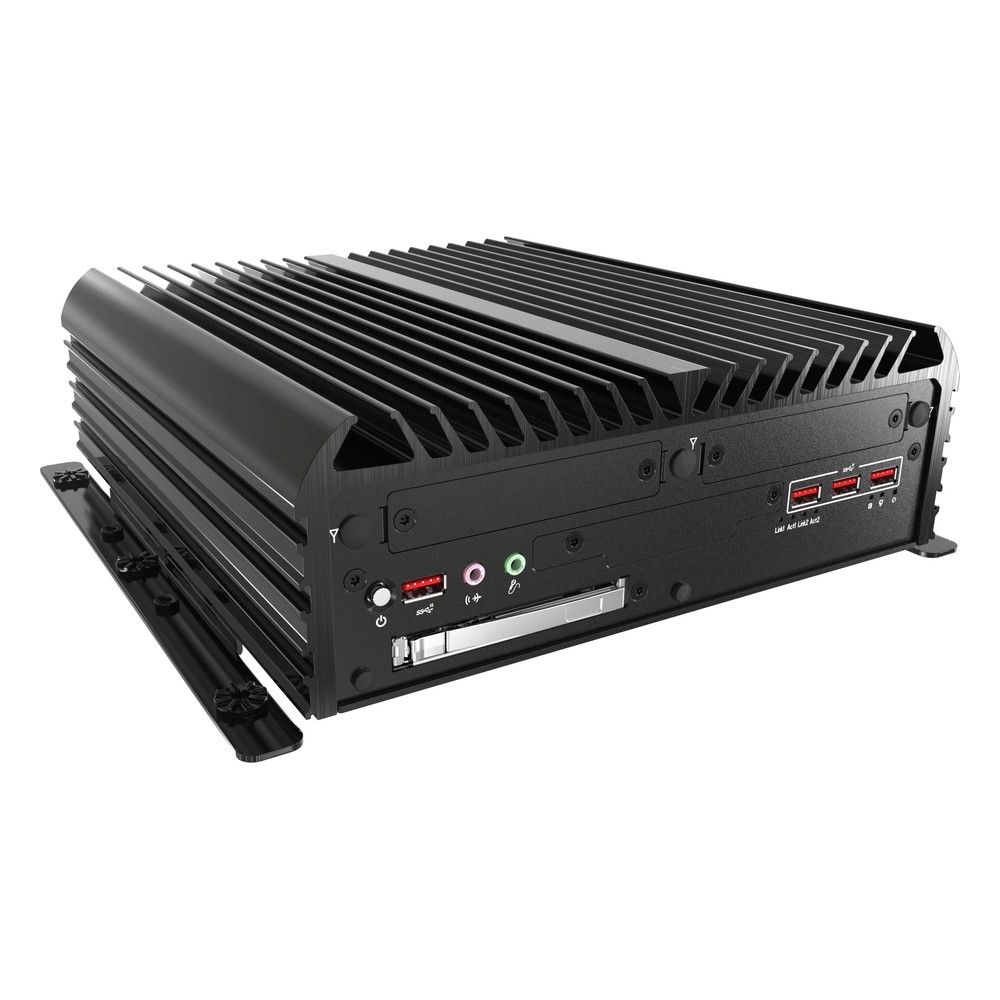

Premio RCO-6000-RPL Intel 12th to 14th Gen and Core Series 2 Rugged Industrial PCs with EDGEBoost Nodes
The Premio RCO-6000-RPL series is a family of rugged industrial PCs for LGA1700 Intel Core Series 2 and 12th to 14th Gen processors, with a fanless CPU section, dual 2.5GbE with TSN, eight USB 3.2 Gen 2 ports, six COM ports, isolated DIO, a 9 to 48 V DC input and optional EDGEBoost Nodes for NVIDIA RTX GPUs or hot-swap NVMe storage. The RCO-6000-RPL series suits in-vehicle, machine vision, factory automation and edge AI deployments.
- EDGEBoost Node Options: Nodes below the CPU section add PCIe Gen4 GPU slots, hot-swap SATA or U.2 NVMe bays, or both.
- Core Series 2 to 12th Gen: An LGA1700 socket on the R680E chipset takes 35 W to 65 W processors with up to 96 GB DDR5 ECC memory.
- Fanless CPU Section: An extruded aluminum enclosure cools the processor with no fan, and node fans are hot-swappable from the rear.

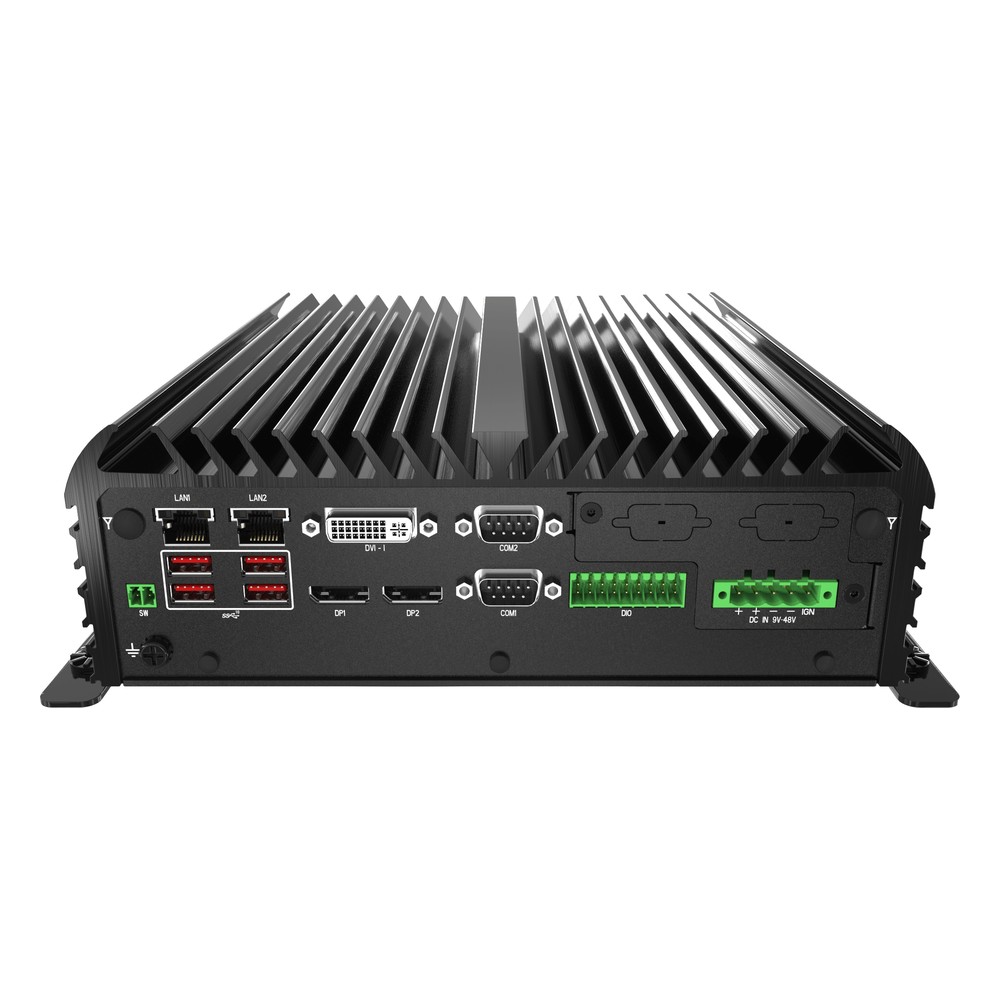

- Field-Ready I/O: Dual 2.5GbE with TSN, eight USB 3.2 Gen 2, six RS-232/422/485 ports, two CAN headers and isolated DIO.
- 9 to 48 V DC with Ignition: Wide-range DC input with ignition management, a PC/Car mode switch and MIL-STD-810H shock and vibration design.
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 1x mPCIe
- 2x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- Ignition Control
- Extended Temp
- CE
- FCC
- 2x PCIe
- Fanless
RCO-6000-RPL Description
Edge projects rarely stop at one configuration. One site wants a slim fanless computer, the next needs a GPU for inference, and a third records video to drives that must leave the vehicle at the end of a shift. The Premio RCO-6000-RPL series handles all three with one rugged industrial PC and a choice of EDGEBoost Nodes that bolt beneath it. Designed by C&T Solution, which became Premio Taiwan in January 2026, the RCO-6000-RPL succeeds the RCO-6000-ADL in the same chassis, now with 12th to 14th Gen and Core Series 2 processors.
Every RCO-6000-RPL model shares the same CPU section. An LGA1700 socket on the Intel R680E chipset takes processors from 35 W up to 65 W, with up to 96 GB of DDR5 ECC or non-ECC memory and TPM 2.0. The I/O is built for field wiring, with two TSN-capable Intel I226 2.5GbE ports, eight USB 3.2 Gen 2 ports, triple display, six RS-232/422/485 ports, two CAN headers and isolated DIO. Two EDGEBoost I/O brackets take optional 10GbE, PoE, USB or 5G modules, and the node below adds GPU slots, drive bays or both.

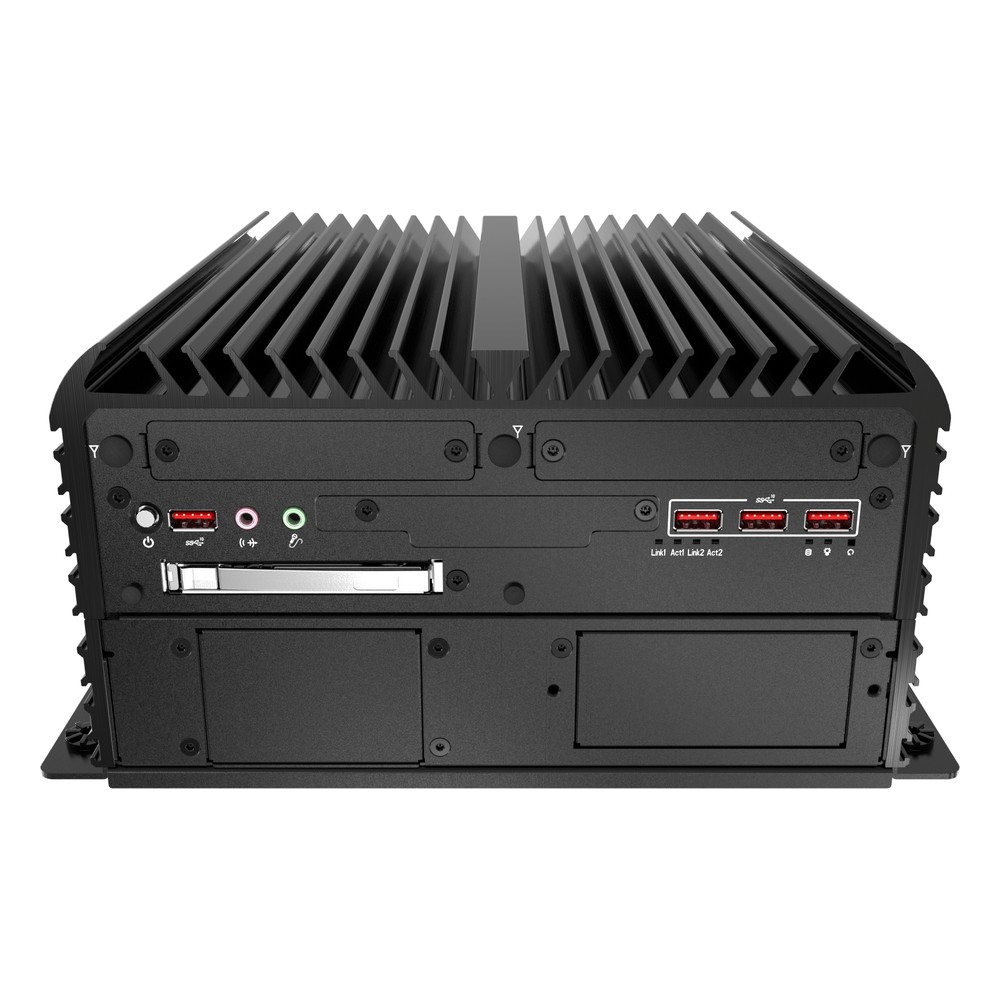

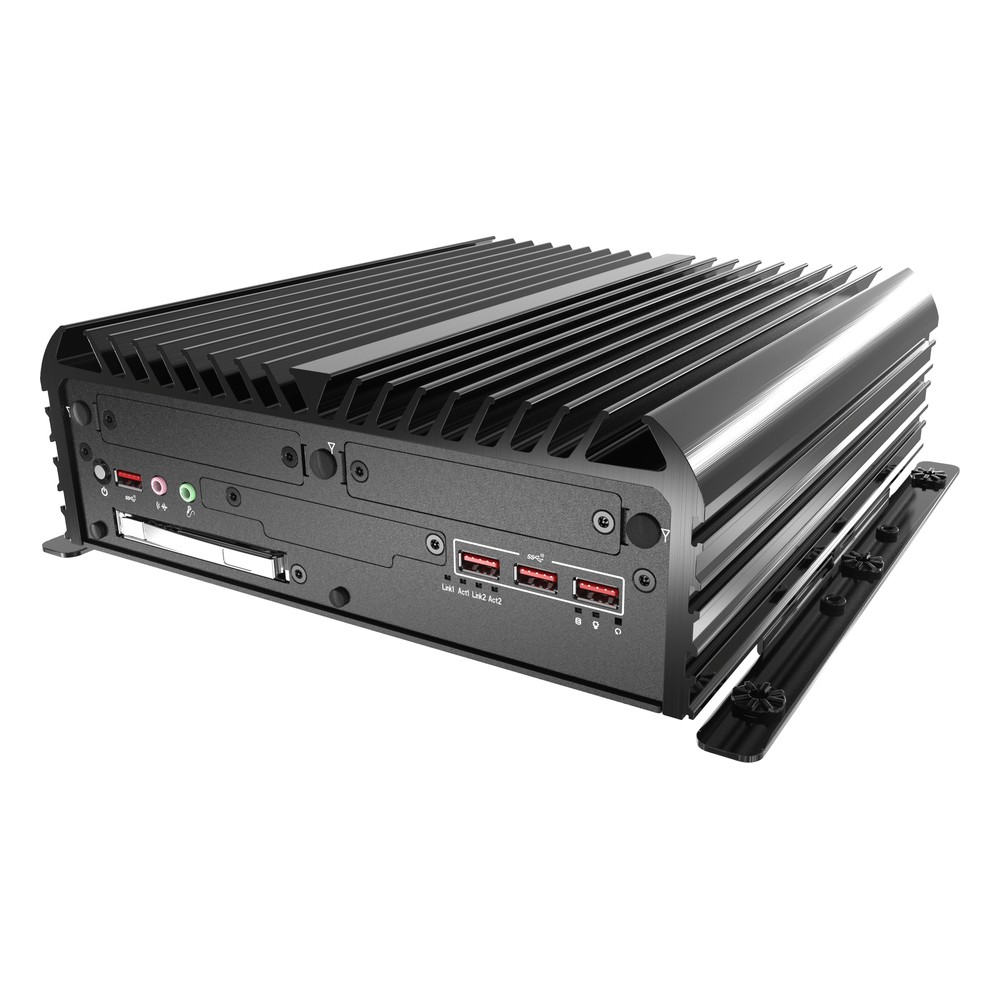

The RCO-6000-RPL is the base unit with no node. The RCO-6000-RPL-2E16 and RCO-6000-RPL-2E8 add a fanless node with a PCIe x16 Gen4 slot or two eight-lane Gen4 slots. Storage nodes pair those slots with four hot-swap SATA bays (RCO-6000-RPL-2E16-4B7M, RCO-6000-RPL-2E8-4B7M), two SATA bays for thicker drives (RCO-6000-RPL-2E16-2B15M, RCO-6000-RPL-2E8-2B15M) or two U.2 NVMe bays (RCO-6000-RPL-2E16-2N15M, RCO-6000-RPL-2E8-2N15M). The RCO-6000-RPL-2E16-2PWR and RCO-6000-RPL-2E8-2PWR add a separate GPU power input. The RCO-6000-RPL-2N and RCO-6000-RPL-4N combine a removable U.2 NVMe canister with a GPU slot, and the RCO-6000-RPL-4NH-1E takes an optional Broadcom hardware RAID card. The RCO-6000-RPL-4NH, RCO-6000-RPL-4NS and RCO-6000-RPL-8NS are storage builds with four or eight hot-swap U.2 NVMe bays.
In practice the RCO-6000-RPL series suits in-vehicle computing, machine vision, factory automation and edge AI inference. Power runs from 9 to 48 V DC with ignition management and a PC/Car mode switch, and every model is designed to comply with MIL-STD-810H for shock and vibration, with UL 62368-1 (cULus), CE, FCC Class A and UKCA marks. The base unit and the PCIe and SATA or U.2 storage node builds run from -25 °C to 70 °C with 35 W or 45 W processors, the GPU power and NVMe storage builds to 60 °C, and the U.2 canister GPU builds to 45 °C with a GPU fitted. In many projects these rugged industrial PCs let one software image and one set of field wiring cover every site.
RCO-6000-RPL Specifications
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL |
| Features | See Variant Specifications |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5600MHz SO-DIMM Slot, 96GB |
| Chipset | Intel R680E |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x DVI 2x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 9x USB Ports |
| 1x USB 2.0 [Board] 8x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [DB9] 4x RS232/422/485 [Board] | |
| CANbus | 2x CANbus Ports |
| 2x CANbus [Board] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| PCIe | See Variant Specifications |
| Storage | |
| Storage | See Variant Specifications |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | See Variant Specifications |
| Power | |
| Power Input | 9-48V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | See Variant Specifications |
| Operating Temperature | See Variant Specifications |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | IEC 62368-1 CB CE FCC IC (ICES-003) UKCA UL 62368-1 |
| Mechanical Properties | |
| Weight | See Variant Specifications |
| Chassis Material | Aluminum |
| Dimensions | See Variant Specifications |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
RCO-6000-RPL Variants
Premio RCO-6000-RPL-8NS Intel Core Series 2 Rugged Industrial PC with 8x Hot-Swap U.2 NVMe Bays
RCO-6000-RPL-8NS with 8x hot-swap U.2 NVMe, software RAID and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-8NS |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 8x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 11.5 Kg (25.4 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |

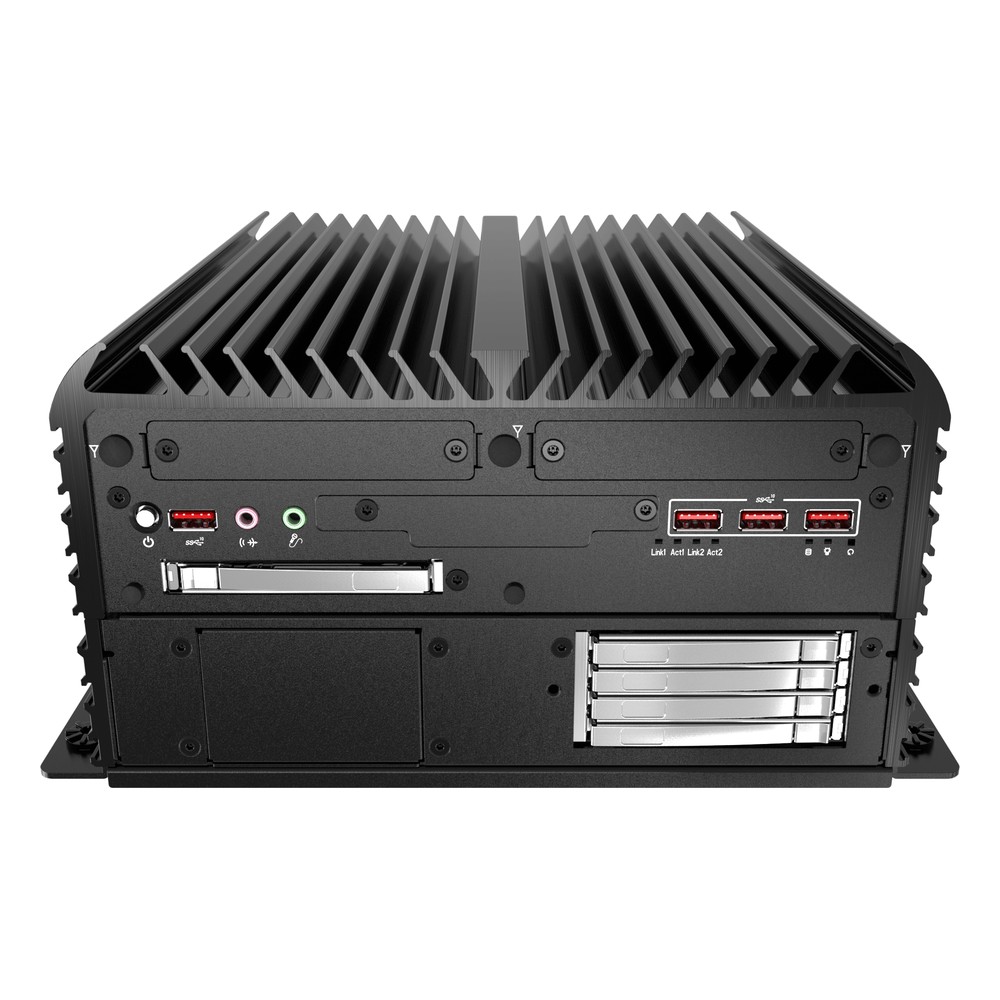

Premio RCO-6000-RPL-4NS Intel 12th to 14th Gen Core Rugged Industrial PC with 4x Hot-Swap U.2 NVMe and Software RAID
RCO-6000-RPL-4NS with 4x hot-swap U.2 NVMe, software RAID and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-4NS |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 4x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 11.0 Kg (24.3 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |
Premio RCO-6000-RPL-4NH Intel Bartlett Lake Rugged Industrial PC with 4x Hot-Swap U.2 NVMe and Hardware RAID
RCO-6000-RPL-4NH with 4x hot-swap U.2 NVMe, hardware RAID 0/1/5/6/10 and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-4NH |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 4x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 6 (Striping & Dual Distributed Parity), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 11.5 Kg (25.4 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |

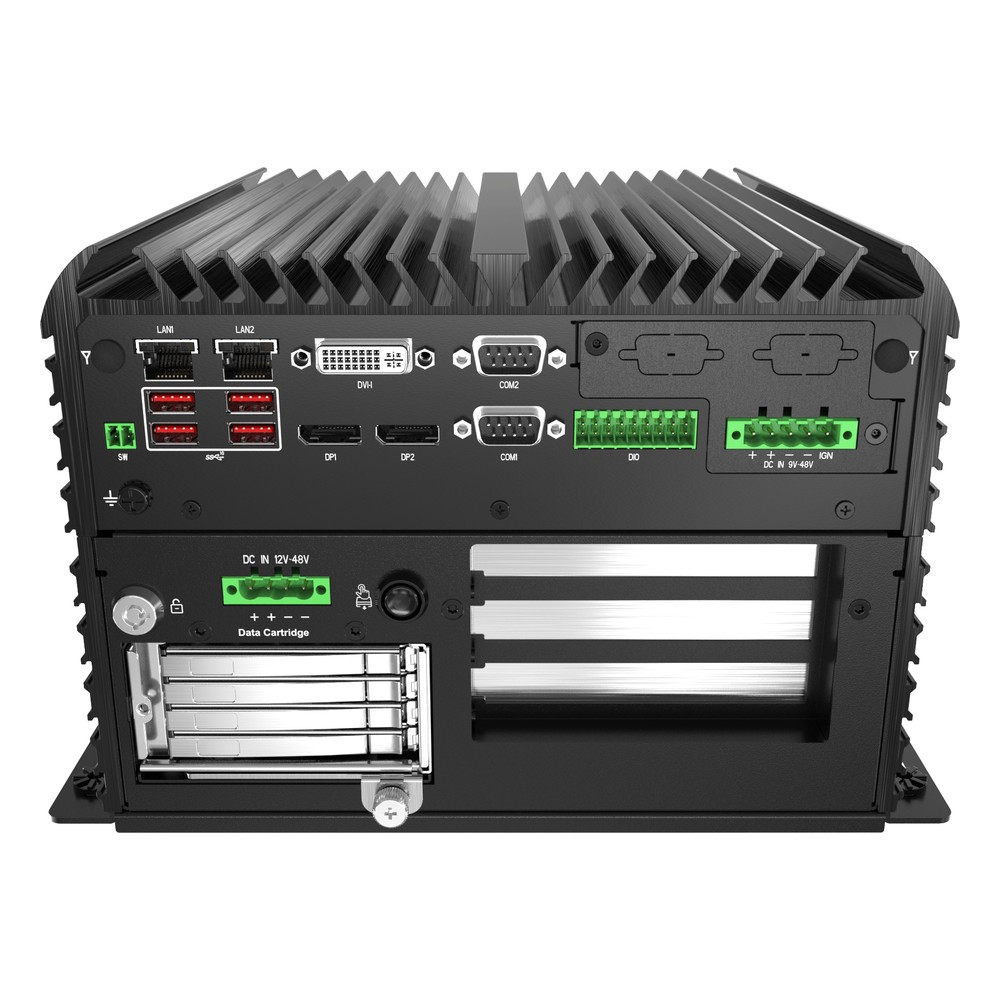

Premio RCO-6000-RPL-4NH-1E Intel Raptor Lake Rugged Industrial PC with 4x U.2 NVMe, Hardware RAID and PCIe Slot
RCO-6000-RPL-4NH-1E with 4-bay U.2 NVMe canister, optional hardware RAID and two PCIe Gen4 slots
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-4NH-1E |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 4x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 45°C [-13°F to 113°F] |
| Mechanical Properties | |
| Weight | 12.0 Kg (26.5 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-4N Intel 14th Gen Core Rugged Industrial PC with 4x U.2 NVMe Bays and GPU Slot
RCO-6000-RPL-4N with 4-bay removable U.2 NVMe canister, PCIe x16 GPU slot and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-4N |
| Features | Embedded, Expandable, GPU, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 4x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 45°C [-13°F to 113°F] |
| Mechanical Properties | |
| Weight | 12.0 Kg (26.5 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |
| Performance | |
| PCIe Gen Support | PCIe 3.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen3], 1x PCIe [x4 Slot] [x1 Signal] [Gen3] | |

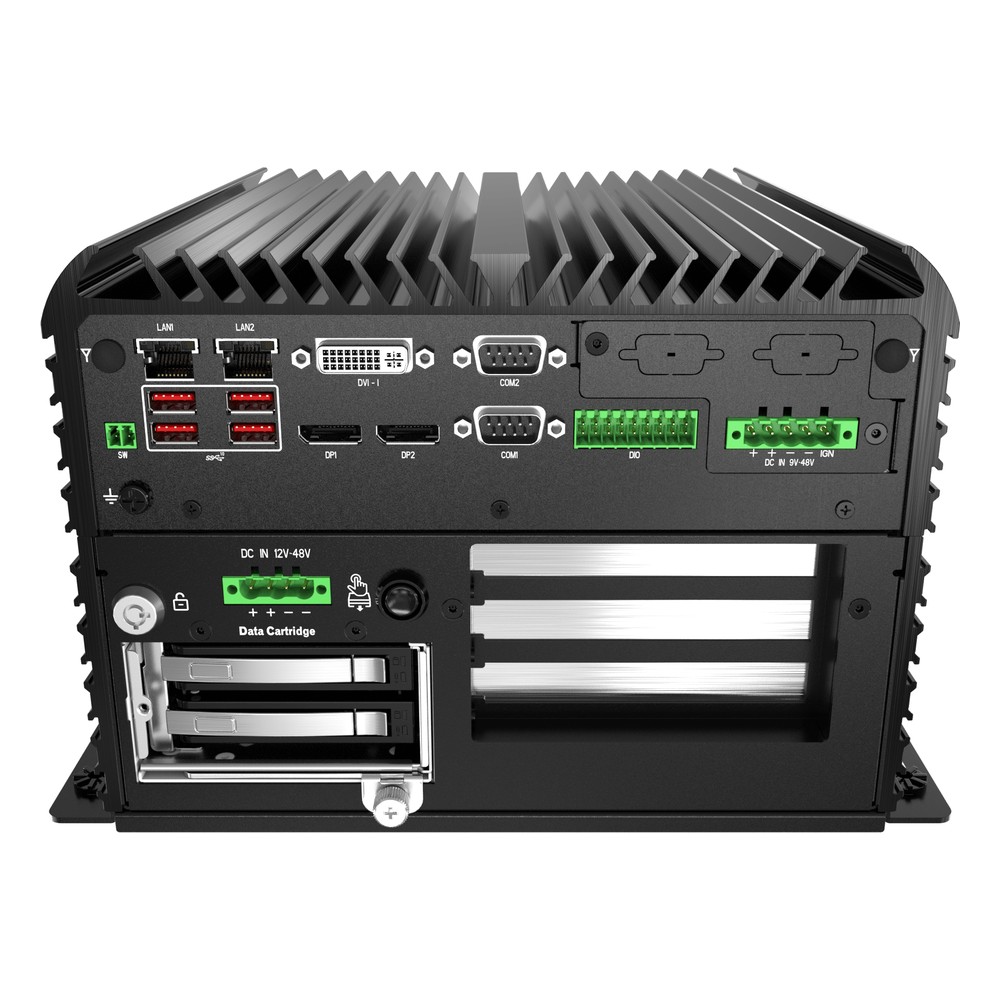

Premio RCO-6000-RPL-2N Intel Core i9/i7/i5 13th Gen Rugged Industrial PC with 2x U.2 NVMe Bays and GPU Slot
RCO-6000-RPL-2N with 2-bay removable U.2 NVMe canister, PCIe x16 GPU slot and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2N |
| Features | Embedded, Expandable, GPU, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 2x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 45°C [-13°F to 113°F] |
| Mechanical Properties | |
| Weight | 12.0 Kg (26.5 Lbs) |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |
| Performance | |
| PCIe Gen Support | PCIe 3.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen3], 1x PCIe [x4 Slot] [x1 Signal] [Gen3] | |

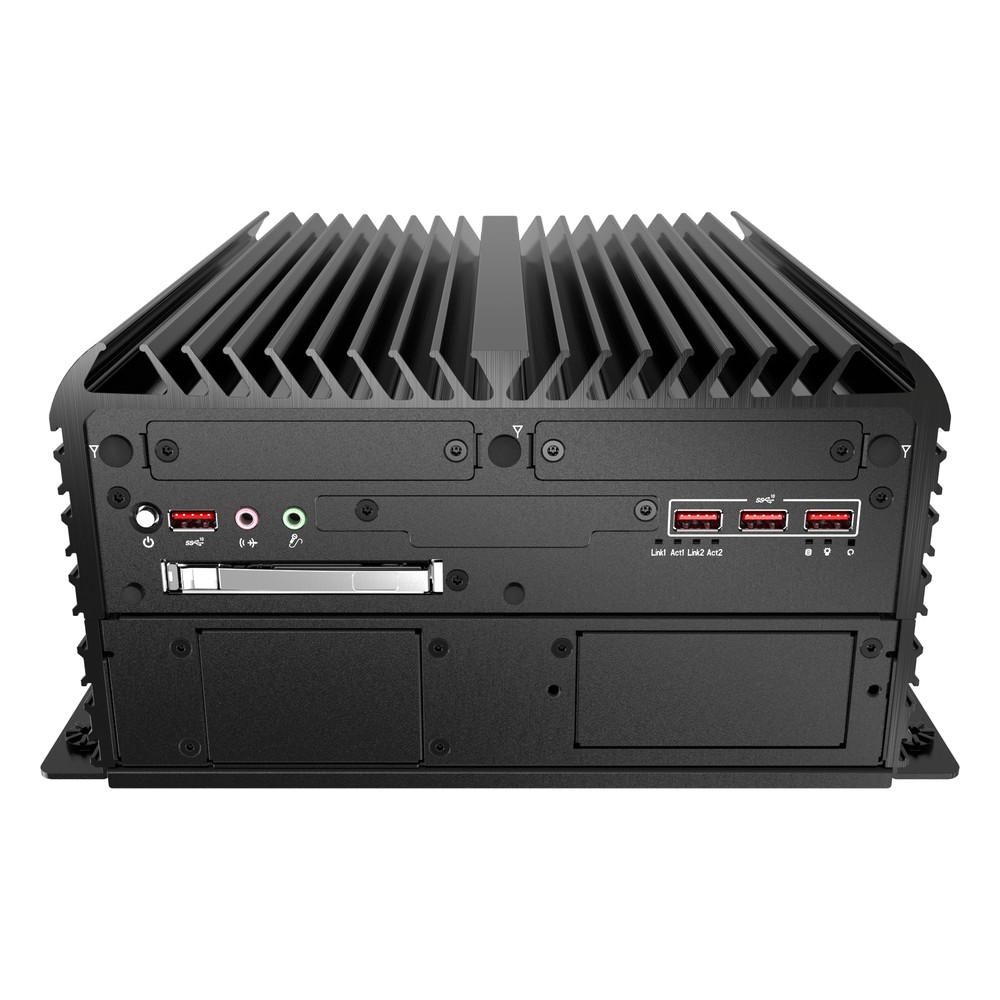

Premio RCO-6000-RPL-2E8-2PWR Intel Raptor Lake Rugged Industrial PC with Dual PCIe x8 Gen4 and Dedicated GPU Power Input
RCO-6000-RPL-2E8-2PWR with dual PCIe x8 Gen4 node, dedicated GPU power input and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E8-2PWR |
| Features | Embedded, Expandable, GPU, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-2E16-2PWR Intel 14th Gen Core Rugged Industrial PC with PCIe x16 Gen4 and Dedicated GPU Power Input
RCO-6000-RPL-2E16-2PWR with PCIe x16 Gen4 node, dedicated GPU power input and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16-2PWR |
| Features | Embedded, Expandable, GPU, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3], 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |

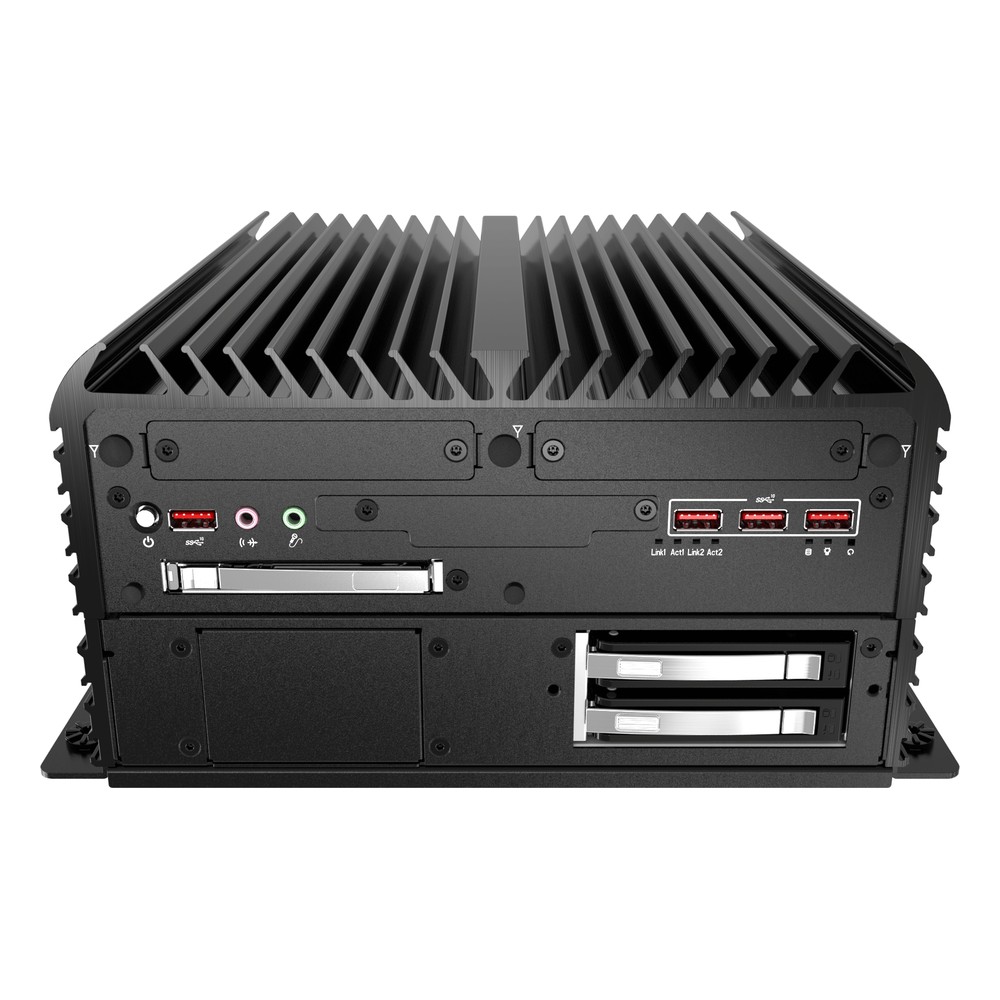

Premio RCO-6000-RPL-2E8-2N15M Intel 12th to 14th Gen Core Rugged Industrial PC with 2x Hot-Swap U.2 NVMe Bays and Dual PCIe x8
RCO-6000-RPL-2E8-2N15M with 2x hot-swap U.2 NVMe bays, dual PCIe x8 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E8-2N15M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 2x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-2E16-2N15M Intel Bartlett Lake Rugged Industrial PC with 2x Hot-Swap U.2 NVMe Bays and PCIe x16 Gen4
RCO-6000-RPL-2E16-2N15M with 2x hot-swap U.2 NVMe bays, PCIe x16 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16-2N15M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD, 2x 2.5" U.2 NVMe SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3], 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
Premio RCO-6000-RPL-2E8-2B15M Intel Core Series 2 Rugged Industrial PC with 2x Hot-Swap SATA Bays and Dual PCIe x8
RCO-6000-RPL-2E8-2B15M with 2x hot-swap SATA bays, dual PCIe x8 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E8-2B15M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 4x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-2E16-2B15M Intel Core i9/i7/i5 13th Gen Rugged Industrial PC with 2x Hot-Swap SATA Bays and PCIe x16 Gen4
RCO-6000-RPL-2E16-2B15M with 2x hot-swap SATA bays, PCIe x16 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16-2B15M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 4x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3], 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
Premio RCO-6000-RPL-2E8-4B7M Intel Raptor Lake Rugged Industrial PC with 4x SATA Drive Bays and Dual PCIe x8 Gen4
RCO-6000-RPL-2E8-4B7M with 4x hot-swap SATA bays, dual PCIe x8 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E8-4B7M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 6x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-2E16-4B7M Intel 14th Gen Core Rugged Industrial PC with 4x SATA Drive Bays and PCIe x16 Gen4
RCO-6000-RPL-2E16-4B7M with 4x hot-swap SATA bays, PCIe x16 Gen4 slots and dual 2.5GbE
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16-4B7M |
| Features | Embedded, Expandable, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 6x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Striping & Distributed Parity), RAID 10 (Mirroring & Striping) |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan, Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3], 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
Premio RCO-6000-RPL-2E8 Intel Core Series 2 Rugged Industrial PC with Dual PCIe x8 Gen4 Slots and Extended Temperature
RCO-6000-RPL-2E8 with dual eight-lane PCIe Gen4 node, dual 2.5GbE and fanless design
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E8 |
| Features | Embedded, Expandable, Fanless, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis, Fanless |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4], 1x PCIe [x8 Slot][Gen4] | |
Premio RCO-6000-RPL-2E16 Intel Core i9/i7/i5 13th Gen Rugged Industrial PC with PCIe x16 Gen4 EDGEBoost Node and -25 to 70 °C
RCO-6000-RPL-2E16 with PCIe x16 Gen4 and x1 node, dual 2.5GbE and fanless design
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16 |
| Features | Embedded, Expandable, Fanless, Industrial, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis, Fanless |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Performance | |
| PCIe Gen Support | PCIe 4.0 |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO Blackwell, RTX 4000 SFF Ada, RTX A1000, RTX PRO 2000 Blackwell, RTX PRO 4000 Blackwell SFF, NVIDIA RTX Ada, RTX 2000 Ada, NVIDIA RTX Ampere |
| AI Performance | 307, 54, 192, 545, 770 |
| Number of GPUs | Single GPU Support |
| GPU Family | RTX Ada, RTX Ampere, RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace, NVIDIA Blackwell, NVIDIA Ampere |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3], 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
Premio RCO-6000-RPL Intel Bartlett Lake Rugged Industrial PC with EDGEBoost I/O, Dual 2.5GbE and Extended Temperature
RCO-6000-RPL with LGA1700 Intel Core, dual 2.5GbE, 8x USB 3.2 and EDGEBoost I/O brackets
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL |
| Features | Compact, Embedded, Expandable, Fanless, Industrial, Low Profile, Rugged |
| Storage | |
| Storage | 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping), RAID 1 (Mirroring) |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis, Fanless |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F], Extended Temperature |
| Mechanical Properties | |
| Weight | 4.5 Kg (9.9 Lbs) |
| Dimensions | 240mm x 261mm x 79mm (9.45" x 10.28" x 3.11") |
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL Datasheet Download
- RCO-6000-RPL User Manual Download
No related media available for this product series.
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the RCO-6000-RPL configured and tested, with memory, SATA or U.2 NVMe drives, the Windows 11 or Linux image, NVIDIA RTX GPU cards, EDGEBoost I/O modules and any 4G, 5G or Wi-Fi modules and antennas fitted before it ships. Within the Premio range, the RCO-3000-RPL is a smaller fanless rugged PC for 35 W and 45 W processors with a single EDGEBoost I/O slot, and the VCO-6000-RPL takes two PCIe x16 slots with 600 W of GPU power for heavier machine vision. If you are unsure which node suits your install, our team can help you choose.
Across our range, the RCO-6000-RPL sits with our rugged GPU computers, our in-vehicle computers and our fanless industrial computers.
Consult. Design. Integrate.
Things Embedded is a leading USA supplier of industrial computing and edge AI systems. We combine technical expertise with a collaborative approach to deliver optimal solutions for your application. Whether it’s an off-the-shelf platform or a custom design, we stay at the forefront of the latest technologies to ensure your success at the edge. Our team works closely with you from concept through deployment, providing guidance, engineering support, and integration expertise every step of the way.
Connect with our solutions experts today to review your requirements and find the ideal solution fit for your application.
