Premio RCO-6000-RPL-4NH-1E Intel Raptor Lake Rugged Industrial PC with 4x U.2 NVMe, Hardware RAID and PCIe Slot
Intel
Linux
Windows
Triple Display Support
2.5GbE
USB3
2x M.2
1x mPCIe
2x PCIe
2x SIM
4G
5G
Wi-Fi
NVMe SSD
Ignition Control
CE
FCCRCO-6000-RPL-4NH-1E Overview

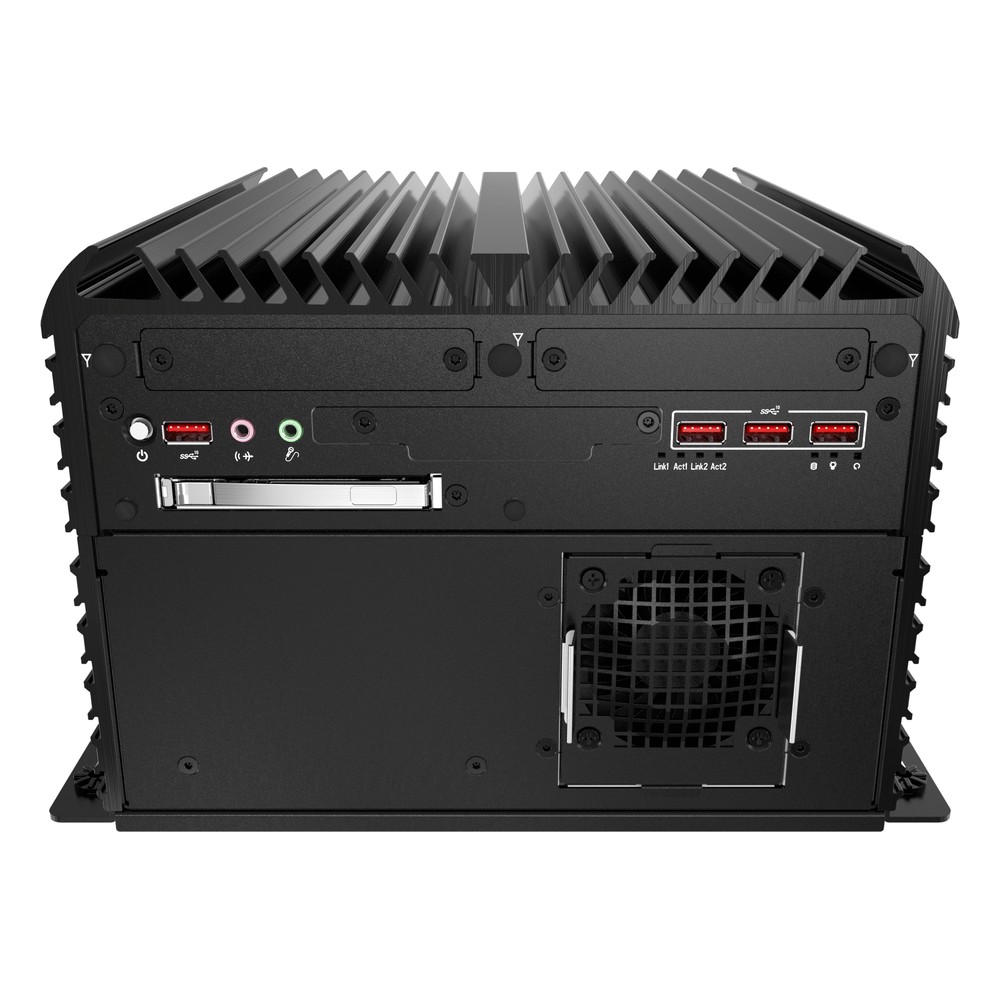

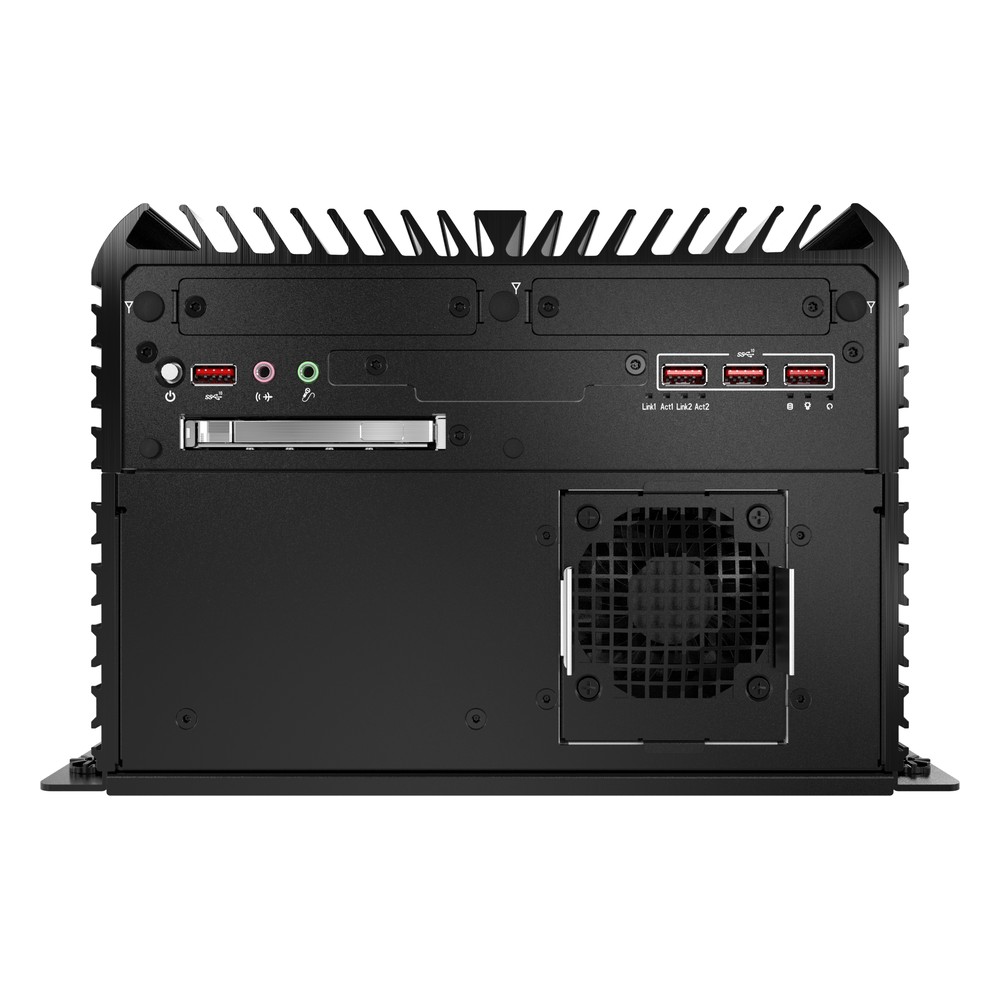

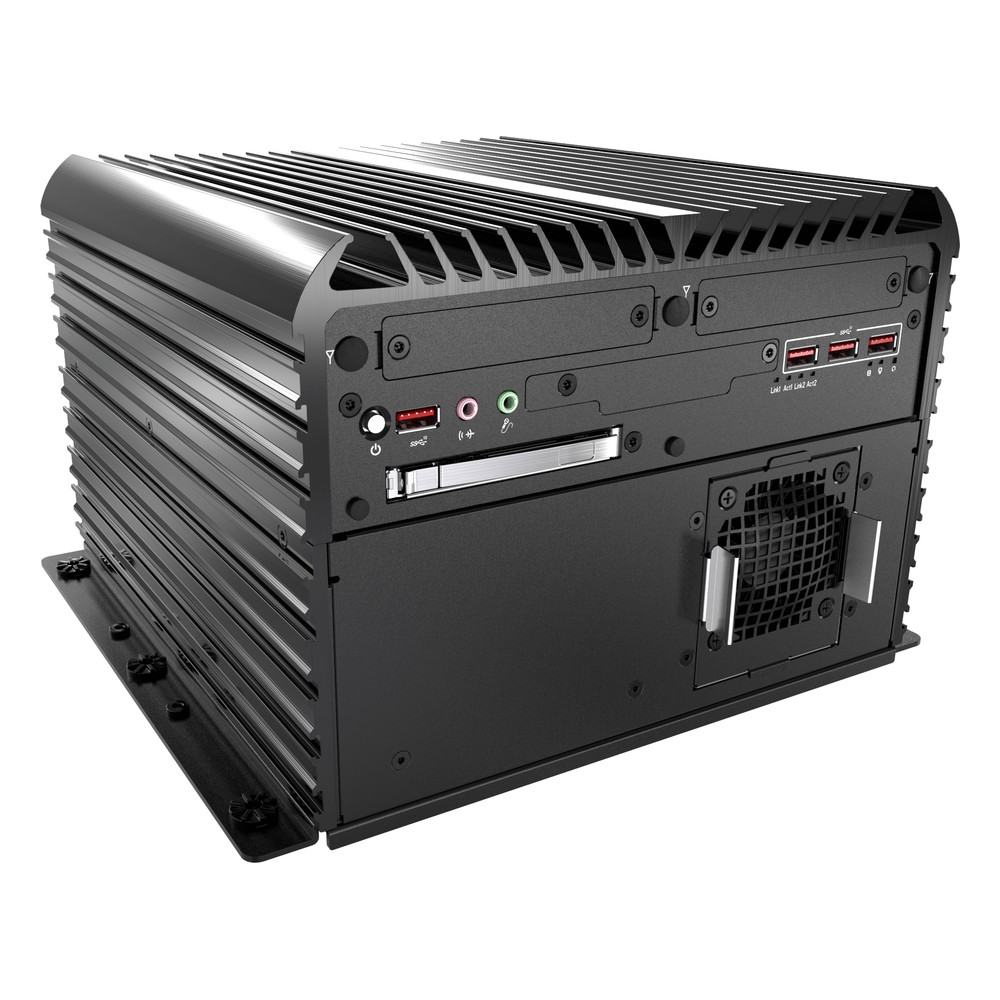

Long recording runs in vehicles and remote cabinets put a lot of writes on a small set of drives, and RAID on a dedicated card keeps that work off the processor. The Premio RCO-6000-RPL-4NH-1E is the hardware RAID build of the RCO-6000-RPL series, a rugged industrial PC with a removable four-bay U.2 NVMe canister in its EDGEBoost Node.
The RCO-6000-RPL-4NH-1E takes Core Series 2 and 12th to 14th Gen Intel Core processors in an LGA1700 socket on the R680E chipset, from 35 W standard parts such as the i7-13700TE up to 65 W project builds. Up to 96 GB of DDR5 ECC or non-ECC memory, TPM 2.0 and Windows 11 or Linux support complete the CPU section.

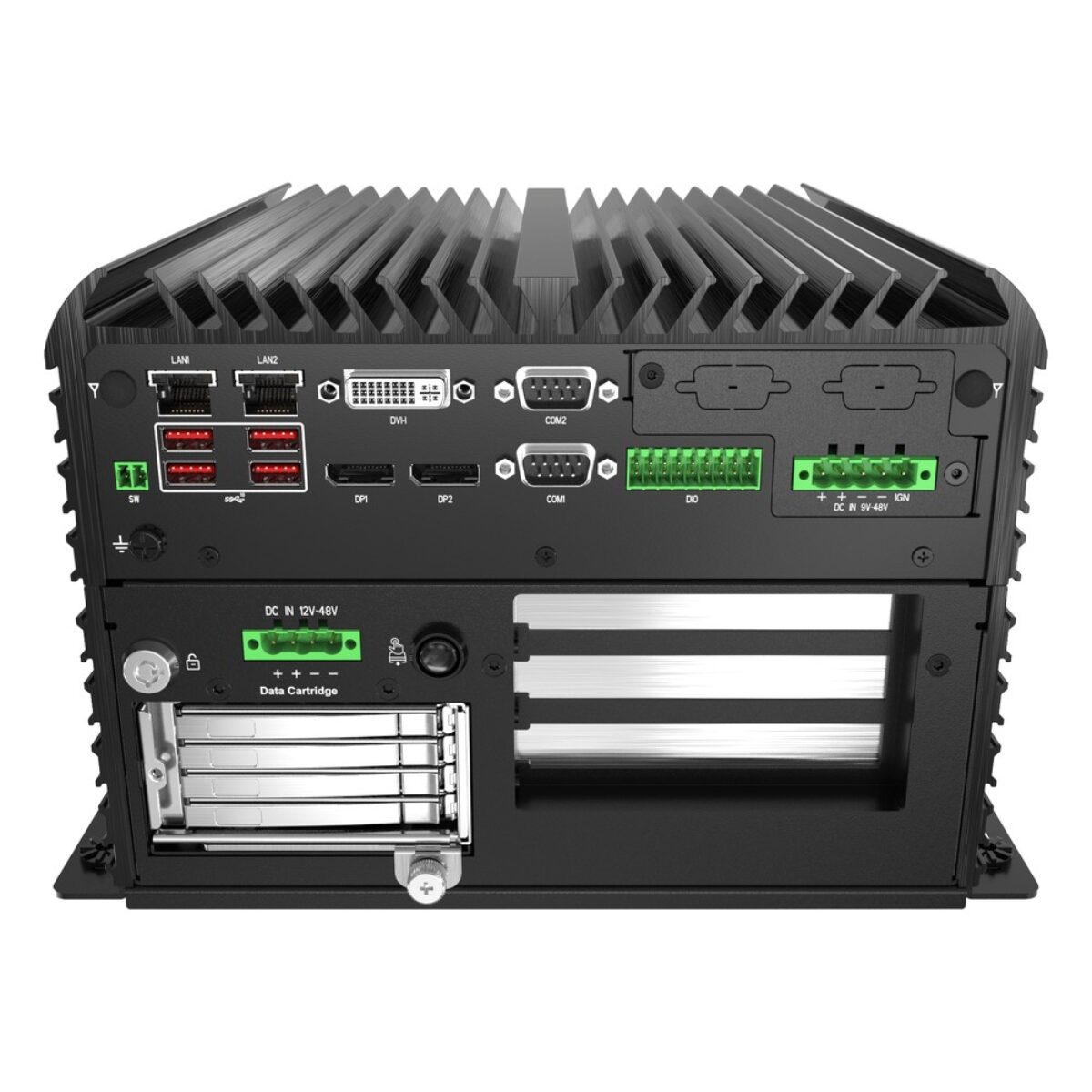

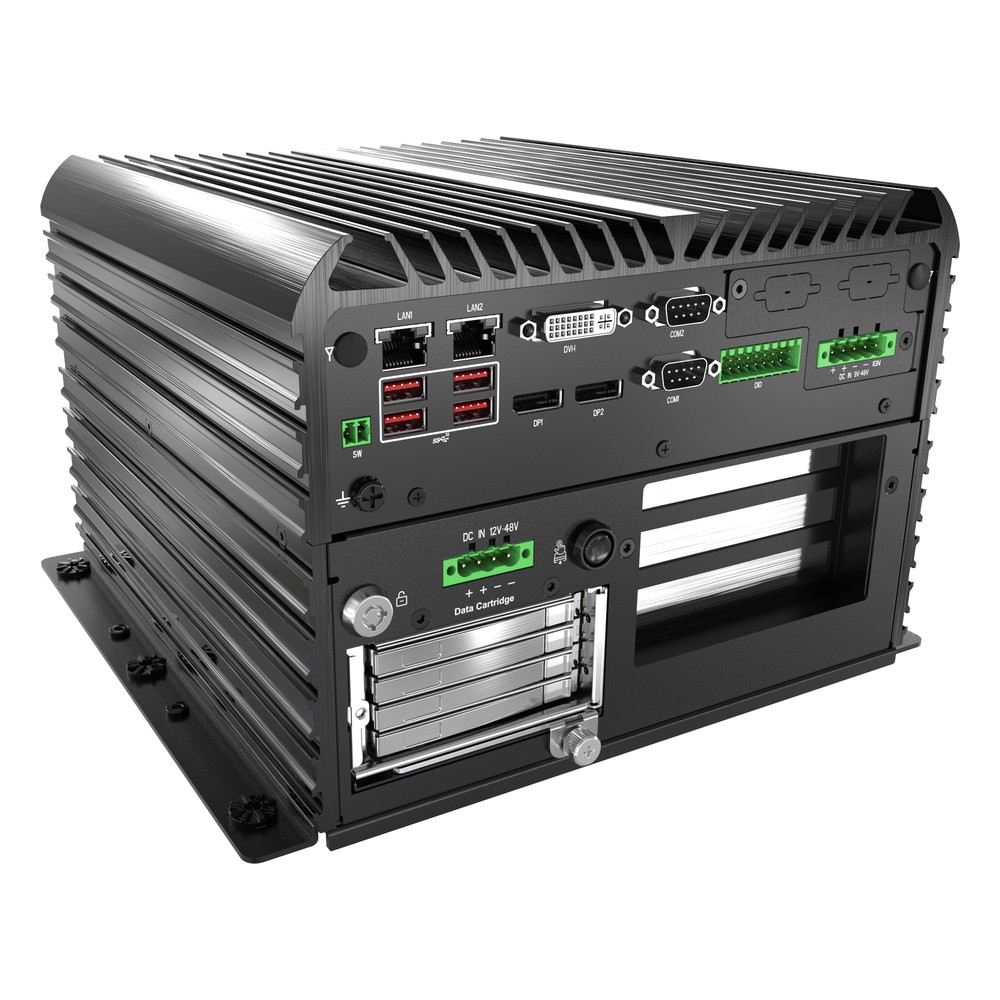

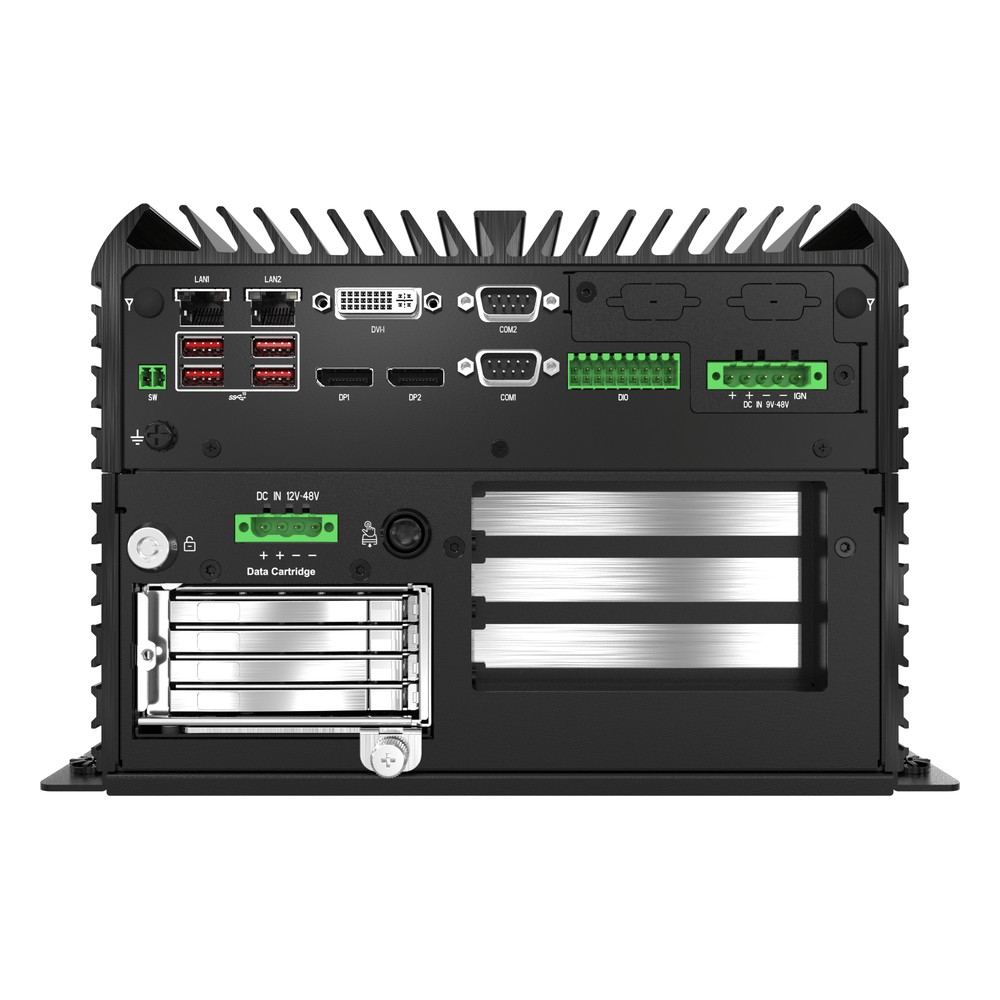

Two Intel I226 2.5GbE ports support TSN and PXE, with eight USB 3.2 Gen 2 ports, two DisplayPort 1.4a outputs and a DVI-I port for triple display. Field I/O covers six RS-232/422/485 ports (four internal), two CAN headers and isolated 8-in/8-out DIO. An M.2 B key socket takes NVMe, an AI module or a 4G/5G modem, and two EDGEBoost I/O brackets take optional GbE, 10GbE, USB or 5G modules. The canister holds four hot-swappable 2.5-inch U.2 NVMe drives with RAID 0, 1 and 5, and the node adds a PCIe x16 slot wired with eight Gen4 lanes plus an open-ended PCIe x8 Gen4 slot for the optional Broadcom MegaRAID 9560-8i controller.
Main power is 9 to 48 V DC on a terminal block with ignition management and a PC/Car mode switch, with an optional 280 W or 360 W adapter, and a second 12 to 48 V DC 4-pin terminal block feeds the node. Premio rates this node build from -25 °C to 45 °C, and it is designed to comply with MIL-STD-810H for shock and vibration, with UL 62368-1, CE, FCC and UKCA marks. The CPU section is fanless, and the node has a hot-swappable rear fan. We supply the RCO-6000-RPL-4NH-1E configured and tested, with memory, NVMe drives, the RAID controller and the OS image fitted. See also the RCO-6000-RPL-4N and the RCO-6000-RPL-4NH.
RCO-6000-RPL-4NH-1E Specifications
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-4NH-1E |
| Features | Embedded Expandable Industrial Rugged |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5600MHz SO-DIMM Slot, 96GB |
| Chipset | Intel R680E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x DVI 2x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 9x USB Ports |
| 1x USB 2.0 [Board] 8x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [DB9] 4x RS232/422/485 [Board] | |
| CANbus | 2x CANbus Ports |
| 2x CANbus [Board] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x16 Slot] [x8 Signal] [Gen4] 1x PCIe [x8 Slot][Gen4] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x mSATA 2x 2.5" HDD/SSD 4x 2.5" U.2 NVMe SSD |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) |
| Power | |
| Power Input | 9-48V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | -25°C to 45°C [-13°F to 113°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | IEC 62368-1 CB CE FCC IC (ICES-003) UKCA UL 62368-1 |
| Mechanical Properties | |
| Weight | 12.0 Kg (26.5 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 240mm x 261mm x 167mm (9.45" x 10.28" x 6.57") |
| Mounting Options | Wall Mount |
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the RCO-6000-RPL-4NH-1E configured and tested, with the memory, storage, GPU cards and operating system image fitted before it ships. Within the Premio range, the RCO-6000-RPL-4N uses Gen3 node slots with a named NVIDIA RTX card list in place of the hardware RAID option.
Across our range, the RCO-6000-RPL-4NH-1E sits with our rugged computers, in-vehicle computers and Intel Raptor Lake systems.
