US 15 Inch Panel PCs
15 Inch Industrial Touch Panel PCs for Machine HMIs and Operator Stations
Fifteen inch panel PCs are the most specified HMI size on the production line, large enough for a full operator screen and small enough for a cabinet door. Available in 15 inch 4:3 and 15.6 inch widescreen formats with resistive or PCAP touch and every sealing level from a front IP65 bezel to fully sealed IP69K stainless steel, they suit the operator station as well as the machine.
Options include open-frame, panel-mount, chassis and VESA builds and stainless steel enclosures for washdown, suited to machine HMIs, operator stations and food and beverage lines where the screen is worked in gloves and cleaned at the end of the shift.
Speak to a panel PC specialist to match the format, sealing and mounting to your operator station.
Browse Our 15 Inch Touch Screen Computers
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 9th Gen Coffee Lake
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [Gen3]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

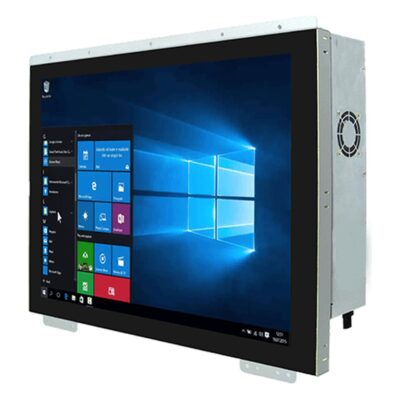

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 9th Gen Coffee Lake
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port, 1x Optional HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- PCIe: 1x PCIe [x16 Slot] [Gen3]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount

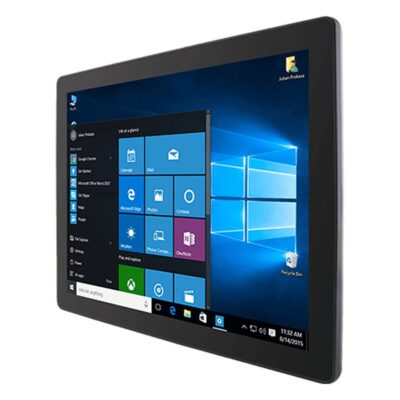

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional Micro HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE-PD]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

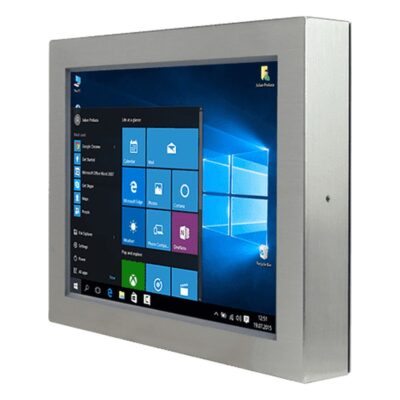

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [M12], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [M12], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [M12], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

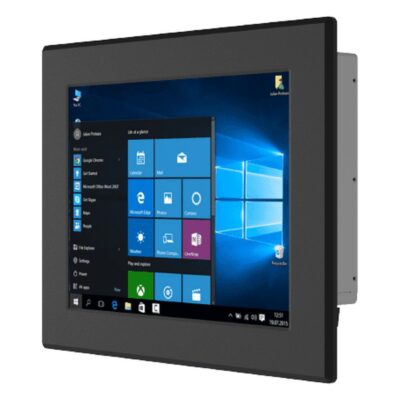

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- PCIe: 1x PCIe [x16 Slot] [x4 Signal] [Gen4]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slots, 16GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slots, 16GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

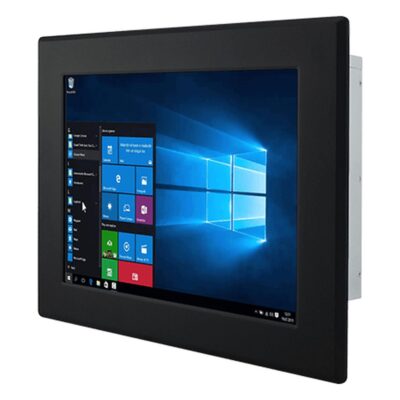

- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slots, 16GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- PCIe: 1x PCIe [x1 Slot] [Gen2]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- RAID: RAID 0, RAID 1
- Power: 12V DC [4-Pin], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
Beyond 15 Inch: Panel PCs
All Panel PCsEvery panel PC we supply, from open frame HMIs to fully sealed IP69K stainless steel builds.
7 Inch Panel PCs6.5, 7 and 8.4 inch · 17:10 and 4:3
10 Inch Panel PCs10.1 and 10.4 inch · 4:3 and 5:3
12 Inch Panel PCs12 inch (12″) panel PCs for machine HMIs and compact operator stations where cabinet space is tight.
17 Inch Panel PCs17 inch (17″) panel PCs for line-side HMIs and operator stations that need a larger touch screen.
19 Inch Panel PCs18.5 and 19 inch · 5:4
21.5 Inch Panel PCs21.5 inch (21.5″) full HD panel PCs for SCADA overviews, process lines and shared operator stations.
24 Inch Panel PCs23.8 and 24 inch · 16:915 Inch Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of 15 inch panel PCs, so the ranges below are the ones we specify for machine HMIs, operator stations and washdown lines. Compare them by sealing, processor and mounting, then browse the models above or ask a panel PC specialist which range suits your operator station.

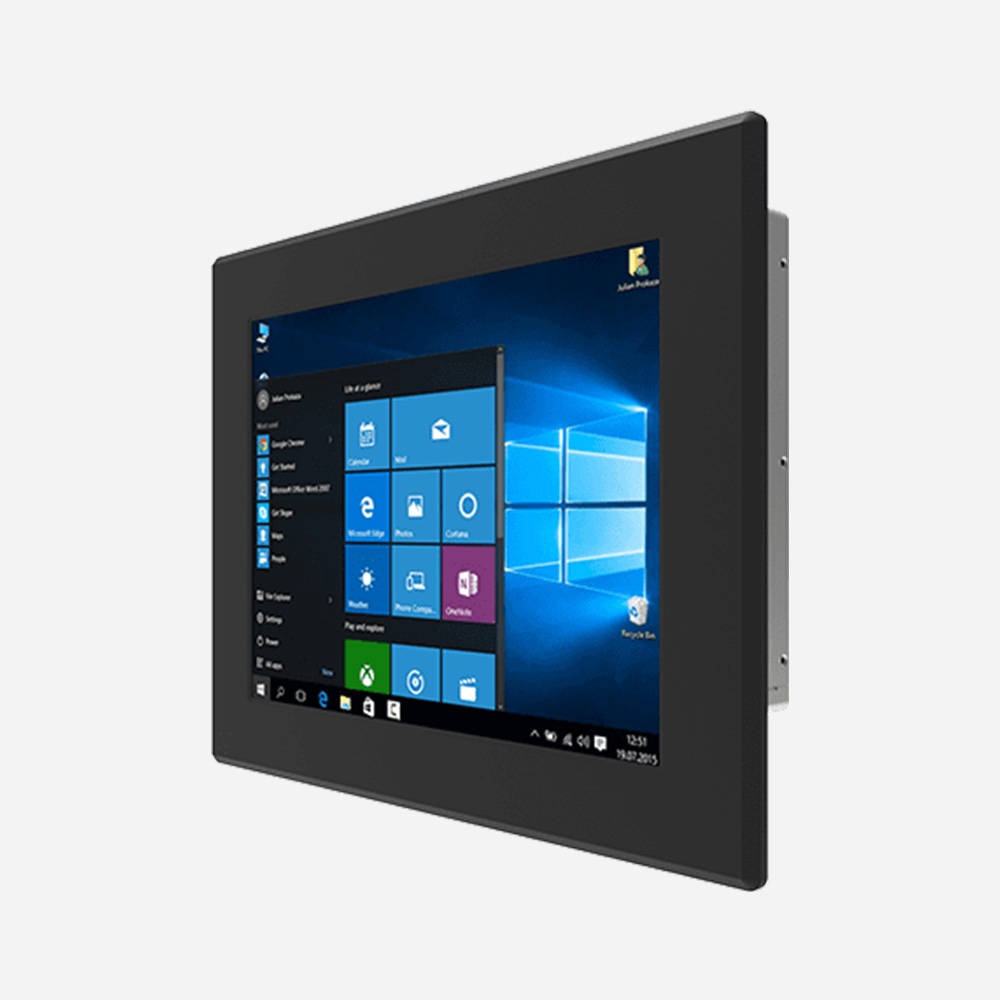

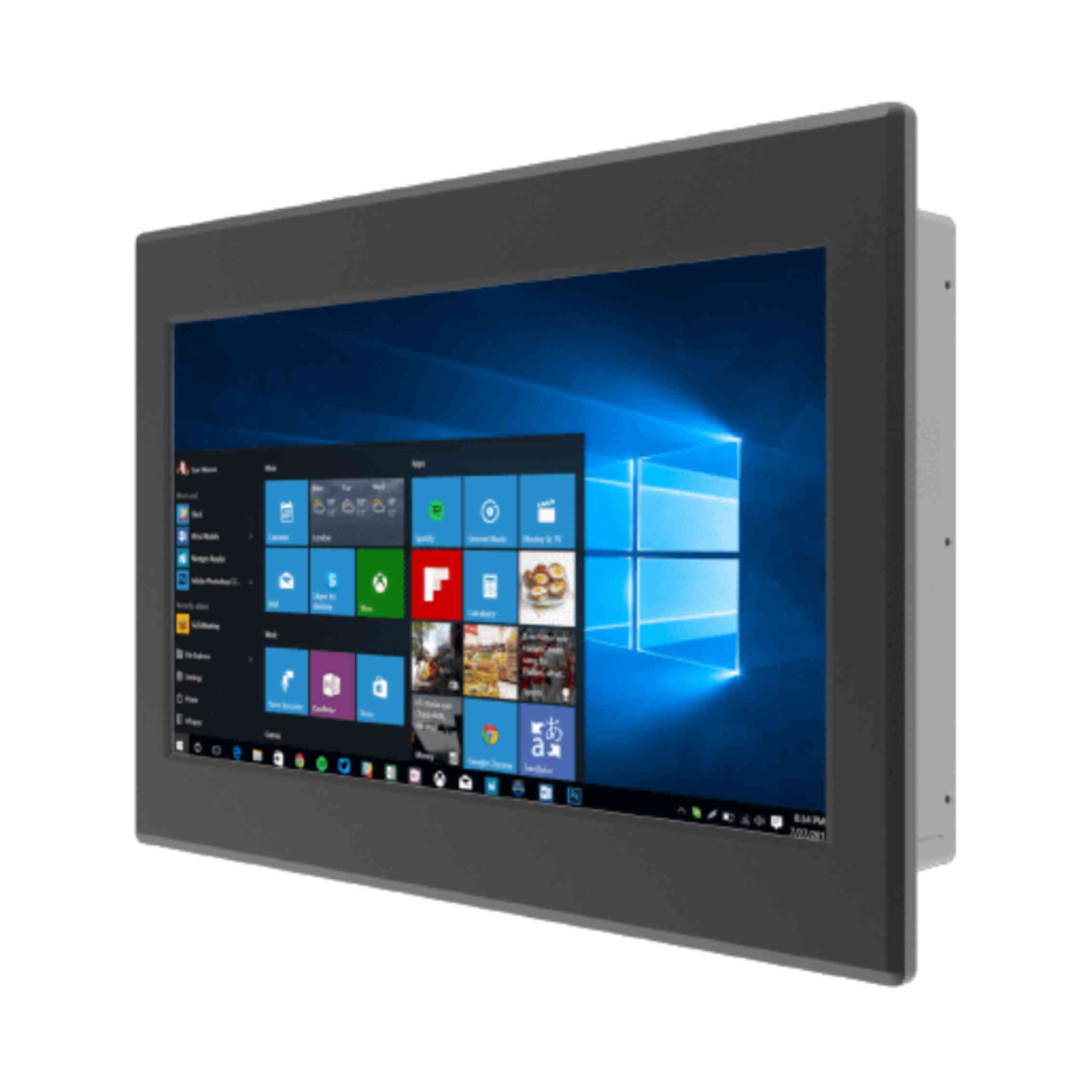

Winmate Panel Mount PCs
Flush-mount 15 and 15.6 inch HMIs in standard and front IP65 builds, on Intel Pentium N4200 to 12th/14th Gen Core, with resistive touch and wide-temperature options.
Winmate PCAP Panel Mount HMIs
Panel-mount 15 and 15.6 inch HMIs with PCAP touch on Intel Pentium N4200, Core i5 Tiger Lake or Core i5-1235U, plus resistive Tiger Lake builds.

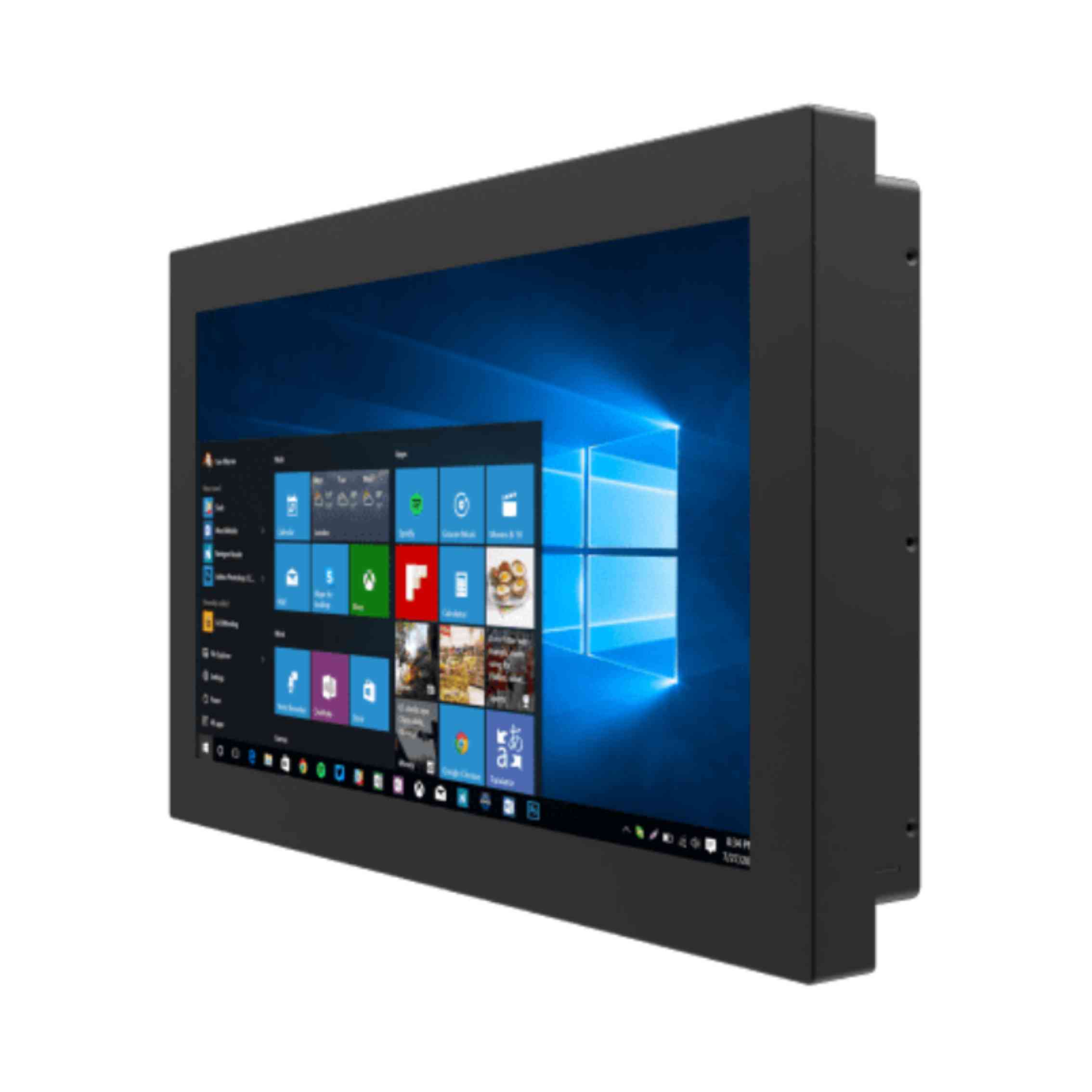

Winmate Chassis-Mount Touch Computers
VESA and wall-mount 15 and 15.6 inch computers on Intel Pentium to 12th/14th Gen Core, with resistive touch and wide-temperature options for arms and desks.

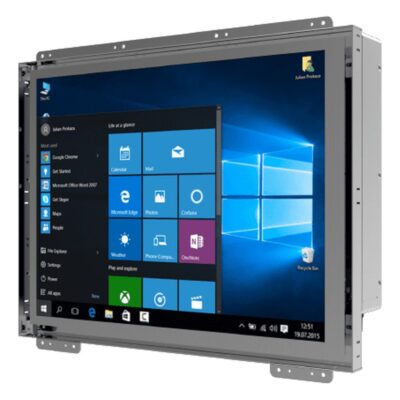

Winmate PCAP Open Frame Touch Computers
Housing-free 15 and 15.6 inch modules with PCAP multi-touch, on Intel Celeron, Pentium N4200, 9th Gen Core or Core i5 Tiger Lake, for kiosk enclosures.

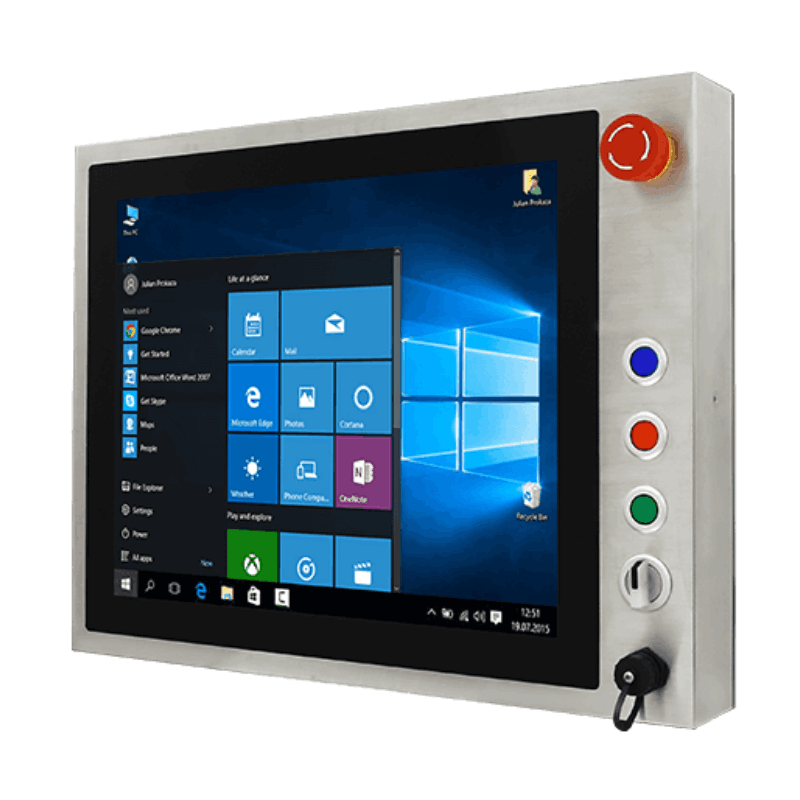

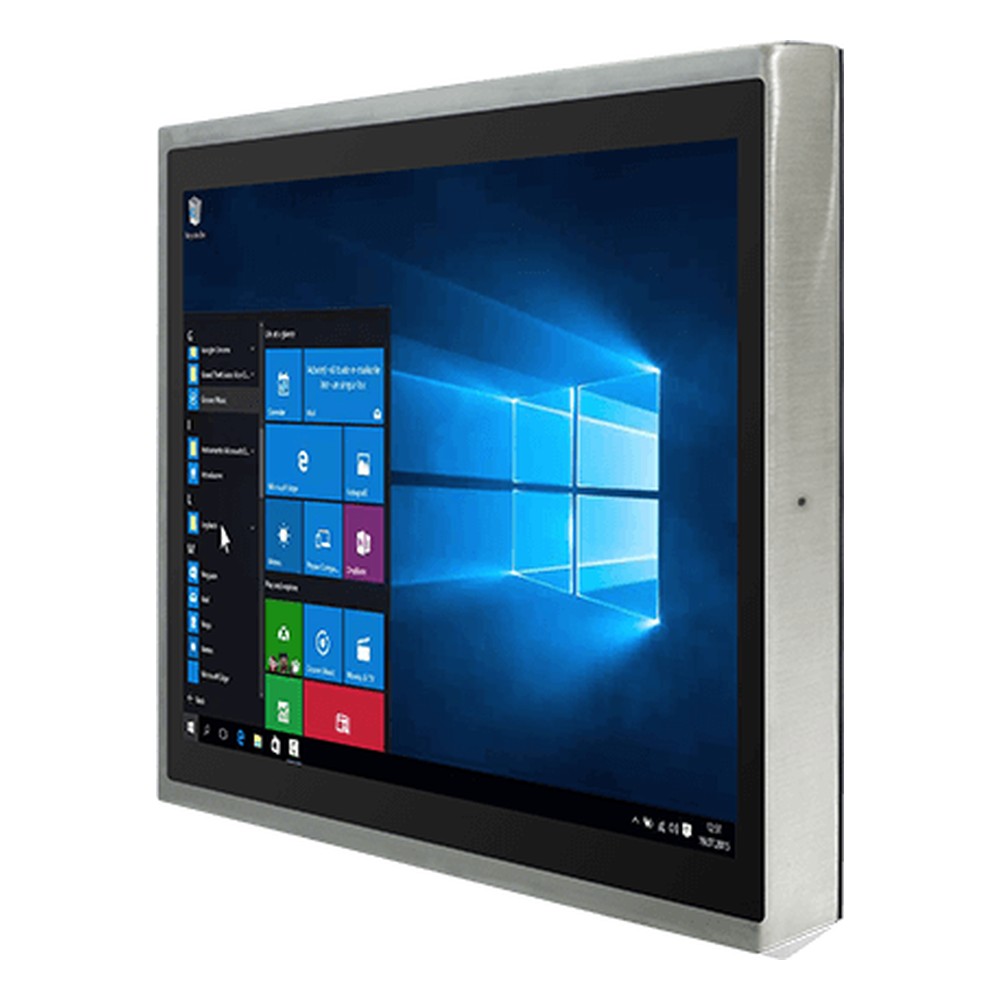

Winmate Stainless Steel Washdown PCs
Hygienic 15 inch stainless steel touch terminals on Intel Celeron, N150 or 12th Gen Core i5, with M12 connectors and IP69K PCAP builds for washdown lines.
Winmate IP65 and IP67 Stainless Chassis Computers
Sealed 15 inch stainless chassis PCs on Intel Celeron N6210, Core i5-1135G7 or Core i5-1235U, rated IP65 or IP67 with M12 connectors, for wipe-down positions.
IT3S Winmate IP69K AISI 316 Stainless Panel PCs
Full IP69K AISI 316 stainless HMIs on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with PCAP rain-mode touch for the wettest positions on the line.
Winmate G-WIN Full IP67 Rugged HMIs
Fully sealed IP67 rugged computers in 15 inch on Intel Celeron, Core i5 or MediaTek Genio 510, tested to MIL-STD-810G, with high-bright screens and M12 connectors.
Winmate Vehicle Mount Rugged Computers
In-cab touch computers from 8.4 to 15 inches on Intel Celeron or Core i5, with sunlight-readable high-bright options and wide-range DC input, for forklifts, cabs and mobile machinery.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.

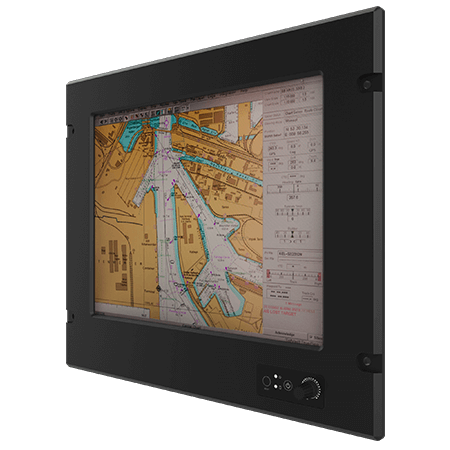

Winmate Marine Touch Computers
Front IP66 console computers in 15 and 15.6 inch on Intel N150, Tiger Lake or Raptor Lake Core, with 9 to 36V DC input and ECDIS builds.

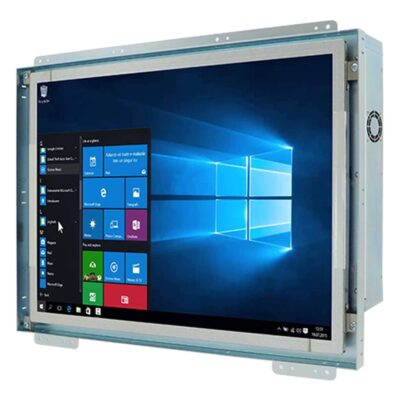

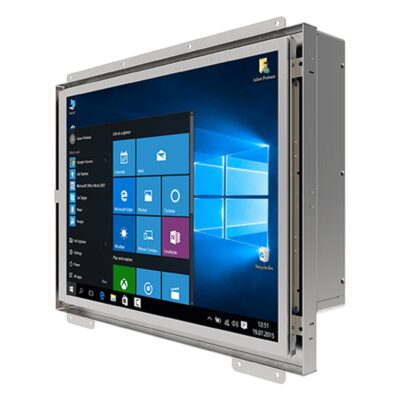

Winmate Resistive Open Frame Panel PCs
Housing-free 15 and 15.6 inch panel PCs with resistive touch, on Intel Pentium N4200, 9th to 12th Gen Core or Raptor Lake Core, for OEM enclosures.
Winmate PoE PCAP Touch Panel PCs
PCAP panel PCs in 15 inch XGA and 15.6 inch full HD on Intel Celeron N6211, with PoE builds taking power and data over one cable.
Winmate G-WIN Front IP65 Chassis Panel PCs
Rugged 15 inch G-WIN panel PCs with a front IP65 face, tested to MIL-STD-810G or 810H, on Intel Celeron N6211, N150, Core i5 or MediaTek Genio 510.
Winmate M Series HMI Panel PCs
M Series HMIs in 15 and 15.6 inch on 11th Gen Intel Core i5-1135G7, with a 9 to 29V DC input for machines on a DC supply.
Winmate PCAP Chassis Panel PCs
PoE-powered 15 inch PCAP chassis panel PCs on Intel Celeron N6211 or Arm-based MediaTek Genio 510, the Genio builds tested to MIL-STD-810H.
Winmate G-WIN Full IP65 Rugged Panel PCs
Fully sealed IP65 rugged panel PCs in 15 inch on Intel Celeron N6211, Twin Lake N150 or six-core MediaTek Genio 510, tested to MIL-STD-810G or 810H.
Winmate PCAP Touch HMIs
PCAP HMIs in 15 inch XGA and 15.6 inch full HD on Intel Celeron N6211, Twin Lake N150 or MediaTek Genio 510, the Genio builds tested to MIL-STD-810H.
Winmate Rack Mount Panel PCs
Rack mount 15 inch panel PCs with resistive touch on Intel Pentium N4200, Core i5 Tiger Lake or LGA1700 Core i3 to i9, for consoles and equipment racks.
Winmate Defense Panel PCs
Defense panel PCs in 15 inch on Intel Core i5-1135G7 or Core i5-1235U, built to MIL-STD-810H and MIL-STD-461 for military consoles and vehicles.
DM Arestech Modular Panel PCs
Two-part systems built from a DM display and a PM-2000 Intel Celeron compute module, with PCAP touch and a front IP65 bezel, for panel or chassis mounting from 10.4 to 24 inches.

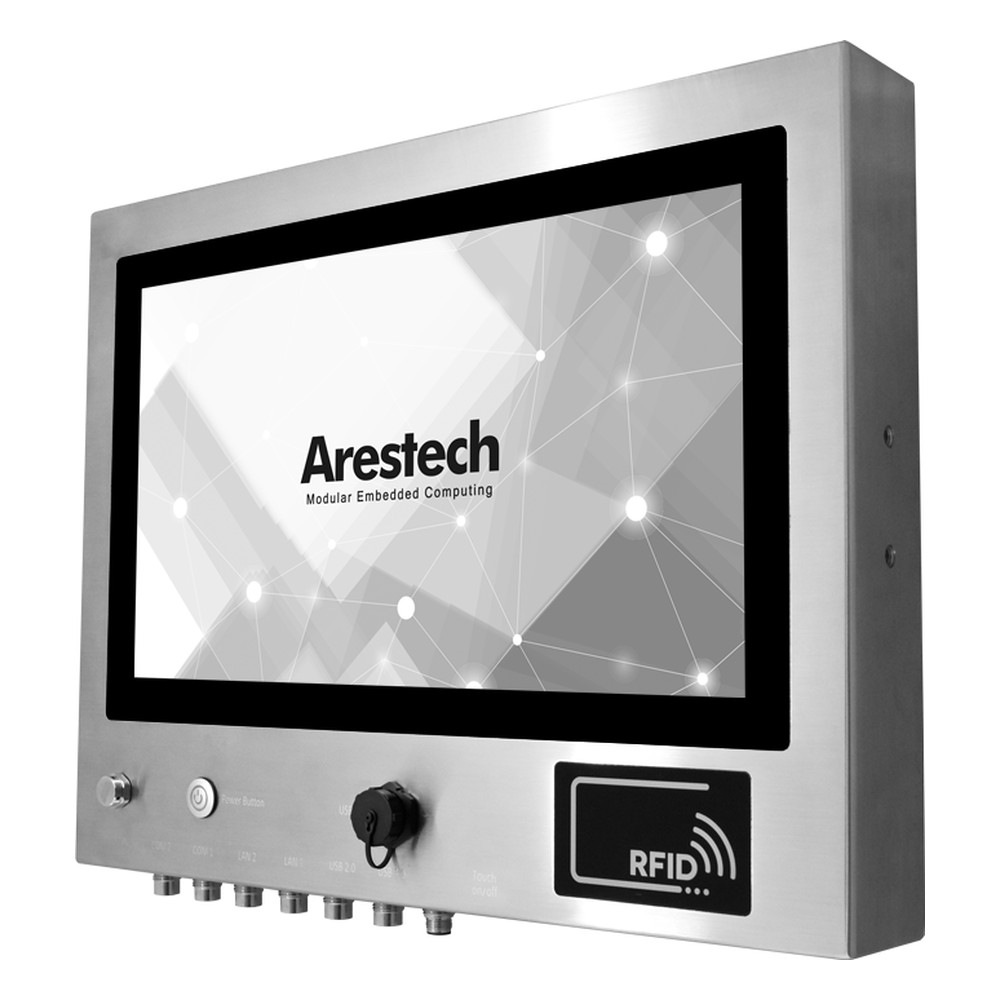

PPC-Z Arestech IP66/IP69K Stainless Steel Panel PCs
Fanless stainless steel all-in-one units from 10.1 to 23.8 inches, sealed to IP66 and IP69K with M12 connectors, on Intel Pentium to Core i5, with 316-grade builds and an RFID reader option for operator login at the line.
PPC-S1512 and PPC-S1564 Arestech 15 Inch Stainless Panel PCs
15 inch HMI panel PCs with a flat stainless front sealed to IP66/IP69K, on Core i5-1235U or Celeron J6412, with resistive or PCAP touch for washdown lines.
PPC-1512 and PPC-1564 Arestech 15 Inch Fanless Panel PCs
Fanless 15 inch panel PCs in an SECC steel chassis with an IP54 front, on Core i5-1235U or Celeron J6412, for indoor machine and cabinet HMIs.
GOT800 and GOT315B Axiomtek 15.6 Inch Touch Panel PCs
15.6 inch Axiomtek touch panel PCs: full-flat IP69K stainless GOT800 HMIs on Core Tiger Lake and the GOT315B on LGA1700 Core i3 to i9 with 10-36 V DC.
GOT700 Axiomtek EN 50155 Railway and Vehicle Computers
Fanless 10.4 to 15 inch cab computers on Intel Atom with resistive touch, a front IP65 bezel and M12 connectors, certified to EN 50155 for driver desks and crew terminals, plus a vehicle-mount variant.

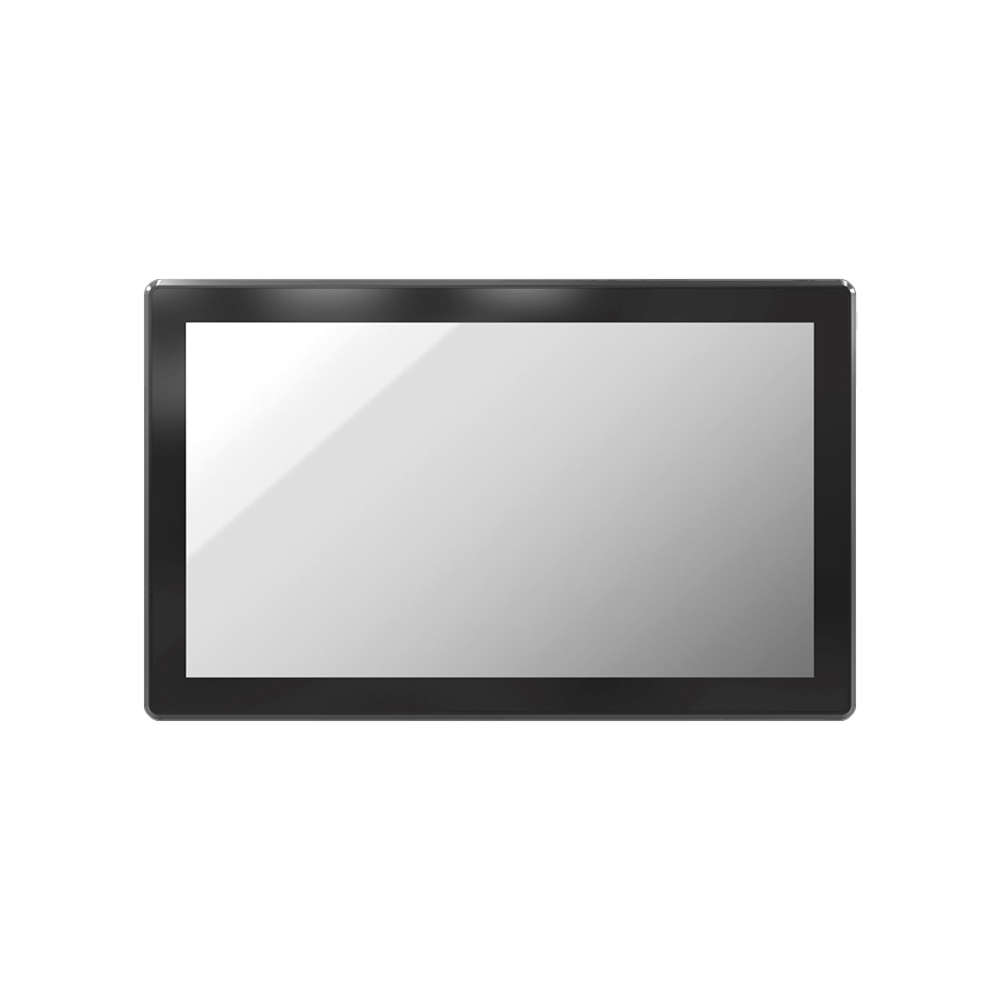

VIO Premio Modular Touch Computers
Modular HMIs that pair a VIO display with a fanless Intel Celeron compute module behind a front IP65 bezel, with resistive or PCAP touch, so the computer can be upgraded without changing the cabinet cut-out.
XPPC Nexcom Slim Multi-Touch Computers
Slim-bezel 10.1 and 15.6 inch multi-touch computers with PCAP multi-touch and a front IP65 face, on Intel Celeron to Core i5, for panel, VESA or open-frame mounting in kiosks and machines.
Not sure which range fits? Tell us the application and we will recommend the right model.
15 Inch Panel PC Innovation & Operator Station Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
