Winmate R15IT7T-OFC3 15″ Open Frame Panel PC with 11th Gen Intel Core i5, Resistive Touch and XGA Display
Resistive
Intel
Linux
Windows
2.5GbE
USB3
2x M.2
1x PCIe
Wi-Fi
NVMe SSD
Fanless
CE
FCCR15IT7T-OFC3 Overview

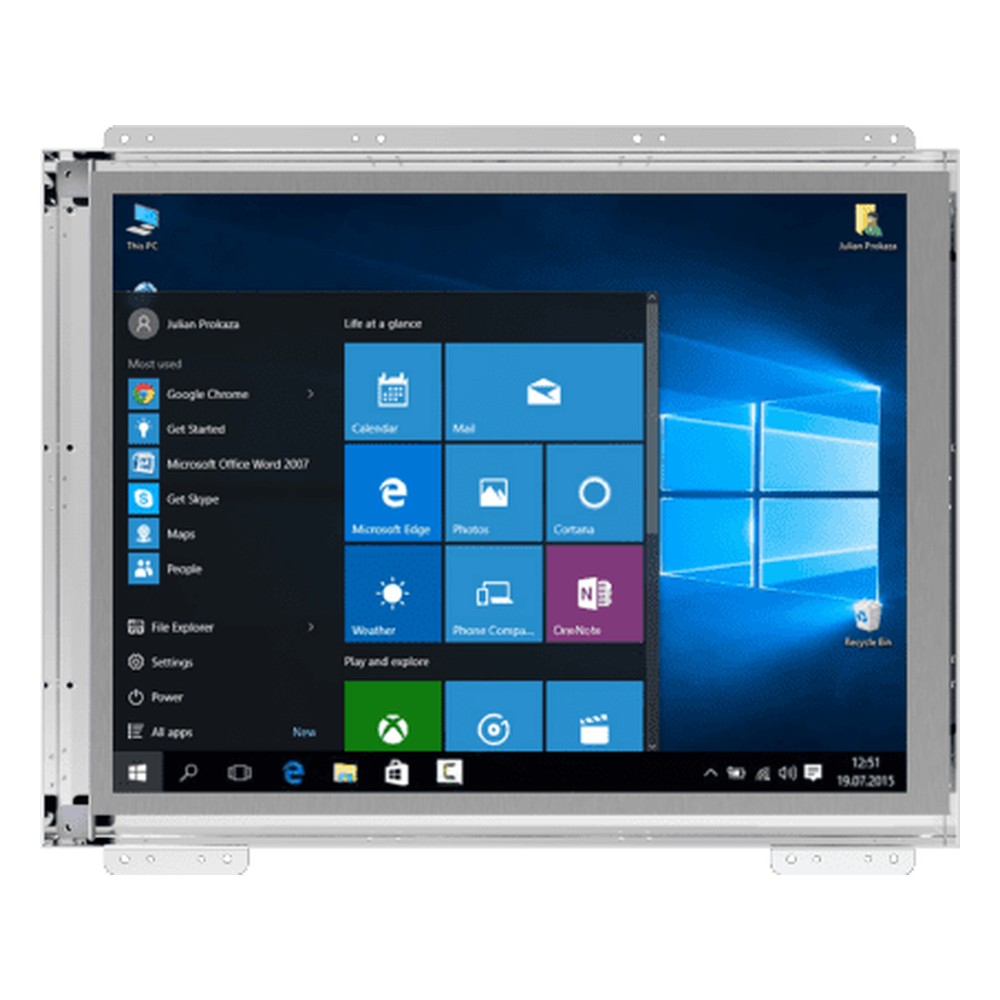

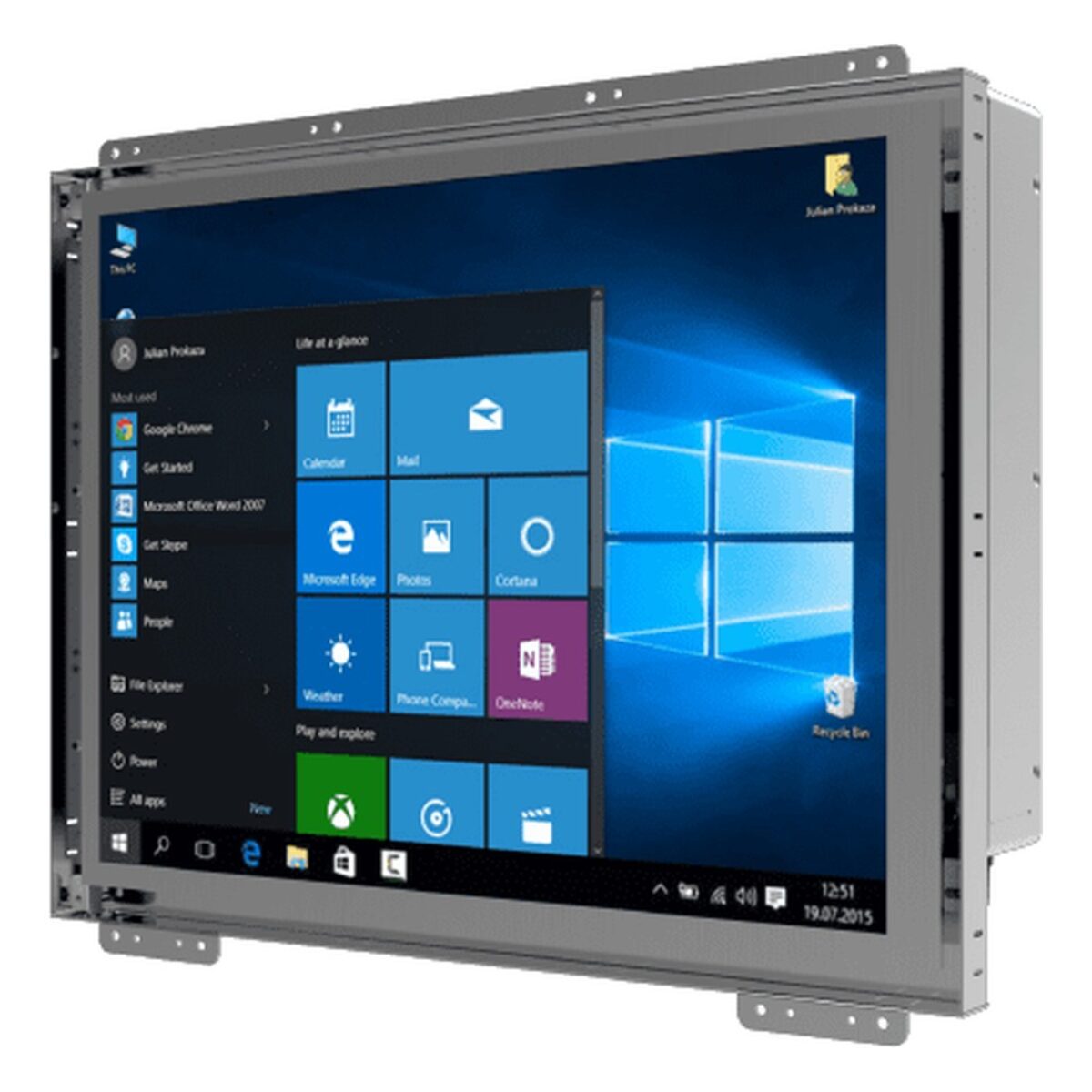

Machine builders and OEMs who design their own enclosure usually want the computer and display as an open frame they can fix behind their own bezel. The R15IT7T-OFC3 is Winmate’s 15 inch open frame panel PC for OEM enclosures and machine fronts, with an 11th Gen Intel Core i5-1135G7 and a 15″ 1024 x 768 display at 300 nits with 2000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.
The 11th Gen Intel Core i5-1135G7 has four cores and eight threads at up to 4.2 GHz with Iris Xe graphics, for HMI software and SCADA clients without a fan. Two non-ECC DDR4-3200 SO-DIMM sockets take up to 64 GB, and a 128 GB NVMe SSD on an M.2 2280 M-key slot can grow to 4 TB, plus an optional 2.5″ SATA III drive. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.
One Gigabit and one 2.5GbE port on Intel controllers, four USB 3.2 Gen 2×1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.4 is standard with HDMI 2.0 optional, plus mic-in and line-out. A PCIe 4.0 x16 slot with x4 signaling takes a card, and optional Wi-Fi fits an M.2 E-key slot. Within the Winmate range the R15IAD7T-OFC3 is the 15 inch open frame model with Intel Alder Lake-S and Raptor Lake Core processors, and the R15IT7T-IPC3 is the panel mount version with a front IP65 rating.
Power is 12 V DC on a DIN 4-pin connector, with a 120 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It mounts as an open frame by default, with panel and VESA mounting as options. It carries CE and FCC marks. We supply the R15IT7T-OFC3 configured, with the OS installed, and tested before dispatch.
R15IT7T-OFC3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15IT7T-OFC3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Performance | |
| Processor Series | Intel Core 11th Gen Tiger Lake |
| Processor Models | Intel Core i5-1135G7: 2.4~4.2GHz, 4 Cores, 8 Threads, 8MB Cache, 15W |
| Performance Cores | 4 Cores |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| PCIe Gen Support | PCIe 4.0 |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x4 Signal] [Gen4] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 4.1 Kg (9.0 Lbs) |
| Dimensions | 358mm x 292mm x 63mm (14.08" x 11.48" x 2.48") |
- R15IT7T-OFC3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15IT7T-OFC3 configured, with the OS installed, and tested for USA machine building and OEM projects. Within the Winmate range the R15IT3S-OFC3 is the 15 inch open frame model with the same processor and two 2.5GbE ports, and the R15IP7T-OFC3 is the 15 inch open frame model with an Intel Pentium N4200.
The R15IT7T-OFC3 sits among our open frame panel PCs, our 15 inch industrial panel PCs and our resistive touchscreen panel PCs. Where a 15 inch touch computer has to fit behind your own bezel, it is worth a conversation with our team.
