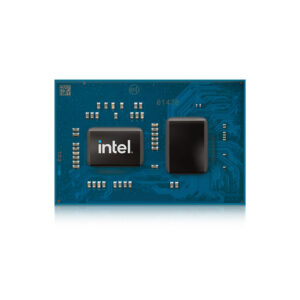

Intel Elkhart Lake

Elkhart Lake : Intel's Latest CPUs Dedicated to Industrial IoT

In order to assist the future wave of Industrial IoT edge devices, Intel has created a brand new range of processors optimized for IoT. The Elkhart Lake Intel Atom x6000E, Intel Pentium, and Intel Celeron series processors improve upon CPU and graphics capabilities with integrated IoT functions, real-time efficiency, controllability, safety measures, and operational reliability.

Our Elkhart Lake computers deliver exceptional processing power, enabling faster execution of tasks and seamless multitasking capabilities. This cutting-edge platform boasts remarkable improvements in both single-thread and multi-thread performance, offering up to a staggering 1.7x boost in single-thread performance and up to a remarkable 1.5x enhancement in multi-thread performance from one generation to the next. Supporting Intel UHD Graphics as standard, our range of Elkhart Lake PCs boast an impressive 2x performance improvement in graphics over previous generations, allowing smoother frame rates, richer textures, and more realistic visuals, ideal for working with graphic-intensive applications, or enjoying ultra high-definition multimedia content.

Browse Our Range Of Elkhart Lake Intel Computers

Loading...

Display

Performance

Graphics

I/O

Expansion

Storage

Power

Environmental Conditions

Mechanical Properties

Displaying of 78 items
View All
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 400
  • Format: Standard
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 300
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Resistive Touch
  • Brightness: 400
  • Viewing Angle: Wide Viewing Angle
  • Format: Widescreen
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 350
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Celeron J Series Elkhart Lake
  • Touch: Projective Capacitive Touch
  • Brightness: 500
  • Viewing Angle: Wide Viewing Angle
  • Format: Standard
  • Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2 x RS232/422/485 [Board], 4x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
  • mPCIe: 1 x mPCIe [SATA/USB]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x 2.5" HDD/SSD, 1x mSATA, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block], Optional AC Power Supply
  • Temp: -10°C to 60°C [14°F to 147°F]
  • IP Rating: Front IP65
  • Certification: CE, FCC
  • Mounting Options: VESA Mount
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 1 [Type A]
  • Serial: 1 x RS232 [Board], 2 x RS232/422/485 [Board]
  • M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-24V DC Input [4-Pin]
  • Temp: -40°C to 80°C [-40°F to 176°F]
  • Certification: CE, FCC, UKCA
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Board], 2 x USB 2.0 [Type A], 2 x USB 3.2 Gen 1 [Type A]
  • Serial: 1 x RS232/422/485 [Board], 3 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/SATA/USB/SIM] [3042]
  • mPCIe: 1x mPCIe [PCIe/USB/SIM]
  • Storage: 1x M.2 SSD, 1x SATA Port
  • Power: 12-24V DC Input [4-Pin]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC, UKCA
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Type A], 3 x USB 3.2 Gen 2 [Type A]
  • Serial: 4x RS232/422/485 [DB9]
  • CANbus: 2 x CANbus [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD, 1x mSATA
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -20°C to 50°C [-4°F to 122°F]
  • Certification: CE, FCC, RoHS, UL
  • Mounting Options: DIN Mount, Wall Mount
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 1 x GbE LAN [RJ45]
  • USB: 1 x USB 2.0 [Type A], 3 x USB 3.2 Gen 2 [Type A]
  • Serial: 2x RS232/422/485 [DB9]
  • CANbus: 2 x CANbus [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052]
  • mPCIe: 1x mPCIe [PCIe/USB/SATA]
  • Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD, 1x mSATA
  • Power: 9-36V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -20°C to 50°C [-4°F to 122°F]
  • Certification: CE, FCC, RoHS, UL
  • Mounting Options: DIN Mount, Wall Mount
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280/3042], 1x M.2 E-Key [PCIe/USB] [3042/3052]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x M.2 SSD, 2x SATA Ports
  • Power: 9-36V DC [Barrel Connector]
  • Temp: -5°C to 65°C [23°F to 149°F]
  • Certification: CE, FCC, UKCA
  • CPU: Celeron J Series Elkhart Lake
  • Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x Display Port, 1x eDP, 1x HDMI, 1x LVDS
  • Ethernet: 2 x 2.5 GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A], 2 x USB 3.2 Gen 2 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/2280/3042], 1x M.2 E-Key [PCIe/USB] [3042/3052]
  • PCIe: 1x PCIe [x4 Slot]
  • Storage: 1x M.2 SSD, 2x SATA Ports
  • Power: 12V DC [Barrel Connector]
  • Temp: -5°C to 65°C [23°F to 149°F]
  • Certification: CE, FCC, UKCA
  • CPU: Atom X Series Elkhart Lake
  • Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
  • OS: Linux, Windows 10
  • Display Outputs: 1x LVDS, 2x Display Port
  • Ethernet: 1 x 2.5 GbE LAN [RJ45], 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A], 4 x USB 2.0 [Board]
  • Serial: 2 x RS232/422/485 [Board], 4 x RS232 [Board]
  • M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2242/2260]
  • Storage: 1x SATA Port, 2x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: 0°C to 60°C [32°F to 147°F]
  • Certification: CE, FCC
Displaying of 78 items

Benefits Of Intel Elkhart Lake SOC

3.0 GHz Turbo CPU Clock Speed

The Intel Elkhart Lake platform offers a maximum frequency of 3.0 GHz. This frequency represents the speed at which the processor’s cores can execute instructions and perform calculations. Higher frequencies generally result in faster overall processing performance, allowing for quicker task execution and improved responsiveness.

Energy Efficient 4.5-12W TDP

The Thermal Design Power (TDP) range of 4.5-12W for Elkhart Lake denotes the amount of heat generated by the processor that needs to be dissipated by the cooling system. This power range indicates that Elkhart Lake is designed to deliver efficient performance within a low-power envelope, making it suitable for applications that prioritize power efficiency, such as embedded systems, IoT devices, and low-power laptops.

Low Power LPDDR4 & High Performance DDR4 Memory

Elkhart Lake supports LPDDR4 and DDR4 memory types. LPDDR4 is a low-power variant of DDR4 memory specifically designed for mobile and power-constrained devices, offering high bandwidth while keeping power consumption low. DDR4 is a standard desktop memory type that provides faster data transfer rates, making it suitable for applications with higher performance requirements.

In-band Error Correction Code with Standard Memory

Elkhart Lake Intel CPUs incorporate in-band error correction code (ECC) capability with standard memory. ECC is a mechanism that detects and corrects memory errors, enhancing the system’s reliability and stability by mitigating the impact of memory errors on data integrity. The inclusion of in-band ECC with standard memory means that Elkhart Lake can provide error correction capabilities without requiring specialized or expensive memory modules.

Intel UHD Graphics: 4kp60 on Three Simultaneous Displays

Intel Elkhart Lake SOC features Intel UHD Graphics, which is an integrated graphics solution capable of driving up to three displays simultaneously. The graphics engine supports a maximum resolution of 4K at 60 frames per second (4kp60), enabling smooth and high-quality visual experiences across multiple displays. This makes Elkhart Lake suitable for applications that require multi-monitor setups, such as digital signage and kiosks.

Intel Programmable Services Engine

Elkhart Lake CPUs incorporate the Intel Programmable Services Engine, which is a dedicated offload engine. This engine provides hardware acceleration for specific tasks, offloading them from the main processor cores and improving overall system performance. By utilizing the programmability of this engine, developers can customize and optimize specific workloads to achieve higher efficiency and performance.

In-Band and Out-of-Band Remote Device Manageability

The next generation Intel Elkhart Lake CPU supports both in-band and out-of-band remote device manageability. In-band management refers to the ability to remotely manage and control the device over the network while the operating system is running. Out-of-band management allows for remote management and control even when the device is powered off or experiencing critical system failures. This comprehensive manageability support enables efficient device administration, maintenance, and troubleshooting in various deployment scenarios.

Functional Safety with Intel Safety Island (Intel SI)

Intel Elkhart Lake SOC offers functional safety features through Intel Safety Island (Intel SI) on select SKUs. Functional safety refers to the ability of a system to detect and respond to potentially dangerous or hazardous conditions, ensuring the safety of users and equipment. Intel SI provides a dedicated hardware island with integrated safety functions, allowing for enhanced safety measures in safety-critical applications such as automotive, industrial automation, and medical devices.

Hardware-based Security

Elkhart Lake Intel CPUs incorporate hardware-based security features to protect against various threats. These security features are designed to safeguard data, prevent unauthorized access, and mitigate risks related to software vulnerabilities. By leveraging hardware-based security mechanisms, Elkhart Lake enhances the overall security posture of devices, enabling secure and trustworthy computing environments.

Want To Learn More About The Intel Elkhart Lake Generation?

Tell us about your application and a member of the team will get right back to you.
