US IP66 Monitors
IP66 Waterproof Displays for Hose-Down Areas
IP66 monitors withstand powerful water jets from any direction, so the display can be mounted in the open on a line that is hosed down at the end of every shift. Available from 10.1 to 23.8 inches in stainless steel with PCAP or resistive touch, they also carry IP69K for hot high-pressure washdown.
Options include wireless display models, full HD widescreen formats and chassis mounting for arms and yokes, suited to food and beverage, dairy and pharmaceutical production where the whole unit is hosed.
Speak to a display specialist to match the size, touch and mounting to your line.
Browse Our IP66 Stainless Steel Monitors

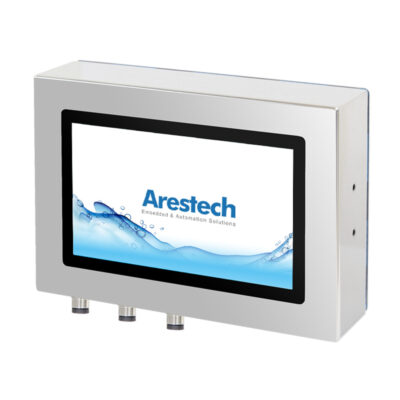

- IP Rating: IP66
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Projective Capacitive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC

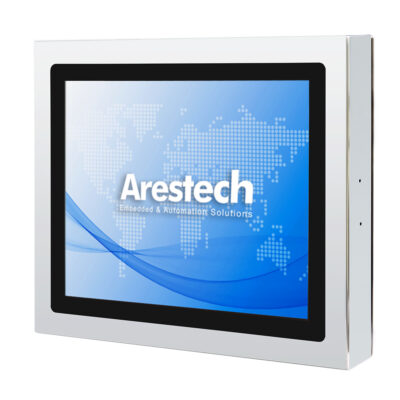

- IP Rating: IP66
- Display: 15"[4:3, 1024 x 768, XGA]
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: IP66
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch

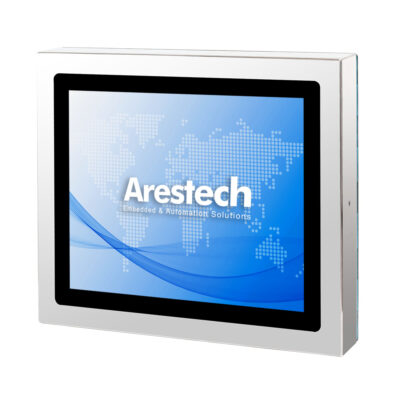

- IP Rating: IP66
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch

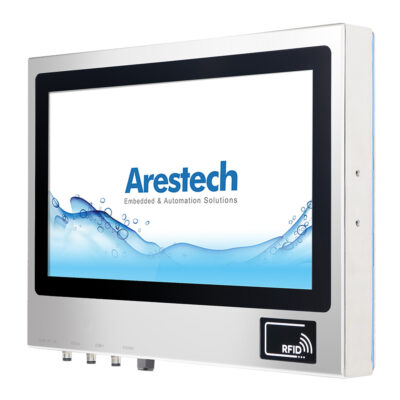

- IP Rating: IP66
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch

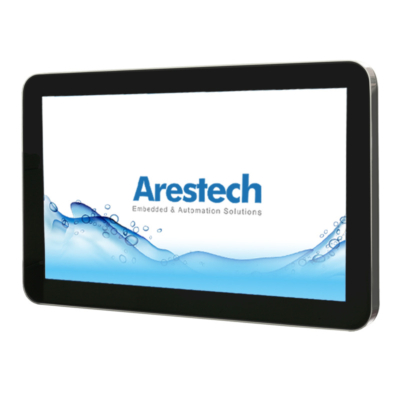

- IP Rating: IP66
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Projective Capacitive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: 0°C to 60°C [32°F to 140°F]
- IP Rating: IP69K
- Certification: CE, FCC
IP66 Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of IP66 displays, so the ranges below are the ones we specify for hose-down lines in food, dairy and pharmaceutical production. Compare them by size, touch and connectivity, then browse the models above or ask a display specialist which range suits your line.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an IP66 Washdown Display
Our display specialists specify every IP66 monitor against the cleaning pressure, the chemicals and the mounting. These are the choices that decide whether the screen suits the installation, and the ones we work through with you before recommending a range.
Powerful Jets, Every Face
Protected against powerful water jets from any direction, for units mounted in the open.
IP69K as Well
Also rated for hot, high-pressure, close-range washdown.
Stainless Steel
Stainless enclosures that stand up to detergents and sanitizers.
Touch When Wet
Resistive ignores water on the glass; PCAP gives a flush, easy-clean front.
IP66 Display Innovation & Hose-Down Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
