US AMD Ryzen Embedded R2000
Ryzen R2314 and R2514 Boards and Rail Computers
Ryzen Embedded R2000 is the 12 nm follow-on to V1000 and R1000, keeping the Zen CPU cores and four-display Radeon Vega graphics with a longer availability window. The range covers 1.8-inch Femto-ITX and 3.5-inch SBCs and ultra-compact fanless computers on the R2312, R2314 and R2514.
Options include 12 to 25 W parts and the R2514 at 35 to 54 W, onboard eMMC, LVDS, six COM ports, PoE, 4G and 5G expansion and an IP66 sealed build with M12 PoE, suited to rail, vehicles, compact HMI and outdoor installations.
Speak to an AMD Ryzen Embedded R2000 specialist to match the processor, the I/O and the enclosure to your application.
Browse Our Ryzen R2312, R2314 and R2514 Products
Or choose a range below.
- CPU: AMD Ryzen R2000
- Memory: 2x DDR4 2400MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 4x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 B-Key [3042], 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4 Gen3] [2280]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 3 x4]
- Power: 19V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- Certification: CE, FCC, UKCA
- CPU: AMD Ryzen R2000
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Linux Ubuntu 20.04, Windows 11
- Display Outputs: 1x DVI, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 4x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe/SATA] [2280], 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
- mPCIe: 2x mPCIe [USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [PCIe & SATA]
- Power: 9-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 60°C [-40°F to 140°F]
- Certification: CE, E-Mark, FCC, UKCA
- Mounting Options: Wall Mount
-

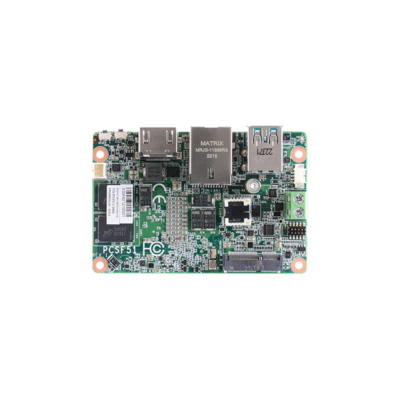

PCSF51-EN-46R232
PCSF51 with AMD Ryzen Embedded R2312, 4 GB DDR4 and -20 to 70 °C -
PCSF51-BN-46R232
PCSF51 with AMD Ryzen Embedded R2312, 4 GB DDR4 and 64 GB eMMC -
PCSF51-BN-86R234
PCSF51 with AMD Ryzen Embedded R2314, 8 GB DDR4 and 4K HDMI -
PCSF51-BN-86R254
PCSF51 with AMD Ryzen Embedded R2514, 8 GB DDR4 and 64 GB eMMC
- CPU: AMD Ryzen R2000
- OS: Linux, Linux Ubuntu 20.04
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB]
- Storage: 64GB eMMC
- Power: 12V DC [Terminal Block]
- Certification: CE, FCC, RoHS, UKCA
- Memory: 4GB Soldered On-board
- Temp: -20°C to 70°C [-4°F to 158°F]
-

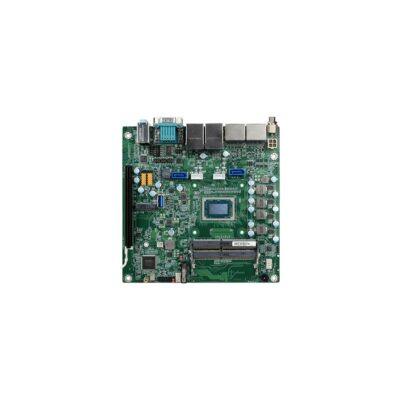

GH171-R2544B
GH171 with AMD Ryzen Embedded R2544, quad-core 54 W and four DP++ outputs -
GH171-R1505G
GH171 with AMD Ryzen Embedded R1505G, dual-core 15 W and three DP++ outputs -
GH171-R1606G
GH171 with AMD Ryzen Embedded R1606G, dual-core 15 W and three DP++ outputs -
GH171-R2312B
GH171 with AMD Ryzen Embedded R2312, 25 W and four DP++ outputs -
GH171-R2314B
GH171 with AMD Ryzen Embedded R2314, 35 W and PCIe x16 at x8 -
GH171-R2514B
GH171 with AMD Ryzen Embedded R2514, 35 W and eight Radeon Vega compute units -
GH171-V1202B
GH171 with AMD Ryzen Embedded V1202B, dual-core 15 W and four DP++ outputs -
GH171-V1605B
GH171 with AMD Ryzen Embedded V1605B, quad-core 15 W and four DP++ outputs -
GH171-V1756B
GH171 with AMD Ryzen Embedded V1756B, quad-core 45 W and four DP++ outputs -
GH171-V1807B
GH171 with AMD Ryzen Embedded V1807B, 45 W quad-core and four DP++ outputs
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.0 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9], 4x RS232 [Board]
- Storage: 1x M.2 SSD, 2x SATA Ports
- Power: 12V DC [4-Pin], 12V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, RoHS, UKCA
- CPU: AMD Ryzen R2000
- Display Outputs: 4x Display Ports
- PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen3]
- CPU: AMD Ryzen R2000
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- M.2: 1x M.2 B-Key [USB] [3042/3052], 1x M.2 E-Key [USB/PCIe] [2230]
- Storage: 1x M.2 SSD [PCIe & SATA]
- Power: 19-36V DC [Terminal Block]
- Temp: -30°C to 60°C [-22°F to 140°F]
- Certification: CE, EN50155, FCC, UKCA
- Mounting Options: Wall Mount
- Display Outputs: 2x HDMI
- Ethernet: 2x GbE LAN [M12] [PoE]
- USB: 2x USB 2.0 [M8], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [M8]
- IP Rating: IP66
- CPU: AMD Ryzen R2000
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x DVI, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 4x RS232/422/485 [DB9]
- CANbus: Optional CANbus Modules
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 E-Key [2230]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x M.2 SSD [PCIe & SATA]
- Power: 9-36V DC Input [Terminal Block]
- Temp: -30°C to 60°C [-22°F to 140°F]
- Certification: CE, FCC, UKCA
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- CPU: AMD Ryzen R2000
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x DVI, 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD [PCIe & SATA]
- Power: 12V DC [Barrel Connector]
- Temp: -30°C to 60°C [-22°F to 140°F]
- Certification: CE, FCC, UKCA
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
-

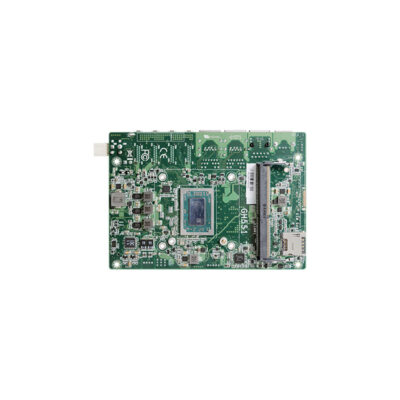

GH551-BC1-R2312
GH551 with Ryzen Embedded R2312 and LVDS -
GH551-BC1-R1505G
GH551 with Ryzen Embedded R1505G and LVDS -
GH551-BC1-R1606G
GH551 with Ryzen Embedded R1606G and three DP++ outputs -
GH551-BC1-R2314
GH551 with Ryzen Embedded R2314 and LVDS -
GH551-BC1-R2514
GH551 with Ryzen Embedded R2514 and quad display -
GH551-BC1-V1202B
GH551 with Ryzen Embedded V1202B and LVDS -
GH551-BC1-V1605B
GH551 with Ryzen Embedded V1605B and four DP++ outputs -
GH551-EC1-R1606G
GH551 with Ryzen Embedded R1606G rated -30 to 80 °C -
GH551-EC1-V1404I
GH551 with Ryzen Embedded V1404I rated -30 to 80 °C -
GH551-EC1-V1605B
GH551 with Ryzen Embedded V1605B rated -30 to 80 °C
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux, Windows 10
- Ethernet: 3x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 1x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Certification: CE, FCC, RoHS
- CPU: AMD Ryzen R-Series, AMD Ryzen R2000
- Display Outputs: 1x LVDS, 2x Display Port
- Temp: -5°C to 65°C [23°F to 149°F]
All AMDBack to the full rangeAMD Ryzen Embedded R2000 Ranges Configured by Things Embedded
We work with the leading manufacturers of AMD embedded boards and computers, so the ranges below are the ones we specify on this generation. Compare them by size, I/O and cooling, then browse the products above or ask a specialist which range suits your application.

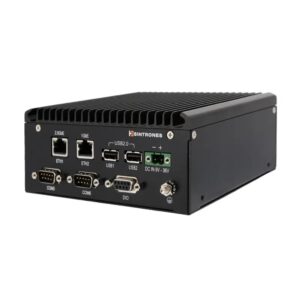

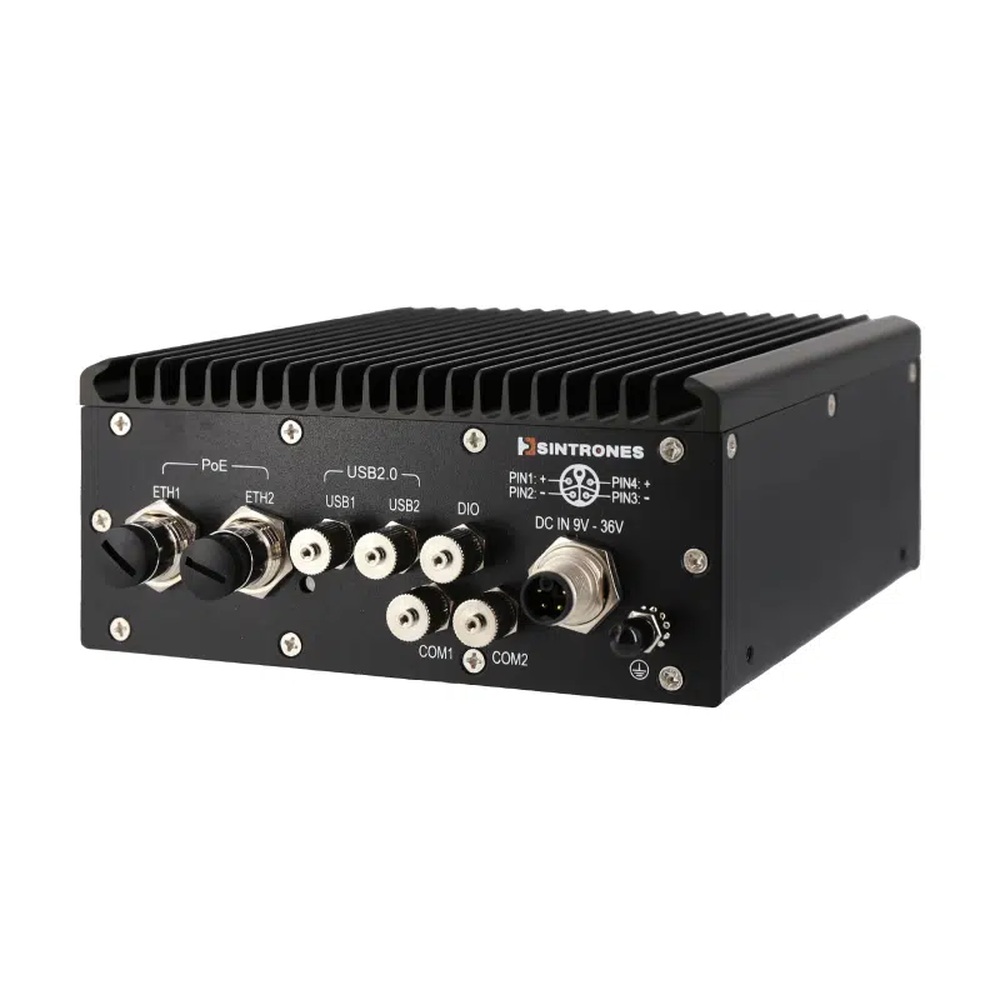

SBOX-2600 Sintrones Fanless Embedded Computers
R2312 fanless computers, from the ultra-compact SBOX-2603 with 4G and 5G expansion to the SBOX-2624 with six COM ports or PoE, and an IP66 build with M12 PoE.
GH551 DFI 3.5-Inch SBCs
3.5-inch boards on the R2312, R2314 or R2514 with up to quad display, LVDS and triple GbE.
PCSF51 DFI 1.8-Inch Femto-ITX SBCs
1.8-inch Femto-ITX boards on the R2312, R2314 or R2514 with onboard eMMC, for the smallest enclosures.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Ryzen R2514 System
Our embedded computing specialists specify every system on this generation against the workload, the enclosure and the years it has to stay in production. These are the choices we work through with you before recommending a range.
Processor and Power
R2312 and R2314 at 12 to 25 W, or the R2514 at 35 to 54 W for heavier graphics.
Displays
Up to four independent outputs on DP++, HDMI or LVDS.
Serial and Expansion
Up to six COM ports, and 4G or 5G expansion on the compact computers.
Networking and PoE
Triple GbE on the boards and PoE ports on the fanless computers.
Sealing
An IP66 sealed build with M12 PoE for outdoor and washdown sites.
Lifecycle
A longer availability window than V1000 for programs that run for years.
Ryzen R2000 Innovation & Rugged Edge Insights
Speak to an AMD Ryzen Embedded R2000 Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
