NVIDIA Holoscan Bridges for Video and GMSL2 Camera Inputs
A Holoscan sensor bridge turns video and camera signals into an Ethernet stream that an NVIDIA Holoscan application on an IGX or Jetson system can process with very low latency, so medical, industrial and broadcast AI can work on live inputs. The range covers bridges for HDMI 2.0 and 12G-SDI at up to 4K60, a multi-format unit that adds DisplayPort and dual-link DVI, and GMSL2 camera bridges with Fakra inputs at 1080p60.
Options include one or two SFP+ ports, multi-mode fiber on the single-camera GMSL2 bridge, a compact fanless enclosure, and HDMI pass-through with 12G-SDI converted outputs on the multi-format unit, suited to surgical and medical imaging, industrial inspection, robotics and live production where sensor data has to reach the GPU with as little delay as possible.
Speak to a Holoscan specialist to match the inputs, fiber links and host system to your AI pipeline.
Browse Our NVIDIA Holoscan Bridges
- Simultaneous Video Inputs: 1
- Video Input: 1x GMSL2
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x LC Fiber (Multi-Mode)
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Power: 12V DC

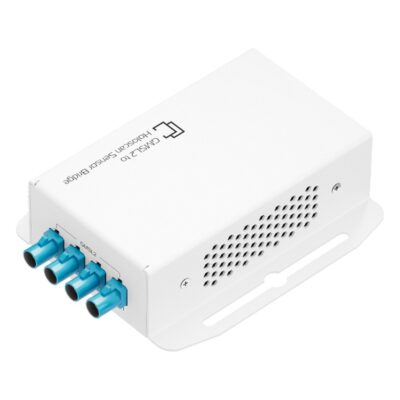

- Simultaneous Video Inputs: 4
- Video Input: 4x GMSL2
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SFP+ (10G)
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Power: 12V DC

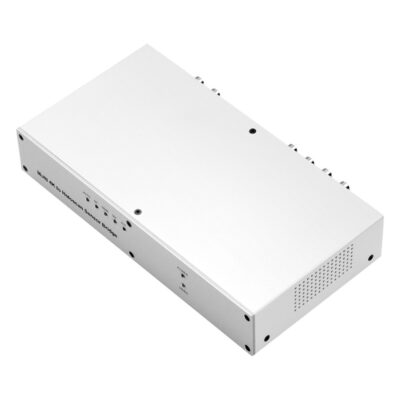

- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x DP1.2, 1x DVI-DL, 1x HDMI2.0
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x SFP+ (10G), 2x 12G-SDI
- Max Video Capture Resolution: 4K60 [3840×2160p @ 60/50fps]
- Power: 12V DC

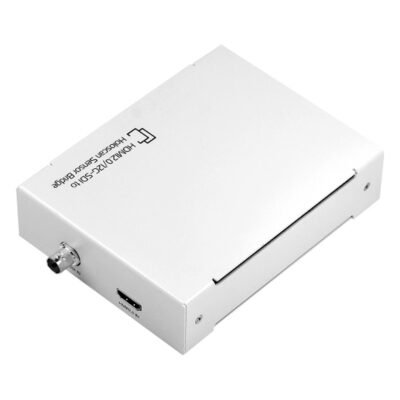

- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x HDMI2.0
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Video Output: 1x SFP+ (10G)
- Max Video Capture Resolution: 4K60 [3840×2160p @ 60/50fps]
- Power: 12V DC
- Simultaneous Video Inputs: 2
- Video Input: 2x 12G-SDI, 2x HDMI2.0
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Video Output: 2x SFP+ (10G)
- Max Video Capture Resolution: 4K60 [3840×2160p @ 60/50fps]
- Power: 12V DC
Holoscan Sensor Bridge Ranges Configured by Things Embedded
We work with a leading manufacturer of Holoscan sensor bridges, so the ranges below are the ones we specify for medical, inspection and robotics AI systems. Compare them by input and link, then browse the models above or ask an edge AI specialist which range suits your pipeline.

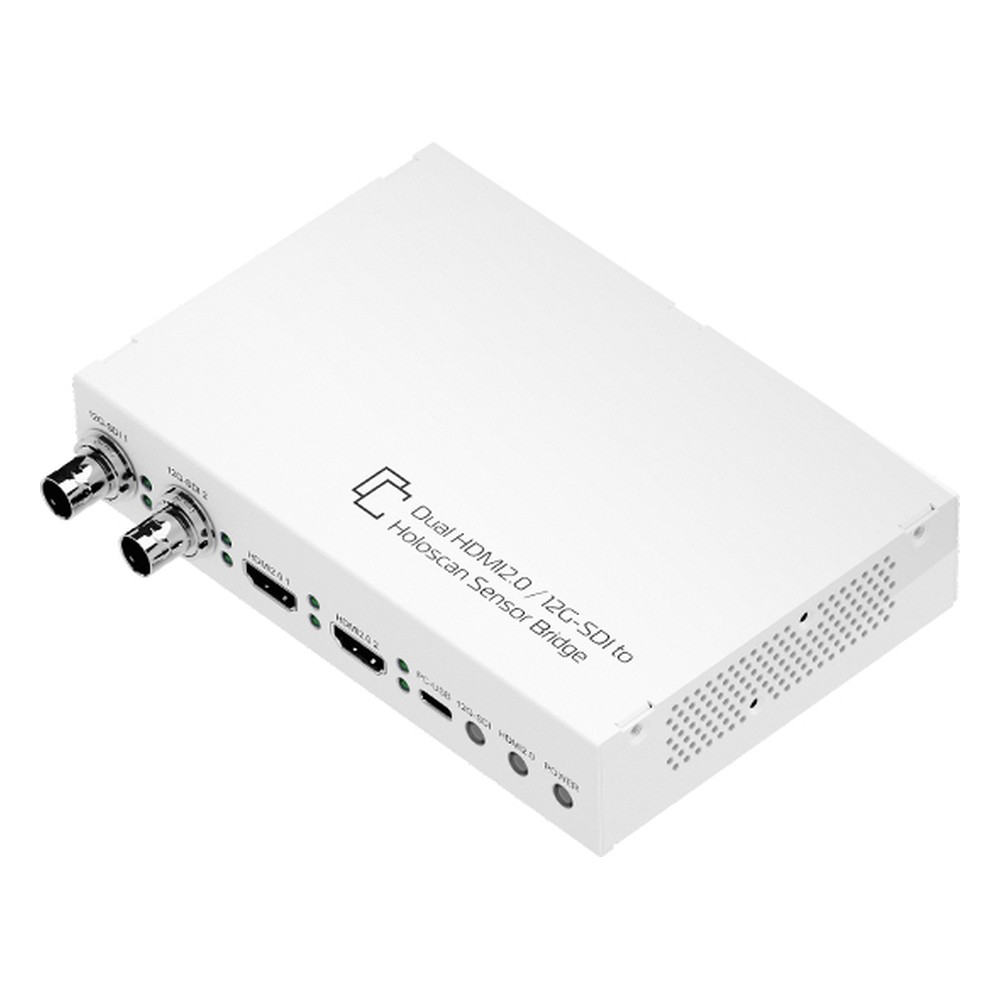

Yuan HDMI 2.0 and 12G-SDI Holoscan Sensor Bridges
Single and dual-channel bridges for HDMI 2.0 and 12G-SDI at 4K60, and a multi-format unit that adds DisplayPort, dual-link DVI and quad-link SDI, on SFP+.

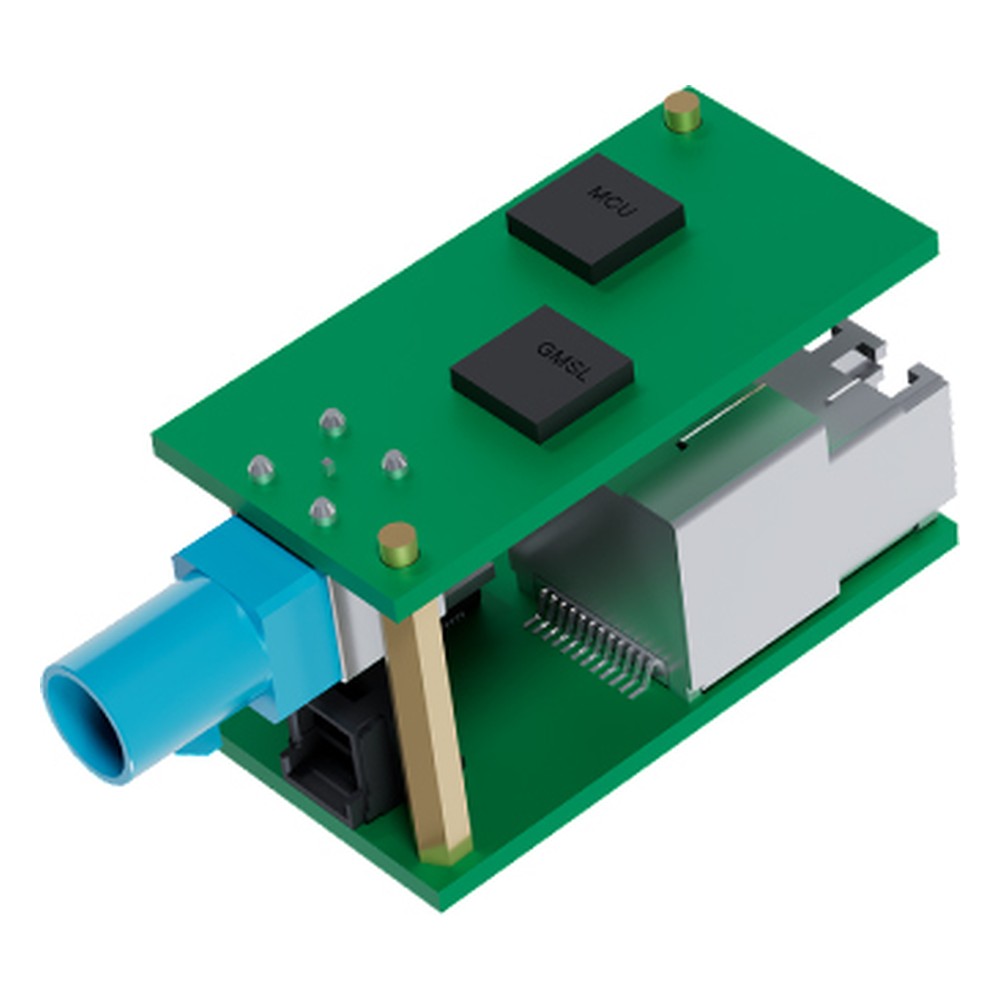

Yuan GMSL2 Camera Holoscan Sensor Bridges
One and four-channel GMSL2 camera bridges with Fakra inputs at 1080p60, on SFP+ or multi-mode LC fiber.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify for Holoscan Video and Camera Input
Our edge AI specialists specify every sensor bridge against the sources, the host system and the Holoscan pipeline that will use the data. These are the choices we work through with you before recommending a unit.
Sensor Inputs
HDMI 2.0 and 12G-SDI for medical and broadcast video, DisplayPort and DVI on the multi-format unit, GMSL2 for automotive-grade cameras.
Resolution and Channels
4K60 on the video bridges, 1080p60 on the camera bridges, with one, two or four channels per unit.
Link to the Host
SFP+ cages or a multi-mode LC fiber port: match the module and cable to the host network ports and the distance.
Host System
Holoscan runs on NVIDIA IGX and Jetson systems; we pair the bridge with a host that has the ports and GPU the pipeline needs.
Size and Cooling
Compact enclosures, a fanless bridge for HDMI 2.0 and 12G-SDI, and a GMSL2 bridge small enough to sit near the camera.
Power
Every bridge runs from a 12 V DC supply.
Explore NVIDIA Systems, Frame Grabbers and Capture
Pair a sensor bridge with an NVIDIA host, or compare it with the frame grabbers and capture cards that bring the same signals in over PCIe.
Holoscan Innovation & Medical Imaging Insights
Speak to a Holoscan Specialist.
Tell us the cameras or video sources you need to bring in, the host system that runs your Holoscan pipeline and the distance between them. We will recommend the right sensor bridge and fiber link, then configure and test it with a matching host before it ships.
