US Front IP66 Monitors
Sealed-Bezel Displays for Hosed Fronts and Marine Consoles
Front IP66 monitors take powerful water jets on the bezel and screen while the rear of the display stays inside the console or cabinet, for fronts that are hosed rather than wiped and consoles exposed to spray. Available from 10.4 to 27 inches with resistive or PCAP touch, mostly as panel mount displays.
Options include marine builds designed to DNV and IEC 60945 requirements, sunlight-readable panels for open bridges and a vehicle-mount model, suited to bridge consoles, engine rooms, hosed machine fronts and outdoor cabinets.
Speak to a display specialist to match the size, touch and approvals to your console.
Browse Our Front IP66 Panel Mount Displays

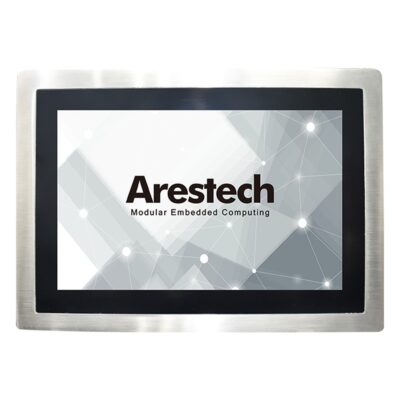

- IP Rating: Front IP66
- Display: 10.1"[8:5, 1280 x 800, WXGA]
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: Front IP66
- Display: 10.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input
- Power: 9-48V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, E-Mark, FCC
- Mounting Options: VESA Mount

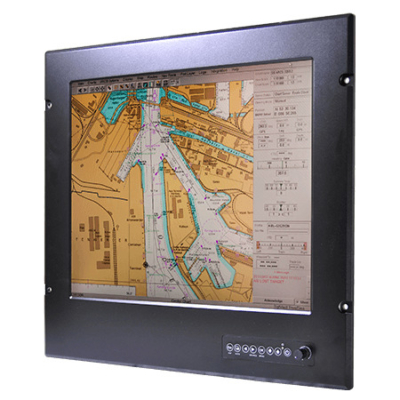

- IP Rating: Front IP66
- Display: 10.4"[4:3, 800 x 600, SVGA]
- Touch: Resistive Touch
- Brightness: 600
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IEC 60945
- IP Rating: Front IP66
- Display: 10.4"[4:3, 800 x 600, SVGA]
- Touch: Resistive Touch
- Brightness: 600
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 10-60V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 55°C [14°F to 131°F]
- Certification: CE, FCC
- IP Rating: Front IP66
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, FCC

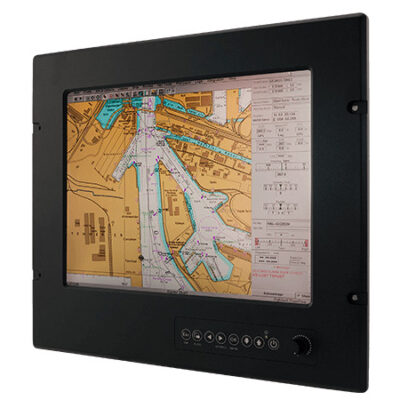

- IP Rating: Front IP66
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

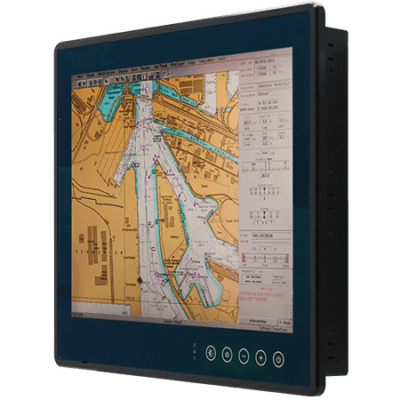

- IP Rating: Front IP66
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Projective Capacitive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

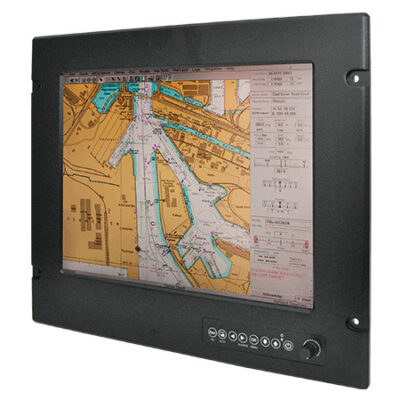

- IP Rating: Front IP66
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, FCC

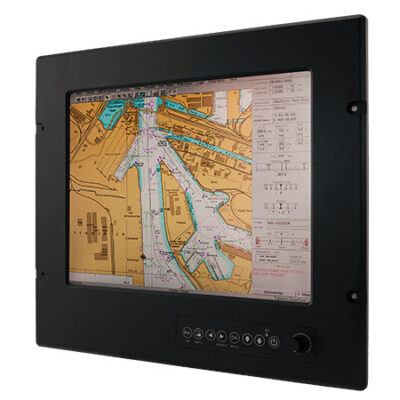

- IP Rating: Front IP66
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, FCC

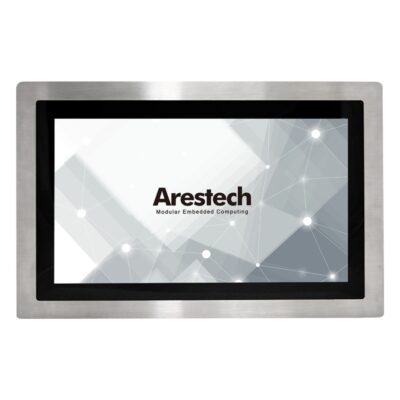

- IP Rating: Front IP66
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Brightness: 450
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch

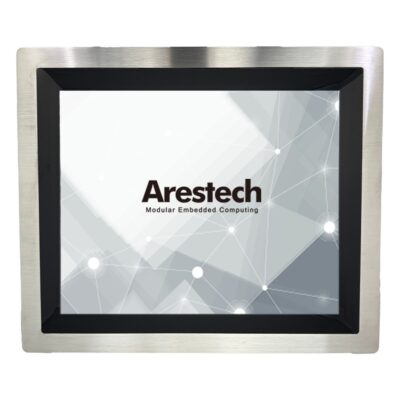

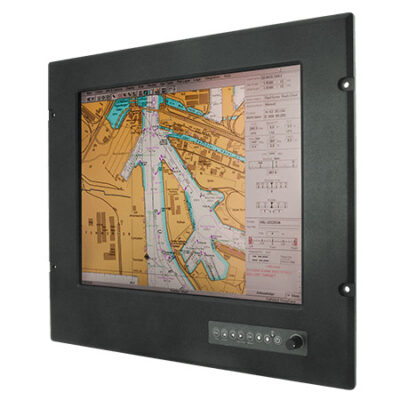

- IP Rating: Front IP66
- Display: 17"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12V DC [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- IP Rating: Front IP66
- Display: 17"[16:9, 1920 x 1080, FHD]
- Touch: Resistive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

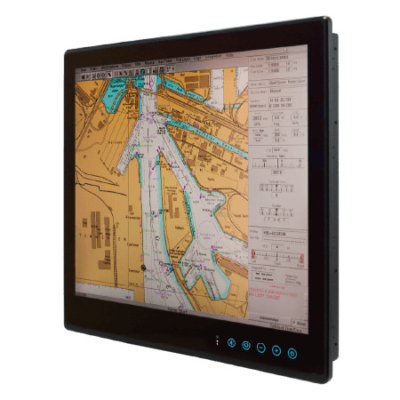

- IP Rating: Front IP66
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

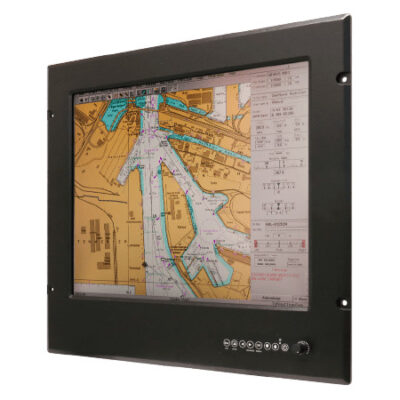

- IP Rating: Front IP66
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

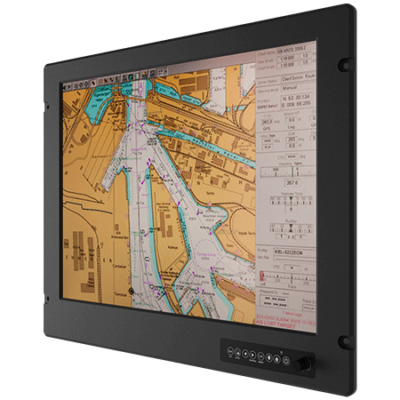

- IP Rating: Front IP66
- Display: 21.3"[4:3, 1600 x 1200, UXGA]
- Touch: Resistive Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 24V DC
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, FCC
Front IP66 Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of front IP66 displays, so the ranges below are the ones we specify for bridge consoles, engine rooms and hosed cabinet fronts. Compare them by size, touch and approvals, then browse the models above or ask a display specialist which range suits your console.

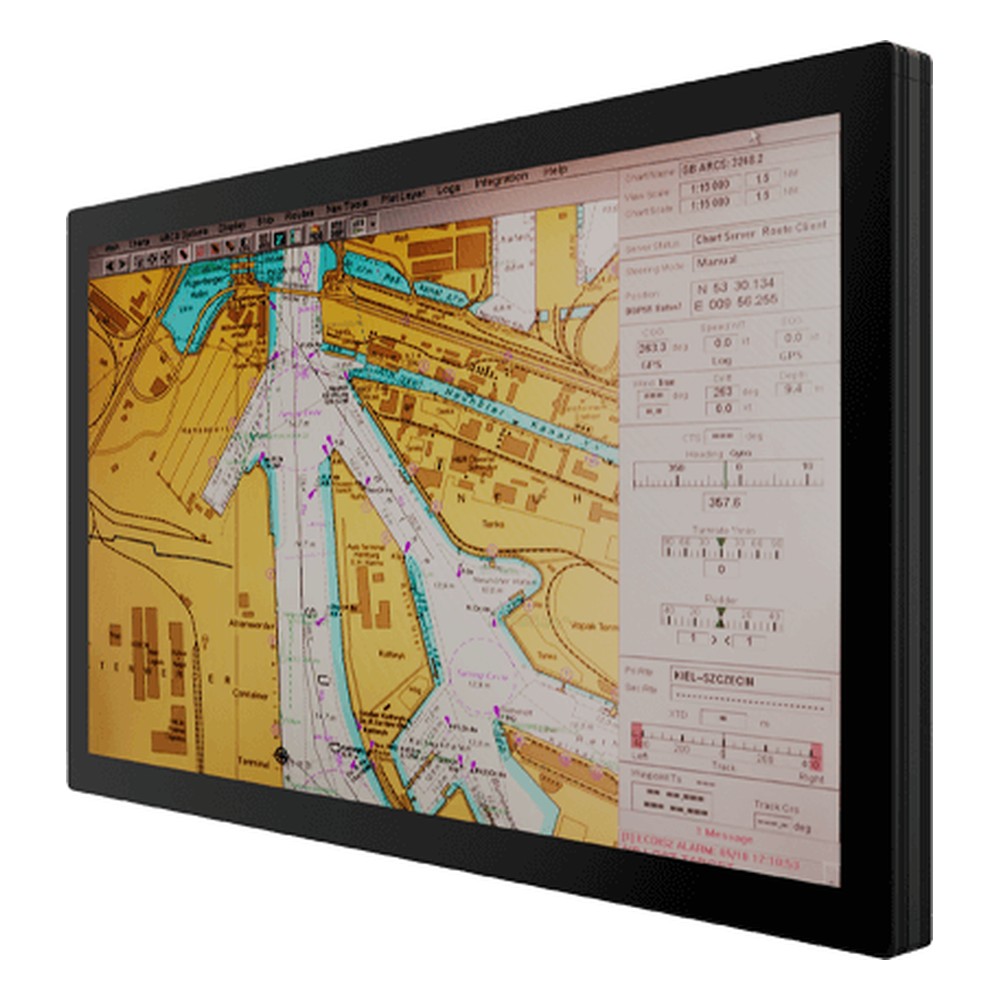

Winmate Marine Monitors
Bridge and engine room screens from 10.1 to 32 inches with a front IP66 bezel, designed to DNV and IEC 60945 requirements, with sunlight-readable options.

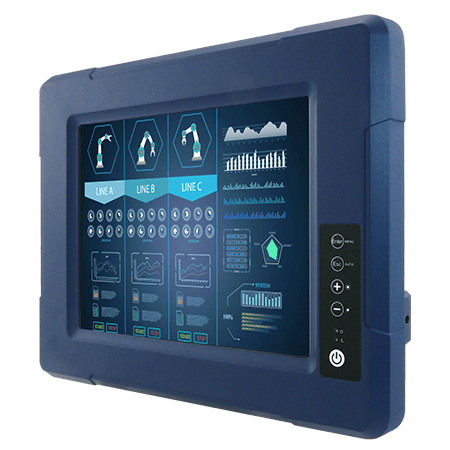

Winmate Vehicle Mount Displays
In-cab touch screens from 8.4 to 15 inches with a front IP65 face, high-bright options and ignition control on selected models, for forklifts, cabs and mobile machinery.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Front IP66 Display
Our display specialists specify every front IP66 monitor against the spray at the front, the approvals and the light on the screen. These are the choices that decide whether the screen suits the installation, and the ones we work through with you before recommending a range.
What Front IP66 Covers
Powerful water jets on the bezel and screen, with the rear protected inside the console or cabinet.
Marine Approvals
Marine models designed to DNV and IEC 60945 requirements for bridge equipment.
Brightness
Sunlight-readable options for open bridges and outdoor fronts.
Resistive or PCAP
Resistive for gloved crew and wet hands, PCAP for a flush multi-touch front.
Front IP66 Monitor Innovation & Spray-Exposed Console Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
