Winmate R12L600-MRM2HB 12.1″ High Brightness Marine Panel Mount Monitor with Resistive Touch and IP66 Front
Resistive
High Bright
Fanless
CE
FCCR12L600-MRM2HB Overview

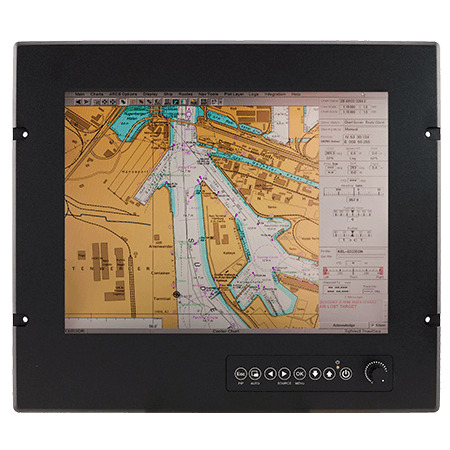

Consoles on bridge wings and open decks see direct daylight in the day and darkness at night, so one screen has to cover both. The R12L600-MRM2HB is Winmate’s 12.1 inch high brightness marine panel mount monitor: a 1024 x 768 XGA display at 1000 nits with resistive touch, an IP66 front and a dimming knob that takes the backlight almost to zero.

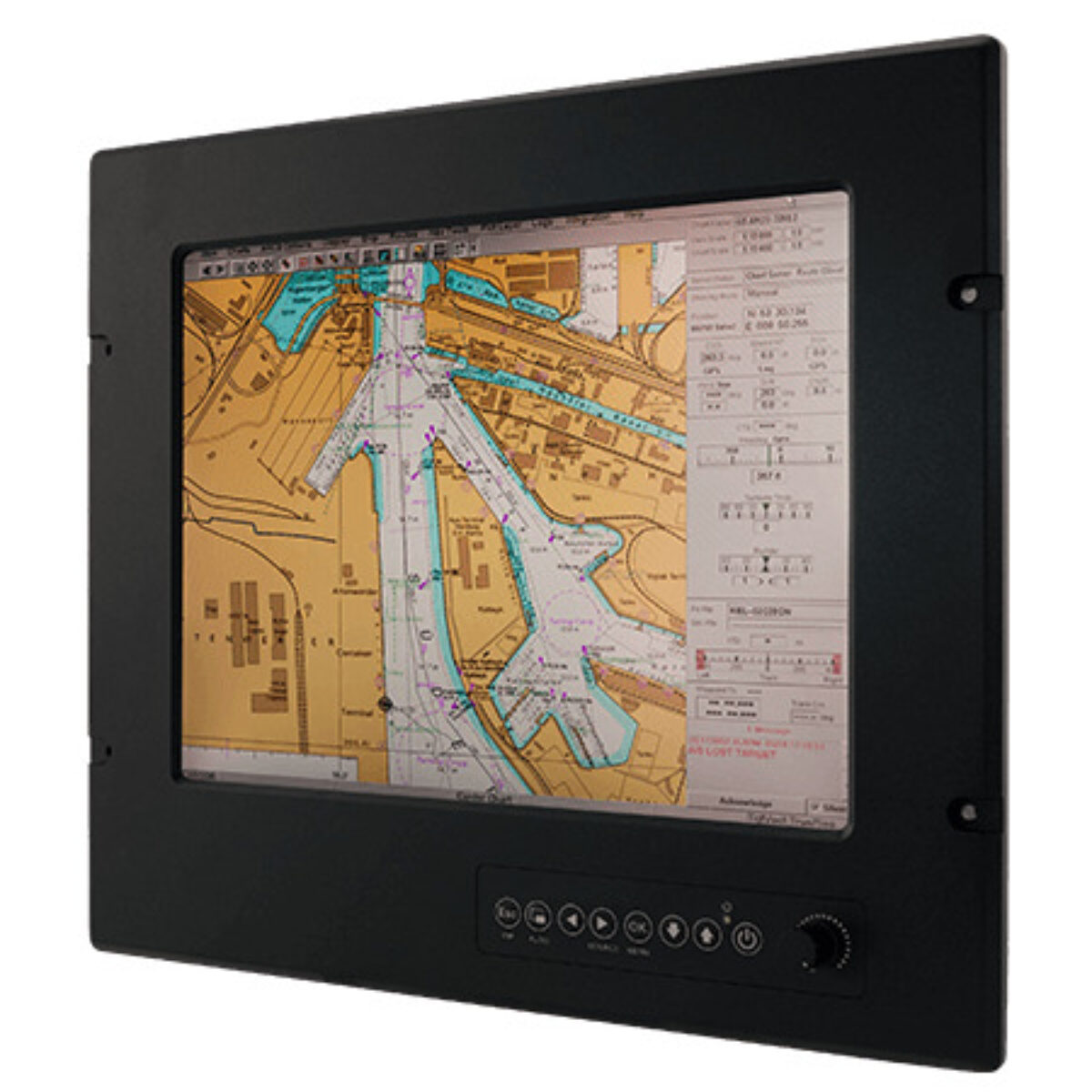

The panel pairs its 1000 nit backlight with a 1000:1 contrast ratio and 178° viewing angles, so the picture holds for crew standing to the side. The resistive touch screen works with gloves and connects over RS-232 or USB, and AR glass is available as an option. An eight-key front OSD panel handles settings, and the knob adjusts brightness from nearly 0% to 100%.
Inputs are VGA, DVI-D, composite and S-Video, with picture-in-picture so a camera feed can sit over a chart. A separate RS-232 port allows remote control. The R12L600-MRM2 is the 500 nit version of this chassis with DNVGL-CG-0339, IEC 60945 and IACS E10 certification, and the R15L600-MRM2 offers the resistive marine design at 15 inches.
Power is isolated 24 V DC, with 9 to 36 V DC acceptable and AC power as an option, drawing 35 W typical. The R12L600-MRM2HB is fanless, operates from -15 to 55 °C at 5 to 95% humidity and withstands 15 G shock. Its powder-coated metal housing has an IP66 front and IP54 rear, measures 337 x 293.2 x 70.8 mm, weighs 4 kg and fits a 307 x 253 mm cut-out or 75 x 75 mm VESA. It carries CE and FCC marks. Winmate names marine bridge systems, shipboard automation and offshore operations.
R12L600-MRM2HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L600-MRM2HB |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 337mm x 293mm x 71mm (13.27" x 11.54" x 2.8") |
- R12L600-MRM2HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L600-MRM2HB configured for USA marine and offshore projects. Within the Winmate range the R12L600-MRM2 is the 500 nit version of this chassis with marine certification, and the R15L600-MRM2 offers the resistive marine design at 15 inches.
With a 1000 nit panel the R12L600-MRM2HB sits among our marine displays, our front IP66 monitors and our 12 inch industrial monitors. Where a deck console faces daylight and still needs gloved touch, this is the model to specify.
