US DisplayPort Capture Cards
DisplayPort Frame Grabbers for Workstation and Computer Video
A DisplayPort capture card records the output of workstations, graphics cards and high-resolution computers directly from their DisplayPort connector, without converting the signal first. Available as a DisplayPort 1.4a card for 8K30 and 4K120 capture and as a card that combines DisplayPort with HDMI 2.0 and DVI inputs.
Options include Windows and Linux SDKs, suited to simulation, training, medical and visualization systems that need to record what a workstation shows.
Speak to a video capture specialist to match the resolution and host interface to your system.
Browse Our DisplayPort Capture Cards

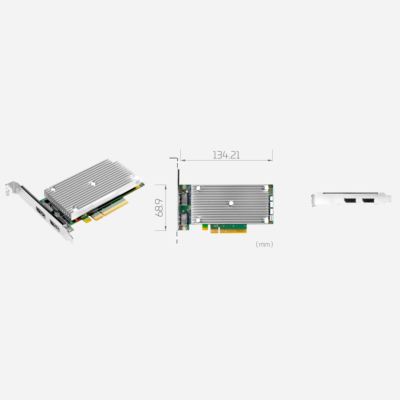

- Video Input: 1x DP1.4a
- Host: PCIe [x8, Gen2]
- Simultaneous Video Inputs: 1
- Max Input Resolution: 8K60 [7680×4320p @ 30/25fps]
- Video Output: 1x DP1.4a
- Max Video Capture Resolution: 8K60 [7680×4320p @ 30/25fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

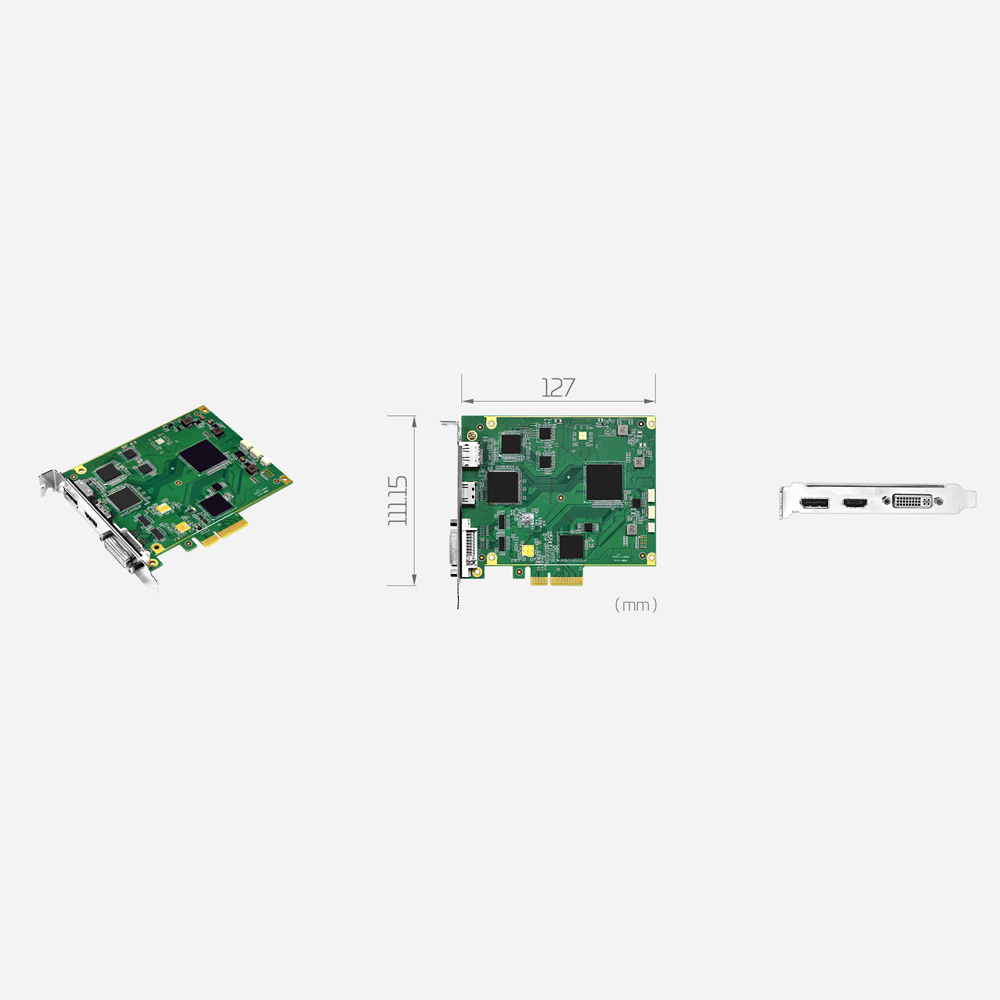

- Video Input: 1x DP
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-D, 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
DisplayPort Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of DisplayPort capture cards, so the ranges below are the ones we specify for simulation, training and visualization systems. Compare them by resolution and inputs, then browse the models above or ask a video capture specialist which range suits your system.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
Not sure which range fits? Tell us the application and we will recommend the right model.
Explore Video Capture Cards by Signal and Form Factor
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
DisplayPort Capture Innovation & Workstation Video Insights
No articles found for the selected brand(s).
Speak to a Workstation Capture Specialist.
Tell us the resolution and frame rate your sources output, the host system and how the video will be recorded or processed. We will recommend the right card for the bandwidth, then configure and test it with your system before it ships.
