US Industrial UPS
Rugged UPS Modules for Industrial and Railway PCs
An industrial UPS keeps a PC or controller running through supply dips and shuts it down cleanly when the power does not return, so storage is never cut mid-write. Our DIN rail DC UPS modules store their energy in supercapacitors instead of batteries, so they keep working in hot cabinets and vehicles for years without a battery change.
Options include 12 to 35 V and 110 V DC inputs, 12 V and 24 V outputs, ignition control for vehicles and PC/104 power supplies with built-in backup, suited to machine vision cells, rolling stock, vehicles and remote cabinets where a power cut can corrupt data, stop a line or force a site visit.
Speak to an industrial UPS specialist to match the backup energy, output power and shutdown signals to your system.
Browse Our DIN Rail UPS Modules
- Serial: 1x Isolated RS232 [DB9]
- Power: 43-160V DC [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, EN45545-2, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
- Serial: 1x RS232 [DB9]
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 65°C [-13°F to 149°F]
- Certification: CE, EN50155, FCC
- Mounting Options: DIN Mount, Wall Mount
-
JMM-7005-UPS
JUPITER-MM-7000 with 25 W 5 V output and UPS for industrial systems -
JMM-7012-UPS
JUPITER-MM-7000 with 40 W 12 V output and UPS for industrial systems -
JMM-7305-ISO-UPS
JUPITER-MM-7000 with 40 W isolated 5 V output, UPS and MIL-STD filtering -
JMM-7305-UPS
JUPITER-MM-7000 with 25 W 5 V output, UPS and MIL-STD filtering -
JMM-7312-ISO-UPS
JUPITER-MM-7000 with 40 W isolated 12 V output, UPS and MIL-STD filtering -
JMM-7312-UPS
JUPITER-MM-7000 with 40 W 12 V output, UPS and MIL-STD filtering
- Temp: -40°C to 85°C [-40°F to 185°F]
- Power: 9-36V DC Input
Industrial UPS Ranges Configured by Things Embedded
We work with the leading manufacturers of industrial UPS modules, so the ranges below are the ones we specify for box PCs, vehicles, rolling stock and PC/104 stacks. Compare them by stored energy, input supply and output power, then browse the models above or ask an industrial power specialist which range suits your system.

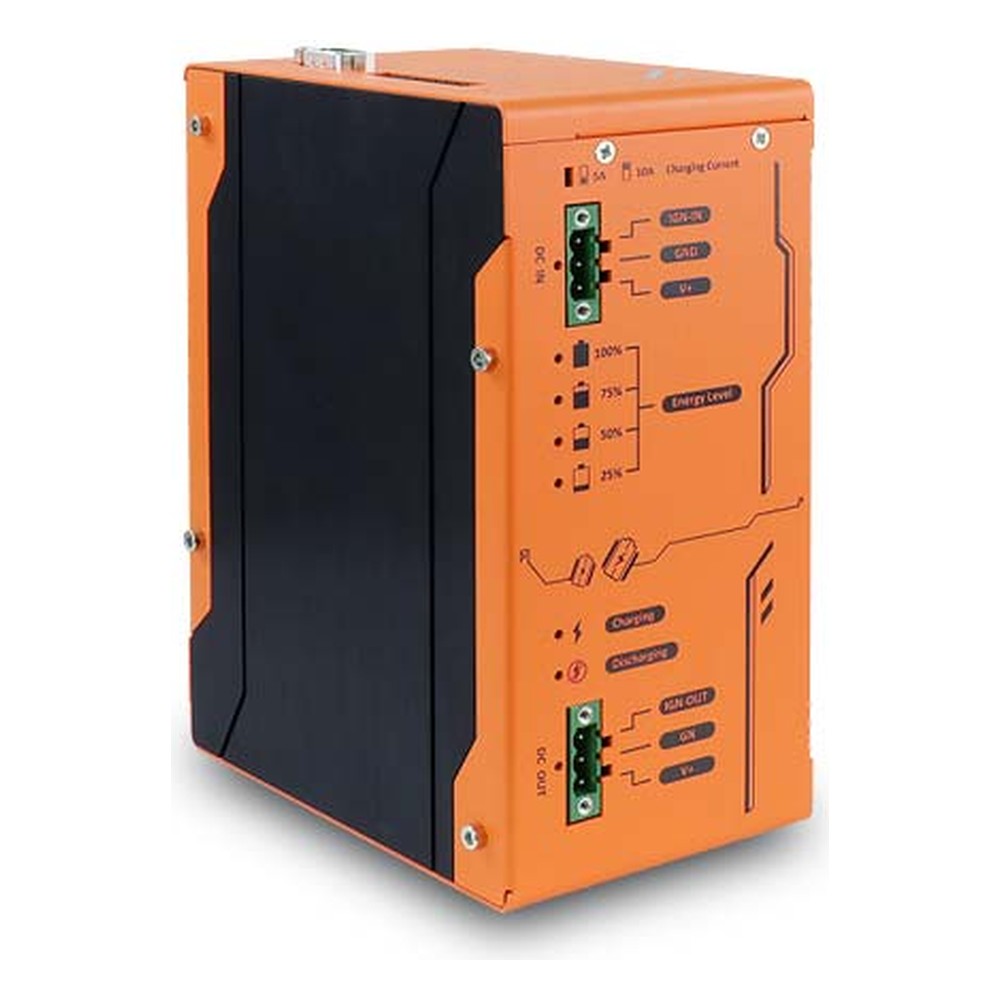

PB-9250J-SA and PB-4600J-SA Neousys SuperCAP DIN Rail UPS Modules
Supercapacitor backup units storing 9250 or 4600 W·s for box PCs drawing up to 180 W or 100 W, on a 12 to 35 V DC supply.

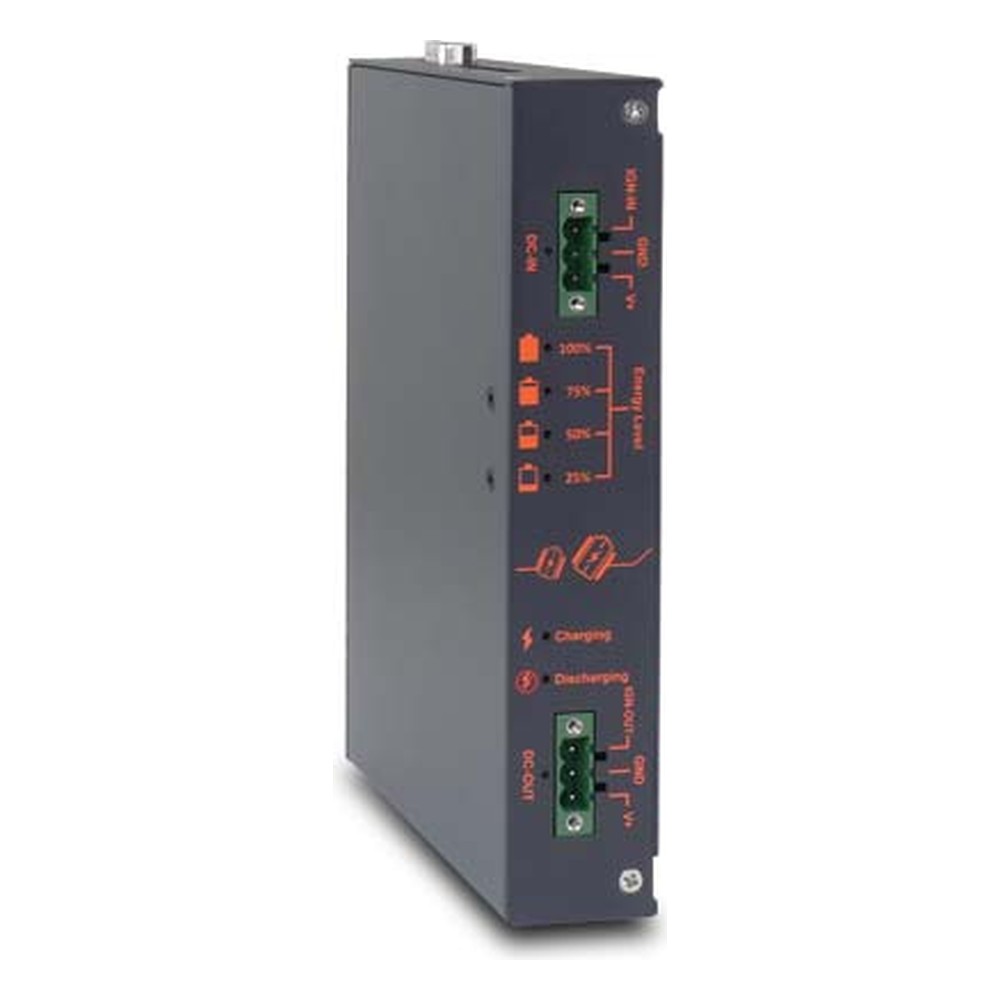

PB-2580J-SA Neousys Slim SuperCAP DC UPS
A 32.8 mm wide backup module for controllers and compact PCs up to 70 W, tested to MIL-STD-810G shock and vibration.

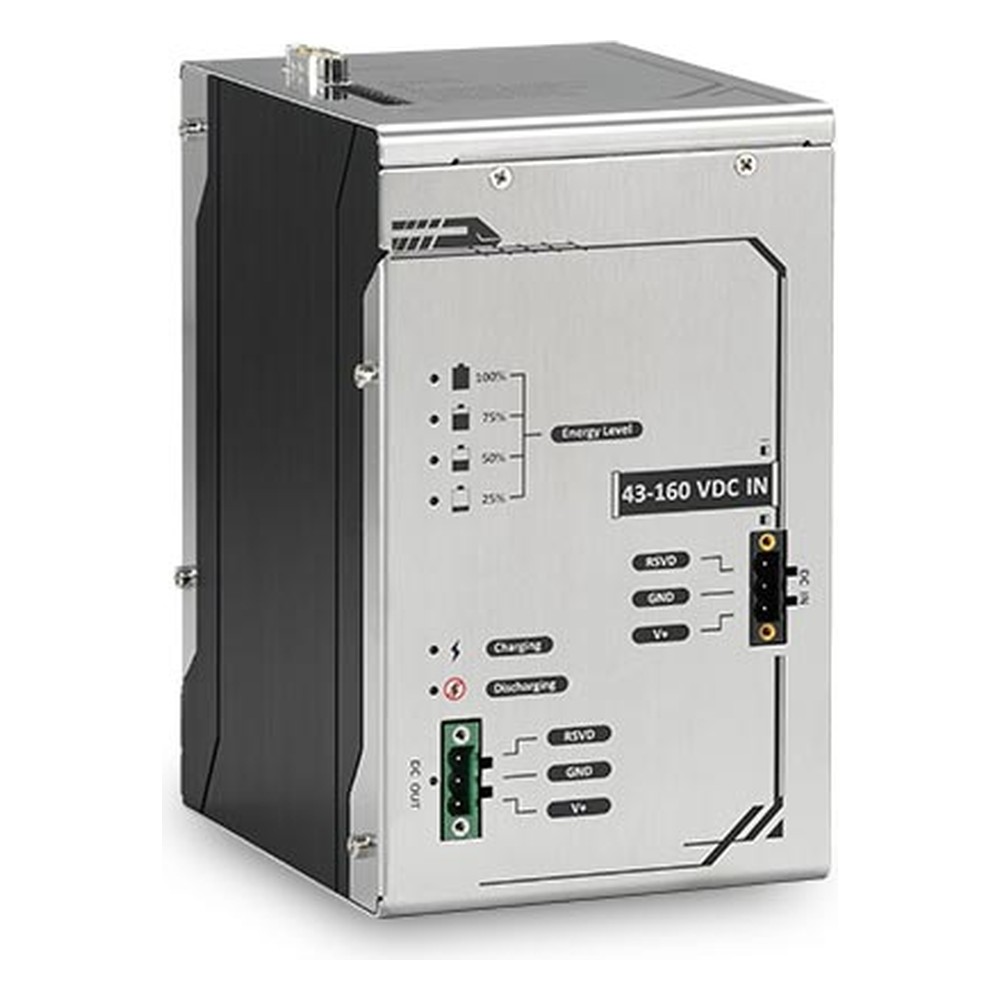

PB-9250J-110V Neousys Railway UPS
A rolling stock unit for 43 to 160 V DC train supplies with a 24 V output, designed to EN 50155 OT4 and EN 45545-2.
JUPITER-MM-7000 Diamond Systems PC/104 UPS Power Supplies
PC/104 power boards with built-in backup at 25 or 40 W and 5 or 12 V, in isolated and MIL-STD-461/704/1275 builds.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a DC UPS
Our industrial power specialists size every DC UPS against the PC it protects, the supply it runs from and the place it will be installed. These are the choices we work through with you before recommending a module.
Stored Energy
Energy is rated in watt-seconds: divide it by the PC's draw in watts for a rough backup time in seconds, before losses.
Input and Output Voltage
Match the input to the supply, 12 to 35 V DC or a 110 V train line, and the output to what the PC accepts.
Shutdown Signals
A power button output and a status input let the UPS shut the PC down safely; check AT or ATX power mode.
Ignition Control
In vehicles, ignition modes keep the PC on for a set delay after the engine stops, then switch it off.
Temperature and Lifespan
Supercapacitors run from -25 °C or -40 °C and last years longer than batteries in a hot cabinet.
Approvals
Rail needs EN 50155 and EN 45545-2 with IEC 61373 shock; defense and vehicles may call for MIL-STD-810G.
Industrial UPS Innovation & Safe Shutdown Insights
Speak to an Industrial UPS Specialist.
Tell us where the system will be installed, the supply it runs from and the PC it has to protect. We will size the backup energy and shutdown timing, then configure and test the UPS with your system before it ships.
