US Large Format Industrial Monitors
40 to 55 Inch Large Format Displays for Signage, Control Rooms and Outdoor Sites
Large format industrial monitors put a 40 to 55 inch screen where many people read it at once: control room walls, outdoor information points and interactive signage. Available in full HD and 4K as open frame modules, outdoor high-brightness chassis displays and military rack displays, with PCAP, resistive or SAW touch.
Options include high-brightness panels for outdoor positions, 4K resolution and rack mounting, suited to control rooms, transport hubs, outdoor kiosks and command centres.
Speak to a display specialist to match the size, format, touch and mounting to your site.
Browse Our 40 to 55" Touch Screen Monitors

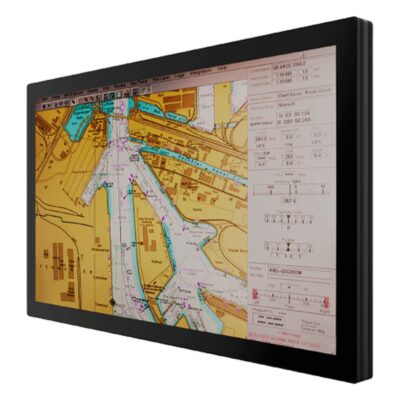

- Display: 42.5"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
- Serial: 1x RS232 [DB9]
- Power: 24V DC, 9-36V DC Input, AC Power Supply Included
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

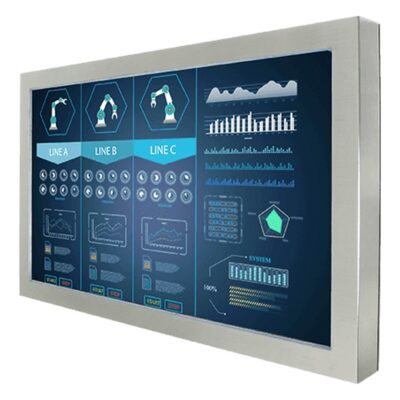

- Display: 42.5"[16:9, 1920 x 1080, FHD]
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 24V DC [M12], AC Power Supply Included
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC

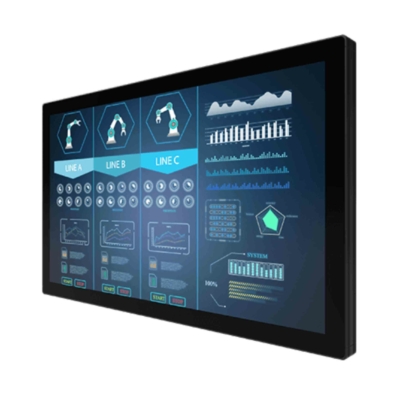

- Display: 42.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x Optional DVI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC

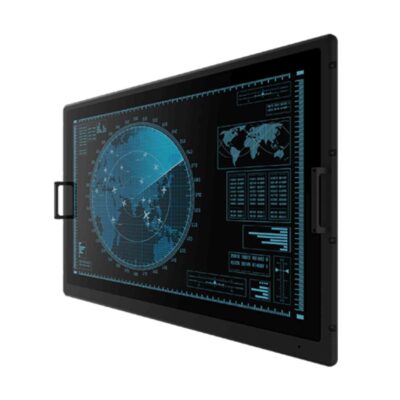

- Display: 42.5"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input, 2 x Optional HDMI
- Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 42.5"[16:9, 1920 x 1080, FHD]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 24V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

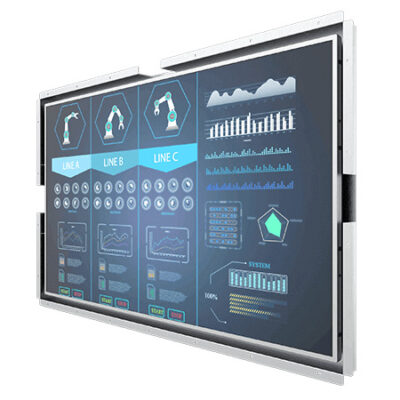

- Display: 42.5"[16:9, 1920 x 1080, FHD]
- Touch: Optional Surface Acoustic Wave Touch, Resistive Touch
- Brightness: 1500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 24V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

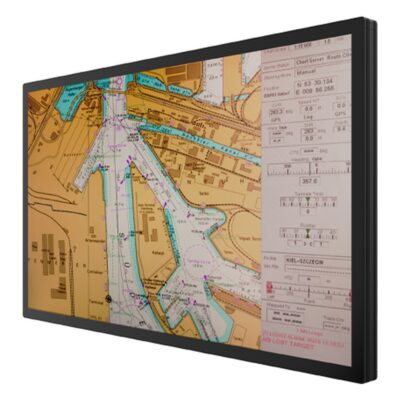

- Display: 55"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
- Serial: 1x RS232 [DB9]
- Power: 100-240V AC
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, FCC

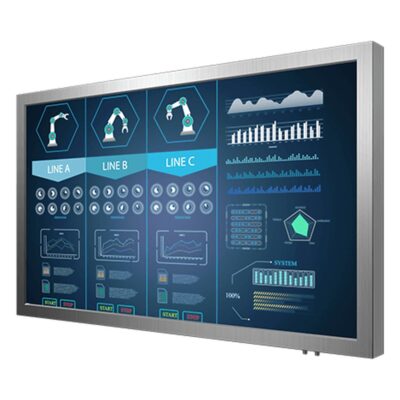

- Display: 55"[16:9, 3840 x 2160, UHD]
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 100-240V AC [M12]
- Temp: 0°C to 45°C [32°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC

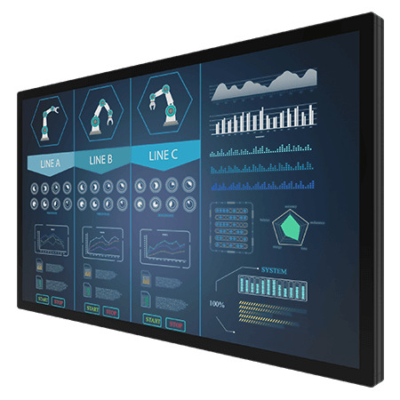

- Display: 55"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 2000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI Input, 1x Optional DVI Input, 1x VGA Input
- Power: 12V DC
- Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 55"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input, 2 x Optional HDMI
- Power: 9-36V DC Input [MIL-STD], Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
Beyond Large Format: Industrial Monitors
All Industrial MonitorsEvery industrial monitor we supply, from open frame screens to sealed chassis and rack mount displays.
7 Inch Industrial Monitors5.7, 6.5, 7, 8 and 8.4 inch · 4:3 and 17:10
10 Inch Industrial Monitors10.1 and 10.4 inch · 4:3 and 5:3
12 Inch Industrial Monitors12 inch (12″) industrial monitors for machine HMIs, control cabinets and compact operator stations.
15 Inch Industrial Monitors15 and 15.6 inch · 4:3 and 16:9
17 Inch Industrial Monitors17 inch (17″) industrial monitors, often in 5:4, for control rooms, legacy HMIs and line-side screens.
19 Inch Industrial Monitors18.5 and 19 inch · 5:4
21.5 Inch Industrial Monitors21.3 and 21.5 inch · 16:9
24 Inch Industrial Monitors23.8 and 24 inch · 16:9
27 Inch Industrial Monitors26 and 27 inch · 16:9
32 Inch Industrial Monitors32 inch (32″) industrial monitors for control rooms, factory dashboards and large wall or arm-mounted views.Large Format Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of large format displays, so the ranges below are the ones we specify for signage, control rooms and outdoor sites. Compare them by mounting, touch and brightness, then browse the models above or ask a display specialist which range suits your site.

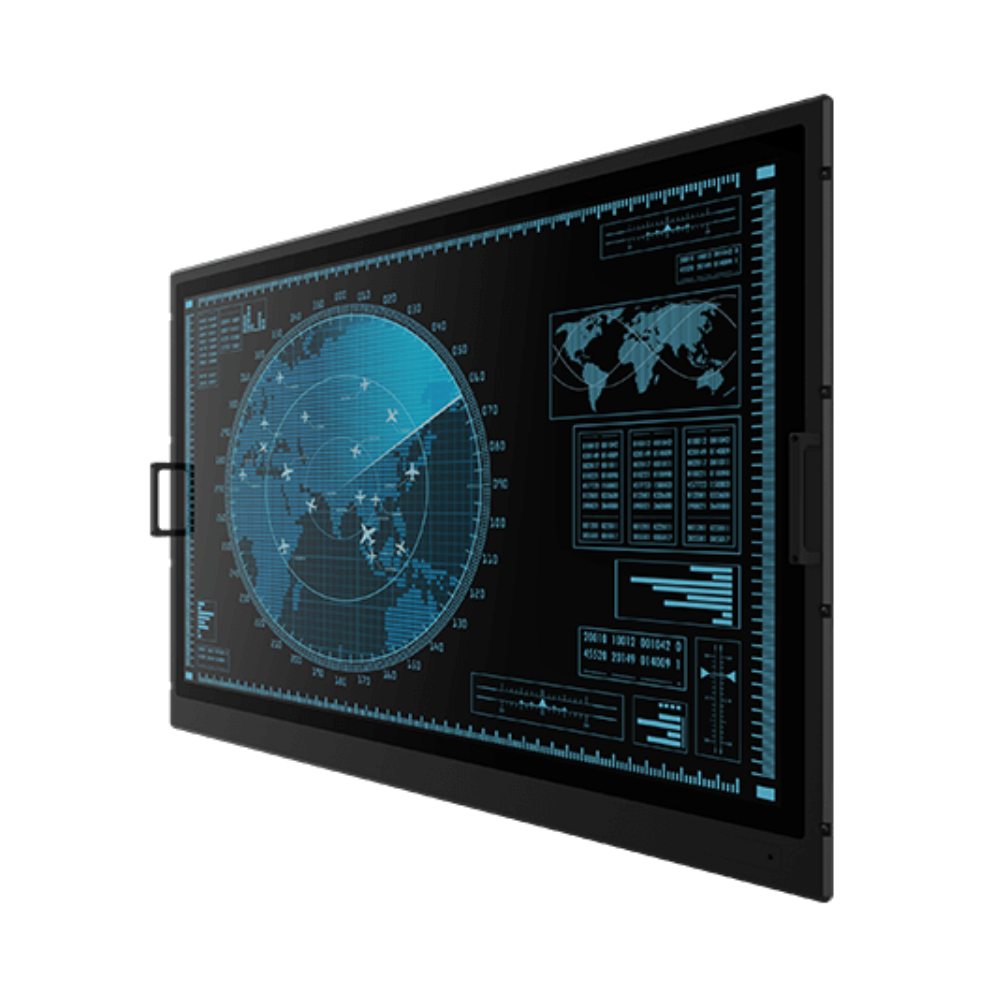

Winmate Military Rack and Console Displays
Defense screens from 8.4 to 55 inches for rack, console and vehicle mounting, with PCAP or resistive touch and 4K options.

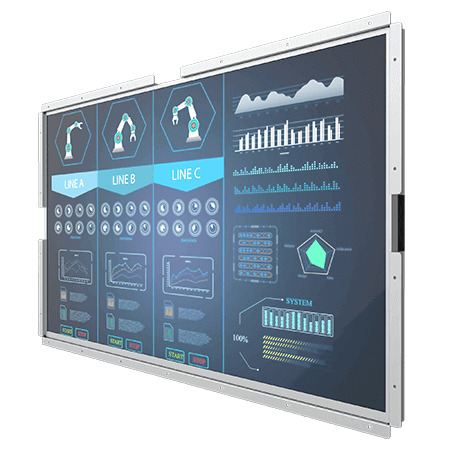

Winmate Open Frame Monitors
Housing-free modules from 5.7 to 42.5 inches with resistive or SAW touch and high-brightness options, built into kiosk, signage and machine enclosures.
Winmate Outdoor and G-WIN Chassis Displays
PCAP touch screens from 7 to 55 inches with a front IP65 face, in high-bright outdoor and PoE builds, for kiosks, gates and outdoor control points.
Winmate Large Marine Monitors
42.5 and 55 inch marine monitors with PCAP touch, including an ECDIS model on 9 to 36V DC and a 4K UHD screen for bridge displays.
Winmate Large IP65 Stainless Steel Monitors
42.5 inch FHD and 55 inch 4K UHD stainless steel monitors sealed to IP65 with M12 connectors, for wash-down halls and hygienic production areas.
Not sure which range fits? Tell us the application and we will recommend the right model.
Large Format Display Innovation & Signage and Control Room Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
