Winmate W43L300-OFA2HB 42.5″ High Brightness Open Frame Monitor with 1500 Nit FHD LCD

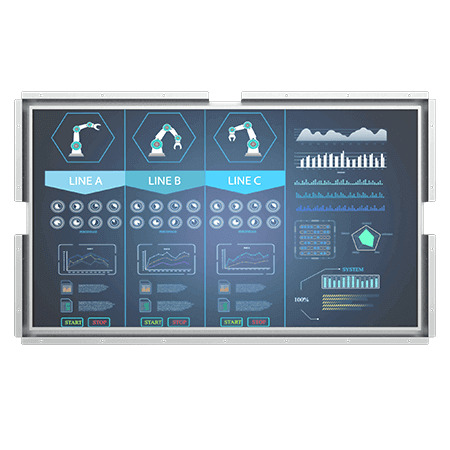

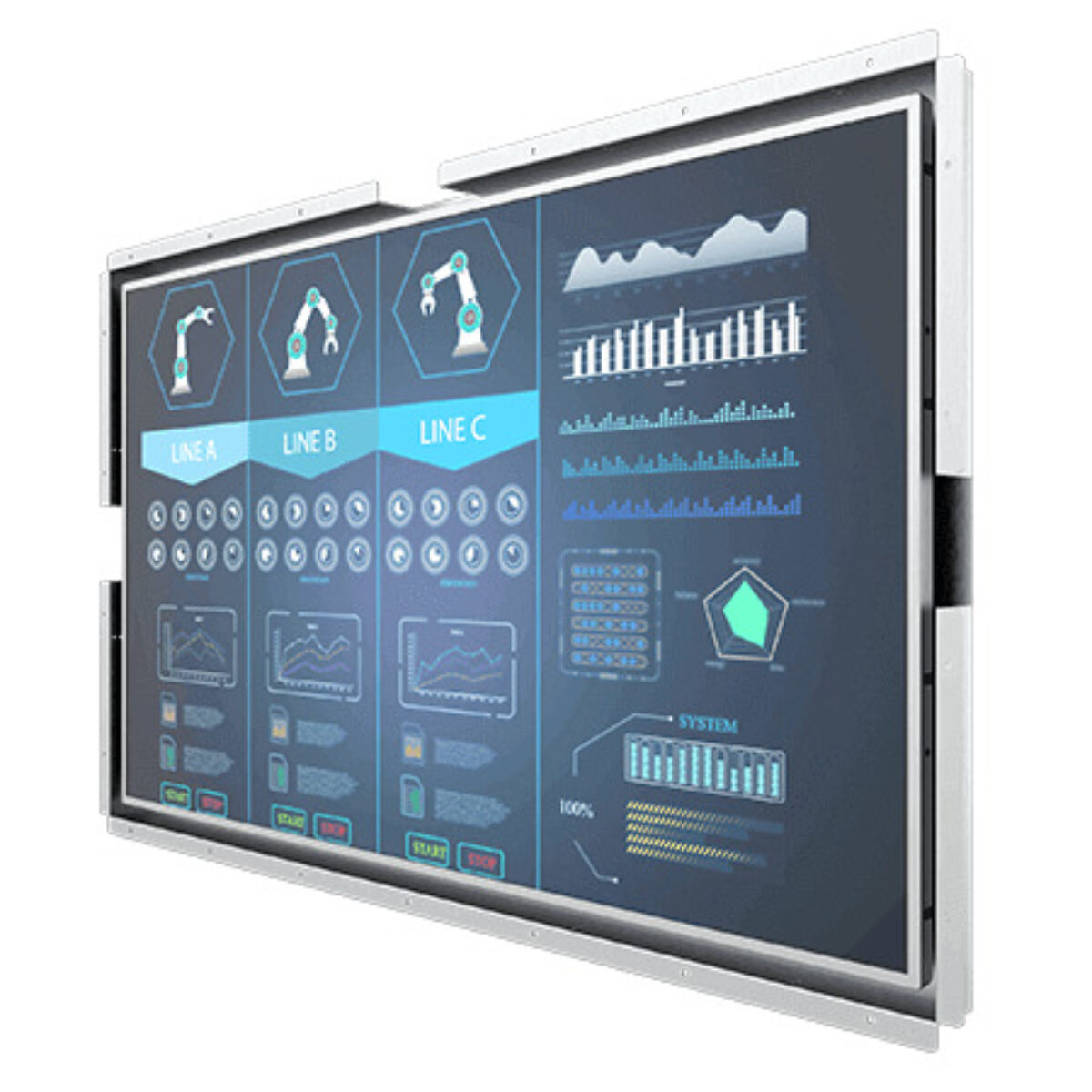

A large screen facing a shop window or a sunlit concourse needs far more brightness than a reception display to stay readable through the day. The W43L300-OFA2HB is Winmate’s 42.5 inch high brightness open frame monitor: a 1920 x 1080 FHD LCD at 1500 nits with 4000:1 contrast, in a metal frame built into your own surround.

The panel shows 16.7 million colors across an active area of 940.896 x 529.254 mm, with viewing angles of 89° in every direction. At 1500 nits the backlight is three times brighter than the 500 nit W43L300-OFA1, which helps content hold its color as ambient light rises. The front is a bare panel, with protection glass available as an option for screens within public reach.

VGA is the standard video input, with HDMI and DVI available as options, so the monitor pairs with a media player or industrial PC. An optional 3.5 mm audio line-in and twin speakers add sound, and a five-key OSD panel on the rear sets brightness and picture. The W43L300-OFA1 is the 500 nit version for indoor spaces, and the W32L300-OFA3HB offers 1500 nits at 32 inch.

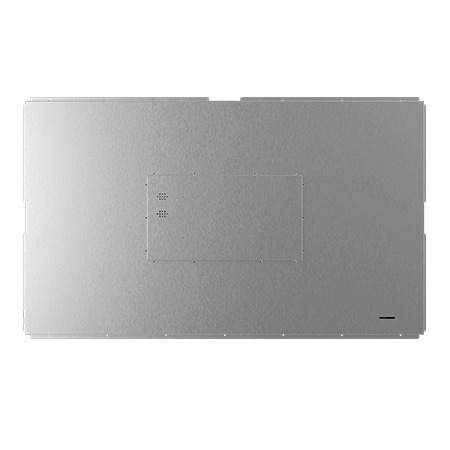

The W43L300-OFA2HB runs from 24 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 1029.6 x 618.1 x 75 mm, with 75, 100 and 200 mm VESA patterns and rear mounting. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses for its open frame range, along with ATMs, vending machines, airport information displays and mall kiosks.
