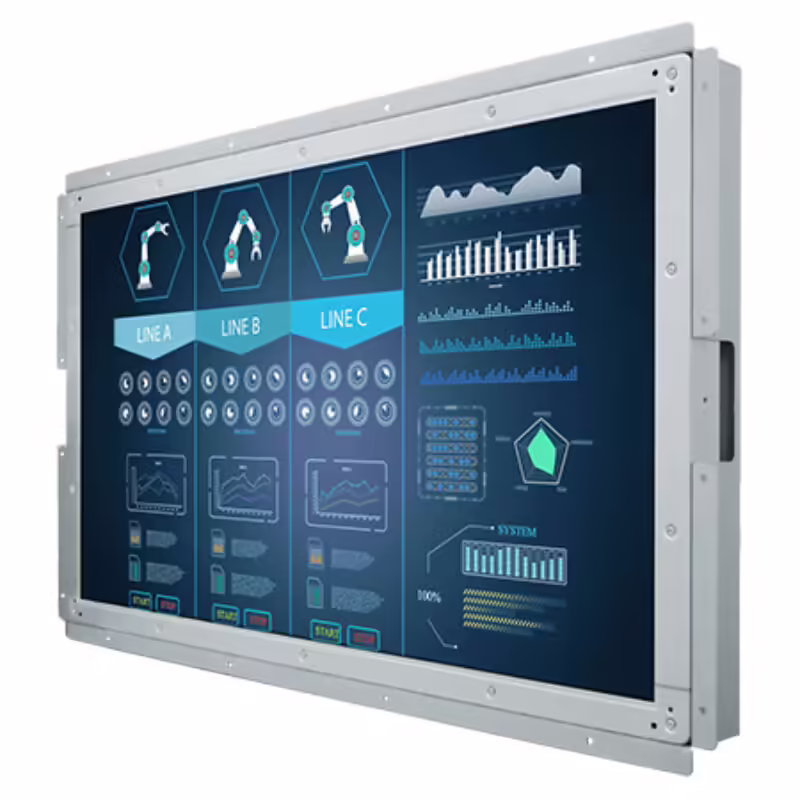

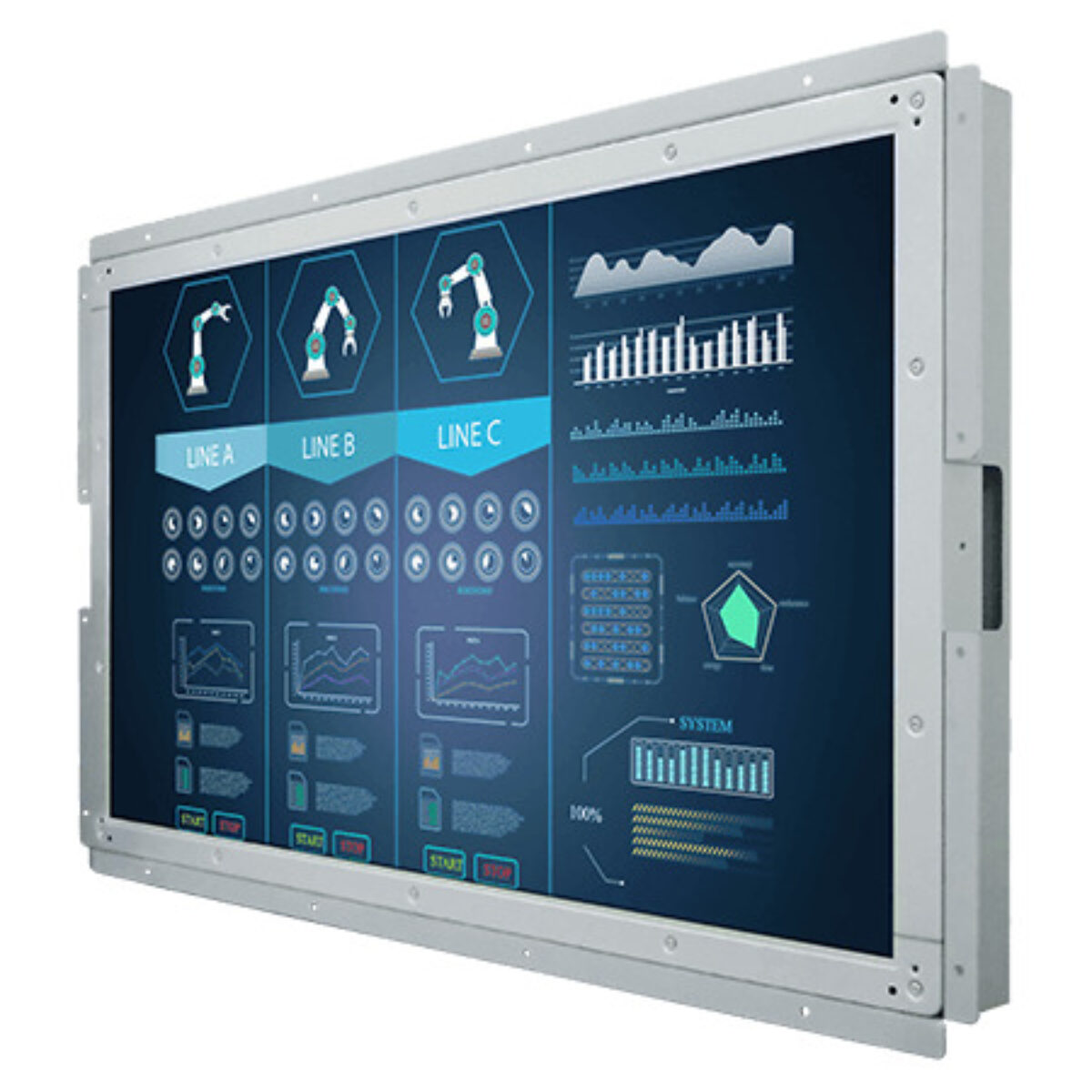

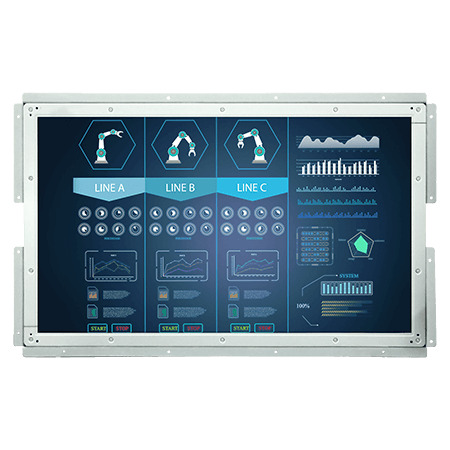

Winmate W32L300-OFA3HB 32″ High Brightness Open Frame Monitor with 1500 Nit FHD LCD

Signage behind a shop window or in a glazed concourse has to compete with daylight for much of the day, and a standard backlight soon looks grey. The W32L300-OFA3HB is Winmate’s 32 inch high brightness open frame monitor: a 1920 x 1080 FHD LCD at 1500 nits with 4000:1 contrast, in a metal frame built into your own enclosure.

The panel shows 16.7 million colors across an active area of 698.4 x 392.85 mm, with viewing angles of 89° in every direction. At 1500 nits the backlight is almost four times brighter than the 400 nit standard version, which helps content stay readable as ambient light rises. The front is a bare panel, with protection glass without touch available as an option for screens within public reach.

VGA is the standard video input, with HDMI and DVI available as options, so the monitor pairs with a media player or industrial PC. An optional 3.5 mm audio line-in and twin speakers add sound, and a five-key OSD panel on the rear sets brightness and picture. The W32L300-OFA3 is the 400 nit version for indoor use, and the W43L300-OFA2HB brings 1500 nits to a 42.5 inch screen.

The W32L300-OFA3HB runs from 24 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 810 x 499.4 x 68 mm, with 75, 100 and 200 mm VESA patterns, and can also be panel mounted. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses.
