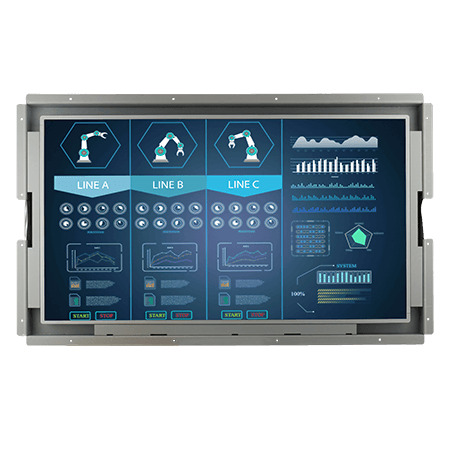

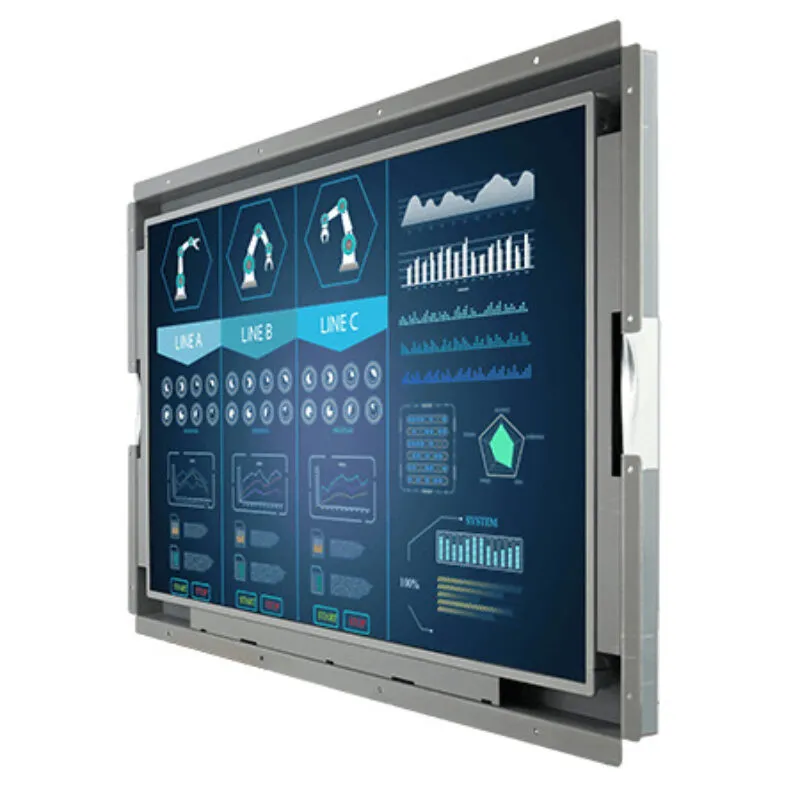

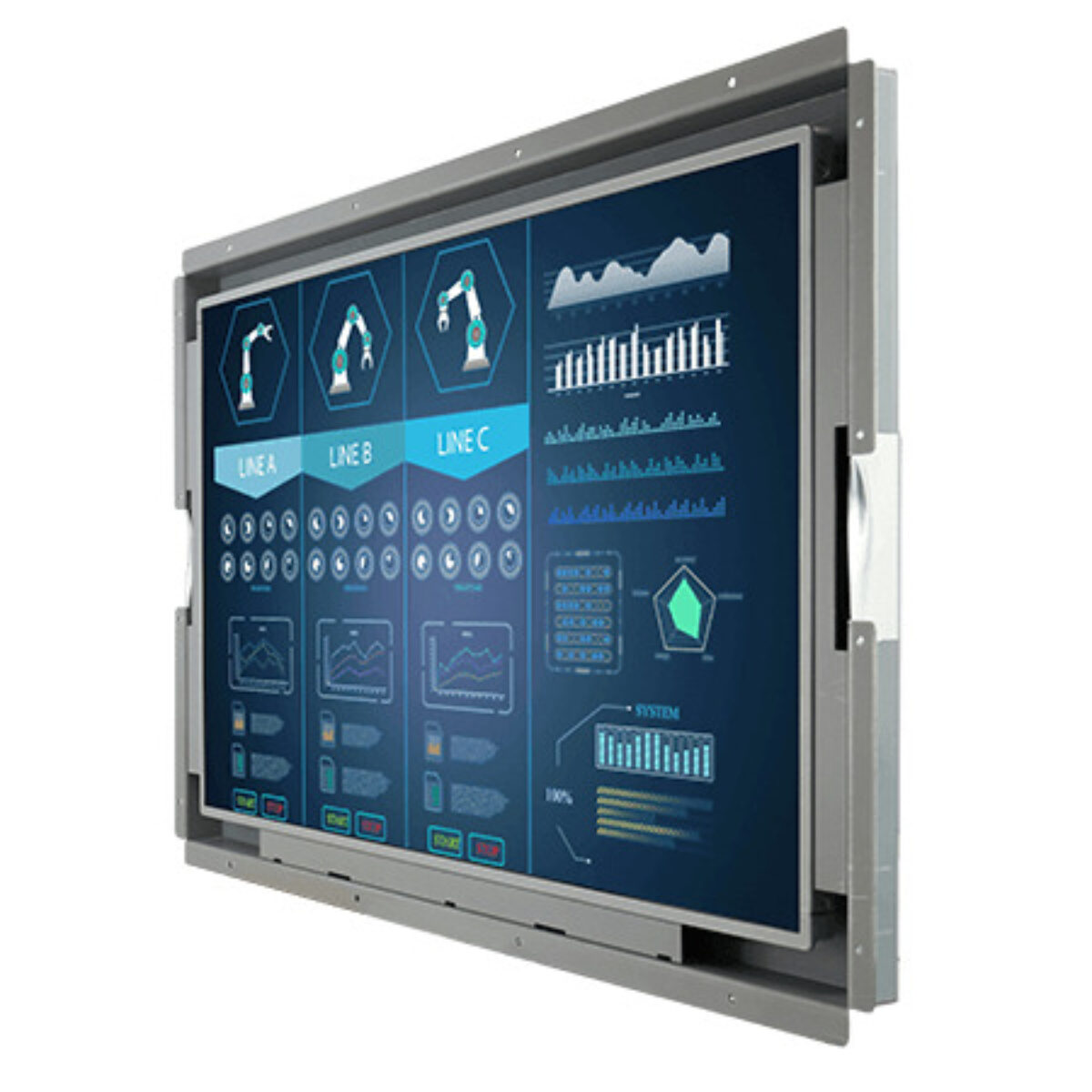

Winmate W32L300-OFA3 32″ Open Frame Monitor with 1920 x 1080 FHD LCD and 4000:1 Contrast

A large screen built into a wall, kiosk or cabinet should look like part of the installation rather than a television fixed to it. The W32L300-OFA3 is Winmate’s 32 inch open frame monitor for that kind of build: a 1920 x 1080 FHD LCD at 400 nits with 4000:1 contrast, in a metal frame designed to sit behind your own surround.

The panel shows 16.7 million colors across an active area of 698.4 x 392.85 mm, with viewing angles of 89° in every direction, so people walking past see the same image as those standing in front. The 4000:1 contrast ratio gives deep blacks for video and dashboards. The front is supplied as a bare panel, with protection glass available as an option where the screen is within reach of the public.

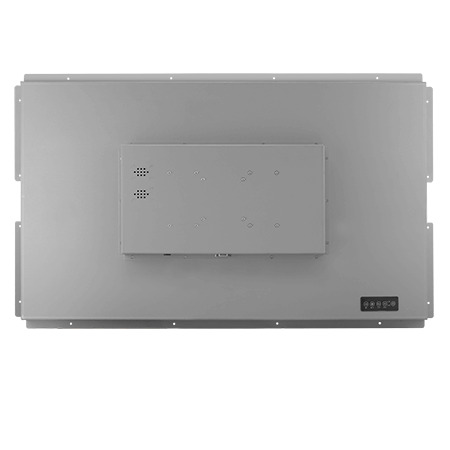

VGA is the standard video input, with HDMI and DVI available as options, so the monitor connects to a media player, industrial PC or control system. An optional 3.5 mm audio line-in and twin speakers add sound for announcements. A five-key OSD panel on the rear sets brightness and picture. The W32L300-OFA3HB raises brightness to 1500 nits in the same frame, and the W32L300-OFA3TR uses a transflective panel for screens in direct light.

The W32L300-OFA3 runs from 24 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 810 x 499.4 x 68 mm, with 75, 100 and 200 mm VESA patterns and rear mounting. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses for its open frame range, along with ATMs, vending machines, airport information displays and mall kiosks.
