NXP i.MX Single Board Computers for Long-Life Devices
An NXP i.MX single board computer is built on a processor family designed for industrial and automotive use, with long availability, low power draw and mature Linux support, so it suits products that stay in service for years.
Options include i.MX 6 boards for point-of-sale terminals and HMIs, and i.MX 8M and 8M Plus boards with stronger graphics and, on the 8M Plus, a neural processing unit, suited to gateways and machine displays.
Speak to an NXP i.MX SBC specialist to match the processor, interfaces and operating system to your device.
Browse Our NXP i.MX SBCs
- CPU: i.MX 8M Quad
- Memory: 2GB Soldered On-board
- OS: Linux Yocto 2.5
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type A], 1x USB OTG [Type C], 2x USB 3.0 [Board]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [USB/PCIe] [2230]
- Storage: 16GB eMMC, 1x Micro SD
- Power: 12-24V DC [Barrel Connector]
- Temp: -20°C to 85°C [-4°F to 185°F]
- Certification: CE, FCC
- Memory: 1GB Soldered On-board
- OS: Linux Ubuntu 12.04, Android 4.4.2, Android 6.0, Linux Yocto 2.1
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB OTG [Mini USB], 1x USB 2.0 [Board], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [Board]
- CANbus: 1x CANbus [Board]
- mPCIe: 1x Half-Size mPCIe [PCIe, USB]
- Storage: 1x Micro SD, 8GB eMMC
- Power: 12-26V DC [Barrel Connector]
- Temp: -20°C to 85°C [-4°F to 185°F]
- Certification: CE, FCC
- CPU: i.MX 6Quad
- CPU: NXP i.MX 8M Plus
- OS: Linux, Linux Yocto 5.0
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board], 1x RS485 [Terminal Block]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 B-Key [USB 3.1 Gen 2/USB 2.0] [2242/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 16GB eMMC, 1x Micro SD
- Power: 9-36V DC Input [Terminal Block]
- Temp: -30°C to 80°C [-22°F to 176°F]
- Certification: CE, FCC, RoHS, UKCA
- Memory: 8GB Soldered On-board
- OS: Linux Ubuntu 12.04, Android 4.4.2, Linux Yocto 1.5.1
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB OTG [Mini USB], 2x USB 2.0 [Type A], 3x USB 2.0 [Board]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [USB]
- Storage: 4GB eMMC
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
- CPU: i.MX 6Quad
- Memory: 2GB Soldered On-board
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- CPU: i.MX 8M Mini
- Memory: 4GB Soldered On-board
- OS: Linux Yocto 4.0
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB OTG [Type A], 3x USB 2.0 [Type A]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 5V [USB-C]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC
- CPU: i.MX 6Quad
- Memory: 2GB Soldered On-board
- OS: Linux Yocto 2.5
- Display Outputs: 1x HDMI, 1x LVDS, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB OTG [Mini USB], 2x USB 2.0 [Type A], 3x USB 2.0 [Board]
- Serial: 2x RS232 [Board], 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [USB]
- Storage: 1x Micro SD, 8GB eMMC
- Power: 12-24V DC Input [4-Pin], 12-24V DC [Barrel Connector]
- Temp: -20°C to 85°C [-4°F to 185°F]
- Certification: CE, FCC
NXP i.MX SBC Ranges Configured by Things Embedded
We work with the manufacturers of industrial NXP boards, so the ranges below are the ones we specify for HMIs, point-of-sale terminals and gateways. Compare them by processor, size and interfaces, then browse the models above or ask an embedded board specialist which range suits your device.

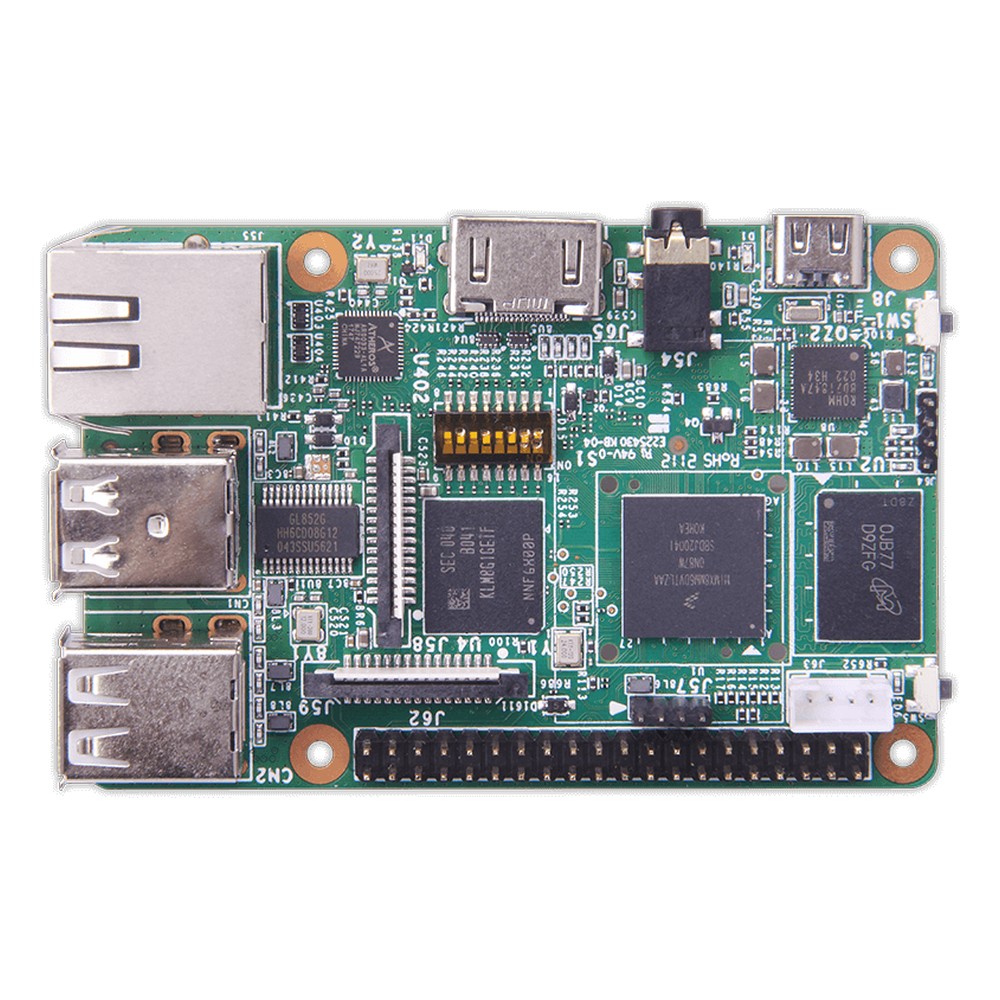

ACP-IMX8-PI Avalue NXP i.MX 8M Mini Raspberry Pi Format SBC
The NXP i.MX 8M Mini in the Raspberry Pi footprint, with 32 GB eMMC and -20 to 70 °C operation.
ACP-IMX6POS Avalue NXP i.MX 6 SBCs
NXP i.MX 6Quad and 6DualLite boards with 12 to 24 V DC input for point-of-sale terminals and long-life HMIs.
RSC-IMX61 and RSC-IMX8M Avalue NXP i.MX 3.5" SBCs
NXP i.MX 6 and i.MX 8M Quad processors on 3.5 inch boards with wide DC input and wide temperature builds.
M8MP553 DFI NXP i.MX 8M Plus 3.5" SBCs
NXP i.MX 8M Plus dual and quad-core processors on a 3.5 inch board with 9 to 36 V DC input and wide temperature builds.
Not sure which range fits? Tell us the application and we will recommend the right model.
NXP i.MX SBC Insights for Long-Life Devices
Speak to an NXP i.MX SBC Specialist.
Tell us what the board will go into, the interfaces you need and the operating system your software runs on. We will recommend the processor and format, then configure and test the board before it ships.
