US Chassis and VESA Mount Panel PCs
Industrial All-in-One PCs for VESA Arms, Yokes and Pedestals
Chassis mount panel PCs are industrial all-in-one computers sealed on all six sides and mounted on a VESA arm, yoke, pedestal or wall bracket rather than cut into a panel. Available from 8.4 to 24 inches with PCAP or resistive touch and sealing from IP65 to IP69K, they put the HMI where the operator needs it when the machine has no cabinet to mount into.
Options include stainless steel enclosures, M12 connectors and a front IP65 group for lighter duty, suited to washdown lines, pack stations, medical carts and any position where the screen moves with the operator or the whole enclosure is hosed down.
Speak to a panel PC specialist to match the size, sealing and arm or pedestal to your installation.
Browse Our VESA Mount Touch Screen Computers
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 9-24V DC Input [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Display Outputs: 1x Optional Micro HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Processor N Series Twin Lake
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x Optional HDMI, 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Processor N Series Twin Lake
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x Optional HDMI, 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Optional Resistive Touch
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 9-24V DC Input [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC, MIL-STD-810
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
Beyond Chassis and VESA: Panel PCs
All Panel PCsEvery panel PC we supply, from open frame HMIs to fully sealed IP69K stainless steel builds.
Open Frame Panel PCsFanless touch computers without a housing, built into kiosks, signage and OEM machine enclosures.
Panel Mount PCsPanel PCs that cut into a cabinet door or machine guard, with the computer inside the enclosure.
Rack Mount Panel PCsTouch computers that fit a standard 19 inch rack, for control consoles, test rigs and equipment cabinets.Chassis Mount Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of all-in-one touch computers, so the ranges below are the ones we specify for washdown lines, pack stations and vehicles. Compare them by sealing, material and processor, then browse the models above or ask a panel PC specialist which range suits your installation.
Winmate Chassis-Mount Touch Computers
Enclosed touch computers for VESA, arm or wall mounting from 7 to 23.8 inches, on Intel N150, Pentium or Core i3 to i9, with resistive touch.

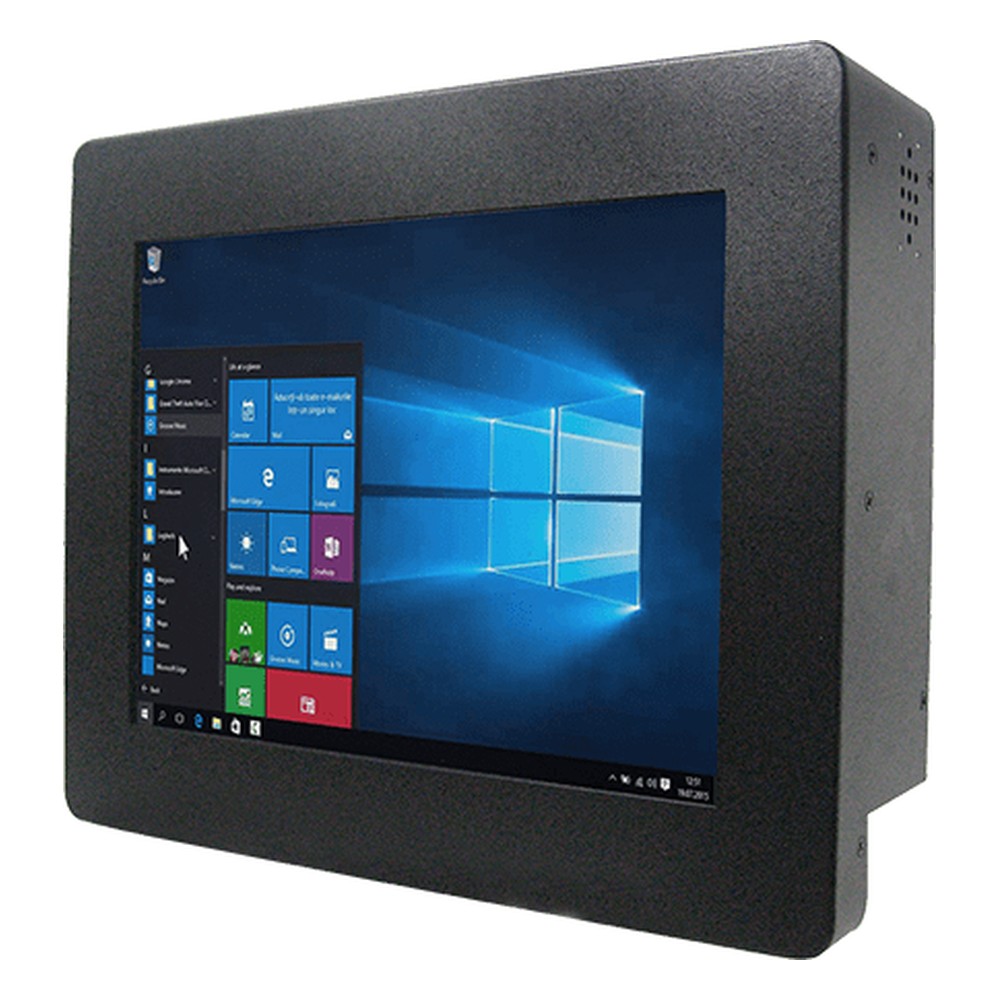

IE3S Winmate Compact Celeron HMIs
Small panel-mount and chassis touch PCs from 6.5 to 12.1 inches on Intel Celeron N6210, with resistive or PCAP touch, for machine guards, cabinet doors and pendant arms.
Winmate Stainless Steel Washdown PCs
Stainless touch terminals from 10.1 to 23.8 inches on Intel Celeron, N150 or Core i5, in IP65 and IP69K builds with M12 connectors for yoke or arm mounting.
IE3S Winmate IP65 and IP67 Stainless Chassis Computers
Sealed stainless chassis PCs on Intel Celeron N6210 from 10.4 to 23.8 inches, rated IP65 or IP67 with M12 connectors, for wipe-down and immersion-risk positions.
IT3S Winmate IP69K AISI 316 Stainless Panel PCs
Full IP69K AISI 316 stainless HMIs on Intel Core i5 Tiger Lake from 15 to 23.8 inches, with PCAP rain-mode touch for the wettest positions on the line.
Winmate G-WIN Full IP67 Rugged HMIs
Fully sealed IP67 rugged computers from 10.1 to 21.5 inches tested to MIL-STD-810G, on Intel Celeron, Core i5 or MediaTek Genio 510, for vehicles and outdoor sites.
Winmate Vehicle Mount Rugged Computers
In-cab touch computers from 8.4 to 15 inches on Intel Celeron or Core i5, with sunlight-readable high-bright options and wide-range DC input, for forklifts, cabs and mobile machinery.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
Winmate M Series and Class I Division 2 HMIs
Core i5 Tiger Lake HMIs from 12.1 to 23.8 inches for VESA or chassis mounting, in Class I Division 2 and 9 to 29V DC M Series builds.
Winmate PCAP and PoE Touch Panel PCs
VESA-ready PCAP touch panel PCs from 15 to 32 inches on Intel Celeron N6211 or Core i5, with PoE power on selected builds and IEC 60601-1 medical versions.
Winmate Full IP65 Stainless Panel PCs
Stainless steel panel PCs sealed to IP65 all round with M12 connectors, on Intel Core i5, from 15 to 23.8 inches for arm or yoke mounting.
Winmate G-WIN Front IP65 Rugged Panel PCs
Rugged chassis panel PCs with a front IP65 face, tested to MIL-STD-810G or 810H, from 7 to 23.8 inches on Intel Celeron, N150, Core or MediaTek Genio 510.
Winmate PCAP Chassis Panel PCs
Self-contained PCAP touch panel PCs from 7 to 43 inches for VESA or wall mounting, on Intel Celeron N6211, Core or MediaTek Genio 510, with PoE options.
Winmate G-WIN Full IP65 Rugged Panel PCs
Fully enclosed IP65 rugged panel PCs from 7 to 15 inches, tested to MIL-STD-810G or 810H, on Intel Celeron N6211, N150 or MediaTek Genio 510.
Winmate 19 Inch Defense Panel PC
A 19 inch defense panel PC on 12th Gen Intel Core i7-1265UE, tested to MIL-STD-810H and MIL-STD-461, for console and vehicle installations.
Winmate Large Edge AI Panel PCs
27 and 32 inch edge AI panel PCs on 12th to 14th Gen Intel Core with an NVIDIA RTX Ada GPU option, for wall or stand-mounted vision stations.
Winmate 14 Inch Genio PCAP HMI
A 14 inch PCAP touch HMI on the Arm-based MediaTek Genio 510, tested to MIL-STD-810H, for VESA mounting on machines and in vehicles.
DM Arestech Modular Panel PCs
Two-part systems built from a DM display and a PM-2000 Intel Celeron compute module, with PCAP touch and a front IP65 bezel, for panel or chassis mounting from 10.4 to 24 inches.
PPC-Z Arestech IP66/IP69K Stainless Steel Panel PCs
Fanless stainless steel all-in-one units from 10.1 to 23.8 inches, sealed to IP66 and IP69K with M12 connectors, on Intel Pentium to Core i5, with 316-grade builds and an RFID reader option for operator login at the line.
XPPC Nexcom Slim Multi-Touch Computers
Slim-bezel 10.1 and 15.6 inch multi-touch computers with PCAP multi-touch and a front IP65 face, on Intel Celeron to Core i5, for panel, VESA or open-frame mounting in kiosks and machines.
PPC-120T Nexcom Flush-Mount Panel PC
A 12.1 inch front IP65 flush-mount touch computer on Intel Celeron with PCAP touch and PoE power, for panel, VESA or open-frame mounting.
VP070-M8M and VP101-M8M DFI In-Vehicle Panel PCs
In-vehicle panel PCs in 7 and 10.1 inch on NXP i.MX 8M Quad or Dual, with a front IP65 face, CAN and 500 or 1200 nit screens.
VPC-101RB2S and VPC-101RA1S Sintrones Rugged Panel PCs
Rugged 10.1 inch panel PCs with sunlight-readable 1,000 nit touchscreens, on Jetson Orin Nano or Orin NX with camera inputs, or on NXP i.MX 8QuadXPlus.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a VESA Mount Panel PC
A VESA mount panel PC sits in the open on an arm, yoke or wall, with no cabinet to protect it. Sealing on every face, enclosure material, connectors and temperature range decide whether it survives that position.
Sealing on Every Face
IP65 for wash-and-wipe, IP66 and IP69K for hose-down and hot washdown, IP67 where water can pool on the enclosure.
Stainless or Aluminum
304 or 316 stainless steel for hygienic and corrosive areas, aluminum where weight and heat dissipation matter more.
M12 Connectors
Screw-locking M12 connectors keep water out of the power, Ethernet, USB and serial ports when the panel PC is hosed down.
Arm, Yoke or Pedestal
VESA mounting points for arms, yokes, pedestals and wall brackets, so the screen sits where the operator stands.
Wide Temperature
Models rated from −20 °C to 60 °C and beyond for cold stores, outdoor positions and hot process areas.
Touch When Wet
Resistive touch ignores water on the glass, while PCAP gives a flush, easy-clean front for hygienic and outdoor areas.
Chassis Mount Panel PC Innovation & All-in-One Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
