Winmate W07IAN3S-GCO1HB 7″ G-WIN Front IP65 Panel PC with Intel N150 and MIL-STD-810G

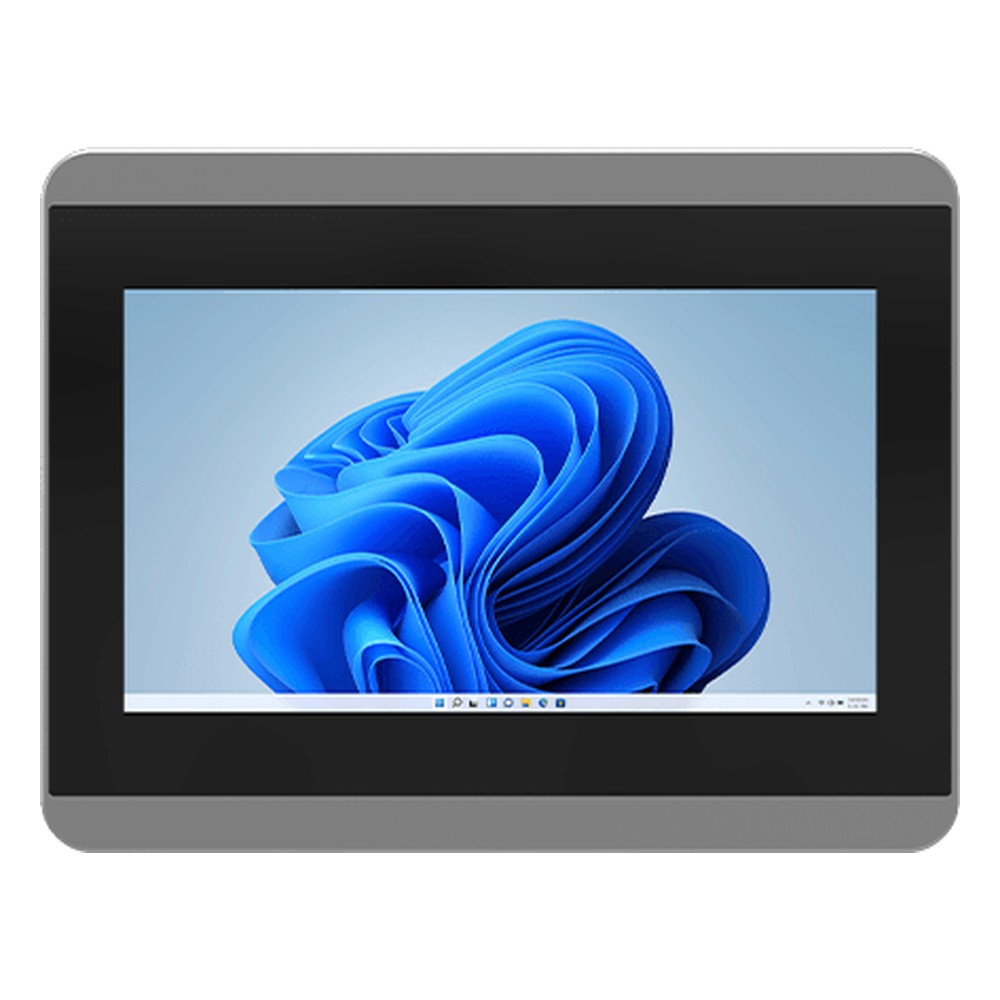

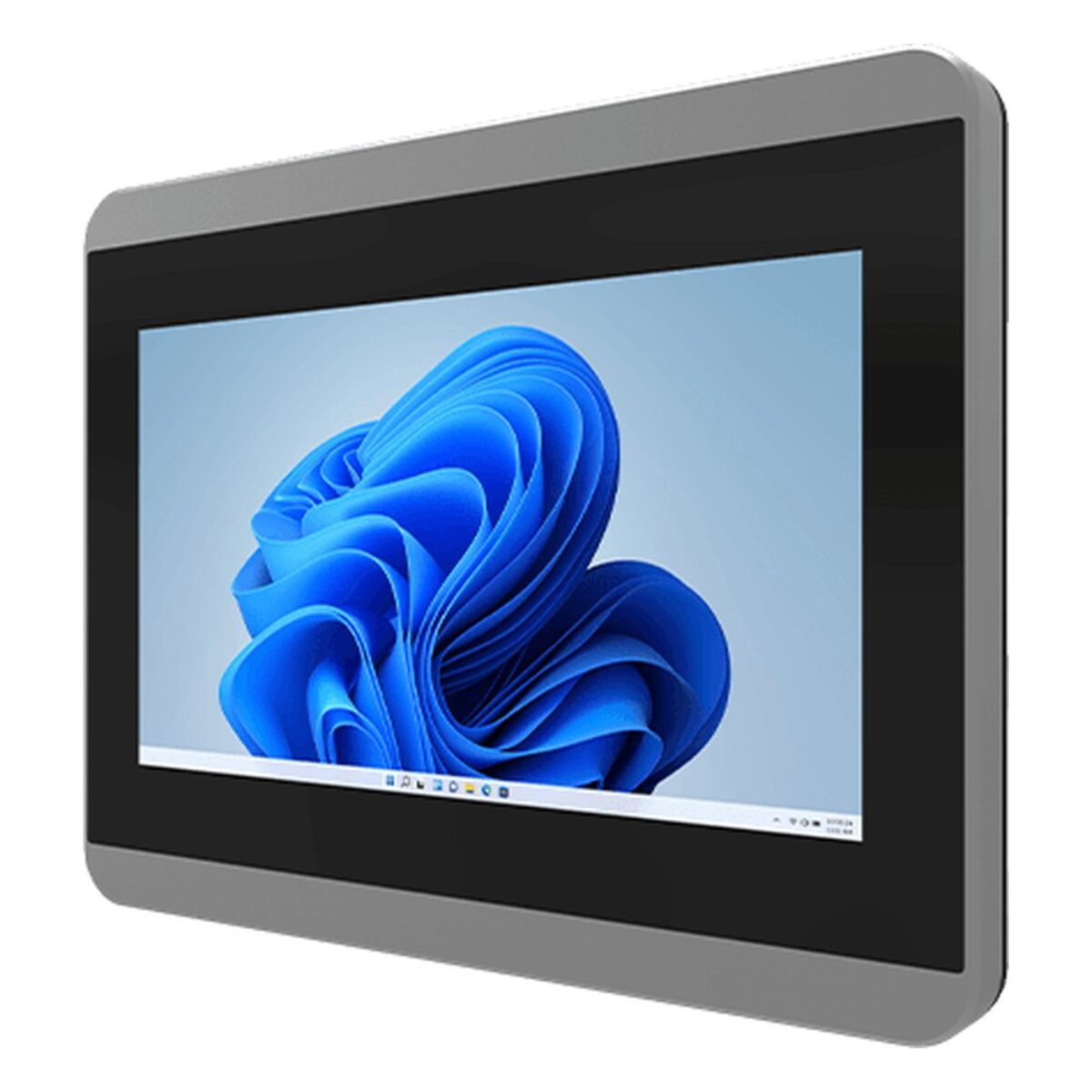

Small HMIs near windows, loading doors or under strong lighting can wash out at standard brightness. The W07IAN3S-GCO1HB is Winmate’s 7″ high-brightness G-WIN GC panel PC for machine control, factory automation and operator HMI, with a 1,000 nit PCAP display and an Intel Processor N150 behind a front IP65, edge-to-edge face in a metal housing with an aluminum bezel.

The N150 is a low-power quad-core processor running at up to 3.6 GHz, which suits HMI runtimes and simple dashboards in a fanless design. Memory is 8 GB as standard with a 16 GB option, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed. The 7 inch panel shows 1024 x 600 at 1,000 nits with 800:1 contrast and 170 degree viewing angles under projected capacitive multi-touch.

For such a small unit the I/O is generous: two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DP Alt mode up to 4096 x 2160 at 60 Hz, an optional HDMI 2.0b output and one RS-232/422/485 port, plus a speaker. Wi-Fi and Bluetooth are optional. The W07IAN3S-GCT1 is the same 7 inch GC design with a 320 nit panel for indoor lighting, and the W07MG3S-GCO1 pairs a 1,000 nit 7 inch panel with a MediaTek Genio 510 Arm processor.

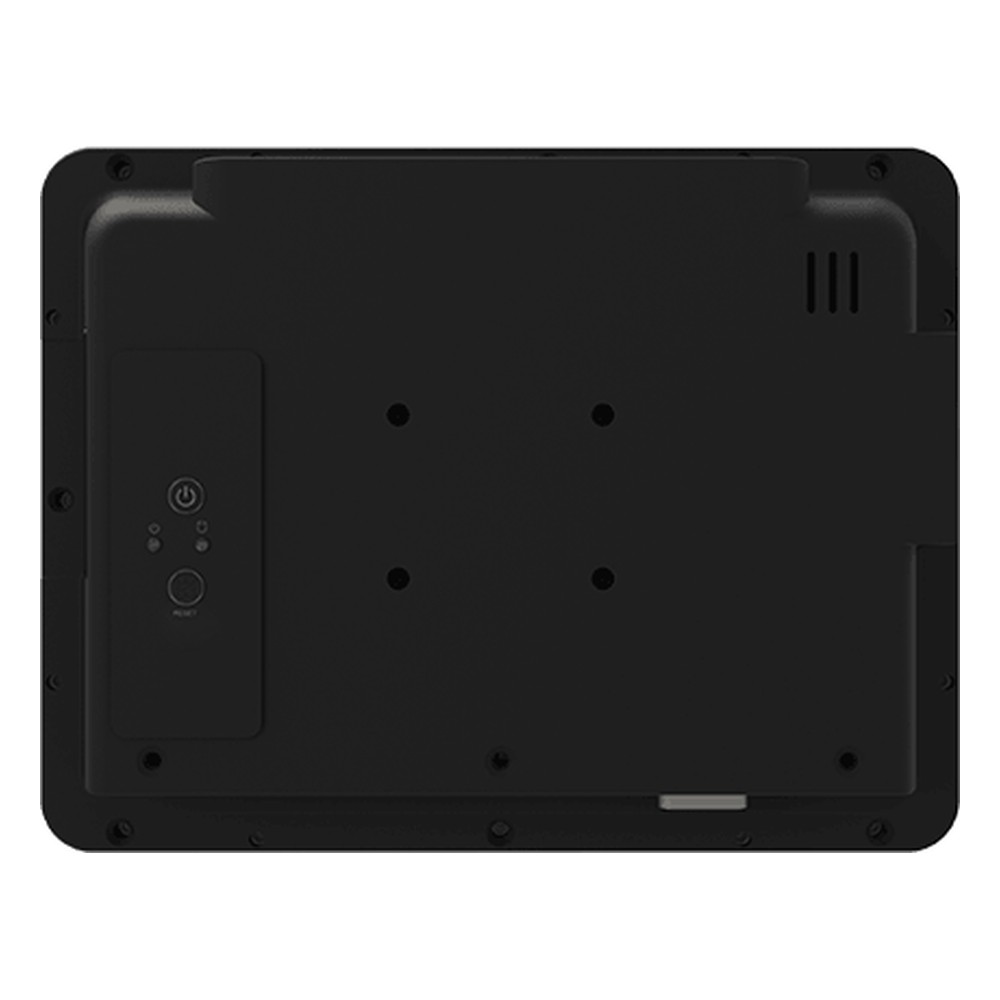

Power is 12 V DC, and an AC adapter is supplied. The W07IAN3S-GCO1HB runs from 0 °C to 50 °C, is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, and mounts on VESA as standard or in a panel with the optional front IP65 panel mount. It carries CE and FCC marks. We supply it configured, with the operating system installed, and tested before dispatch.
