US 7 Inch Panel PCs
7 Inch Industrial HMIs for Compact Machines and Vehicle Cabs
Seven inch panel PCs put a touch screen computer where a full-size HMI will not fit: a cab dashboard, a machine guard, a small cabinet door. Available in 6.5 to 8.4 inch formats with resistive or PCAP touch and a front IP65 bezel, they give the operator a complete HMI in the space of a gauge cluster.
Options include 9 to 36 V vehicle input, chassis-mount brackets for cabs and mobile machinery, and panel-mount or open-frame builds for fixed equipment, suited to vehicles, agricultural machinery and compact cells where vibration, gloves and rain on the screen are part of the job.
Speak to a panel PC specialist to match the format, input and mounting to your cab or machine.
// LOADING...
Browse Our 7 Inch Touch Screen Computers

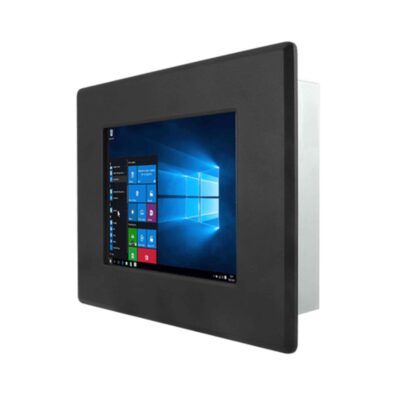

- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Processor N Series Twin Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

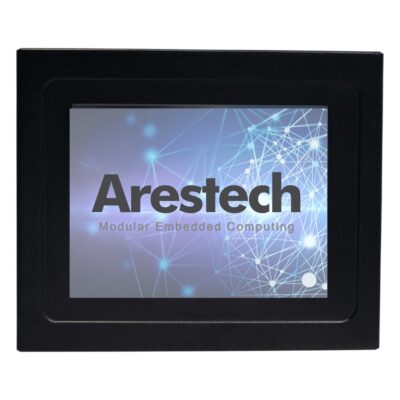

- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: 5-Wire Resistive Touch
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- M.2: 1x M.2 M-Key [PCIe x2/SATA] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD [PCIe & SATA]
- Power: 12-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP54
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 6.5"[4:3, 640 x 480, VGA]
- Touch: Optional Resistive Touch
- Brightness: 700
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Optional Resistive Touch
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Optional Resistive Touch
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 320
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron N Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x 2.5 GbE LAN [RJ45] [PoE-PD], 1x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block], AC Power Supply Included, PoE Powered Device (PD) [RJ45]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount, Wall Mount
7 Inch Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of small-format HMIs, so the ranges below are the ones we specify for cab dashboards and compact machine guards. Compare them by mounting, input and touch, then browse the models above or ask a panel PC specialist which range suits your cab or machine.
7 Inch Panel PCs
Winmate
IT7T and IE3S Winmate Open Frame Touch Computers
Housing-free modules from 7 to 23.8 inches with PCAP multi-touch, on Intel Celeron or Core i5 Tiger Lake with vPro, built to drop into kiosk, signage and OEM enclosures.
Winmate

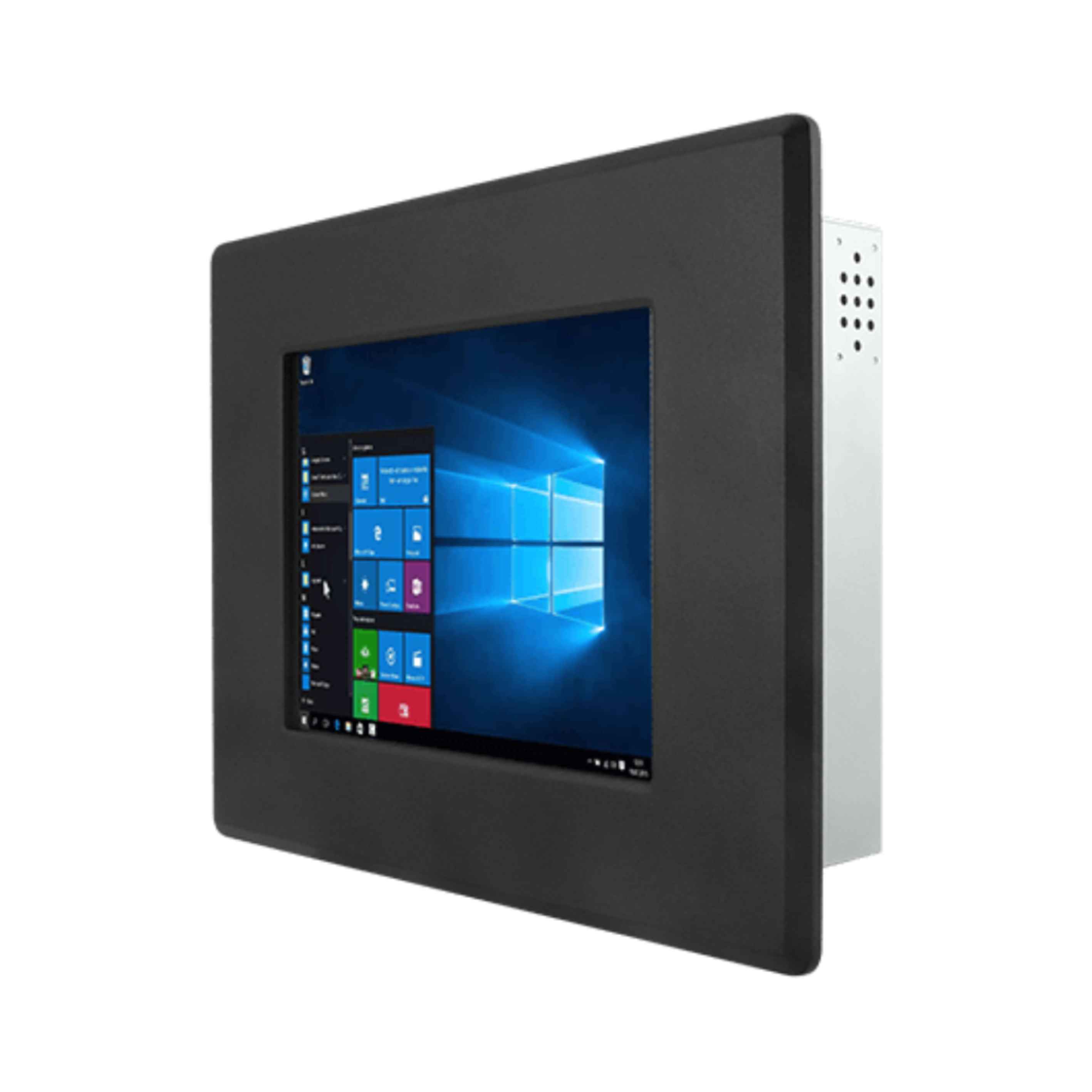

IE3S Winmate Compact Celeron HMIs
Small panel-mount and chassis touch PCs from 6.5 to 12.1 inches on Intel Celeron N6210, with resistive or PCAP touch, for machine guards, cabinet doors and pendant arms.
Winmate

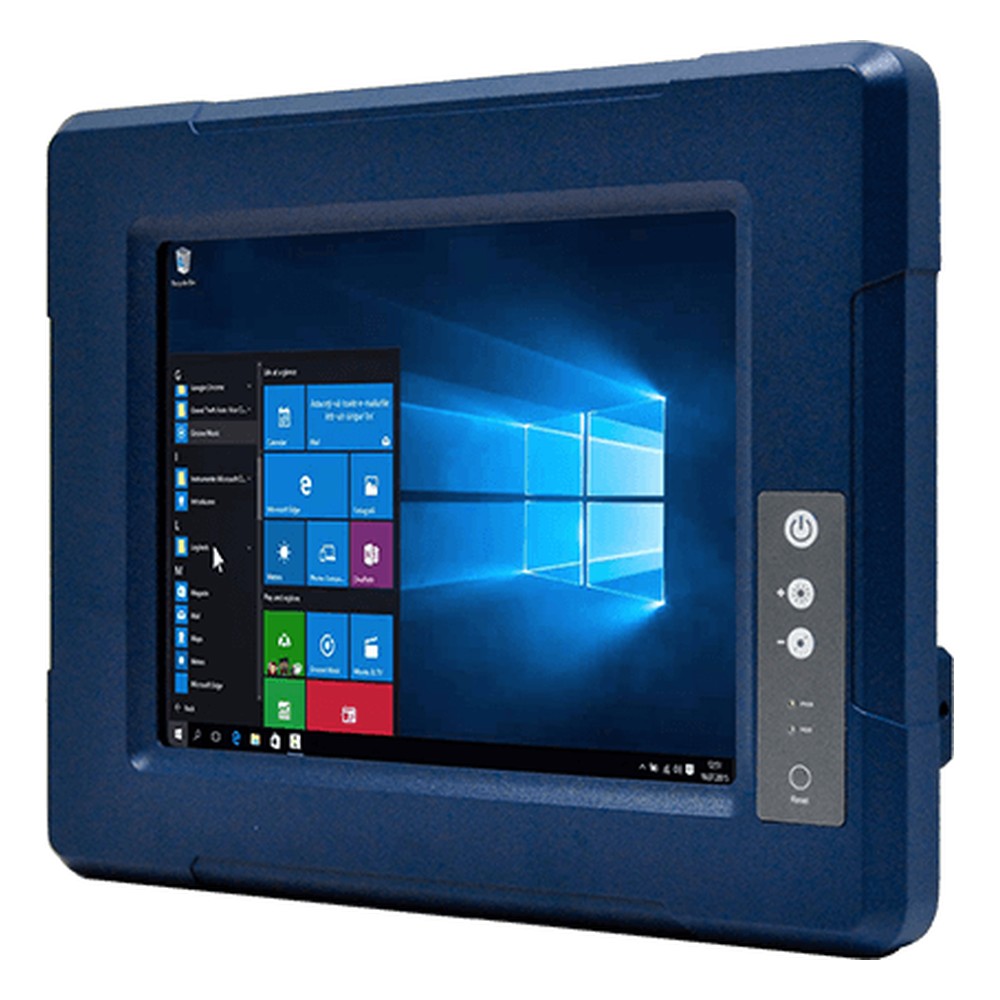

Winmate Vehicle Mount Rugged Computers
In-cab touch computers from 8.4 to 15 inches on Intel Celeron or Core i5, with sunlight-readable high-bright options and wide-range DC input, for forklifts, cabs and mobile machinery.
Not sure which range fits? Tell us the application and we will recommend the right model.
7 Inch Panel PC Innovation & Compact HMI Insights
We specialize in small-format HMIs for cabs, machine guards and compact cells where a full-size screen will not fit. Our team of embedded system design engineers recommends and configures 7 inch panel PCs to the format, input and mounting your vehicle or machine needs. Discover how we help fleet builders and machine builders put a complete HMI in the space of a gauge cluster, or read our guides to choosing an industrial HMI, touch technology and vehicle power standards.
