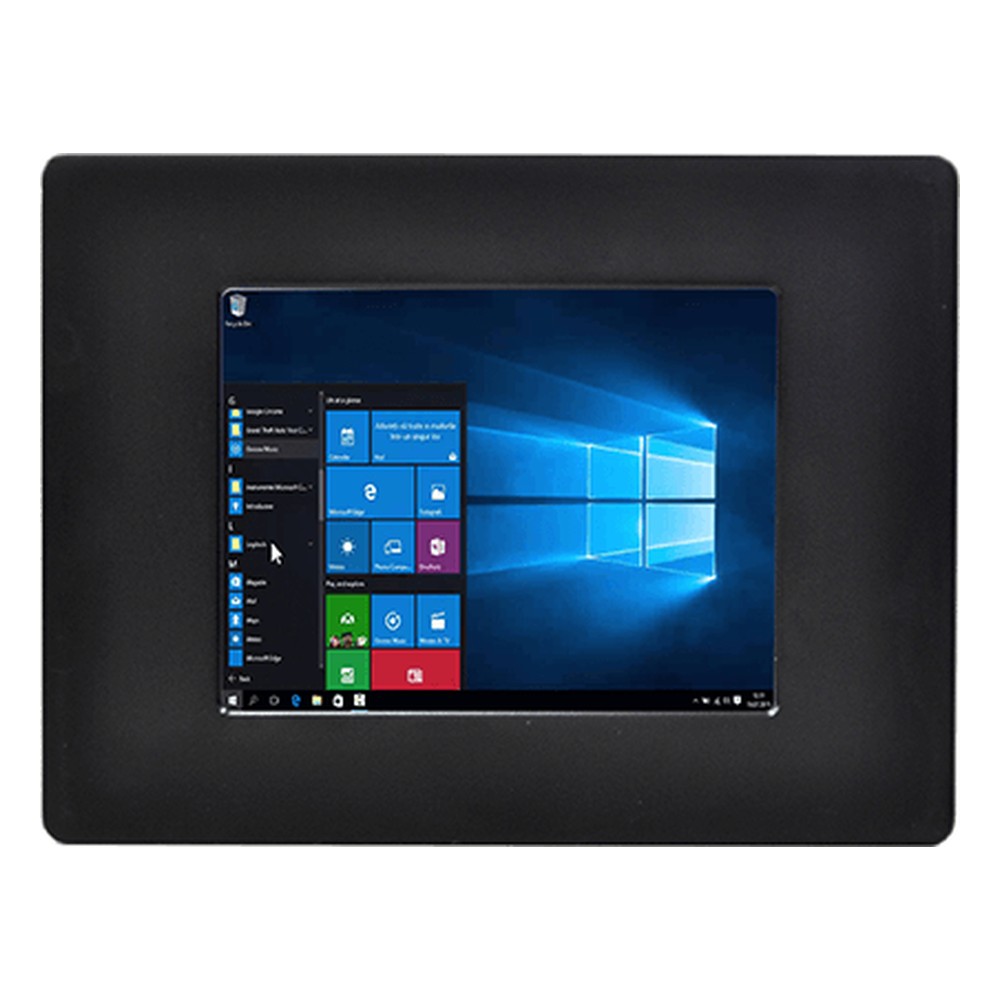

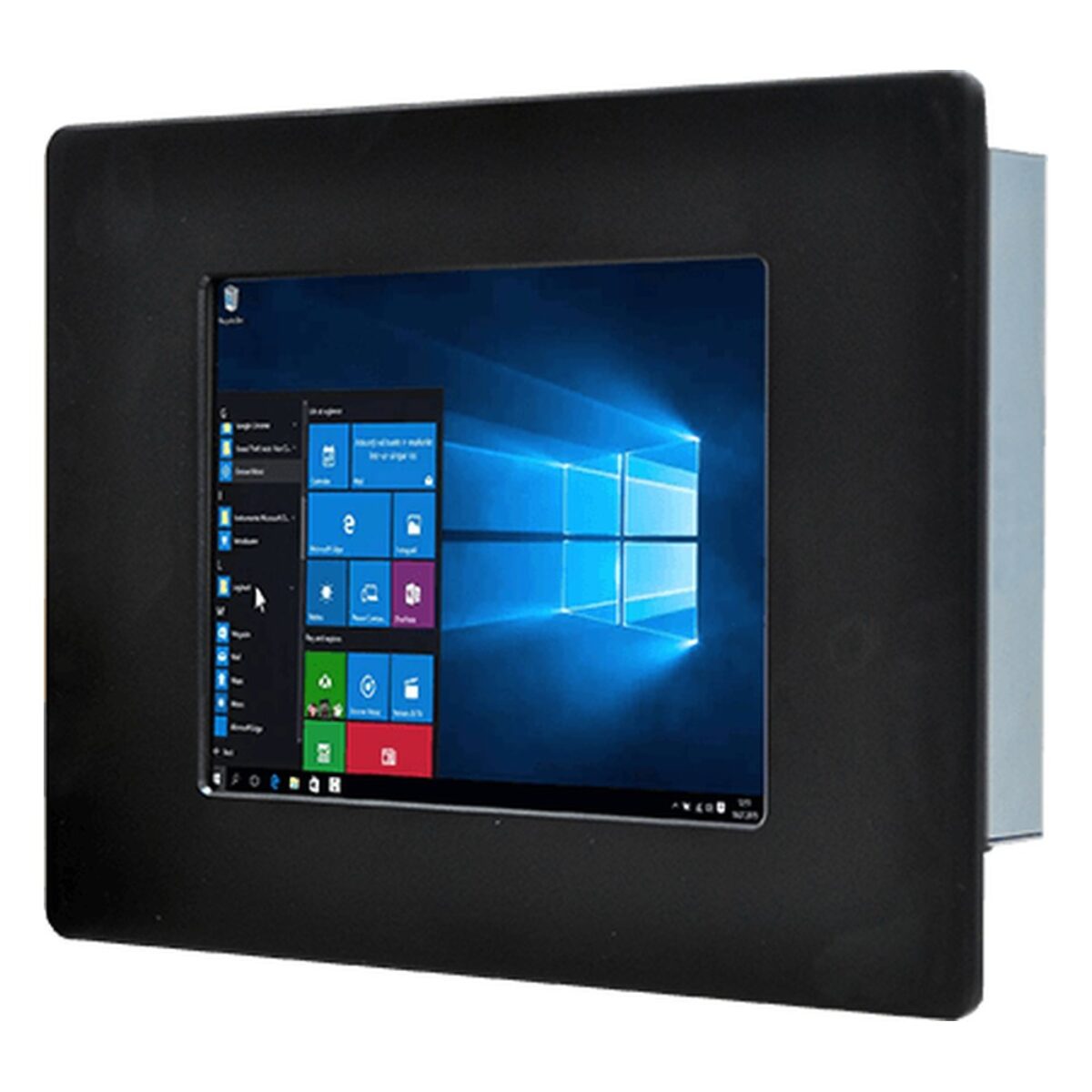

Winmate R06IE3S-IPA1 6.5″ Front IP65 Panel PC with Intel Celeron N6211 and Resistive Touch

Some machines only have room for a small operator screen, yet the panel still needs Ethernet, serial and a front that shrugs off a wash-down splash. The R06IE3S-IPA1 is Winmate’s 6.5 inch front IP65 panel PC for those spots, with a 6.5″ 640 x 480 display at 700 nits and an Intel Celeron N6211 in a fanless metal housing.

The Intel Celeron N6211 is a low-power Elkhart Lake processor running at up to 3.0 GHz, which suits a single HMI screen, a data entry form or a status display. Memory is DDR4 on one SO-DIMM, 4 GB as standard with 8 or 16 GB as options. A 128 GB SSD is standard, with larger options and an optional 2.5″ SATA III drive. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be supplied on the R06IE3S-IPA1.

Connections include two 2.5GbE ports on Intel Ethernet controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port (RS-232 by default) and one RS-232 port for PLCs, scanners and serial instruments, and two speakers. HDMI 2.0b is optional for a second screen and an M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the R06IAN3S-IPA1 keeps this front IP65 design with an Intel N150, and the R06IE3S-OFA1 is the open frame version with the same processor.

Power is 12 V DC on a barrel jack, with a 100 to 240 V AC adapter rated at 50 W and a power cord supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 to 60 °C. It is rated IP65 at the front, so the rear belongs inside a cabinet or enclosure. Panel mounting with the supplied clips is standard and VESA mounting is optional, with VESA screws in the box. It carries CE and FCC marks. We supply the R06IE3S-IPA1 configured, with the OS installed, and tested before dispatch.
