US Medical Grade Monitors
Medical Displays for Theatres, Wards and Clinical Carts
A medical grade monitor is designed to the IEC 60601-1 requirements for electrical equipment used near patients, so a touch screen can sit at the bedside, on a cart or in the operating theatre. Available from 15.6 to 32 inches with PCAP touch and a front IP65 face that wipes clean.
Options include 4K surgical monitors with 12G-SDI, full HD displays with VGA and HDMI, and medical panel PCs with an Intel Core processor behind the screen, suited to operating rooms, endoscopy, patient monitoring stations and clinical workstations.
Speak to a display specialist to match the size, video inputs and approvals to your device or ward.
Browse Our Medical Grade Displays
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 40°C [32°F to 104°F]
- IP Rating: Front IP65
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 24V DC [Terminal Block], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: EN55032, EN55035, FCC, IC (ICES-003), IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 62366, ISO 14971, REACH, RoHS, WEEE
- Mounting Options: VESA Mount
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Display Port
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe/SATA] [2242/2280]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 24V DC [Terminal Block], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: EN55032, EN55035, FCC, IC (ICES-003), IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 62366, ISO 14971, REACH, RoHS, WEEE
- Mounting Options: VESA Mount
- Display: 32"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1 x SDI Input, 1x VGA Input, 2 x Optional HDMI, 2x DVI Inputs
- Power: 24V DC
- Temp: 0°C to 35°C [32°F to 95°F]
- IP Rating: Front IP65
- Display: 32"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x HDMI 1.4, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 35°C [32°F to 95°F]
- IP Rating: Front IP65
- Display: 32"[16:9, 3840 x 2160, UHD]
- Touch: Multi Touch PCAP
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- Display Inputs: 1x 12G-SDI, 1x Display Port Input, 2 x Optional HDMI
- Power: 12V DC
- Temp: 0°C to 35°C [32°F to 95°F]
- IP Rating: Front IP65
Beyond Medical Grade: Displays
Medical Grade Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of medical displays, so the ranges below are the ones we specify for theatres, wards and medical devices. Compare them by size, video inputs and approvals, then browse the models above or ask a display specialist which range suits your application.

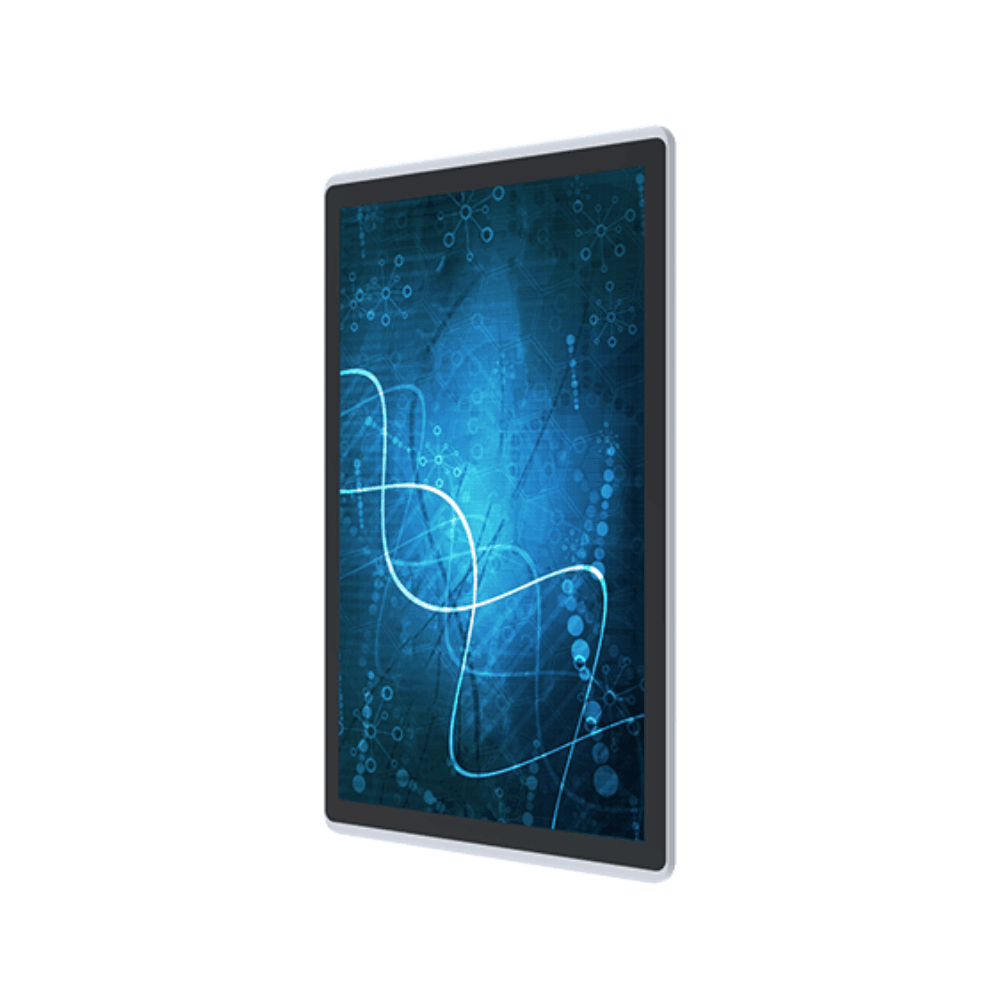

Winmate Medical PCAP Touch Monitors
Full HD touch screens at 15.6 and 32 inches with a front IP65 face and VGA and HDMI inputs, for wards and clinical carts.

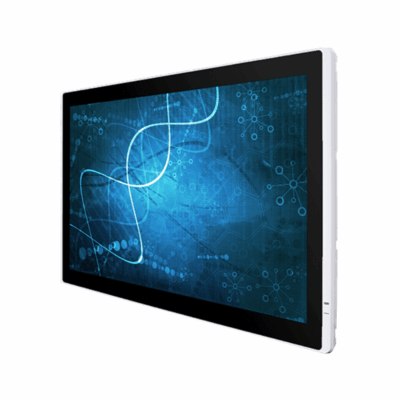

Winmate 4K Surgical Monitors
Theatre displays at 32 inches and 3840 x 2160 with PCAP touch and an IP65 front, including a 12G-SDI build for theatre cameras.

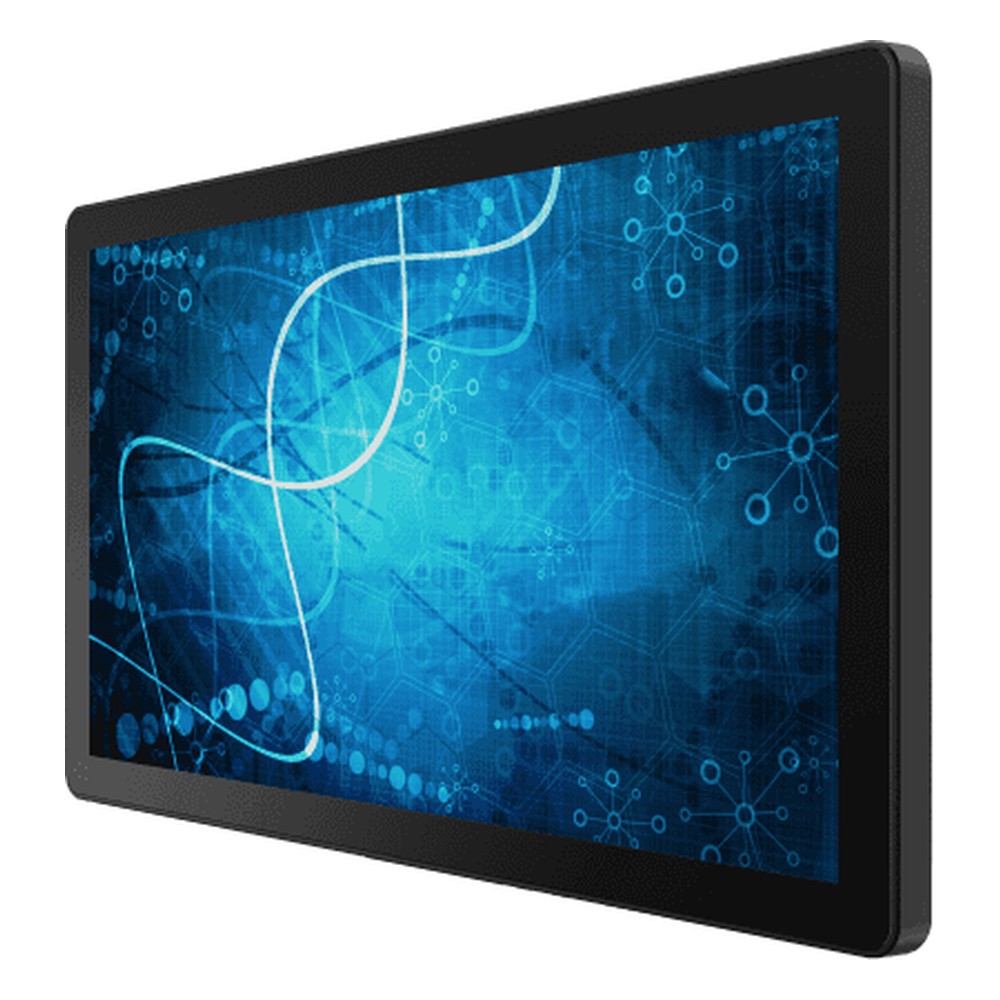

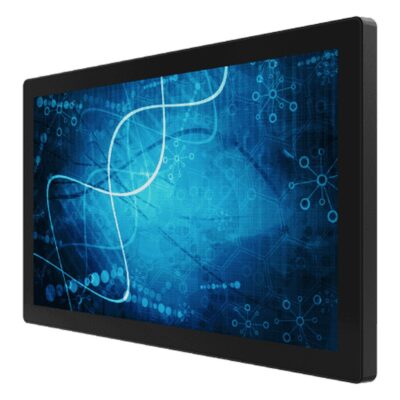

Winmate Medical Panel PCs
Touch computers at 21.5 and 23.8 inches on the Intel Core i5-1135G7, listed against IEC 60601-1, for nurse stations and bedside terminals.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Medical Grade Touch Screen Monitor
A medical grade touch screen monitor is chosen on the standard it carries and where it sits in the clinic or theatre. Sealing, resolution, inputs and touch decide whether it suits the equipment it connects to.
IEC 60601-1 Approval
Check the IEC 60601-1 edition and collateral standards listed for each model against the equipment it will join.
Front IP65
A sealed front face and flat glass for wipe-down cleaning between patients, with no lip where fluids can collect.
4K or Full HD
4K panels for surgical video where detail matters, full HD for wards, carts and nurse stations.
Video Inputs
12G-SDI, DisplayPort, HDMI and VGA inputs on selected models, to suit the surgical camera or host computer.
PCAP Touch
Multi-touch through the protective glass for clinicians working at the screen, with a flush front that cleans easily.
Disinfectant-Safe Surfaces
Check the front glass and housing against the disinfectants used in your area, as cleaning routines vary by site.
Medical Grade Monitor Innovation & Surgical Display Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
