Winmate W32L100-PTA1 32″ Surgical PCAP Touch Monitor with 3840 x 2160, SDI and IP65 Front
PCAP
Front IP65W32L100-PTA1 Overview

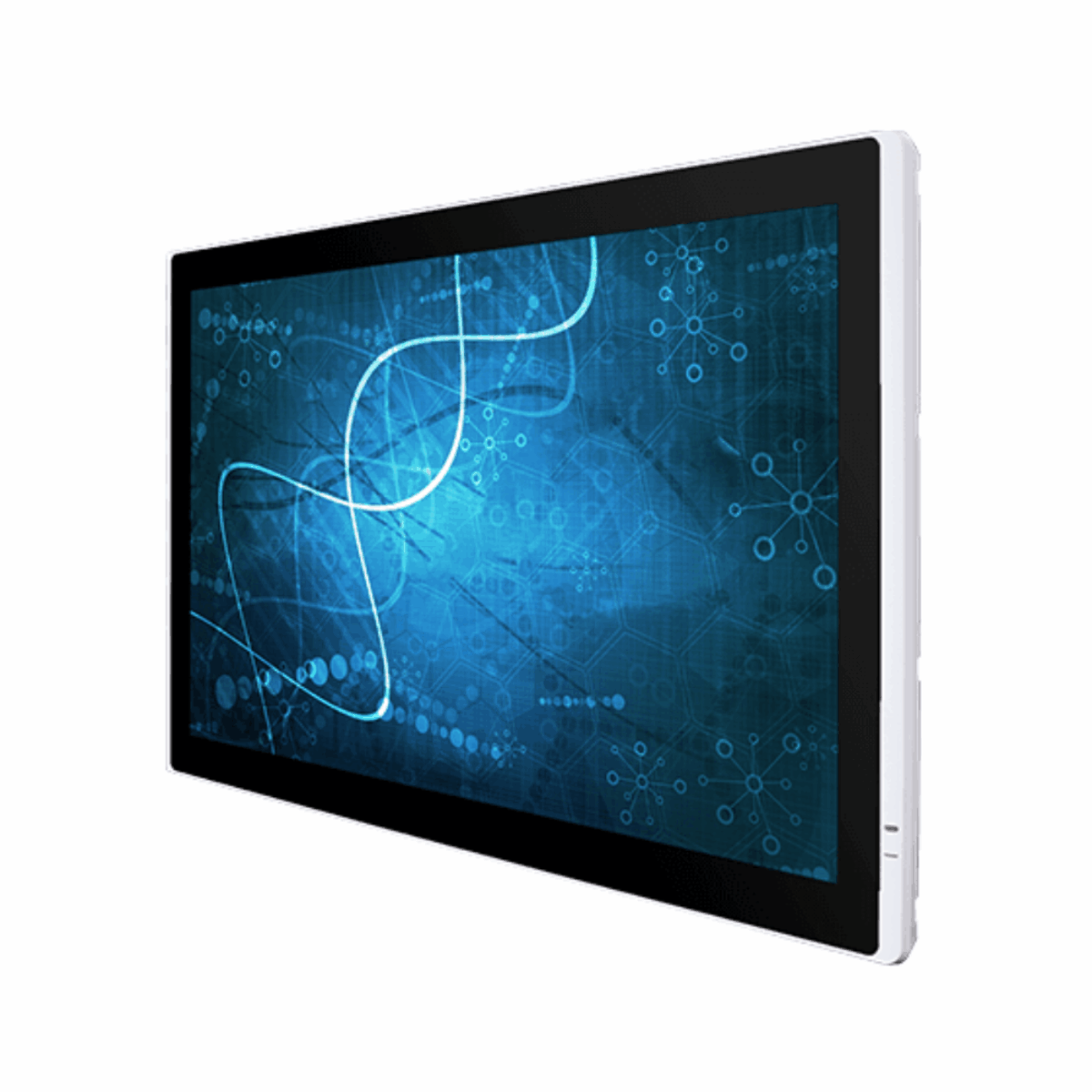

Theatre and imaging teams need a large, sharp display that takes camera and PACS sources at once and can be wiped down between cases without vents trapping fluid. The W32L100-PTA1 is Winmate’s 32 inch surgical touch monitor: a fanless, ventless 3840 x 2160 PCAP display with an IP65 front and a housing with antimicrobial properties.

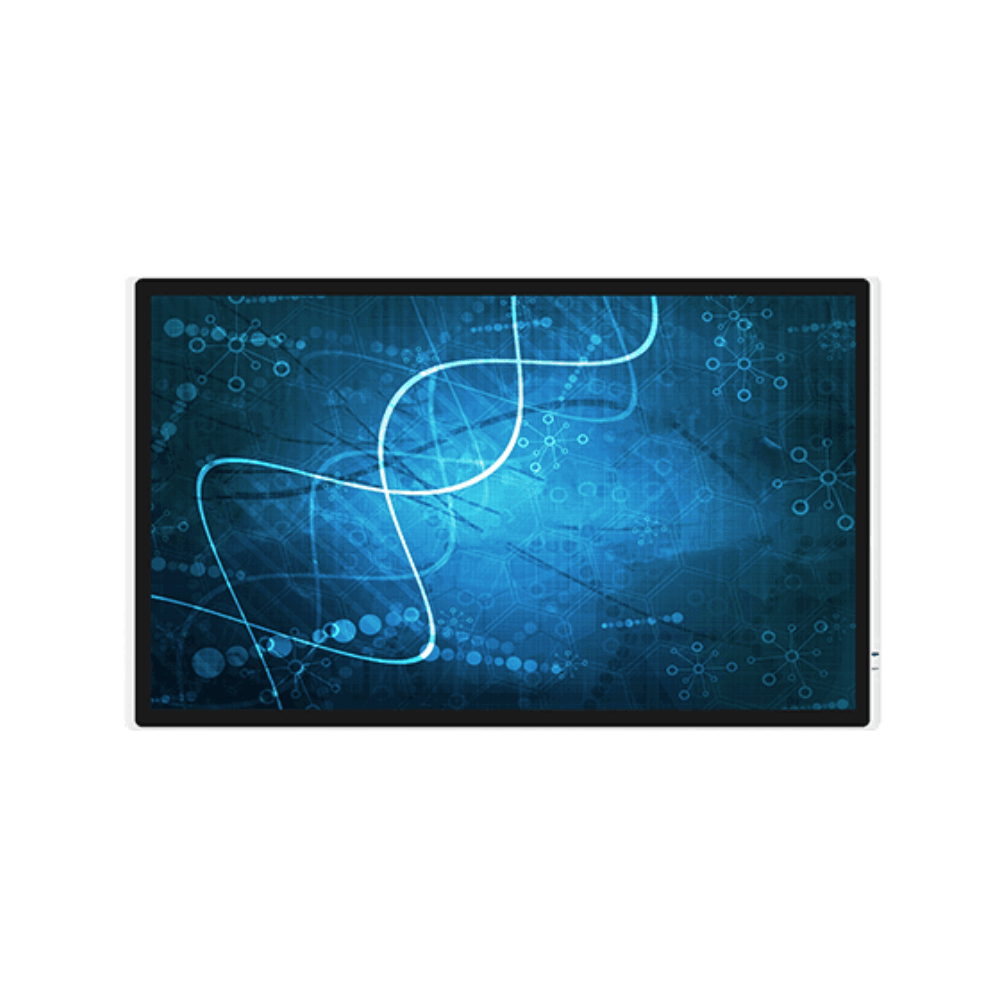

The 16:9 panel runs at 3840 x 2160 with 350 nits brightness, a 1000:1 contrast ratio, 178° viewing angles and 1.07 billion colors. Projected capacitive multi-touch covers the screen, and five keys on the bottom edge handle brightness, menu and power, with an IR remote control supplied for adjustments from across the room. The resolution shows surgical and diagnostic images at full detail, with room for patient data beside them.
Inputs are dual-link DVI, DisplayPort 1.2, VGA and 3G-SDI, with HDMI 1.4 and HDMI 2.0 as options, and DisplayPort and 3G-SDI outputs pass the picture to a second display. RS-232, an RJ-11 GPIO port, USB 2.0, mic in, line out and two speakers complete the I/O. The W32L100-PTA1-SDI is the 12G-SDI version, and the W32L100-PTA3-ME gives a 1920 x 1080 model with VGA and HDMI.

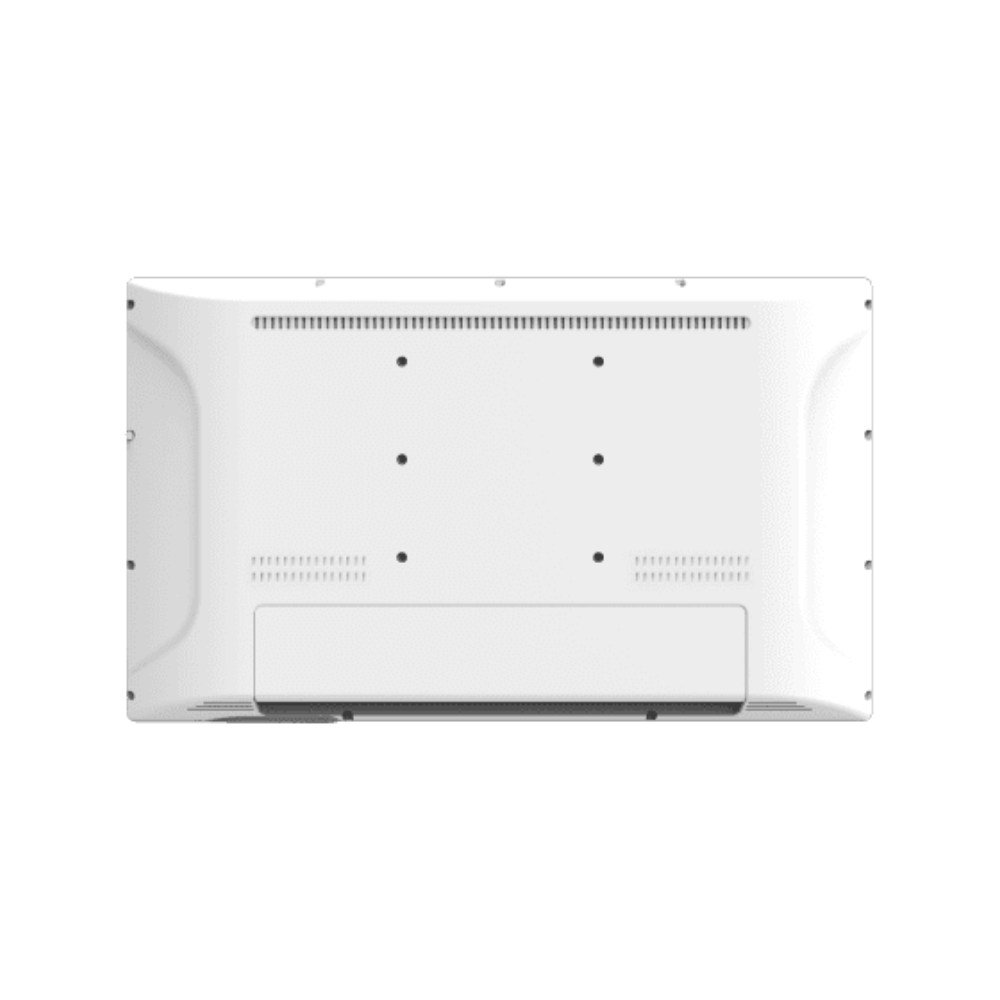

Power is 24 V DC, with a 24 V power supply supplied. Winmate certifies the monitor to IEC 60601-1 edition 3.1, IEC 60601-1-6, IEC 62366, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 and IEC 60601-1-2 edition 4.0 for EMC. It measures 799 x 478 x 63.7 mm, weighs 18.5 kg, mounts on VESA 200 x 200 or 200 x 100 holes and operates from 0 to 35 °C at 10 to 90% humidity. The ventless design leaves no openings on the housing for fluid to enter.
W32L100-PTA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-PTA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 3840 x 2160, UHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 6x Display Ports |
| Video Inputs | 1 x SDI Input 1x VGA Input 2 x Optional HDMI 2x DVI Inputs |
| Power | |
| Power Input | 24V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 35°C [32°F to 95°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Mechanical Properties | |
| Dimensions | 799mm x 478mm x 64mm (31.46" x 18.82" x 2.52") |
- W32L100-PTA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-PTA1 configured for USA medical equipment projects. Within the Winmate range the W32L100-PTA1-SDI swaps to 12G-SDI in and loop-out for 3840 x 2160 camera feeds, and the W32L100-PTA3-ME gives a 1920 x 1080 model with VGA and HDMI.
With SDI in and out and an IP65 front, the W32L100-PTA1 sits among our SDI monitors, our front IP65 monitors and our PCAP touch monitors. Where a theatre or imaging suite needs a 32 inch certified touch display with wide video I/O, this is the model to specify.
