Winmate W32L100-PTA3-ME 32″ Medical PCAP Touch Monitor with 1920 x 1080, IP65 Front and VGA and HDMI
PCAP
Front IP65W32L100-PTA3-ME Overview

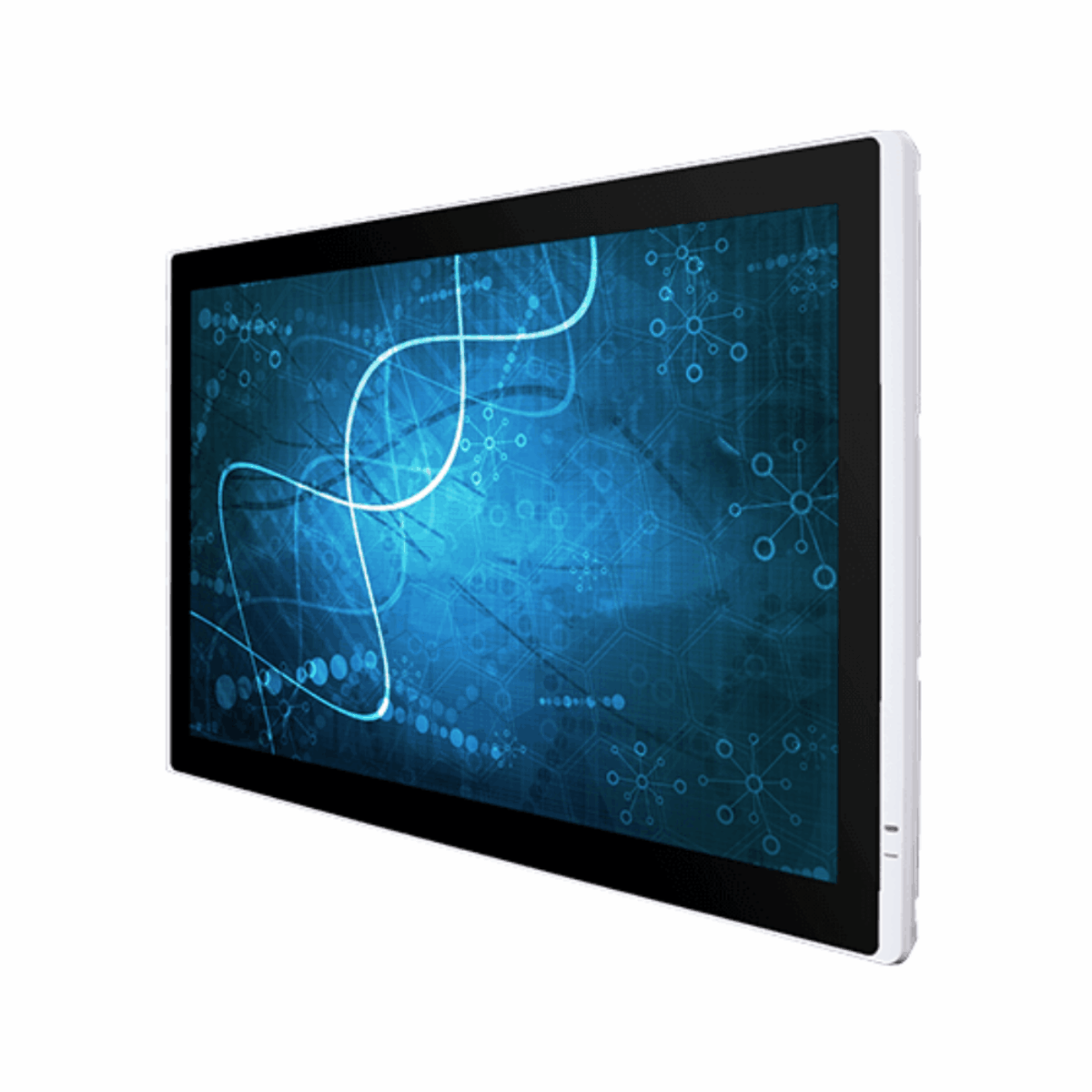

Nurse stations and clinical carts need a large touch screen that meets medical electrical standards and survives daily wipe-downs, without paying for 3840 x 2160 where records and dashboards do not need it. The W32L100-PTA3-ME is Winmate’s 32 inch medical touch monitor: a fanless, ventless 1920 x 1080 PCAP display with an IP65 front.

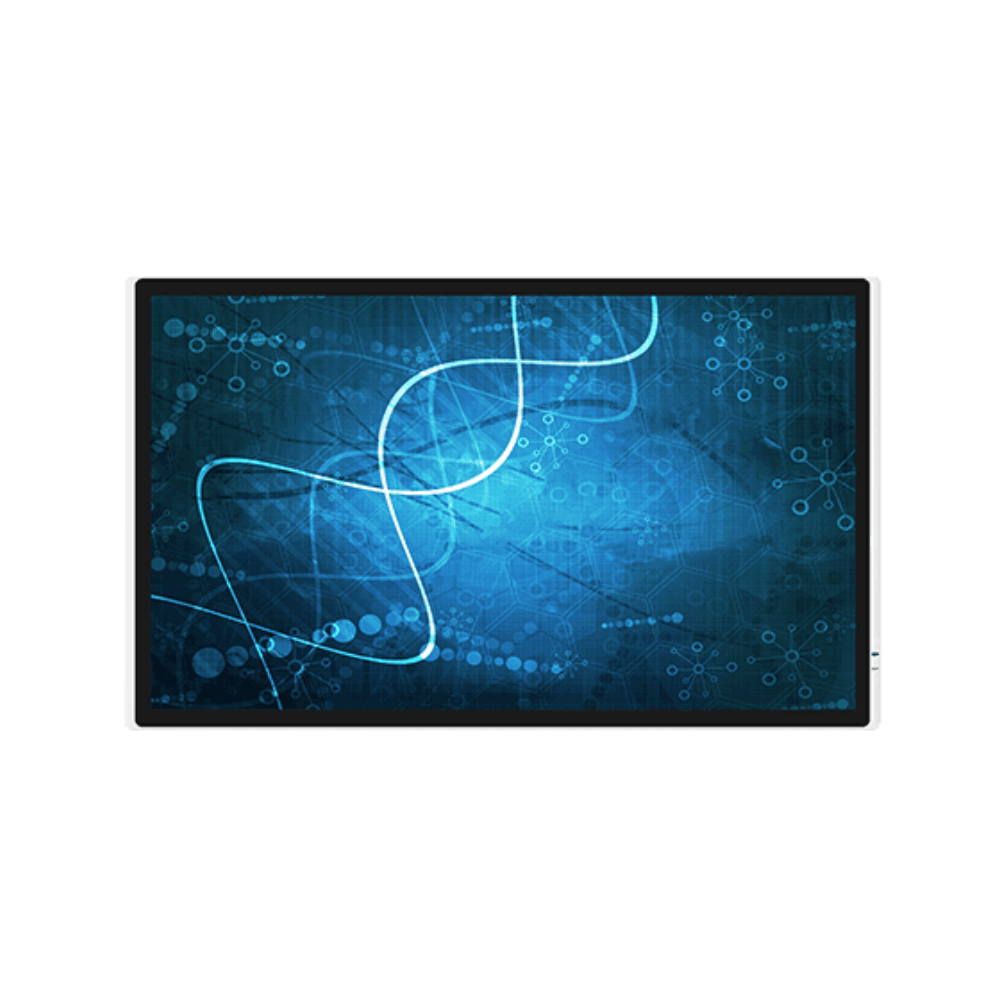

The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch connects over USB, and five keys along the bottom edge handle brightness, menu and power, with a remote controller in the box. The 1920 x 1080 resolution matches most records systems and dashboards without scaling.
Video inputs are VGA and HDMI, which suit the clinical PCs and cart computers already in use, and two speakers are built in for alerts. VGA and HDMI cables come in the box. The W32L100-PTA1 is the 3840 x 2160 surgical model with SDI and wider I/O, and the W32L100-PTA1-SDI adds 12G-SDI for theatre cameras.

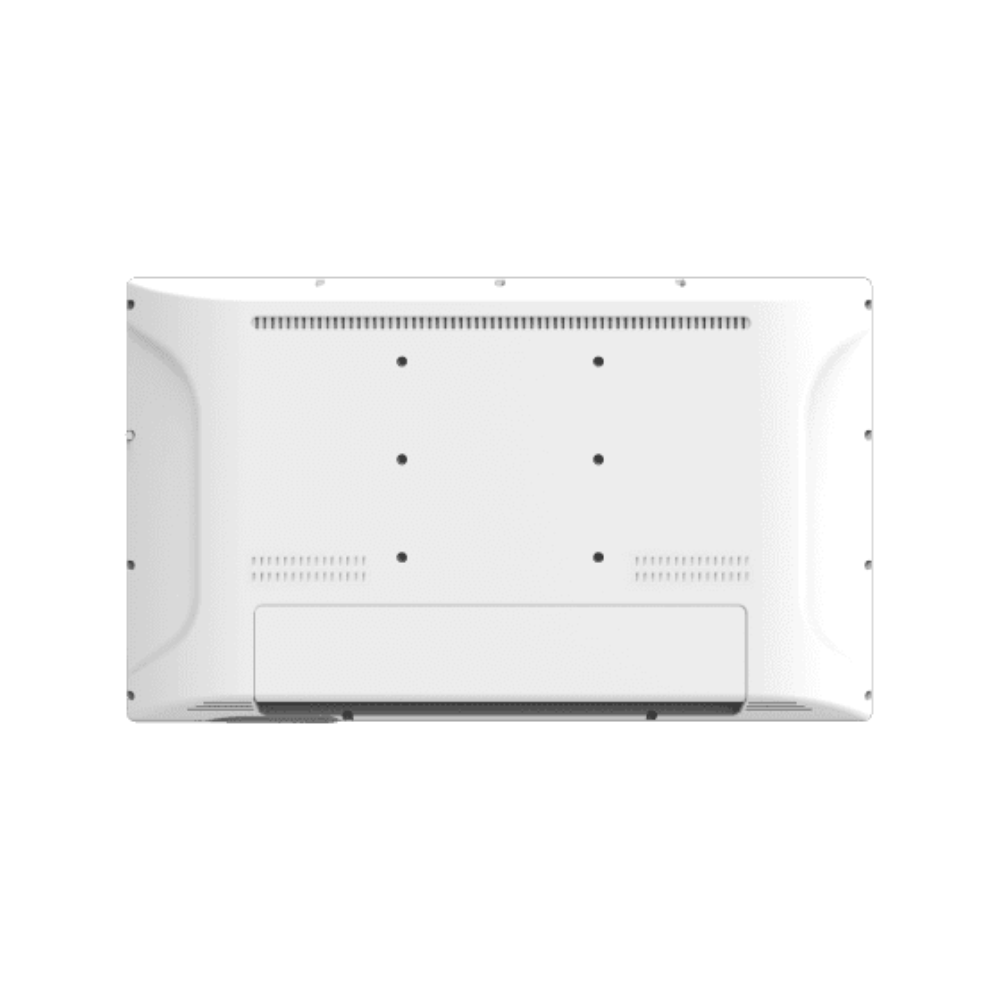

Power is 12 V DC, with 24 V DC as an option, and a 100 to 240 V AC adapter is supplied. Winmate lists compliance with IEC 60601-1 edition 3.1, IEC 60601-1-6, IEC 62366, ANSI/AAMI ES60601-1 and IEC 60601-1-2 edition 4.0, and the monitor carries CE and FCC marks. It measures 799 x 478 x 63.7 mm, weighs 18.5 kg, mounts on VESA 200 x 200 or 200 x 100 holes and operates from 0 to 35 °C. The ventless design leaves no openings for fluid to enter the housing.
W32L100-PTA3-ME Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-PTA3-ME |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x HDMI 1.4 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 35°C [32°F to 95°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Mechanical Properties | |
| Dimensions | 799mm x 478mm x 64mm (31.46" x 18.82" x 2.52") |
- W32L100-PTA3-ME Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-PTA3-ME configured for USA healthcare projects. Within the Winmate range the W32L100-PTA1 moves to 3840 x 2160 with SDI and wider I/O for theatres, and the W32L100-PTA1-SDI adds 12G-SDI in and loop-out.
With an IP65 front and PCAP touch, the W32L100-PTA3-ME sits among our front IP65 displays, our PCAP touch monitors and our chassis monitors. Where a ward or cart needs a 32 inch medical touch display on VGA or HDMI, this is the model to specify.
