US AV over IP
HDMI Over IP for Control Rooms, Broadcast and Signage
AV over IP sends HDMI, SDI and DisplayPort video across a standard Ethernet network, so any source can reach any screen, recorder or studio without a dedicated cable for every route. The range covers encoders, decoders and transceivers for NDI, Dante AV, SDVoE and compressed H.26X streaming, from compact single-channel PoE units to four-channel AI streaming encoders, at up to 4K60.
Options include copper RJ45 or SFP+ fiber network ports, USB UVC outputs that present a stream as a webcam, loop-outs for a local monitor, local recording and optional 5G on selected encoders, suited to control rooms, broadcast and live production, lecture and conference spaces and digital signage where sources and screens move and cable runs are long.
Speak to an AV over IP specialist to match the protocol, video interfaces and network ports to your system.
Browse Our Video Over IP Encoders and Decoders
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 22.04
- Display Outputs: 1x Mini Display Port
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C]
- Simultaneous Video Inputs: 1
- Video Input: 1x RJ45 (10G)
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x2] [2230]
- Storage: 1x M.2 SSD
- Power: 12-36V DC [2-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Memory: 16GB Soldered On-board, 8GB Soldered On-board
- OS: Linux, Linux Ubuntu 22.04
- Display Outputs: 1x Mini Display Port
- Ethernet: 1x 10 GbE LAN [LC], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type C]
- Simultaneous Video Inputs: 1
- Video Input: 1x LC (10G)
- M.2: 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x2] [2230]
- Storage: 1x M.2 SSD
- Power: 12-36V DC [2-Pin]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x RJ45 (10G)
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x SFP+ (10G)
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x RJ45 (10G)
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x SFP+ (10G)
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x DP, 1x DVI-DL, 1x HDMI2.0, 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x RJ45 (10G), 2x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x DP, 1x DVI-DL, 1x HDMI2.0, 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x SFP+ (10G), 2x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Power: 7.5-15V DC
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x DVI-I, 1x S-Video, 1x SDI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x RJ45 (10G), 1x SFP+ (10G)
- Power: 7.5-15V DC, PoE Powered Device (PD) [RJ45]
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x RJ45 (10G), 1x SFP+ (10G)
- Power: 7.5-15V DC, PoE Powered Device (PD) [RJ45]
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- Simultaneous Video Inputs: 1
- Video Input: 1x DP
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x RJ45 (10G), 1x SFP+ (10G)
- Power: 7.5-15V DC, PoE Powered Device (PD) [RJ45]
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x RJ45 (10G), 1x SFP+ (10G)
- Power: 7.5-15V DC, PoE Powered Device (PD) [RJ45]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI, 1x DP, 1x DVI-DL, 1x HDMI2.0, 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x RJ45 (10G), 1x SFP+ (10G), 2x 12G-SDI
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Power: 7.5-15V DC
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0, 1x RJ45 (10G), 1x SFP+ (10G)
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x RJ45 (10G), 1x SFP+ (10G)
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Power: 7.5-15V DC, PoE Powered Device (PD) [RJ45]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0, 1x RJ45 (10G), 1x SFP+ (10G)
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0, 1x RJ45 (10G), 1x SFP+ (10G)
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Power: 7.5-15V DC
AV Over IP Ranges Configured by Things Embedded
We work with a leading manufacturer of AV over IP equipment, so the ranges below are the ones we specify for control rooms, studios and signage networks. Compare them by protocol, video interface and network port, then browse the models above or ask an AV over IP specialist which range suits your network.

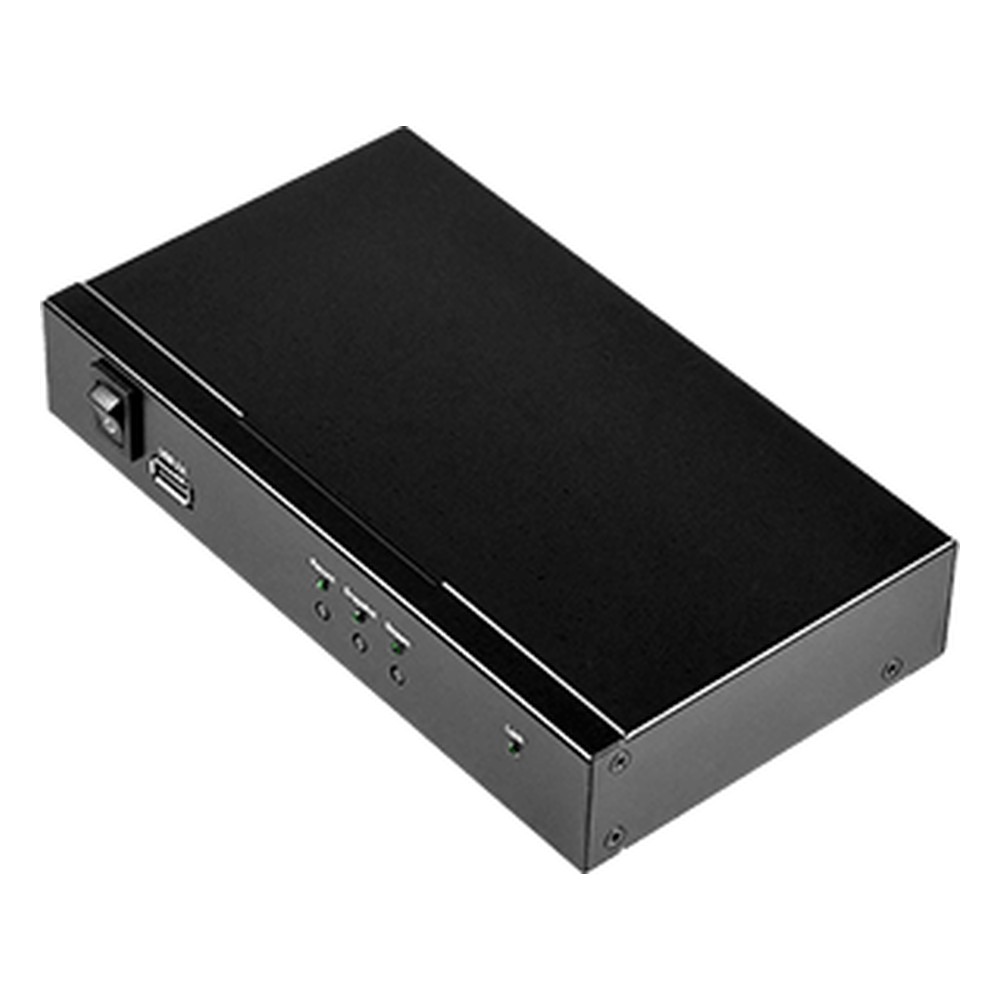

SC6F0N1 Yuan Full NDI Encoders and Decoders
HDMI 2.0 and 12G-SDI units that encode and decode NDI HX at 4K60, with Full NDI on license, optional Wi-Fi and PoE input.

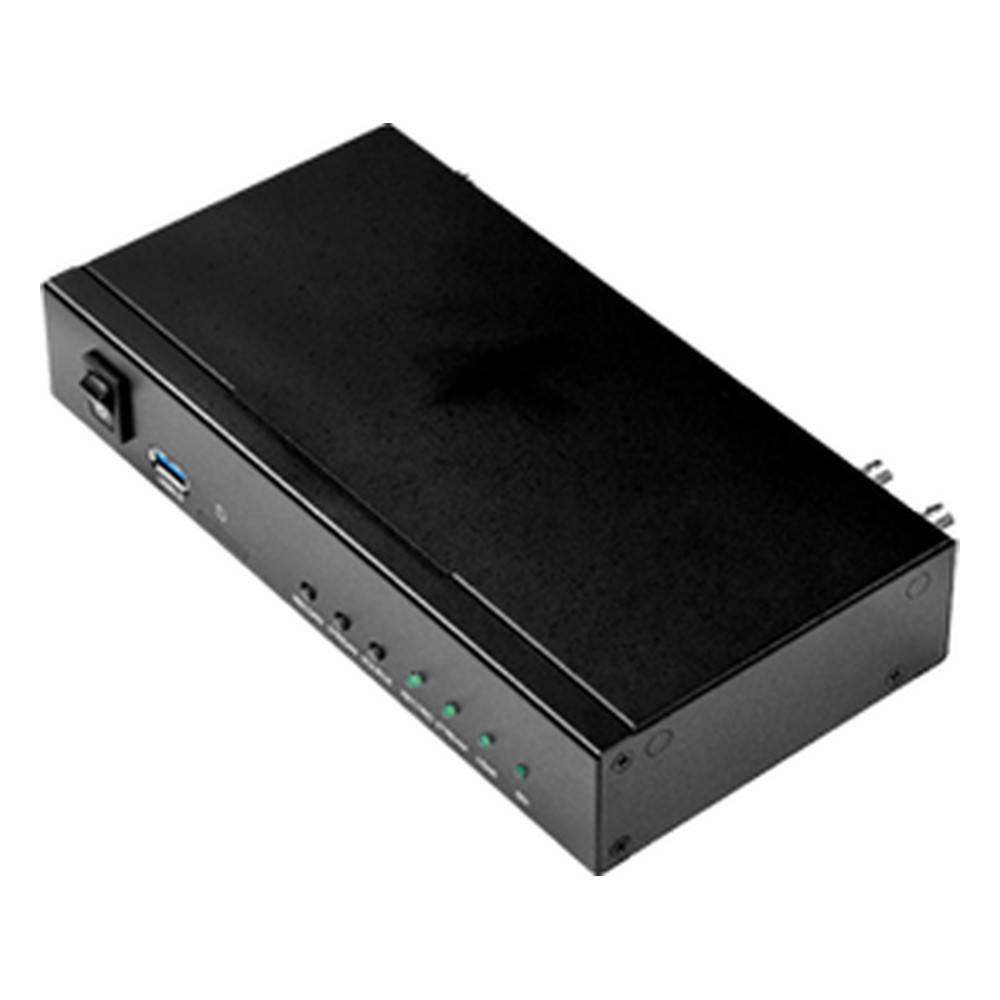

SC6E0N1 Yuan NDI HX Encoders and Decoders
Compact HDMI encoders, IP and UVC decoders and multi-input SDI, HDMI and analog units for NDI HX, SRT and RTSP streaming at up to 4K60.

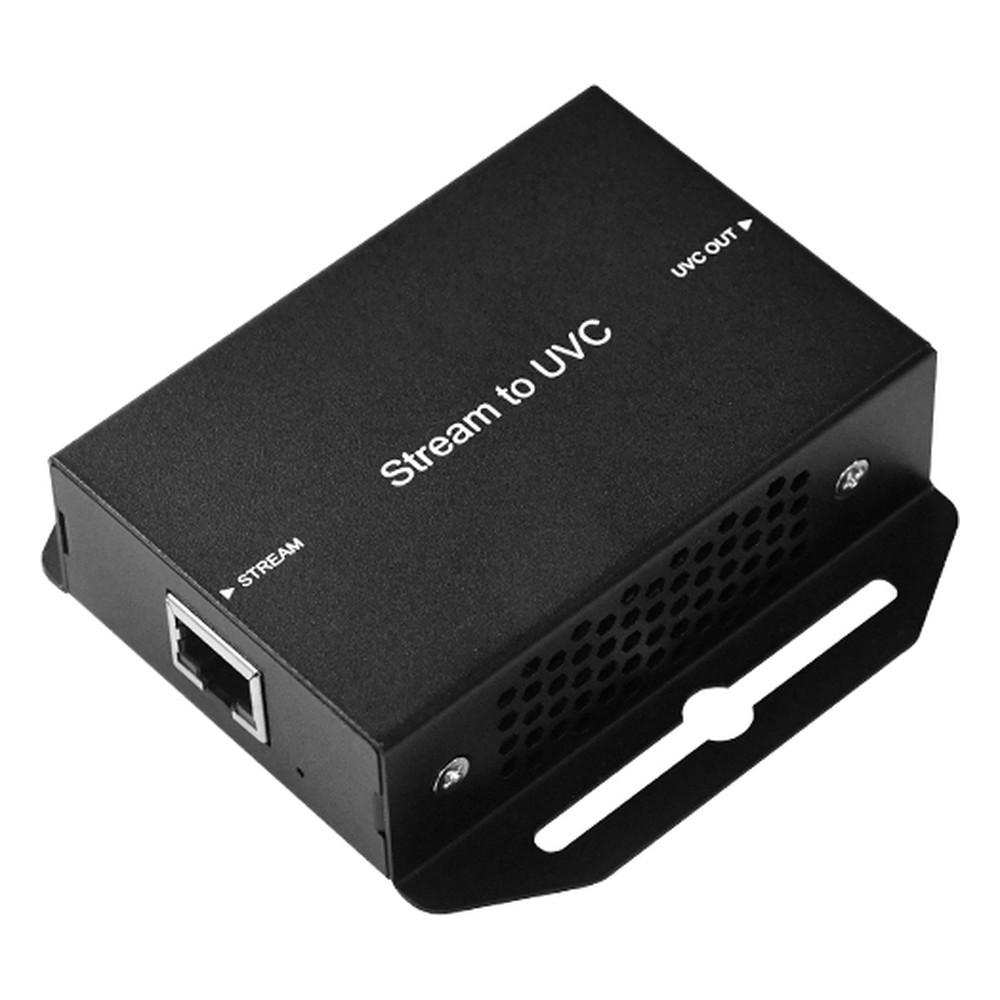

SC6G0N1 Yuan 4K Encoders, Decoders and UVC Bridges

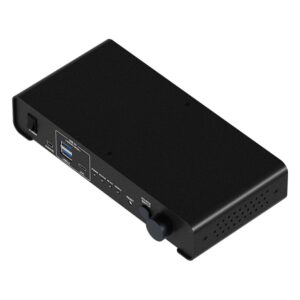

HDMI 2.0 encoders and decoders that can present a stream as a USB webcam, plus a USB-C and HDMI data bridge with KVM, most of them PoE powered.

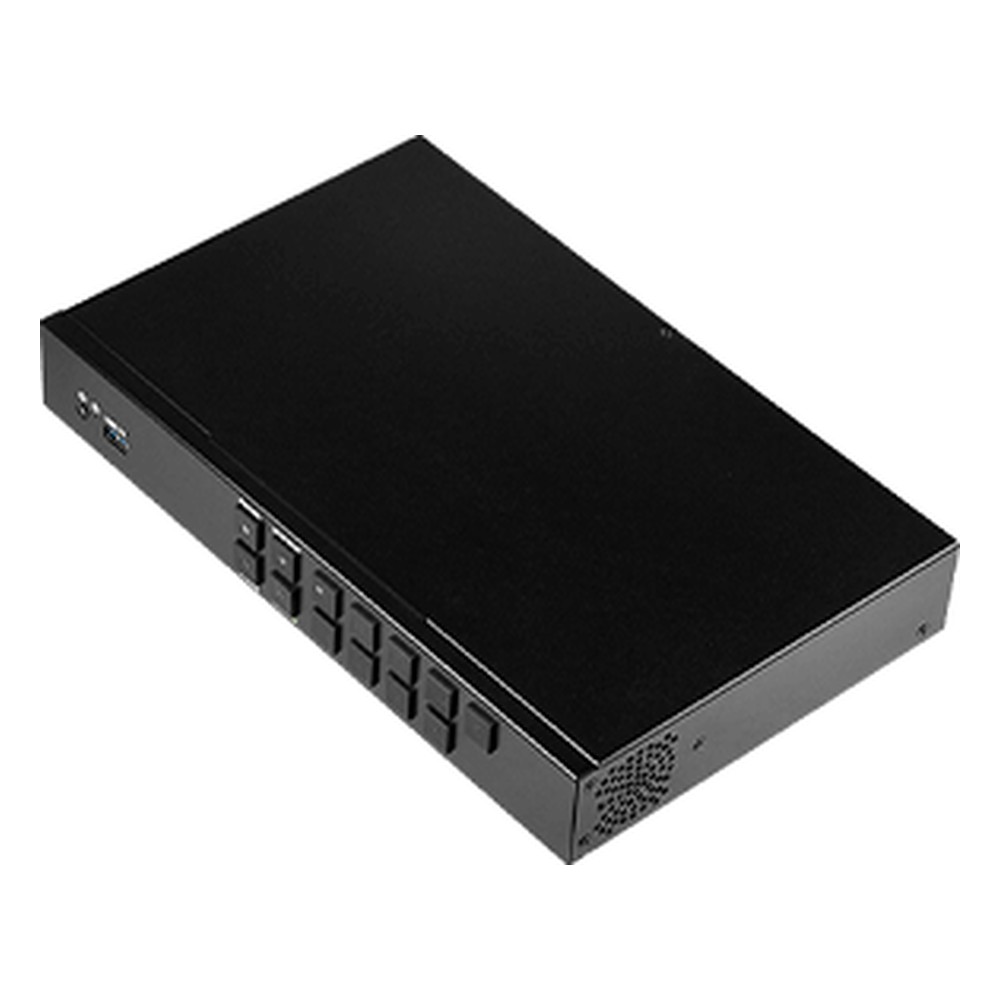

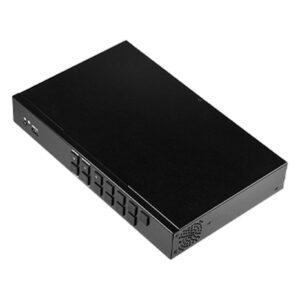

SC6T0N4 Yuan Four-Channel AI Streaming Encoders
Four 12G-SDI, 6G-SDI, HDMI 2.0 or HDMI inputs on an 11th Gen Intel Core i7, with multiview, on-device AI features and optional 4G LTE or 5G.

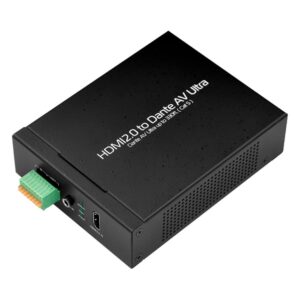

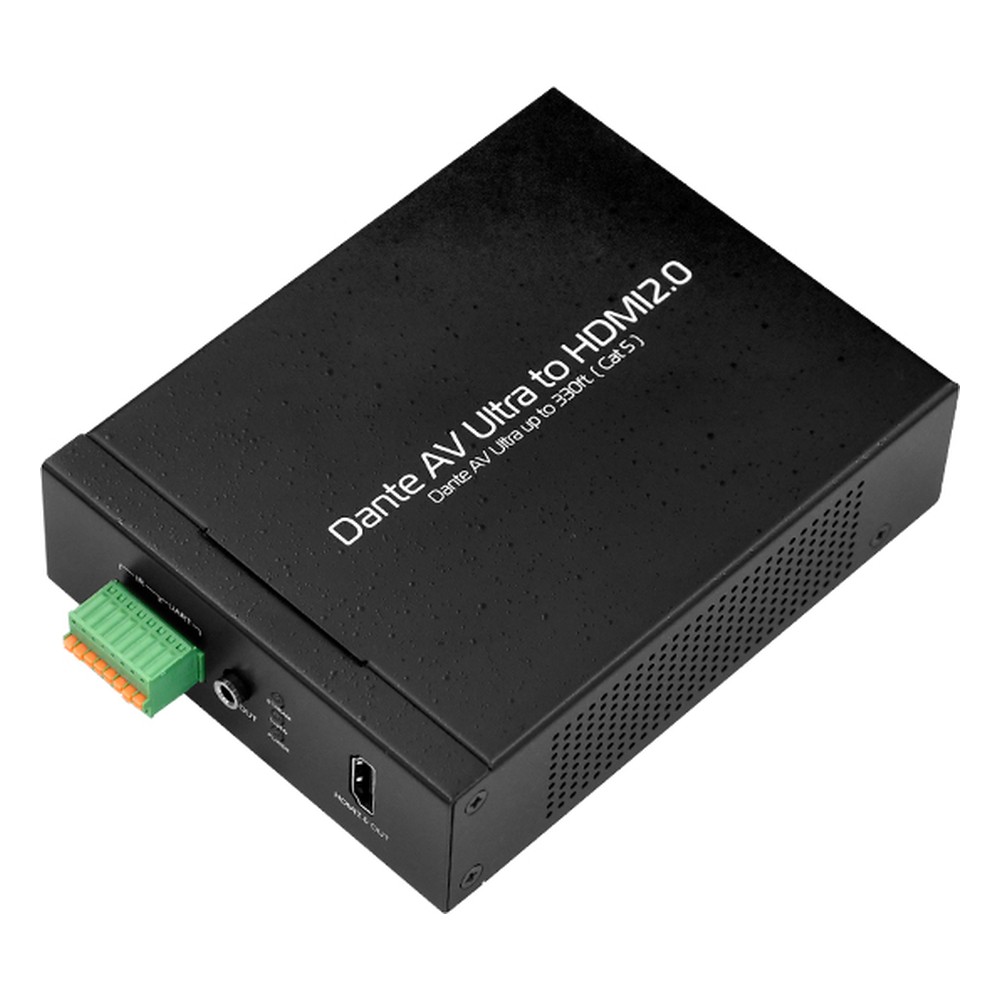

Dante AV Ultra Yuan Encoders and Decoders
An HDMI 2.0 transmitter and receiver pair for 4K60 Dante AV Ultra, with eight channels of 24-bit audio and PoE.

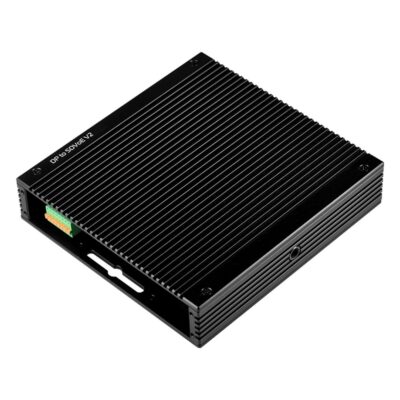

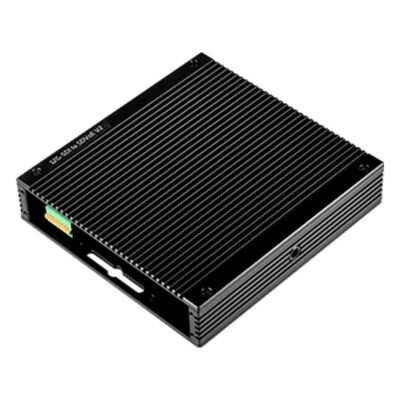

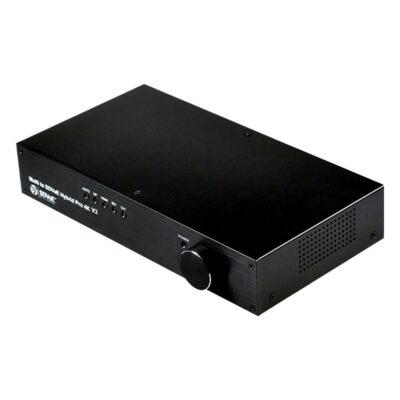

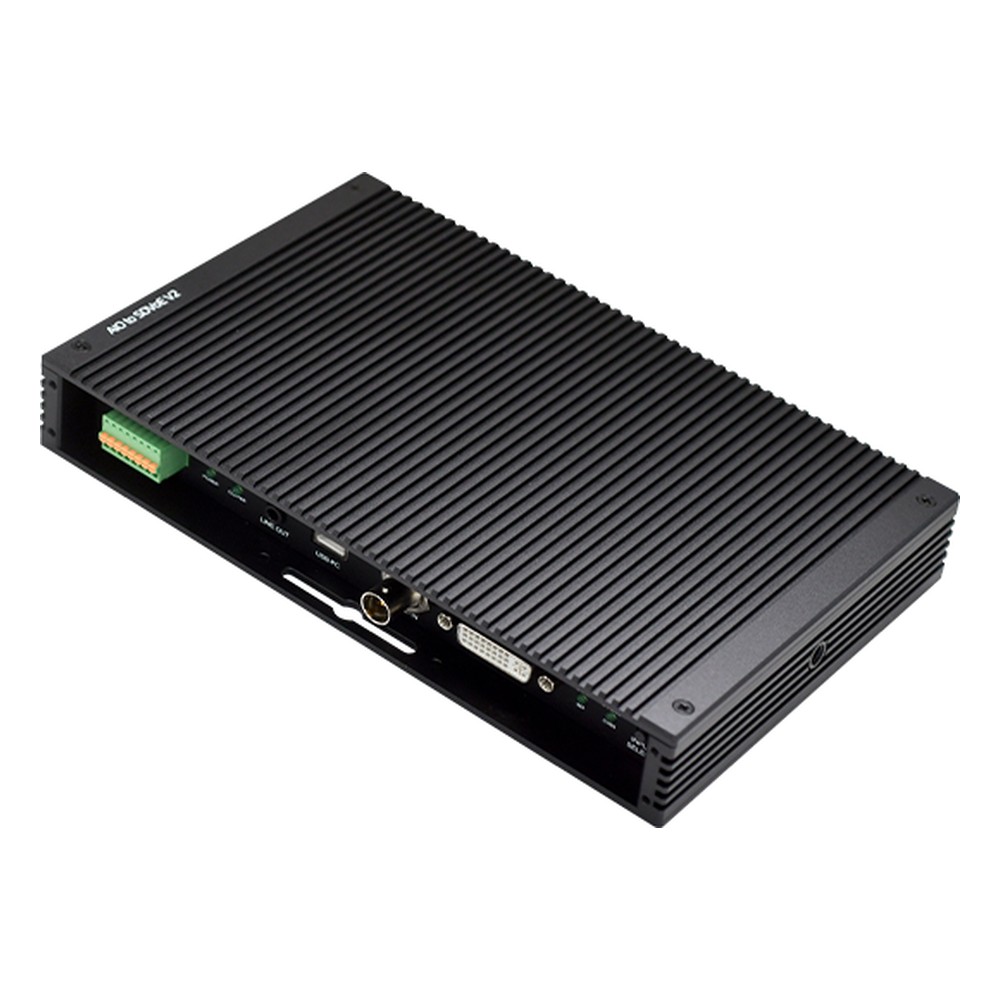

V2 Yuan SDVoE Transmitters and Receivers
12G-SDI, HDMI 2.0, DisplayPort and multi-input units that switch between 10G copper and SFP+ fiber, with PoE and USB, IR, RS232 and audio extension.

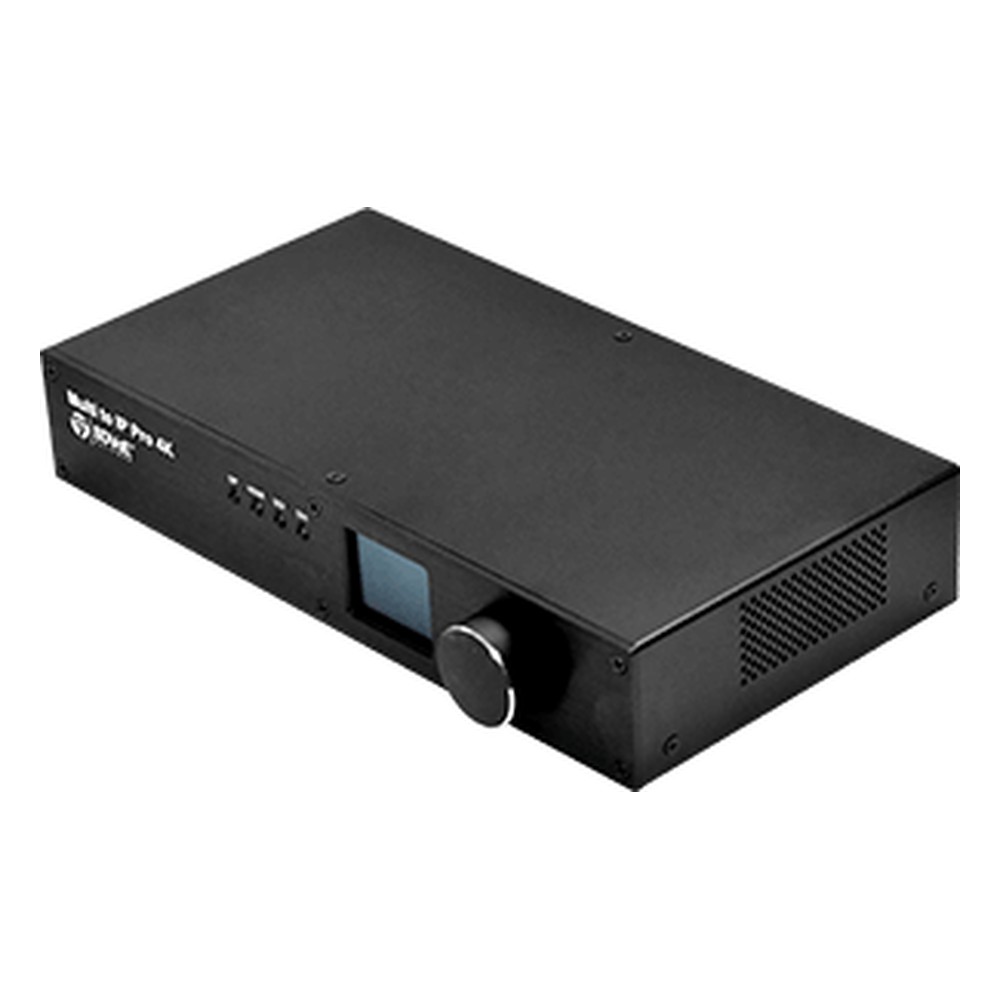

Multi Pro 4K Yuan Multi-Format SDVoE Units
Transmitters for HDMI 2.0, DisplayPort, dual-link DVI and quad-link 12G-SDI sources, and receivers with HDMI, DisplayPort and 12G-SDI outputs together.

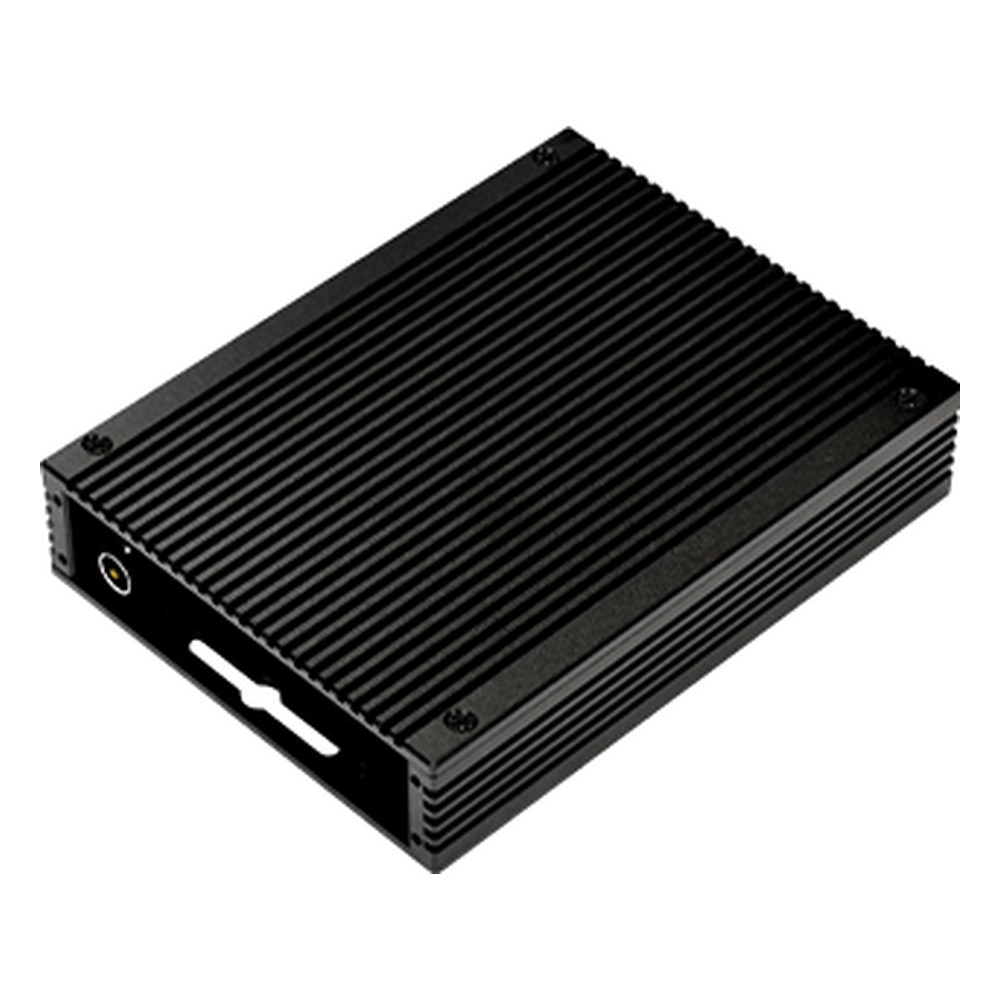

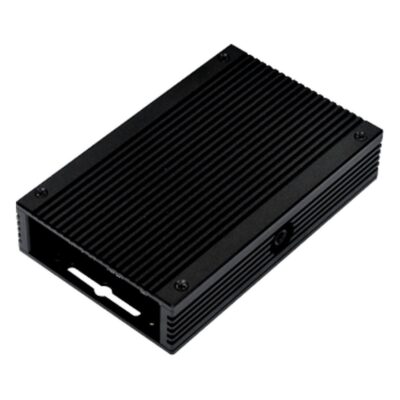

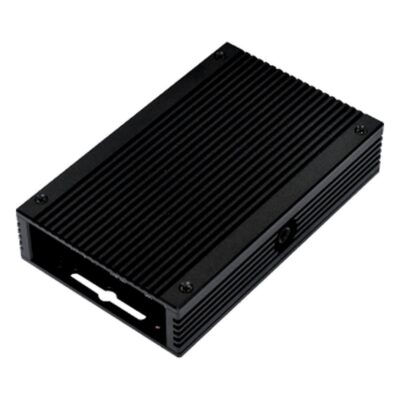

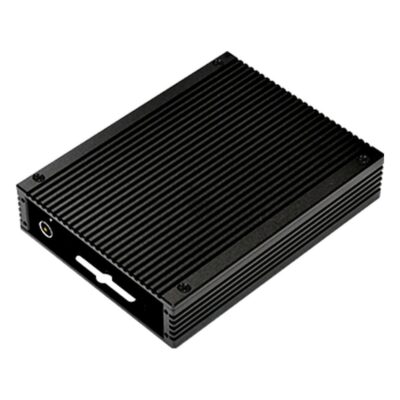

SDVoE-C and SDVoE-F Yuan Single-Format Transmitters and Receivers
12G-SDI and HDMI 2.0 units built for RJ45 copper (-C) or SFP+ fiber (-F), with RS232, IR and USB extension.

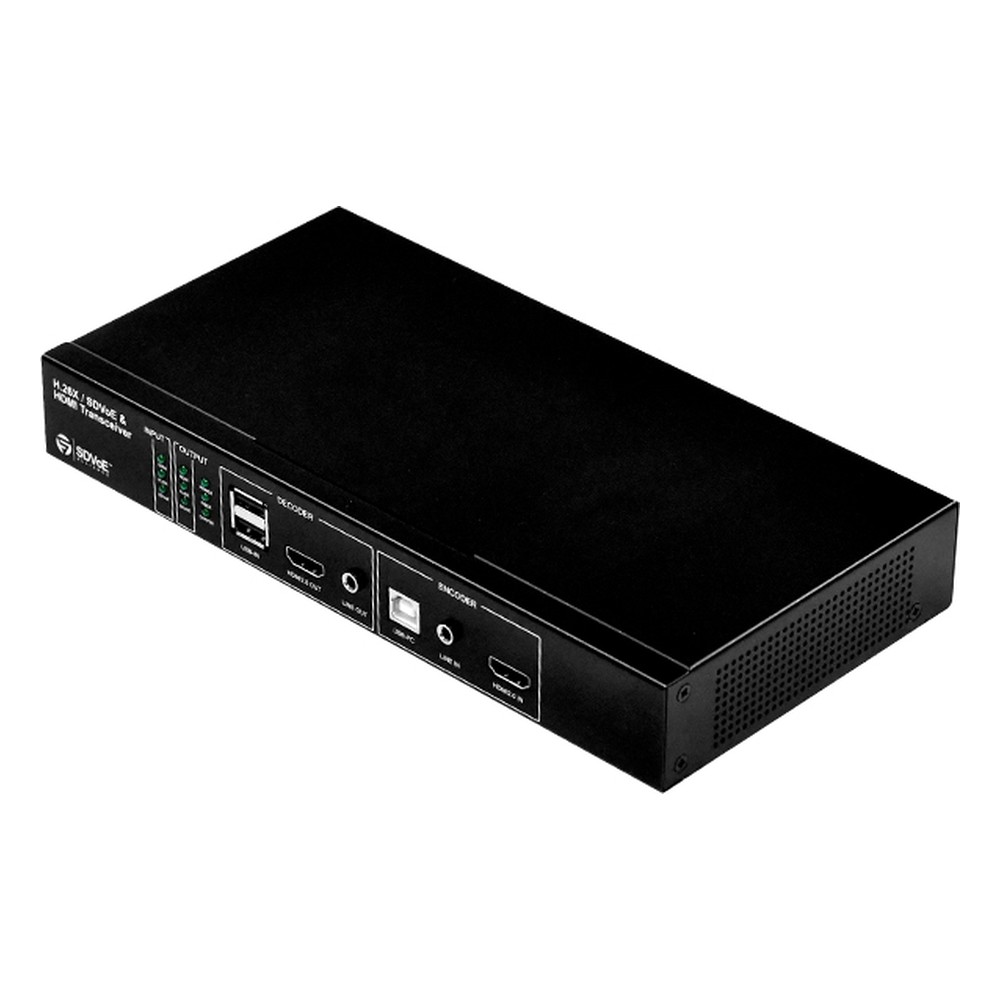

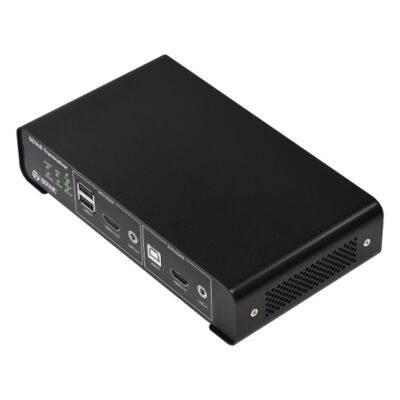

Yuan SDVoE Transceivers
Units that switch between transmit and receive with an HDMI 2.0 loop-out, including one that bridges SDVoE to H.26X and NDI streams.

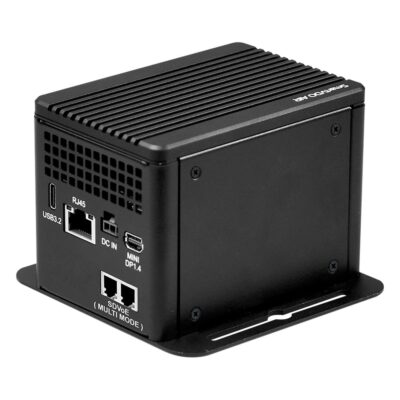

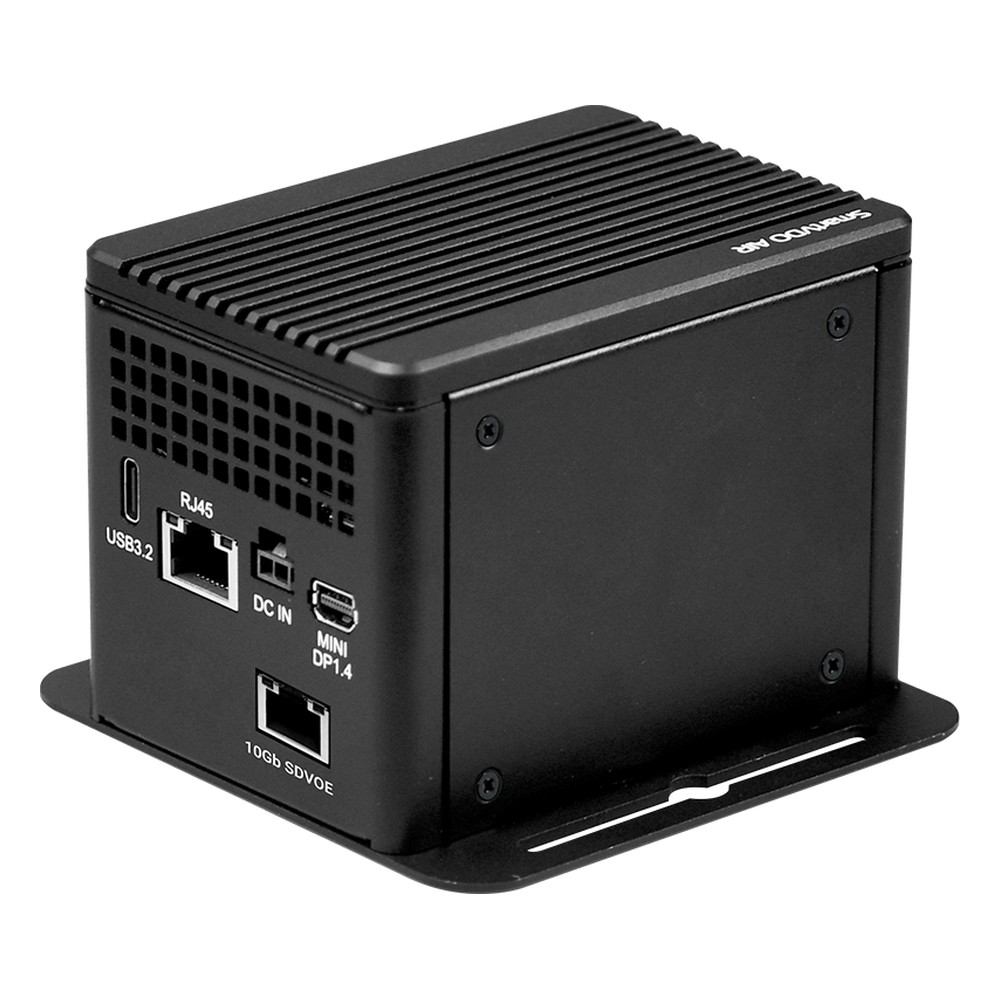

AIR6N0-C Yuan SDVoE Edge AI Computers
NVIDIA Jetson Orin NX Super computers that take an SDVoE stream on 10G copper or multi-mode fiber and run AI on the live video.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Networked Video System
Our AV over IP specialists specify every system against the sources, the screens and the network that joins them. These are the choices we work through with you before recommending a unit.
Protocol
NDI and H.26X streams suit standard Gigabit networks; SDVoE needs 10G switching for visually lossless, very low latency video; Dante AV joins existing Dante audio systems.
Video Interfaces
HDMI 2.0, 12G-SDI down to SD-SDI, DisplayPort, DVI or analogue: match each unit to its source or screen.
Resolution and Channels
Single-channel units run at up to 4K60; four-channel encoders combine their inputs into a multiview or program output.
Copper or Fiber
Gigabit RJ45 carries compressed streams; SDVoE units use 10G copper or SFP+ fiber, and fiber covers the longer runs between rooms and buildings.
PoE Power
Many units take power from the switch, so one cable carries video, control and power; others run from a local DC supply.
Control and Software
Web interfaces, RS232, IR and USB extension on selected units, and SDKs where you build your own application.

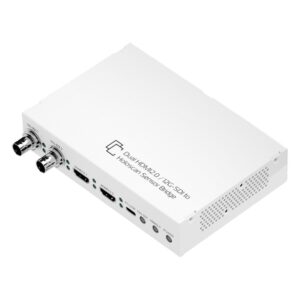

Explore Video Conversion, Capture and Holoscan
Move from video over the network to the converters, capture cards and sensor bridges that sit at either end of it.
AV Over IP Innovation & Control Room Insights
Speak to an AV Over IP Specialist.
Tell us the sources and displays you need to connect, the network they share and the protocol your system uses. We will recommend the right encoders, decoders and network ports, then configure and test them before they ship.
