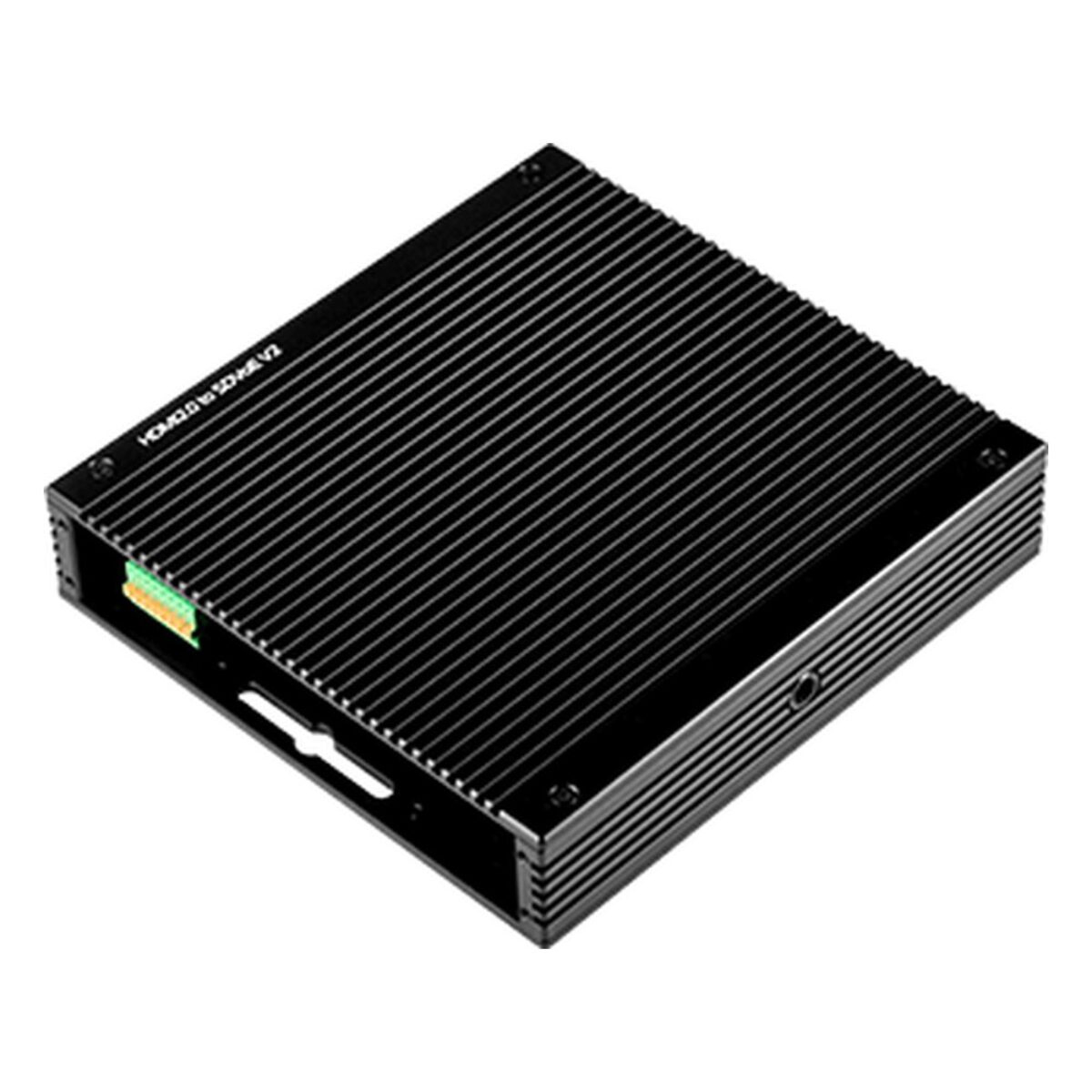

Yuan HDMI2.0 to SDVoE V2 HDMI 2.0 SDVoE Transmitter with Copper or Fiber Output and PoE at 4K60
HDMI2.0 to SDVoE V2 Overview
When PCs, media players and HDMI cameras sit in a rack or edit room and the screens are elsewhere, the signal has to cross the building without losing quality. The HDMI2.0 to SDVoE V2 is Yuan’s HDMI 2.0 SDVoE transmitter for the source end: it takes one HDMI 2.0 input up to 4K60 and puts it onto a 10G Ethernet network as SDVoE. Yuan describes SDVoE as lossless and zero-latency, which typically suits pro AV and live production work.
The input accepts resolutions from 4096 x 2160 and 3840 x 2160 at up to 60 fps, through 1080p, 1080i and 720p, to PC resolutions such as 1280 x 1024 and 1024 x 768 and SD at 480i and 576i. The SDVoE output is a single port that works over RJ45 copper or SFP+ fiber, with the transfer mode selectable, so the same unit fits either kind of cable. Analog L/R audio travels both ways through a stereo phone jack, and IR and RS232 share the link for control.
A separate RJ45 port handles control. A USB port connects to the source PC, extending USB HID devices by default, with USB 2.0 as an option. Power comes from PoE (PD) on the 10G or 1G RJ45 port or from a 7.5 to 15 V DC input, inside a rugged case. At the display end, the SDVoE to HDMI2.0 V2 is the matching V2 receiver. For a fixed cable type without PoE, the HDMI2.0 to SDVoE-F and HDMI2.0 to SDVoE-C are the fiber and copper versions.
Yuan does not publish operating temperature, certification or mounting details for the HDMI2.0 to SDVoE V2, so we check those against your installation. We supply the HDMI2.0 to SDVoE V2 configured and tested with the sources, displays and network it will connect to.
HDMI2.0 to SDVoE V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan HDMI2.0 to SDVoE V2 |
| Features | PoE Powered |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] [PoE-PD] | |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x RJ45 (10G) 1x SFP+ (10G) |
| Streaming Protocols | SDVoE |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC PoE Powered Device (PD) [RJ45] |
| Mechanical Properties | |
| Dimensions | 152mm x 146mm x 33mm (5.98" x 5.75" x 1.30") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the HDMI2.0 to SDVoE V2 configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDVoE to HDMI2.0 V2 is the V2 receiver for the other end of the link, and the HDMI2.0 to SDVoE-C is a copper-only HDMI 2.0 transmitter without PoE.
Across our range, the HDMI2.0 to SDVoE V2 sits with our SDVoE transmitters, our AV over IP encoders, decoders and extenders and our SDVoE capture cards for PC-based capture.
