US Rack Mount Industrial Switches
Rackmount Switches for Control Rooms and Network Cabinets
A rack mount industrial switch brings a large number of ports into a standard 19-inch rack, for the control room, the substation cabinet or the network core of an industrial site. The range runs from unmanaged gigabit switches to managed Layer 3 units with dense SFP fiber and 10G SFP+ uplinks.
Options include up to 24 PoE+ ports, single, dual or mixed AC and DC power supplies, ERPS ring redundancy and -40 °C builds, suited to plants, utilities and campuses where many field cabinets and cameras meet in one rack.
Speak to an industrial networking specialist to size the ports, uplinks and power for your rack.
Browse Our Rackmount Switches
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 8x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 16x 100/1000 [SFP], 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 36-60V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- IP Rating: IP30
- Certification: EN62368-1, CE, EMC, FCC, LVD
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [PoE++] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE++ 90W [802.3bt]
- Fiber: 24x 1G [SFP], 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA
- Temp: -40°C to 75°C [-40°F to 167°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+], 8x 1G [SFP]
- Fiber Connectors: SFP
- Power: 12-55V DC [Terminal Block]
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -10°C to 65°C [14°F to 149°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+], 8x 1G [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -10°C to 65°C [14°F to 149°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 12-55V DC [Terminal Block]
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -10°C to 65°C [14°F to 149°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -10°C to 65°C [14°F to 149°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45], 2x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP40
- Certification: CE, FCC, UL 61010-1
- Temp: -40°C to 75°C [-40°F to 167°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 24x 1G [SFP], 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 12-48V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA
- Temp: -40°C to 75°C [-40°F to 167°F]
-

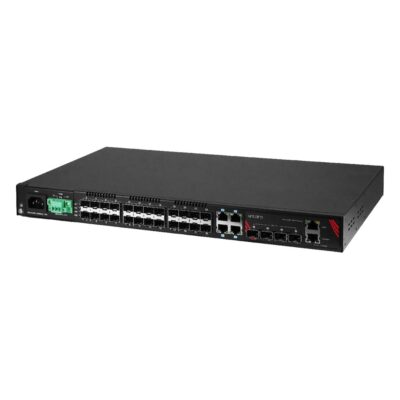

LMX-3228G-10G-SFP-AD
LMX-3228G-10G-SFP-AD with 24x SFP, 4x 10G SFP+, 4x RJ45 and AC plus -48 V DC -
LMX-3228G-10G-SFP-AA
LMX-3228G-10G-SFP-AA with 24x SFP, 4x 10G SFP+, 4x RJ45 and dual AC supplies -
LMX-3228G-10G-SFP-AC
LMX-3228G-10G-SFP-AC with 24x SFP, 4x 10G SFP+, 4x RJ45 and single AC supply -
LMX-3228G-10G-SFP-DC
LMX-3228G-10G-SFP-DC with 24x SFP, 4x 10G SFP+, 4x RJ45 and single -48 V DC supply -
LMX-3228G-10G-SFP-DD
LMX-3228G-10G-SFP-DD with 24x SFP, 4x 10G SFP+, 4x RJ45 and dual -48 V DC supplies
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 4x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 24x 100/1000 [SFP], 4x 1G/10G [SFP+]
- Fiber Connectors: SFP
- Temp: 0°C to 50°C [32°F to 122°F]
- Power: 100-240V AC, 18-60V DC [Terminal Block]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 16x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 4x 1G/2.5G/10G [SFP+], 8x 1G [SFP]
- Fiber Connectors: SFP
- Power: 12-48V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -40°C to 75°C [-40°F to 167°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 4x 1G/2.5G/10G [SFP+]
- Fiber Connectors: SFP
- Power: 12-48V DC, Terminal Block
- IP Rating: IP30
- Certification: CE, FCC, NDAA, RoHS, TAA, UL 61010-1, UL Class 1 Division 2
- Temp: -10°C to 65°C [14°F to 149°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Managed
- Ethernet: 24x 10/100/1000 BASE-TX [RJ45], 2x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 90-264V AC
- IP Rating: IP40
- Certification: CE, FCC, RoHS
- Temp: -40°C to 75°C [-40°F to 167°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Unmanaged
- Ethernet: 24x 10/100/1000 BASE-TX [PoE+] [RJ45], 2x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- PoE Standard: PoE+ 30W [802.3at]
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 48-55V DC, Terminal Block
- IP Rating: IP40
- Certification: CE, FCC, RoHS, UL 61010-1
- Temp: -40°C to 75°C [-40°F to 167°F]
- Mounting Options: 19" Rack Mount
- Switch Type: Unmanaged
- Ethernet: 24x 10/100/1000 BASE-TX [RJ45], 2x 10/100/1000 BASE-TX [RJ45]
- Ethernet Connectors: RJ45
- Fiber: 2x 100/1000 [SFP]
- Fiber Connectors: SFP
- Power: 100-240V AC
- IP Rating: IP40
- Certification: CE, FCC
- Temp: -10°C to 65°C [14°F to 149°F]
Rack Mount Industrial Switch Ranges Supplied by Things Embedded
We work with a leading manufacturer of rackmount industrial switches, so the ranges below are the ones we specify for control rooms and network cabinets. Compare port counts, PoE and uplinks, then browse the models above or ask an industrial networking specialist which suits your site.

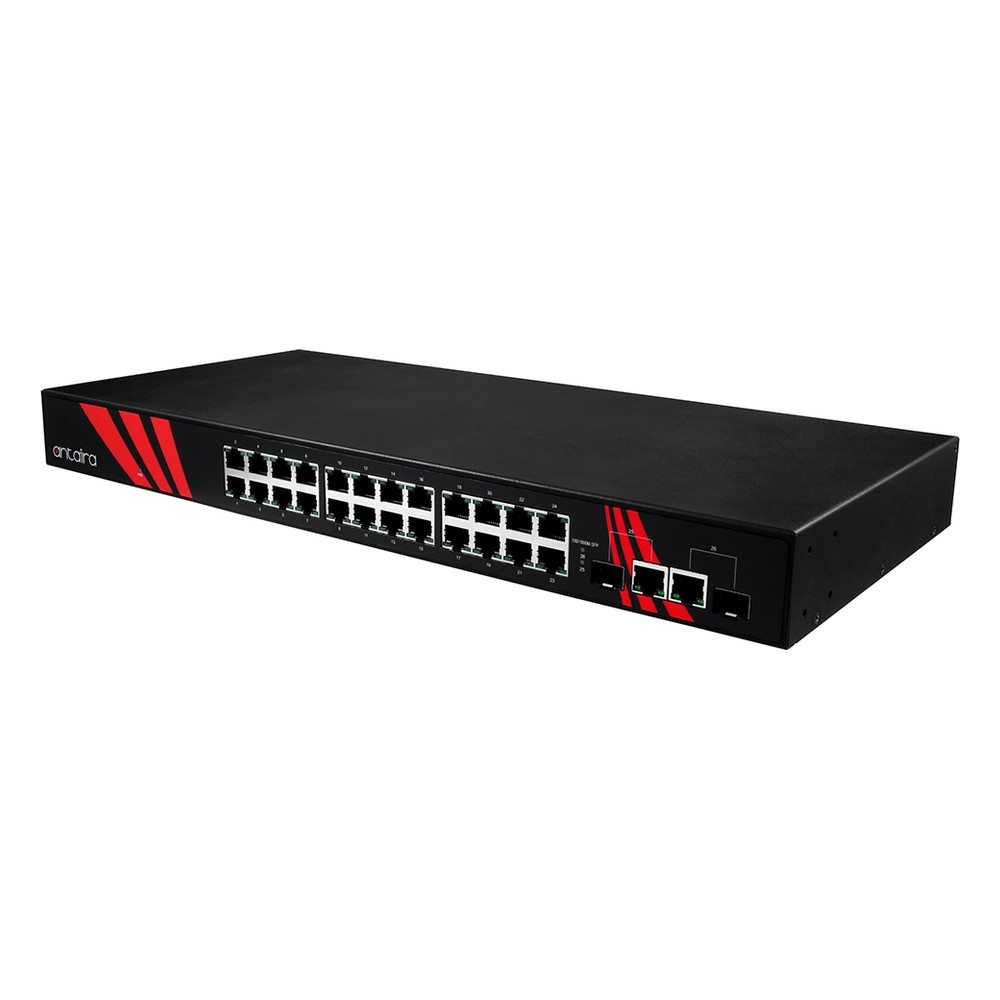

LNX and LNP Unmanaged Rackmount Switches
Unmanaged gigabit rackmount switches with two combo uplinks, and 24 PoE+ ports on the LNP model.

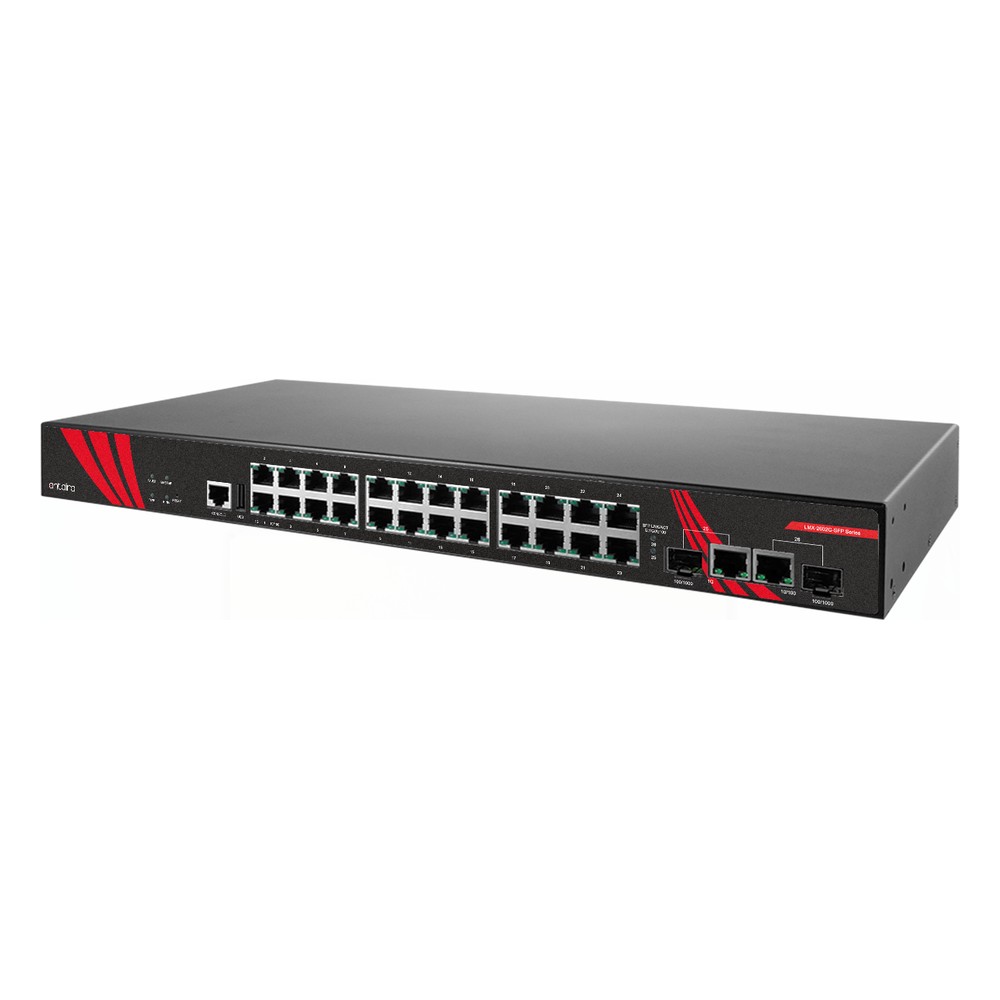

LMX Managed Rackmount Switches
Managed rackmount switches with dense SFP fiber, 10G SFP+ uplinks, Layer 3 routing on selected series and AC or DC power.
LMP and QMP Managed PoE+ Rackmount Switches
Managed PoE+ and PoE++ rackmount switches with budgets up to 720 W, SFP and 10G SFP+ uplinks.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Rackmount Switch
Our industrial networking specialists check these points with you before recommending a rack mount switch.
Port Count and Mix
Copper, SFP and combo ports in the mix your field cabinets and servers need.
10G Uplinks
10G SFP+ uplinks link the rack to the core or to other rings at full speed.
PoE Budget
Up to 24 PoE+ ports and a 720 W budget for cameras and access points.
AC or DC Power
Single, dual or mixed AC and DC power supplies to suit the rack and its backup supply.
